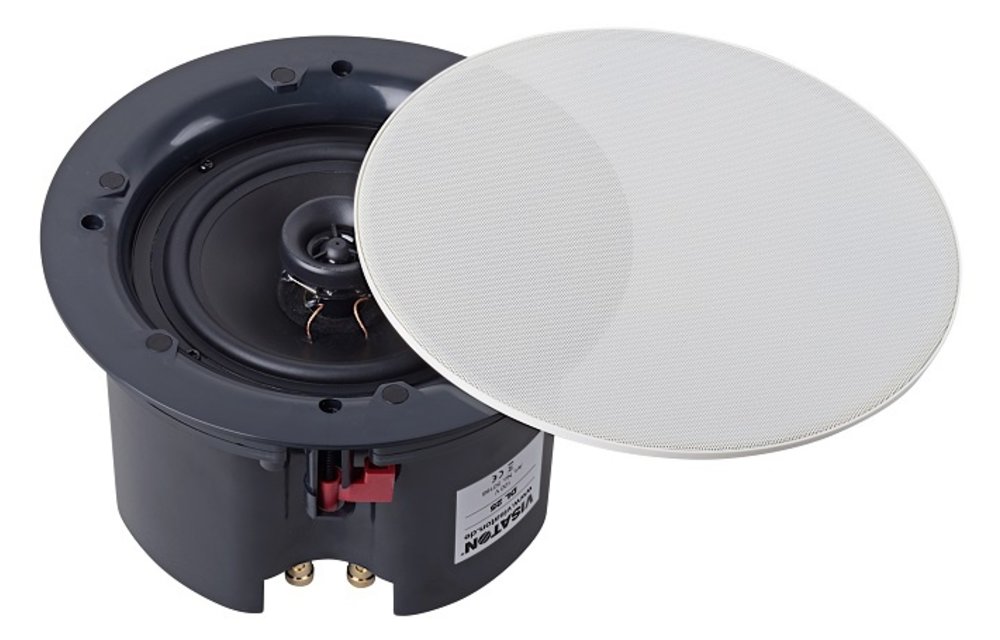

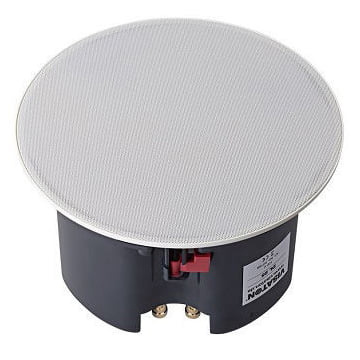

25 cm (10") ceiling speaker equipped with a 13 cm coaxial driver.

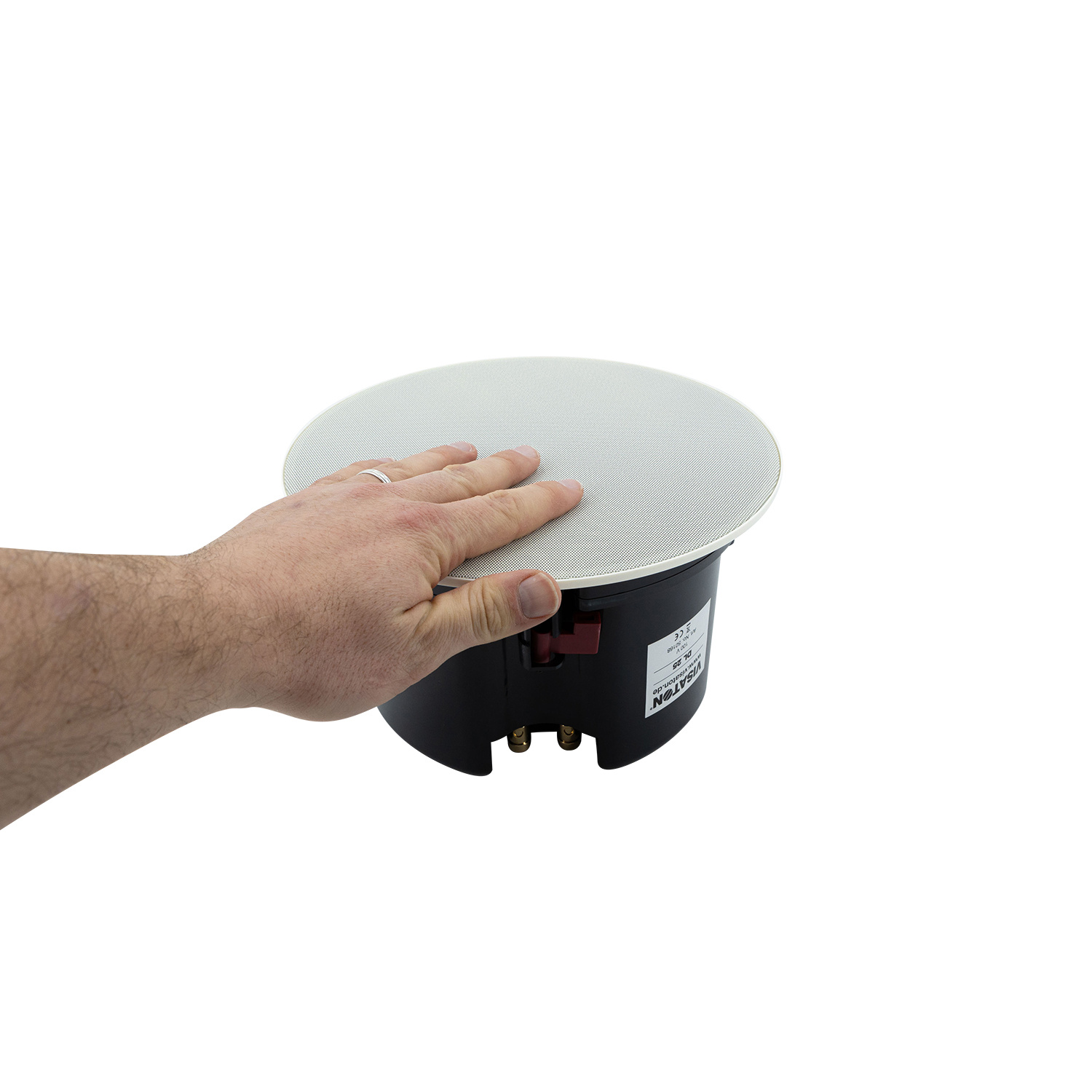

Visaton DL 25 10" 100V Ceiling Speaker 8 Ohm

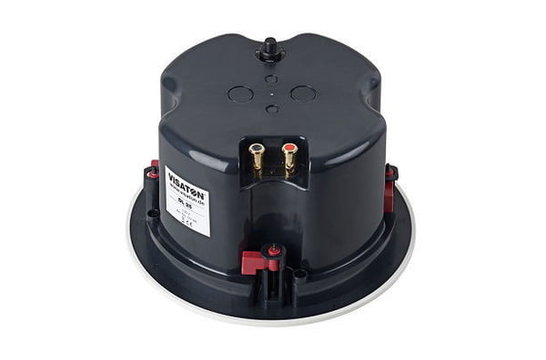

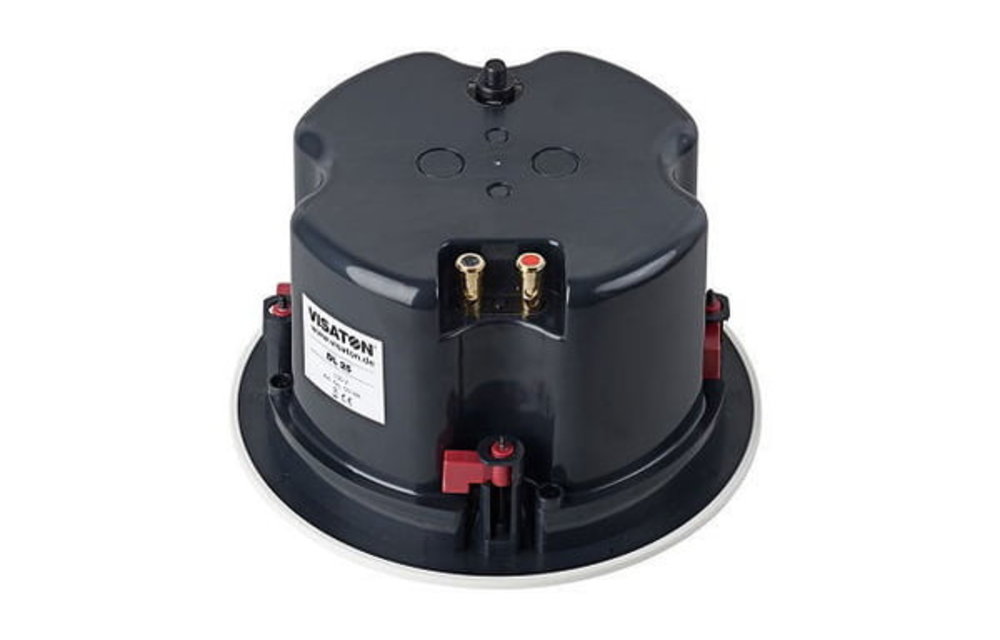

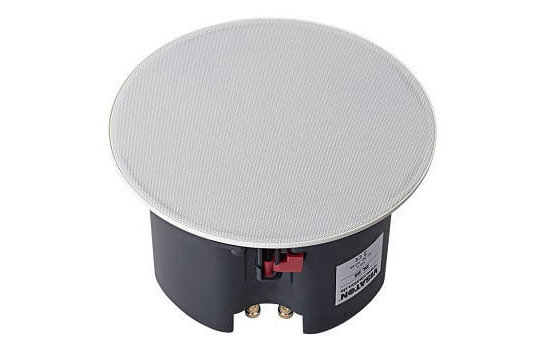

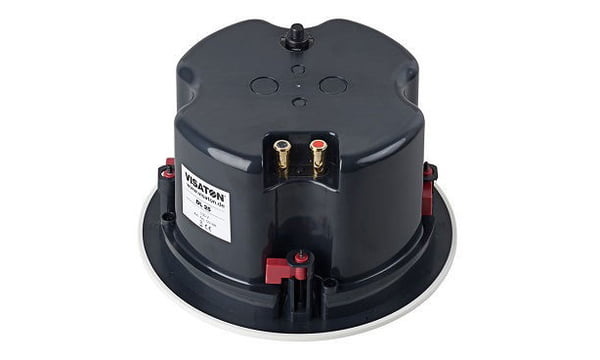

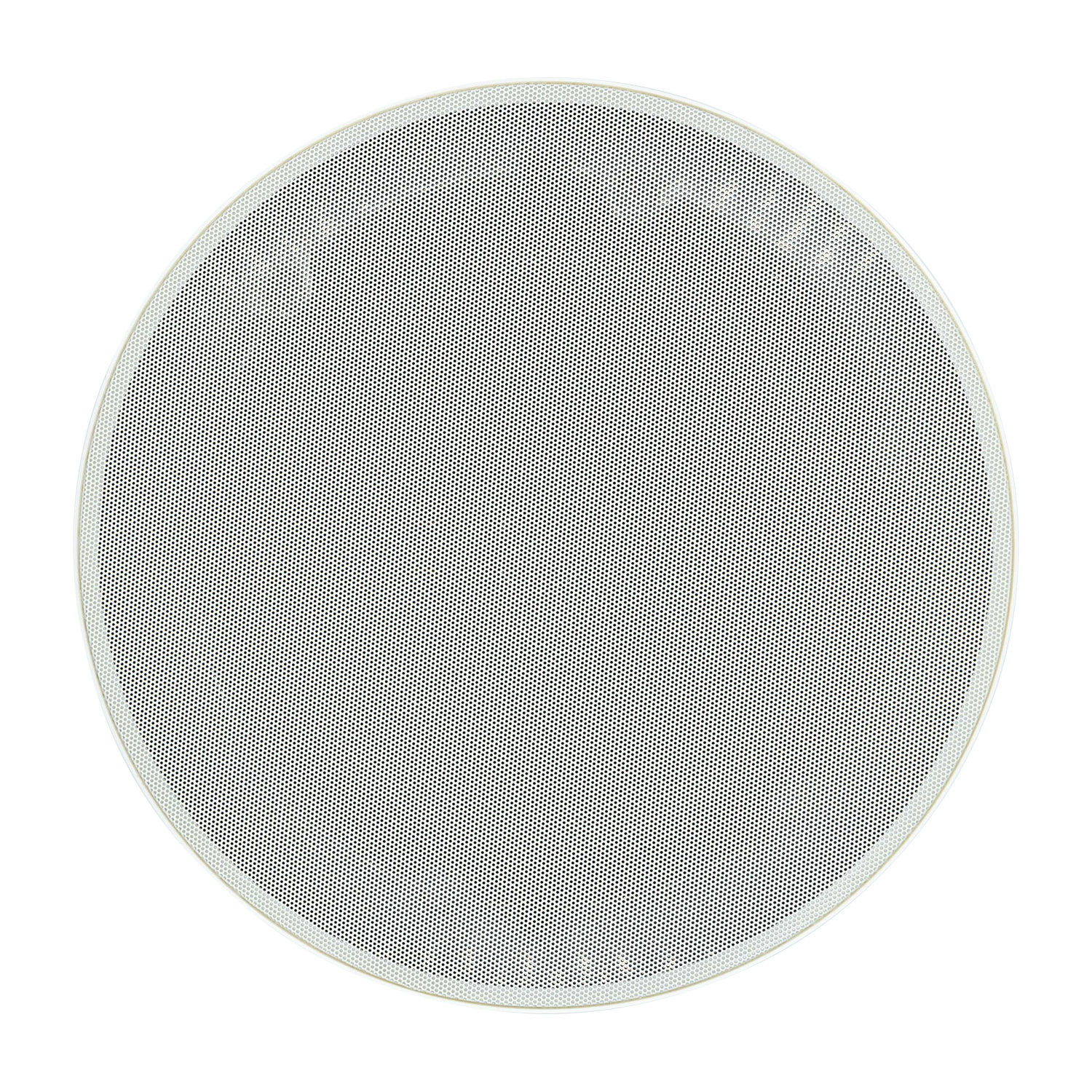

This ceiling speaker has four mounting clamps which make it easy and quick to install. The magnetic grilles covers the loudspeaker completely and can be removed with a simple step. Thanks to the 8 Ohm and 100 V taps, the ceiling speaker is versatile.
PRODUCT SPECIFICATIONS
Rated power | 20 watts |
Maximum power | 30 watts |
Nominal impedance Z | 8 ohms |
Frequency response | 90 - 20,000 Hz |
Mean sound pressure level | 90 dB |
Opening angle (-6 dB) | 70°/ 4000 Hz |
Resonance frequency fs | 150 Hz |
Cutout diameter | 212 mm |
Net weight | 2000 g |
Transformer matching | 20; 10; 5; 2.5 W |
Sound pressure level | 96 dB (1 W/1 m) at 4114 Hz |
Max. sound pressure level | 104.7 dB (30 W/1 m) |
Colour | RAL 9010 |
Mounting depth | 150.5 mm |
Diameter | 245 mm |
Cutout diameter | 212 mm |
Temperature range | -40 - 70 °C |
