Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

€ 132,19€ 159,95 4 Auf Lager: Lieferzeit 1-3 Werktage
20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €151,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.



Highlights

  • High sensitivity
  • Fabric surround
  • Die cast aluminum basket



Product details

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

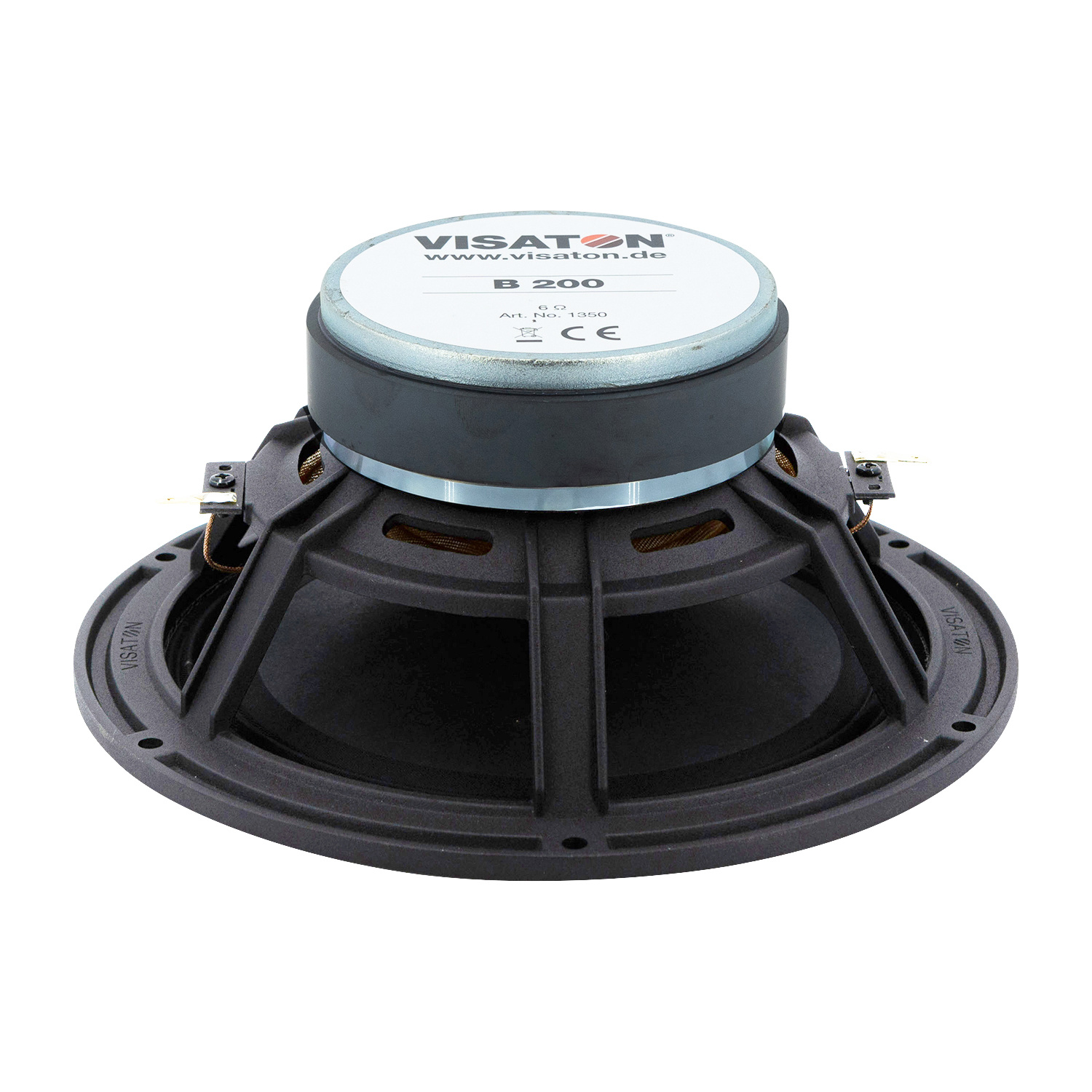

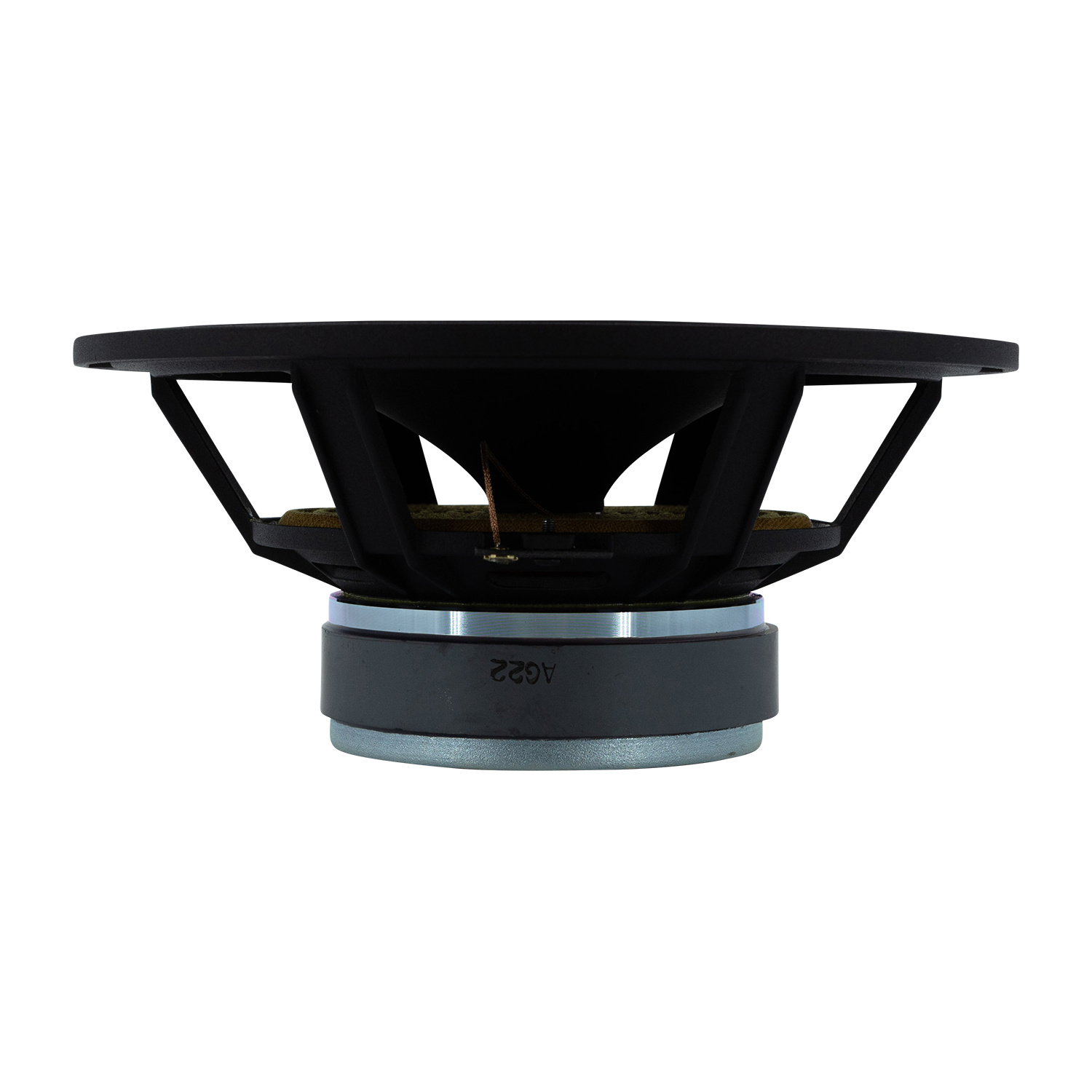

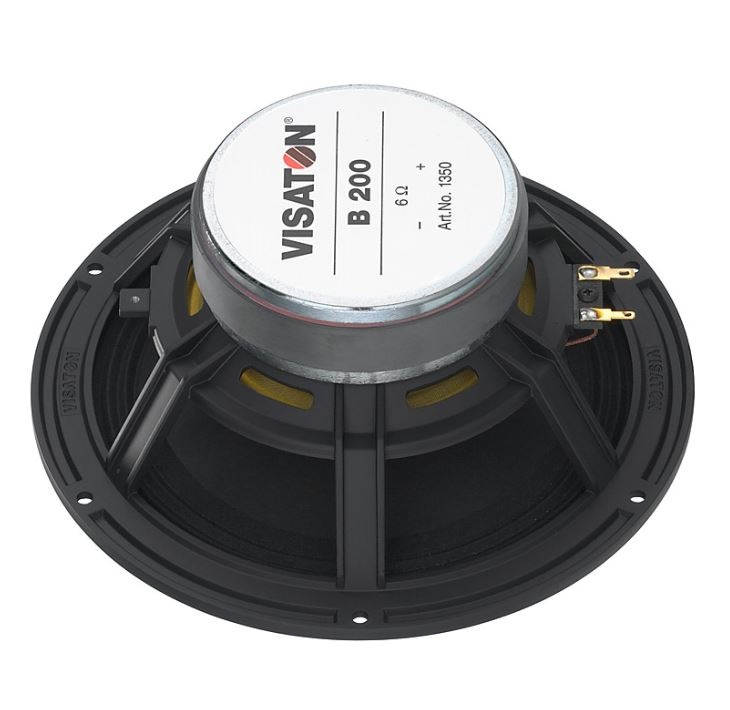

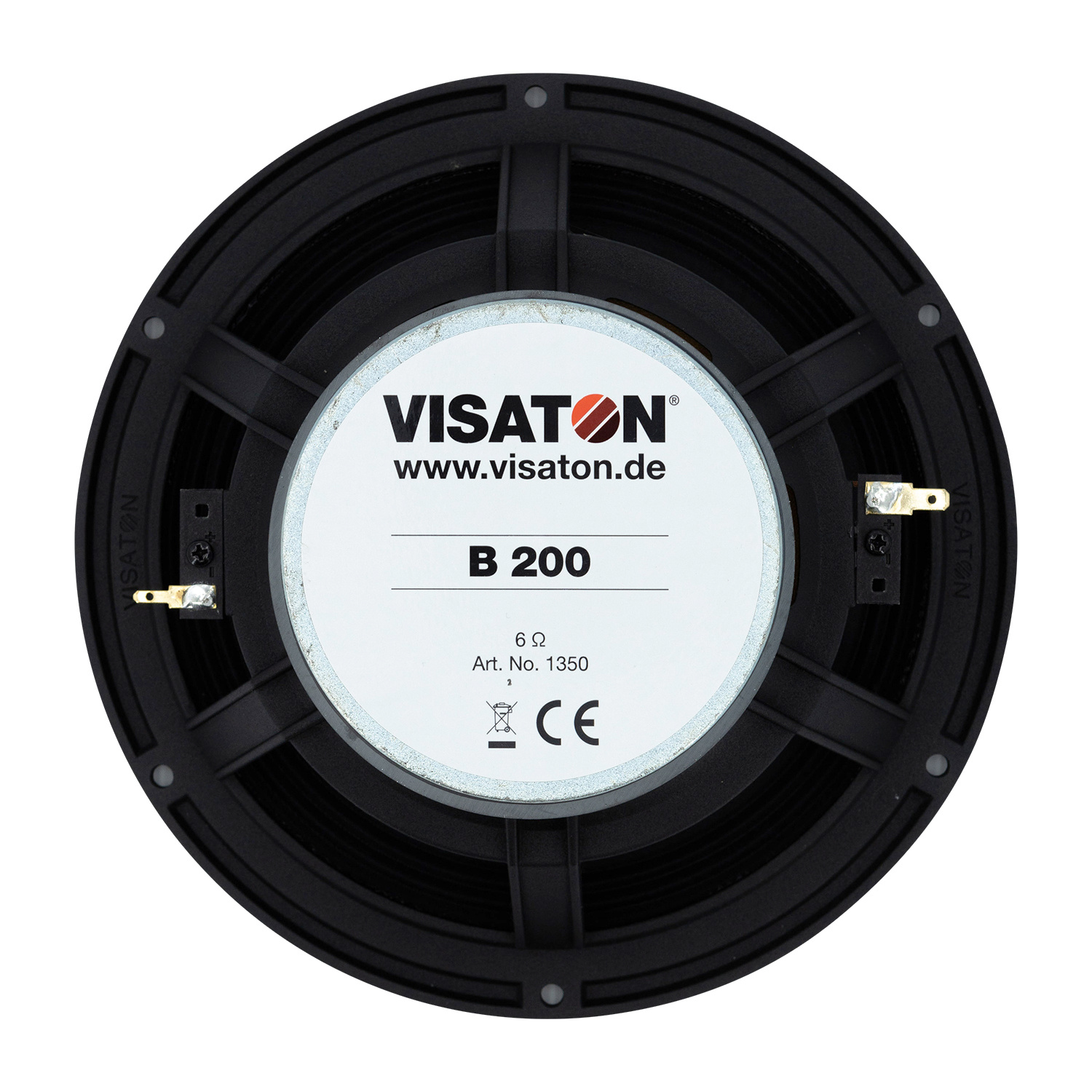

These high-end speakers stand out because of their high degree of sensitivity and extremely well-balanced frequency response free of noticeable deviations. This is achieved by using a very light-weight paper cone, a fabric surround and an optimized driver equipped with a 25 mm voice coil (aluminum wire) which makes optimum use of the magnetic field in the air gap. The Kapton voice coil carrier is vented. The sturdy aluminum diecast basket is not only optically appealing but, thanks to its rear-venting openings, ensures that physical losses are minimized. Distortion is suppressed to a very low, uniform level.



The B 200 is ideally suited to use in high-quality, powerful single-band speakers, where the cabinet design need not be restricted to classic, fully enclosed or vented cabinets, but more exotic alternatives like horns or open baffles can be used to create amazing results.

Eigenschaften

Artikelnummer:
B 200
Woofer Series
High-End
Woofer Type
Full-Range
Nominal Diameter
8"
Power Handling (RMS)
40 Watts
Power Handling (max)
70 Watts
Impedance
6 ohms
Sensitivity
96 dB (1 W/1 m)
Frequency Response
40 - 18,000 Hz
Voice Coil Diameter
25 mm
DC Resistance (Re)
5 ohms
Voice Coil Inductance (Le)
0.5 mH
Resonant Frequency (Fs)
40 Hz
Mechanical Q (Qms)
8.39
Electromagnetic Q (Qes)
0.83
Total Q (Qts)
0.75
Diaphragm Mass Inc. Airload (Mms)
9.7g
Surface Area of Cone (Sd)
214 cm2
BL Product (BL)
3.9 Tm
Compliance Equivalent Volume (Vas)
102 liters
Maximum Linear Excursion (Xmax)
3.5 mm
Cone / Diaphragm Material
Paper
Surround Material
Cloth
Voice Coil Wire Material
Aluminum
Voice Coil Former
Kapton
Basket / Frame Material
Cast Aluminum
Overall Outside Diameter
222 mm
Overall Depth
92 mm
Baffle Cutout Diameter
190 mm
Bolt Circle Diameter
210 mm
# Mounting Holes
6
Mounting Hole Diameter
5 mm

Bewertungen

2 from 5Based on 1 reviews
Produkt bewerten
2 van 5
I don't see why you should buy this driver for this kind of price. I used it in La Belle and in La Belle CR. While the big ones were great, mostly thank to great tweeter and woofers, the small ones (CR) only have a good tweeter and absolutely no bass.
Durch Tomas K on 22 März 2020
