- Artikelnummer:

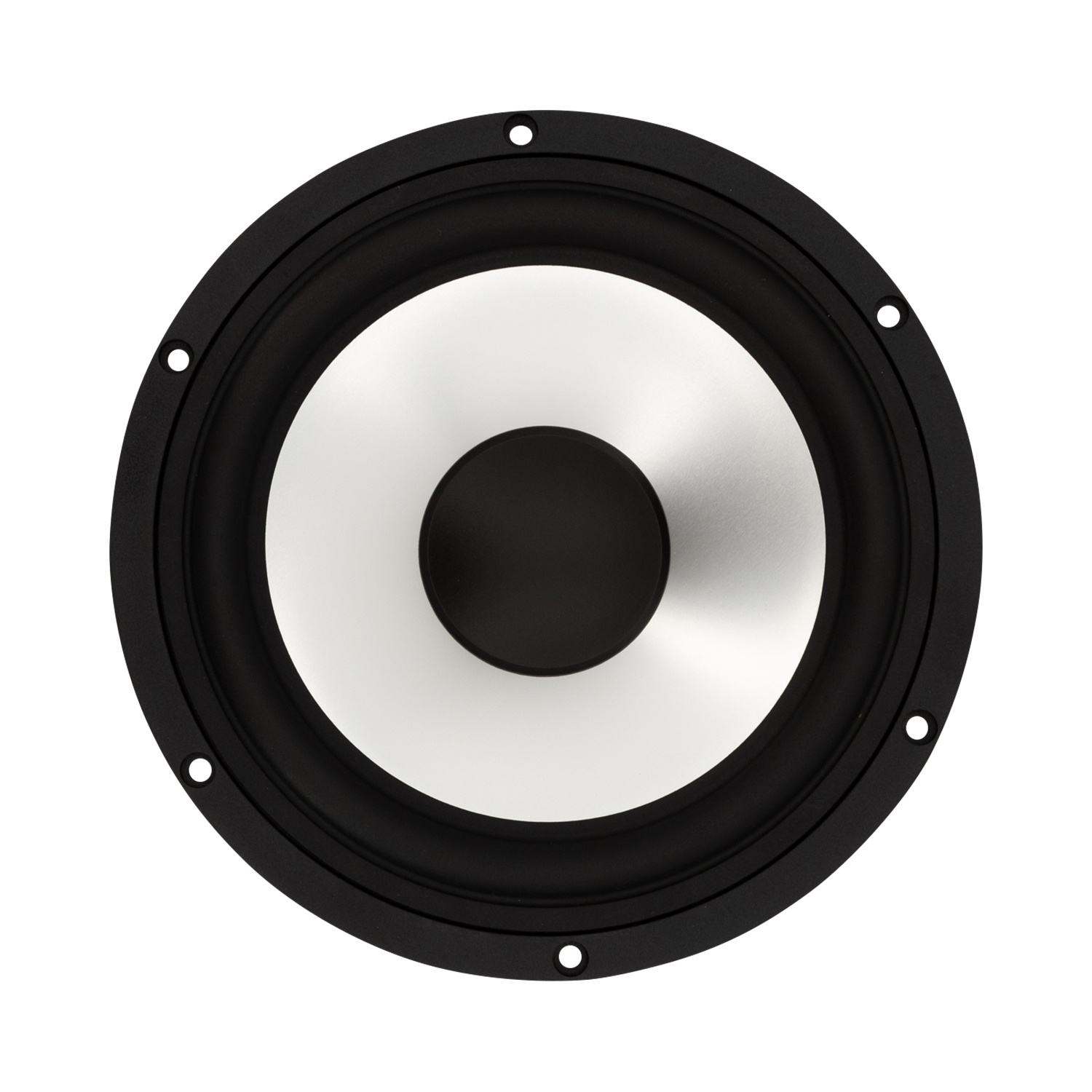

- AL 200
- Woofer Series
- High-End
- Woofer Type
- Midwoofer
- Nominal Diameter
- 8"
- Power Handling (RMS)
- 120 watts
- Power Handling (max)
- 180 watts
- Impedance
- 8 ohms
- Sensitivity
- 88 dB (1 W/1 m)
- Frequency Response
- 32 - 9,000 Hz
- Voice Coil Diameter
- 38 mm
- DC Resistance (Re)
- 6.6 ohms
- Voice Coil Inductance (Le)
- 1.2 mH
- Resonant Frequency (Fs)
- 32 Hz
- Mechanical Q (Qms)
- 3.73
- Electromagnetic Q (Qes)
- 0.39
- Total Q (Qts)
- 0.35
- Diaphragm Mass Inc. Airload (Mms)
- 21g
- Surface Area of Cone (Sd)
- 216 cm2
- BL Product (BL)
- 8.8 Tm
- Compliance Equivalent Volume (Vas)
- 77 liters
- Maximum Linear Excursion (Xmax)
- 10 mm
- Cone / Diaphragm Material
- Aluminum
- Voice Coil Former
- Kapton
- Basket / Frame Material
- Cast Aluminum
- Overall Outside Diameter
- 222 mm
- Baffle Cutout Diameter
- 190 mm
- Bolt Circle Diameter
- 210 mm
- # Mounting Holes
- 6
- Mounting Hole Diameter
- 5 mm
