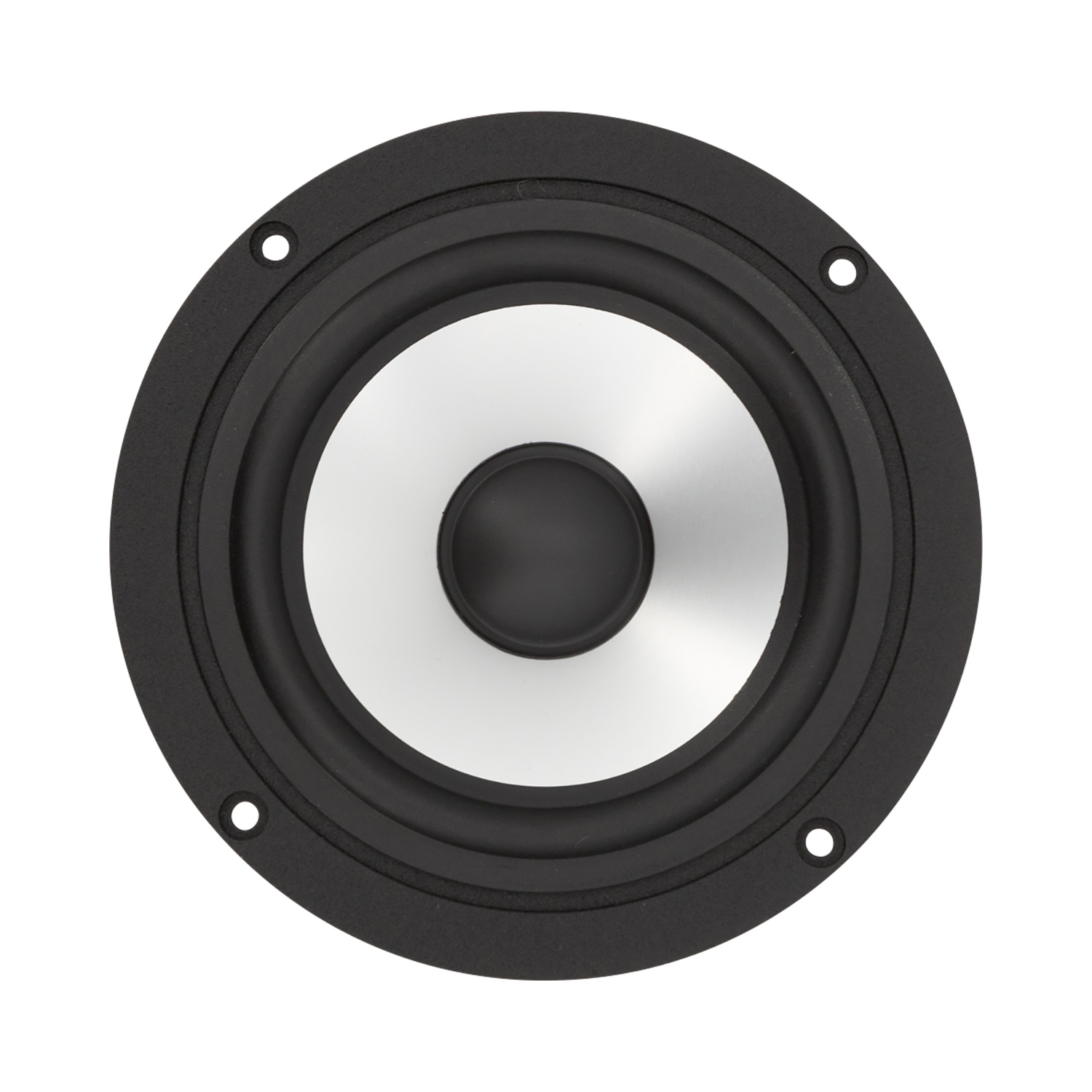

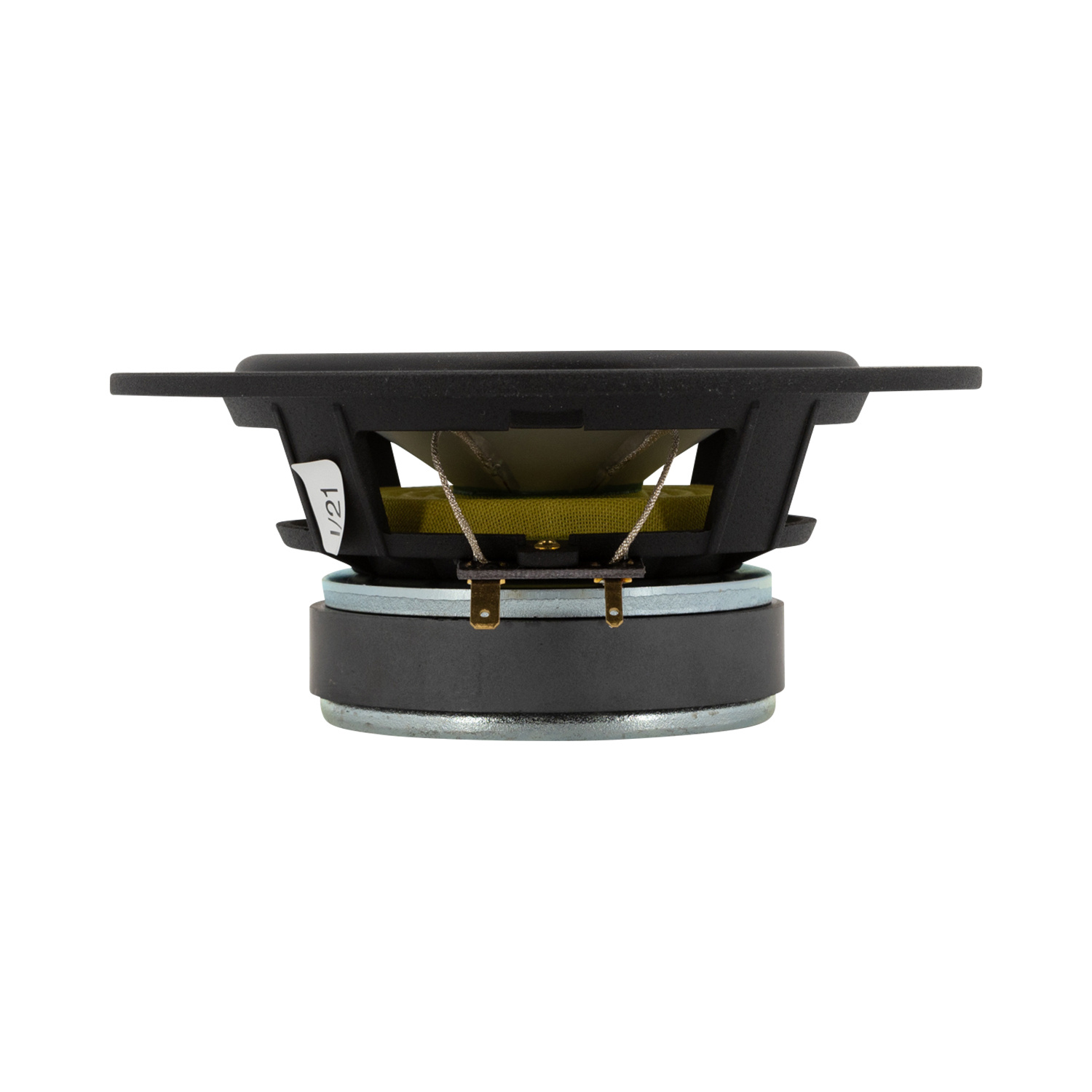

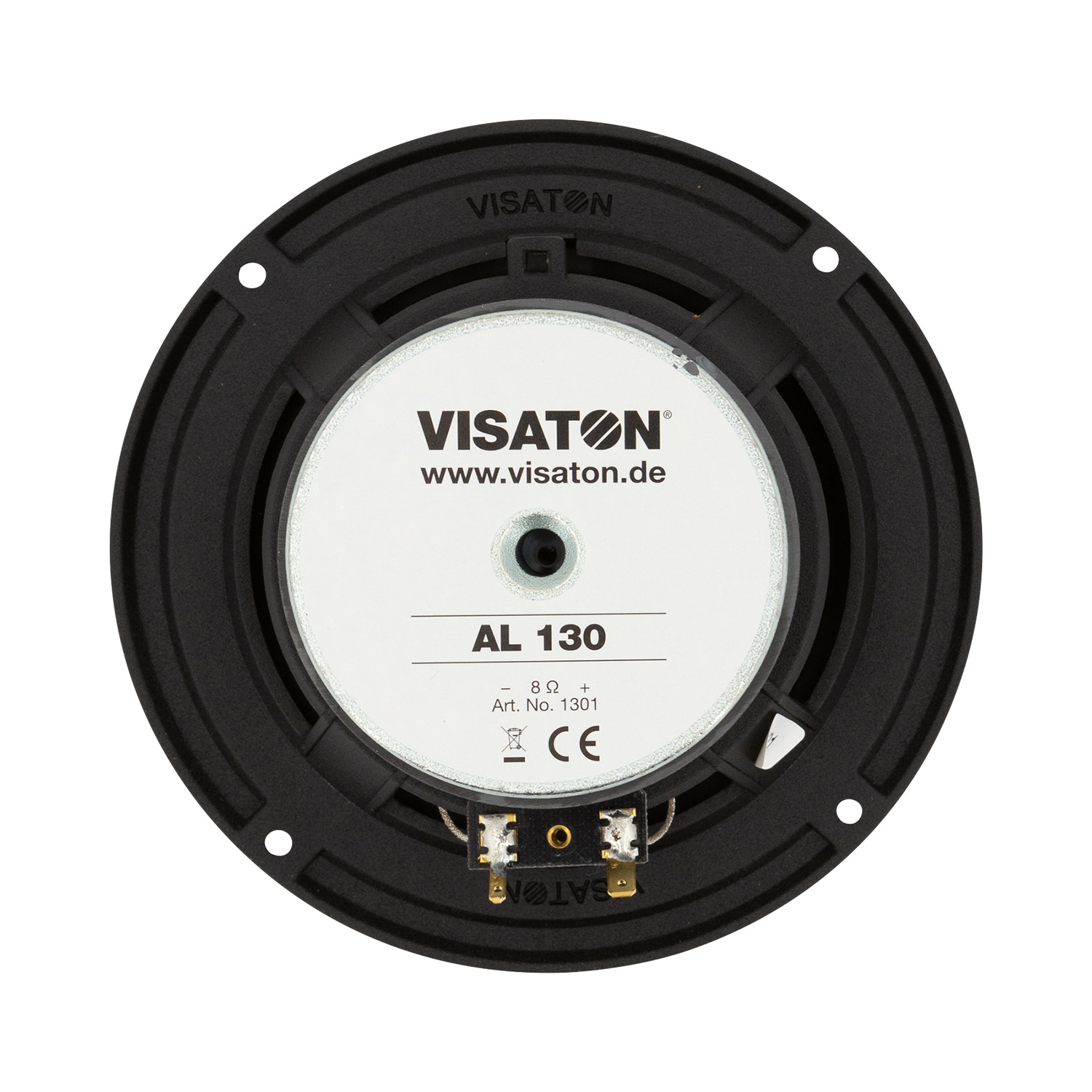

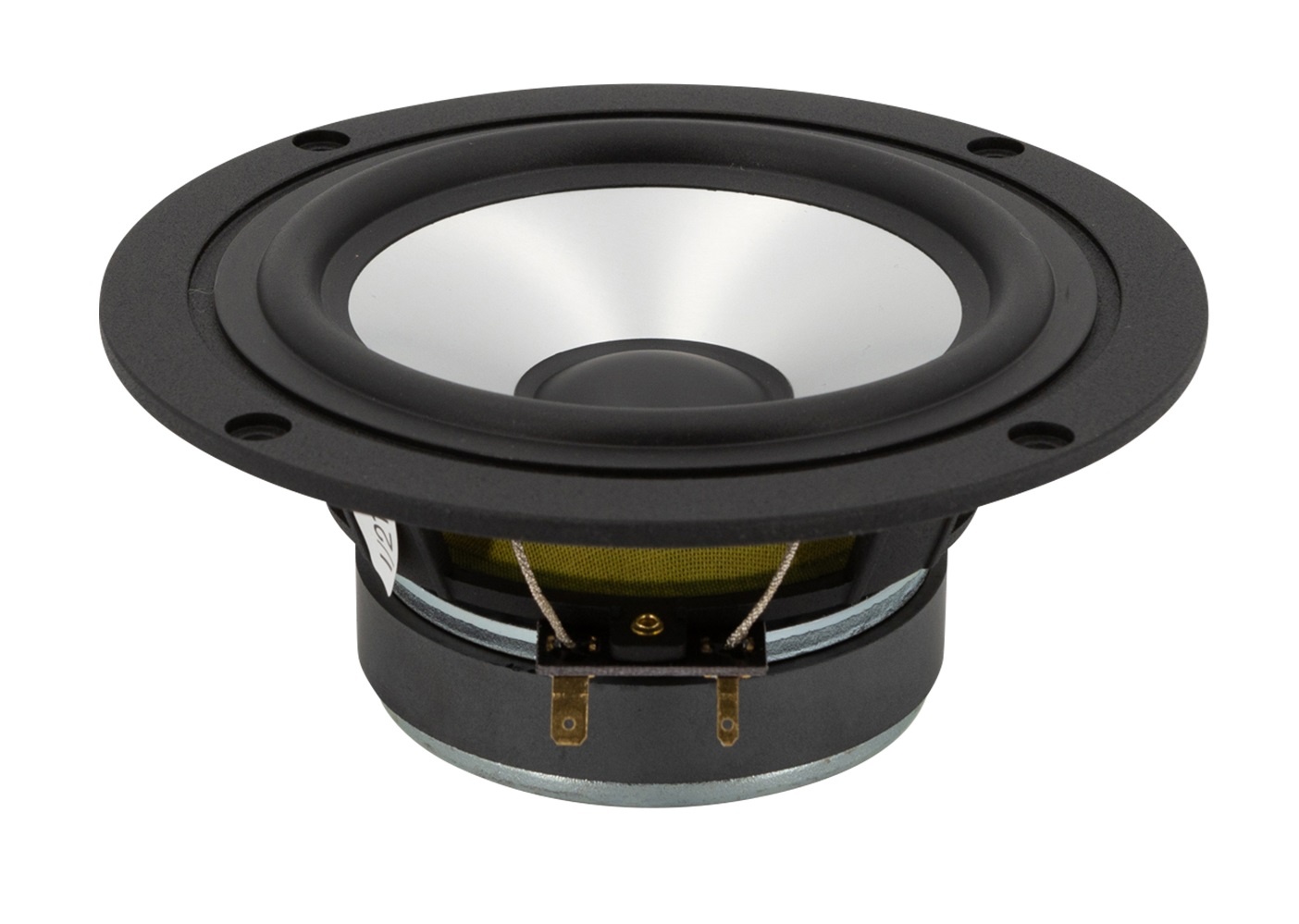

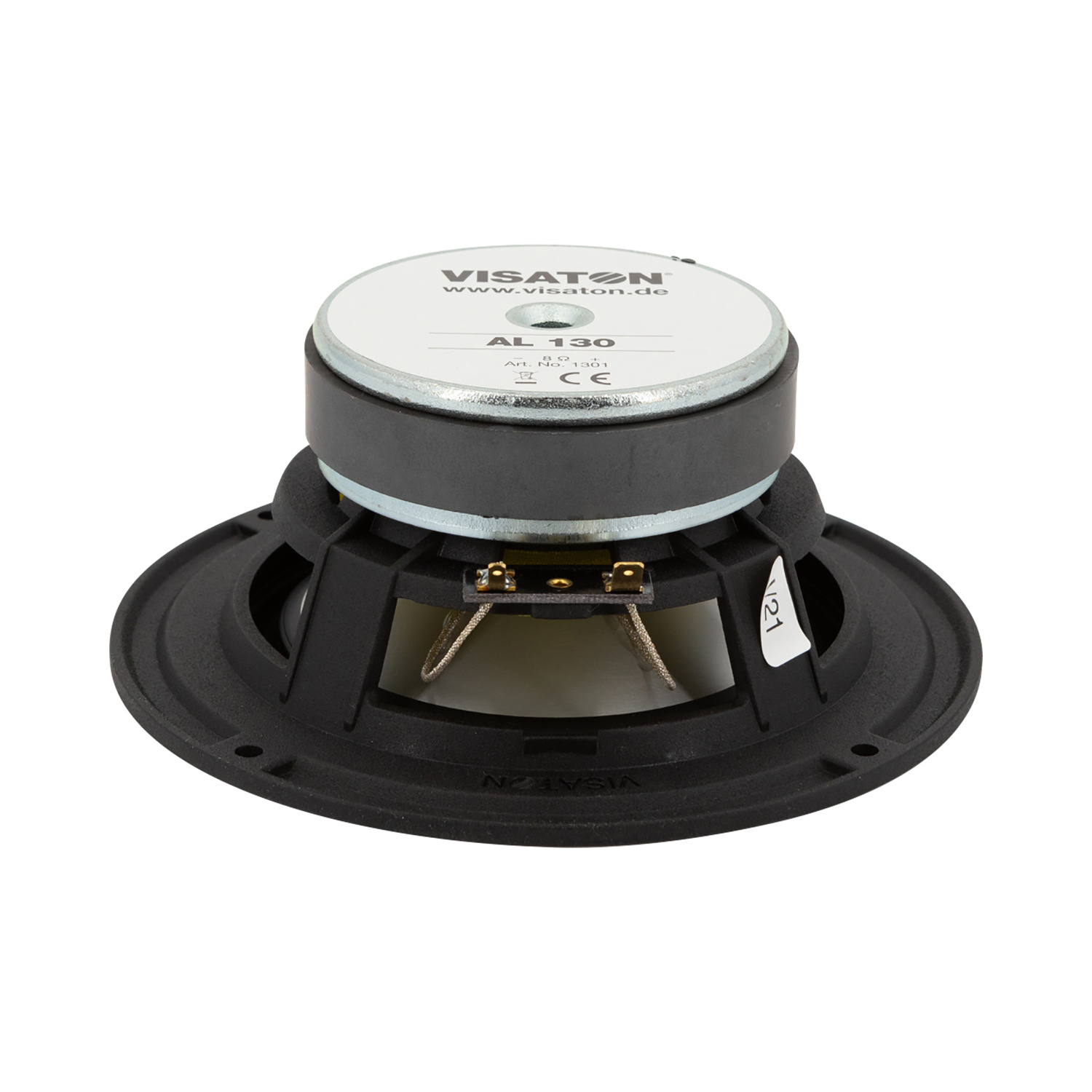

- Artikelnummer:
- AL 130
- Woofer Series
- High-End
- Woofer Type
- Midwoofer
- Nominal Diameter
- 5"
- Power Handling (RMS)
- 60 watts
- Power Handling (max)
- 90 watts
- Impedance
- 8 ohms
- Sensitivity
- 87 dB (1 W/1 m)
- Frequency Response
- 43 – 8,000 Hz
- Voice Coil Diameter
- 25 mm
- DC Resistance (Re)
- 5.6 ohms
- Voice Coil Inductance (Le)
- 0.9 mH
- Resonant Frequency (Fs)
- 43 Hz
- Mechanical Q (Qms)
- 4.37
- Electromagnetic Q (Qes)
- 0.42
- Total Q (Qts)
- 0.38
- Diaphragm Mass Inc. Airload (Mms)
- 9g
- Mechanical Compliance of Suspension (Cms)
- 79 cm2
- Maximum Linear Excursion (Xmax)
- 8.5 mm
- Cone / Diaphragm Material
- Aluminum
- Surround Material
- Rubber
- Voice Coil Former
- Kapton
- Basket / Frame Material
- Cast Aluminum
- Overall Outside Diameter
- 153 mm
- Overall Depth
- 62.5 mm
- Baffle Cutout Diameter
- 115 mm
- Bolt Circle Diameter
- 141 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 4.3 mm
