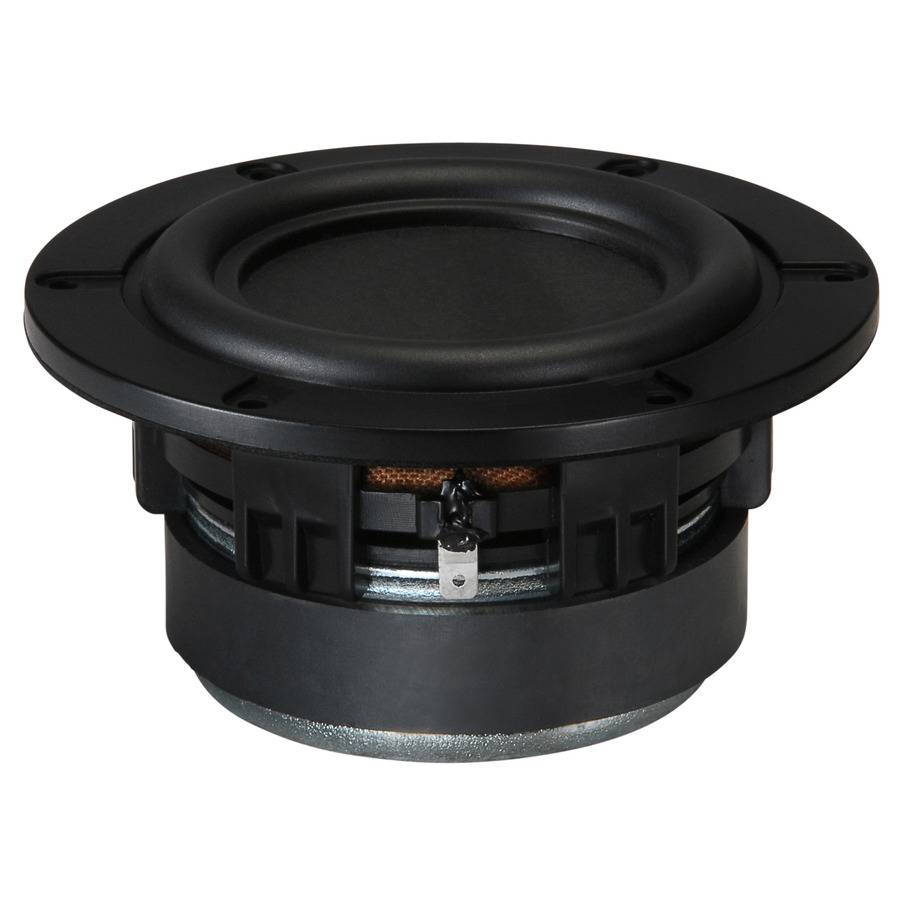

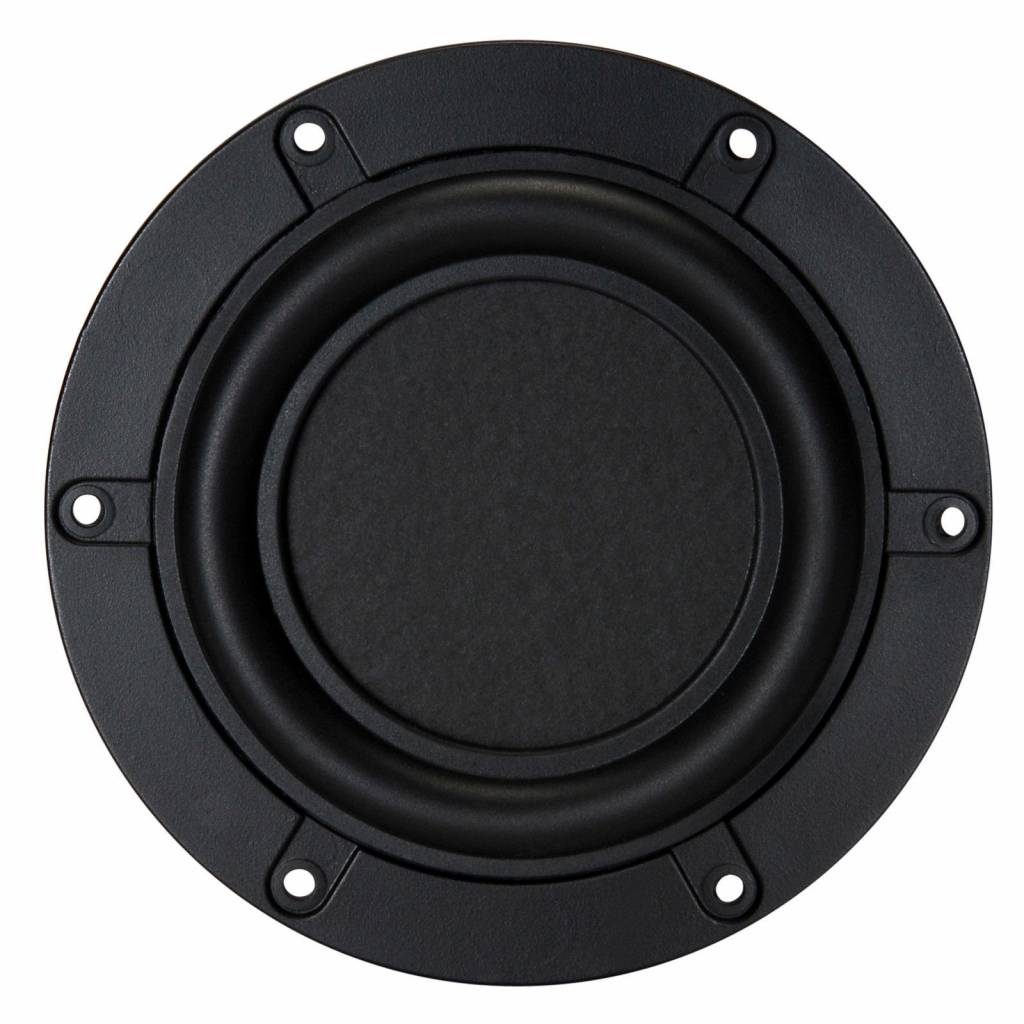

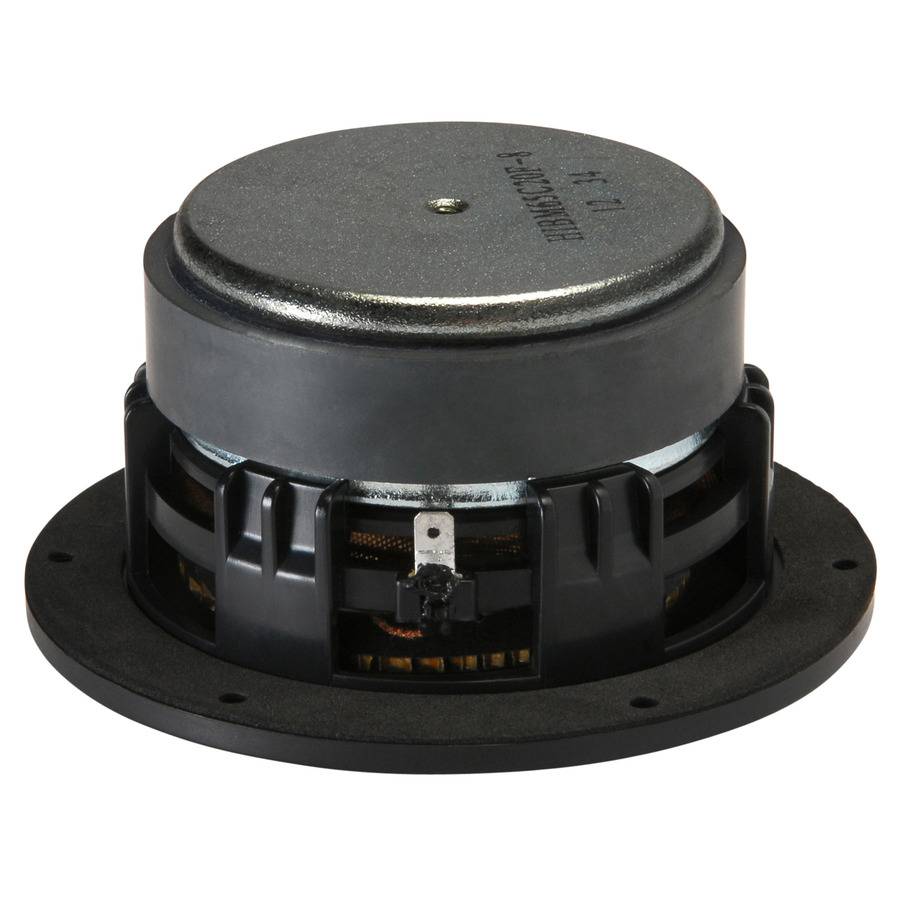

Tectonic Elements TEBM65C20F-8 3-1/2" BMR Full-Range Speaker

€ 24,75€ 29,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic TEBM65C20F-8 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up t... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic Elements TEBM65C20F-8 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up to 100° off-axis.



Highlights

  • Amazing off-axis frequency response
  • Small form factor with decent Xmax
  • Perfect for modern speaker applications such as soundbars



Product details

Tectonic Elements TEBM65C20F-8 3-1/2" BMR Full-Range Speaker 8 Ohm



Tectonic Elements TEBM65C20F-8 Balanced-Mode Radiator (BMR) features extended frequency response and wide dispersion compared to that of a conventional drive unit. It combines the benefits of Tectonic Elements Elements bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution such as a soundbar. An advanced ferrite-based motor is combined with special cone dampers to ensure a small size that outperforms conventional drivers, especially in off-axis performance.

Eigenschaften

Artikelnummer:
TEBM65C20F-8
Woofer Type
Full-range
Nominal Diameter
3-1/2"
Power Handling (RMS)
20 Watts
Power Handling (max)
40 Watts
Impedance
8 ohms
Sensitivity
81 dB 2.83V/1m
Frequency Response
80 to 20,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
7.2 ohms
Voice Coil Inductance (Le)
0.055 mH
Resonant Frequency (Fs)
86 Hz
Mechanical Q (Qms)
4.9
Electromagnetic Q (Qes)
1.09
Total Q (Qts)
0.89
Diaphragm Mass Inc. Airload (Mms)
5.25g
Mechanical Compliance of Suspension (Cms)
0.65 mm/N
BL Product (BL)
4.33 Tm
Compliance Equivalent Volume (Vas)
0.04 ft.³
Maximum Linear Excursion (Xmax)
3.5 mm
Cone / Diaphragm Material
Paper
Magnet Material
Ferrite
Overall Outside Diameter
4.25"
Overall Depth
1.88"
Baffle Cutout Diameter
3.4"
# Mounting Holes
4
Sealed Volume
0.1 ft.³
Sealed F3
84 Hz
Vented Volume
0.2 ft.³
Vented F3
50 Hz
