Tectonic Elements TEAX14C02-8 14mm 2W Exciter

€ 7,25 6 Auf Lager: Lieferzeit 1-3 Werktage
Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8") thickness is enhanced by a ne... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €6,89 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Tectonic's 14 mm, 8 ohm TEAX14C02-8 exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX14C02-8 brings life to devices.



Highlights

  • Larger size for larger surfaces and 2 watt RMS power handling
  • Great for with tablet PCs and e-Book readers



Product details

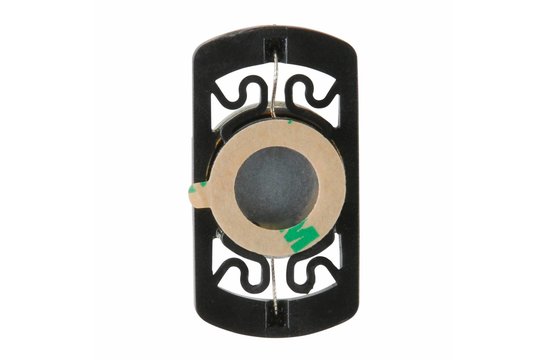

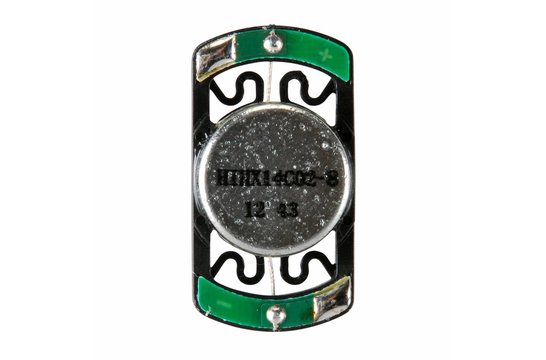

Tectonic Elements TEAX14C02-8 14mm 2W Exciter



Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8") thickness is enhanced by a neodymium motor to accommodate into existing designs.



Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

Eigenschaften

Artikelnummer:
TEAX14C02-8
Exciter type
Full-Range Exciter
Power Handling (RMS)
2 watts
Power Handling (max)
-
Impedance
8 ohms
Frequency response
300 - 20000 Hz
Resonant Frequency (Fs)
600 Hz
DC Resistance (Re)
7.8 ohms
Voice Coil Inductance (Le)
0.13 mH
Total Q (Qts)
-
Diaphragm Mass Inc. Airload (Mms)
355 mg
Mechanical Compliance of Suspension (Cms)
0.20e-3 m.N-1
BL Product (BL)
2.4 Tm
Voice Coil Diameter
14 mm
Overall Outside Diameter
-
Overall Depth
9.85 mm
Overall Dimensions (L x W x H)
37 x 20 x 9.85 mm
Adhesive dimensions
-
Mounting type
3M VHB adhesive pre-applied
Weight
12.8 grams
