Produktbeschreibung Tectonic Elements TEAX13C02-8/RH Exciter

The Tectonic Elements TEAX13C02-8/RH 13 mm exciter provides a small, inexpensive means of turning flat panels of most compositions into an audio loudspeaker.

Highlights

Turn virtually any surface into a hi-fi speaker
The exciter's high efficiency reduces power requirements
Diminutive 1-1/4" diameter and 3/8" height for use in extremely tight spaces

Product details

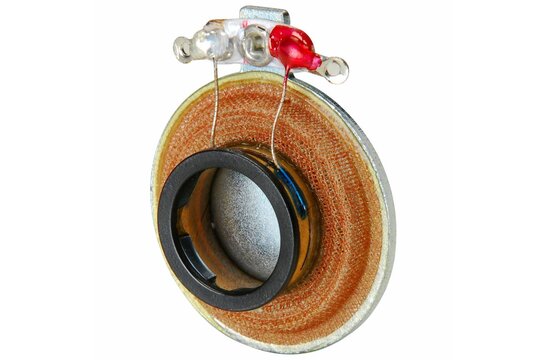

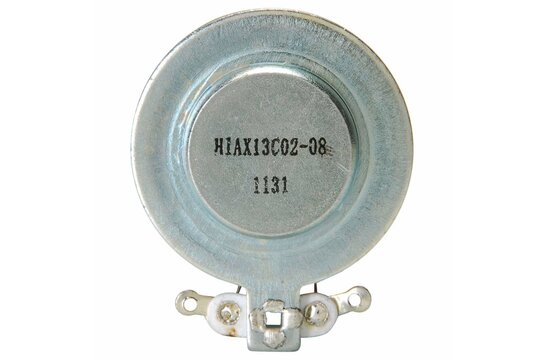

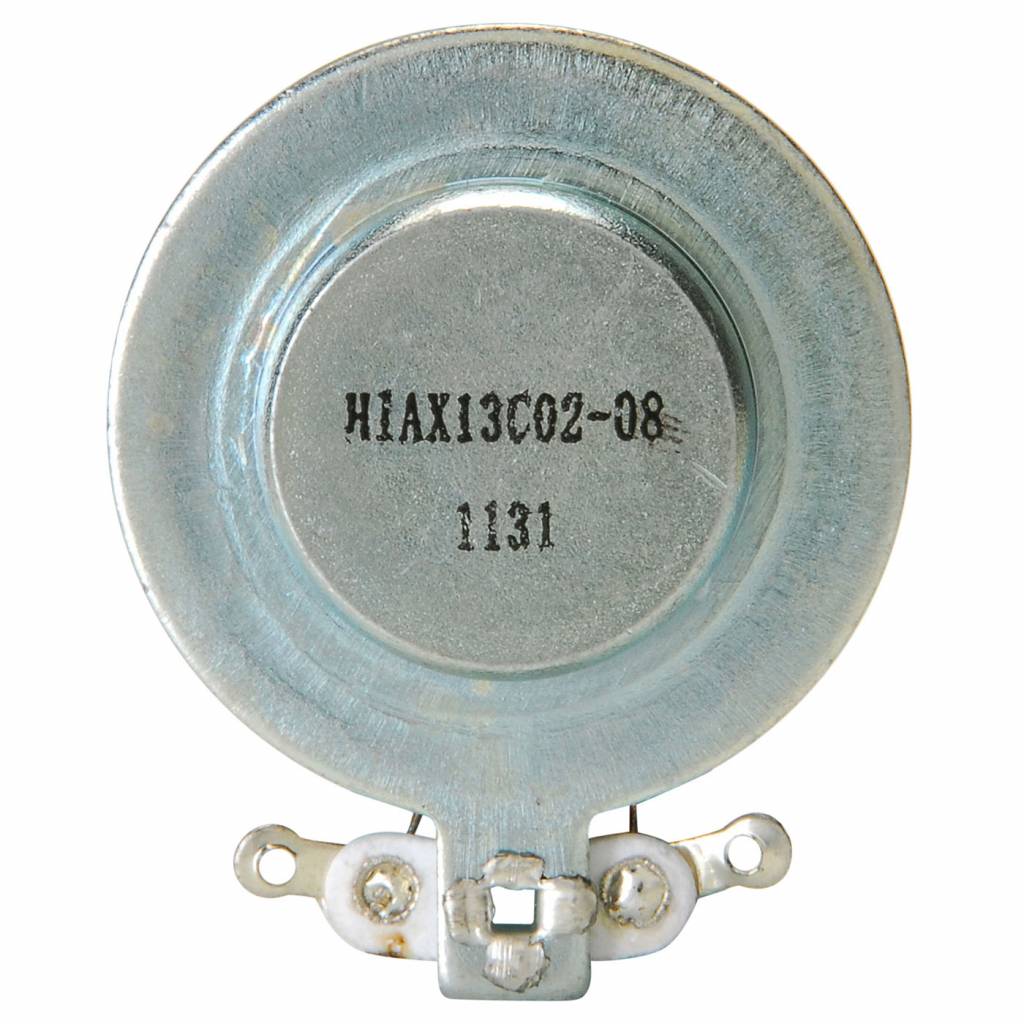

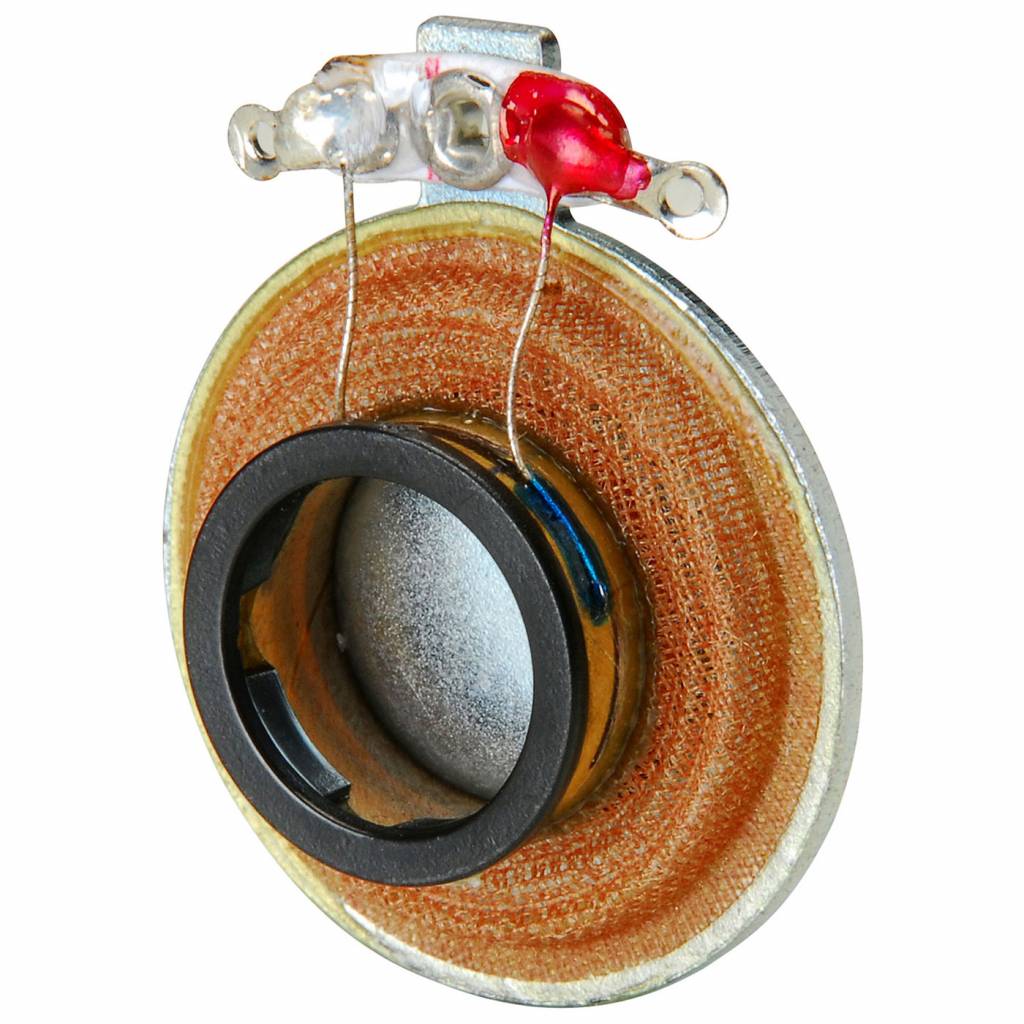

Tectonic Elements TEAX13C02-8/RH 13mm Exciter 8 Ohms

The Tectonic Elements 13 mm TEAX13C02-8/RH turns virtually any surface into a high fidelity loudspeaker. This exciter’s extremely small size enables audio reproduction in places never imagined: toys, monitors, cabinet doors… even windows!

The TEAX13C02-8/RH exciter employs a neodymium magnet for maximum magnetic flux around the voice coil and increased sensitivity. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output.

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, two-part epoxy is recommended. Two terminals extend from the exciter for wire soldering purposes.

A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

Note: An exciter’s frequency response and sensitivity are completely dependent on the exciter’s designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

PRODUCT SPECIFICATIONS

Application	Full-Range Exciter
Impedance	8 ohms
Power Handling (RMS)	2 Watts
