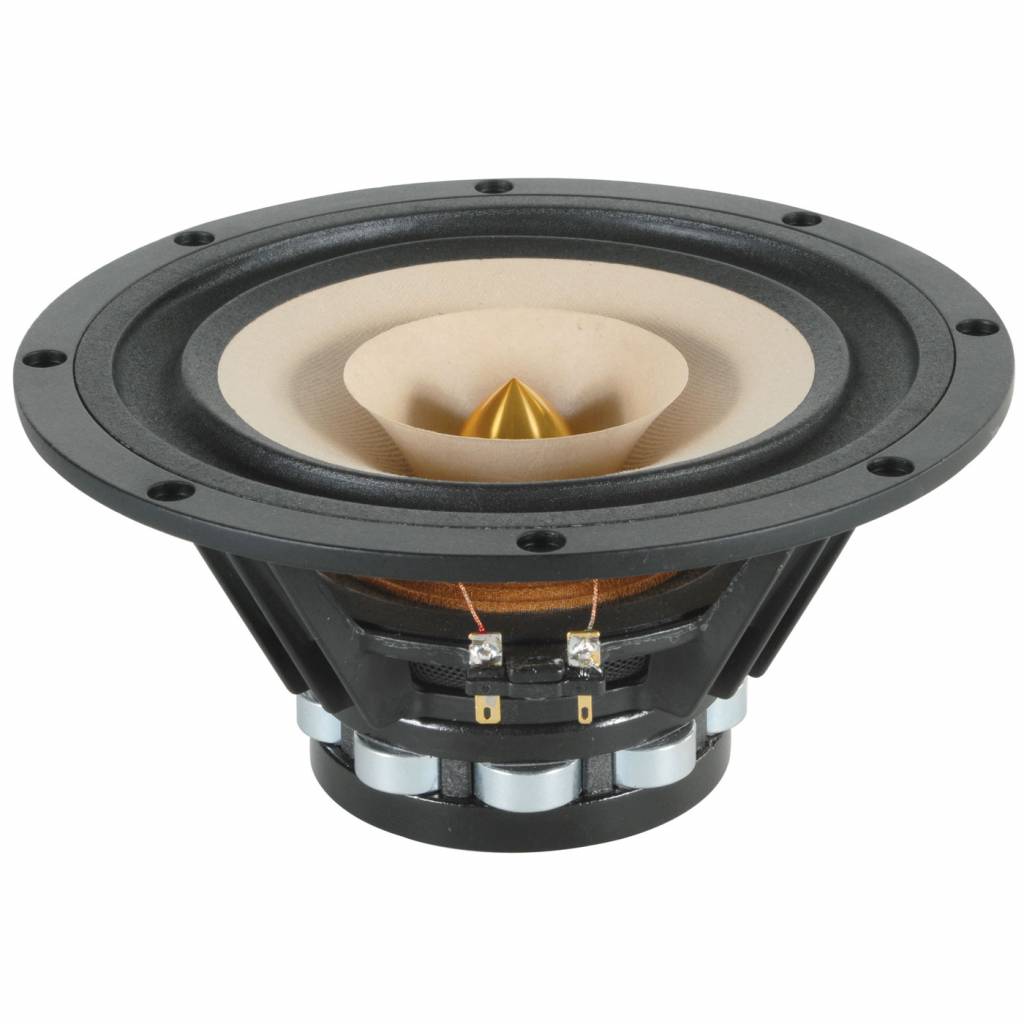

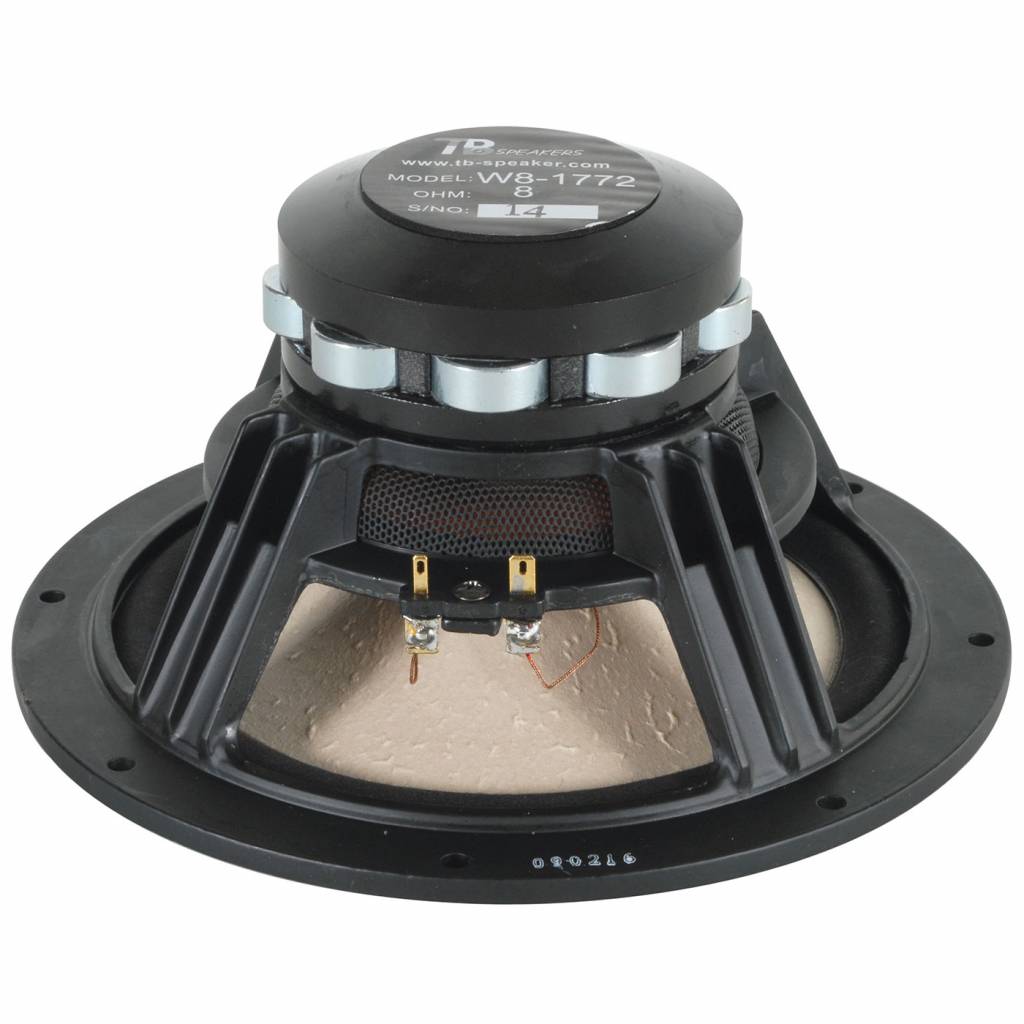

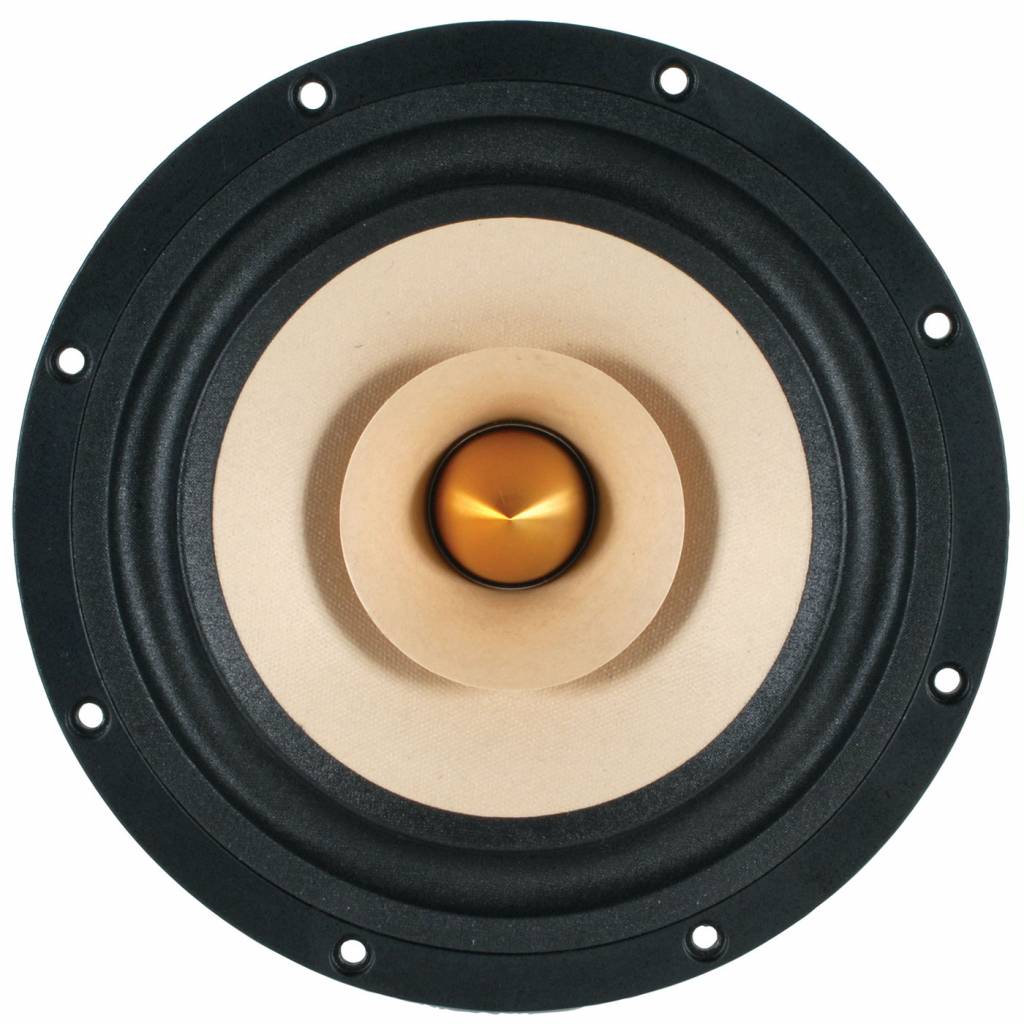

- Artikelnummer:
- W8-1772
- Woofer Type
- Full-range
- Nominal Diameter
- 8"
- Power Handling (RMS)
- 30 Watts
- Power Handling (max)
- 60 Watts
- Impedance
- 8 ohms
- Sensitivity
- 95 dB 1W/1m
- Frequency Response
- 42 to 20,000 Hz
- Voice Coil Diameter
- 1.5"
- DC Resistance (Re)
- 6.8 ohms
- Voice Coil Inductance (Le)
- 0.009 mH
- Resonant Frequency (Fs)
- 42 Hz
- Mechanical Q (Qms)
- 1.02
- Electromagnetic Q (Qes)
- 0.36
- Total Q (Qts)
- 0.27
- Diaphragm Mass Inc. Airload (Mms)
- 10.11g
- Mechanical Compliance of Suspension (Cms)
- 1.37 mm/N
- Surface Area of Cone (Sd)
- 9 cm²
- BL Product (BL)
- 7.12 Tm
- Compliance Equivalent Volume (Vas)
- 3.34 ft.³
- Maximum Linear Excursion (Xmax)
- 3 mm
- Cone / Diaphragm Material
- Paper
- Surround Material
- Cloth
- Magnet Material
- Neodymium
- Overall Outside Diameter
- 9.2"
- Overall Depth
- 4.37"
- Baffle Cutout Diameter
- 7.48"
- # Mounting Holes
- 8
- Sealed Volume
- 0.34 ft.³
- Sealed F3
- 133 Hz
- Vented Volume
- 0.78 ft.³
- Vented F3
- 85 Hz
