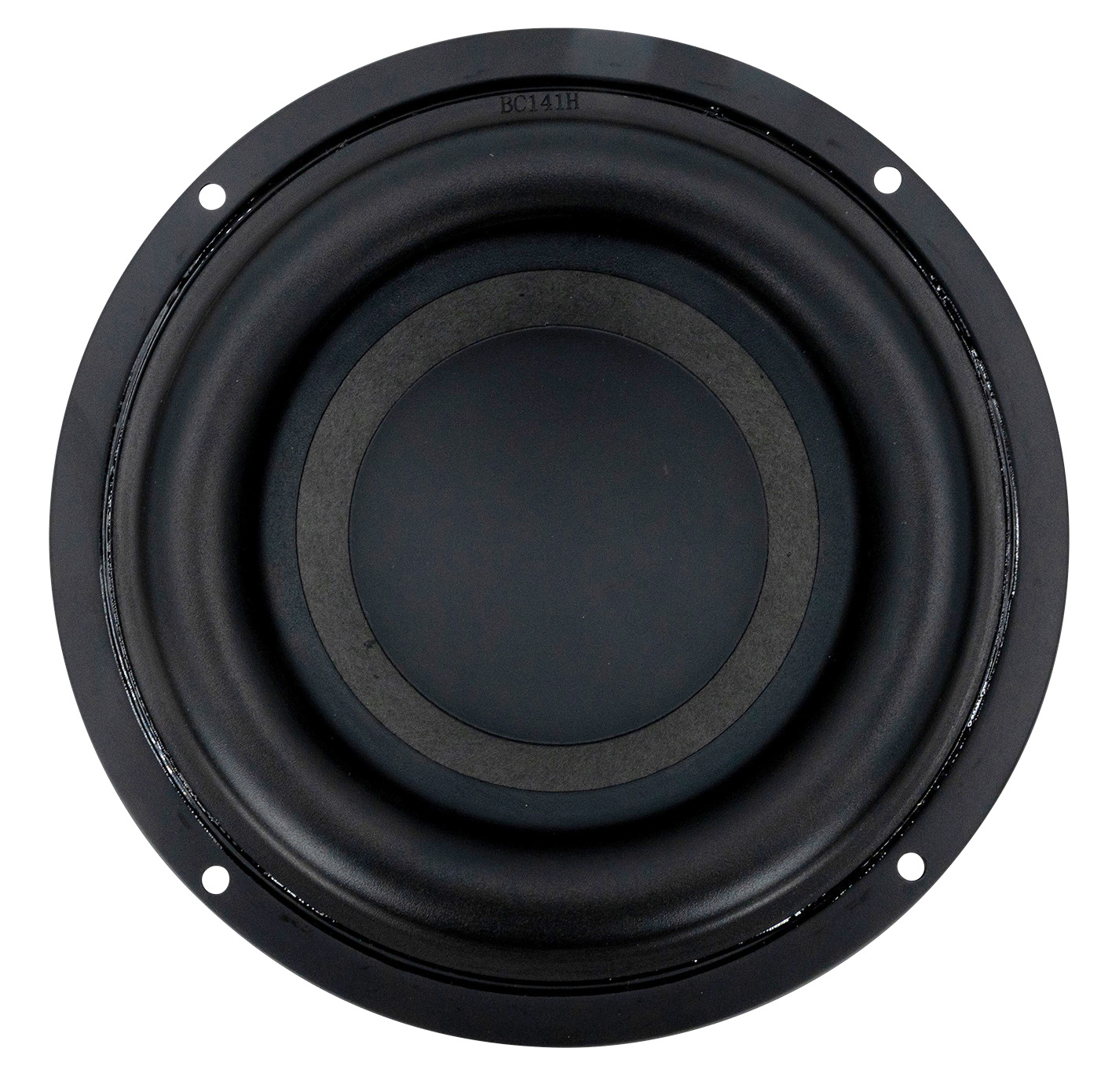

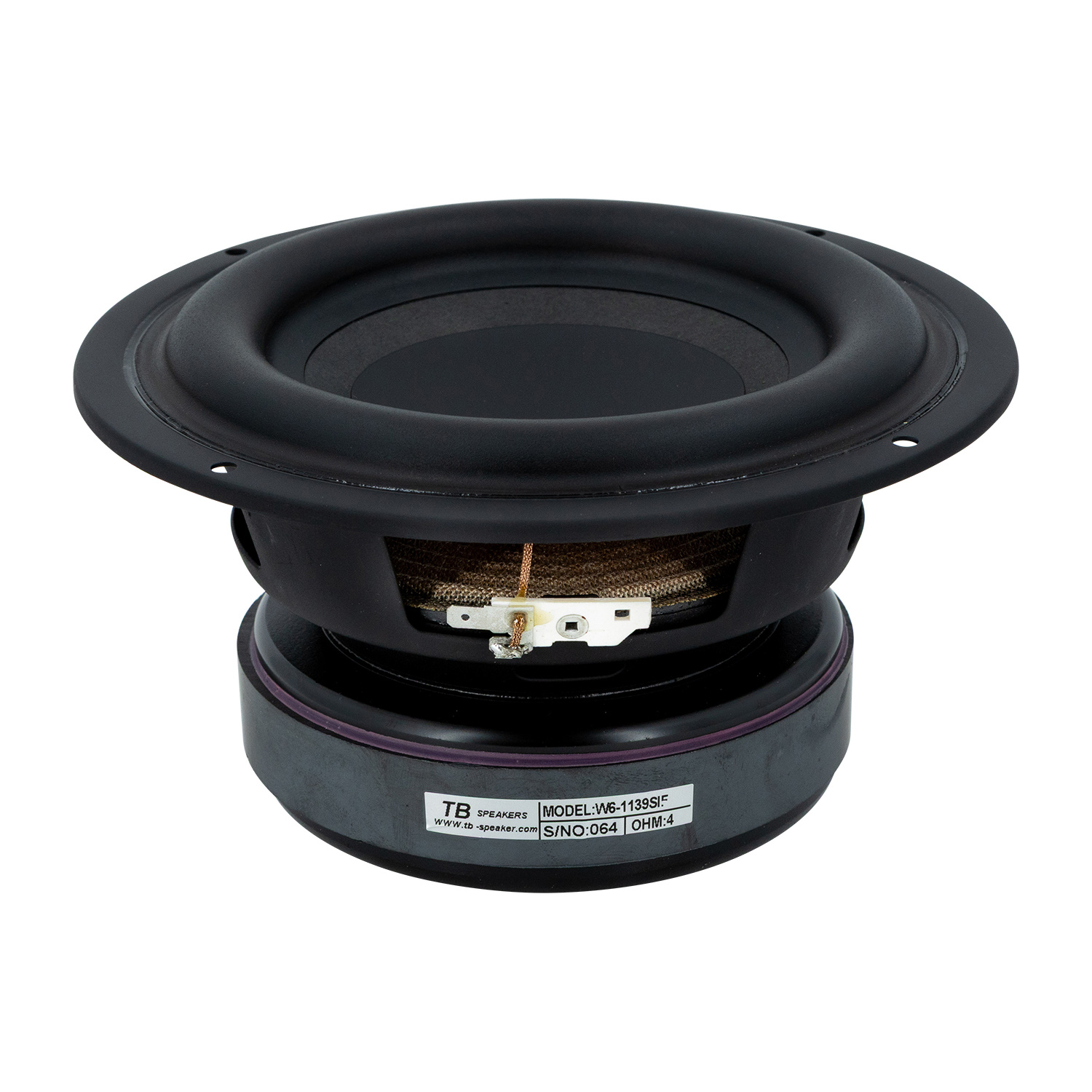

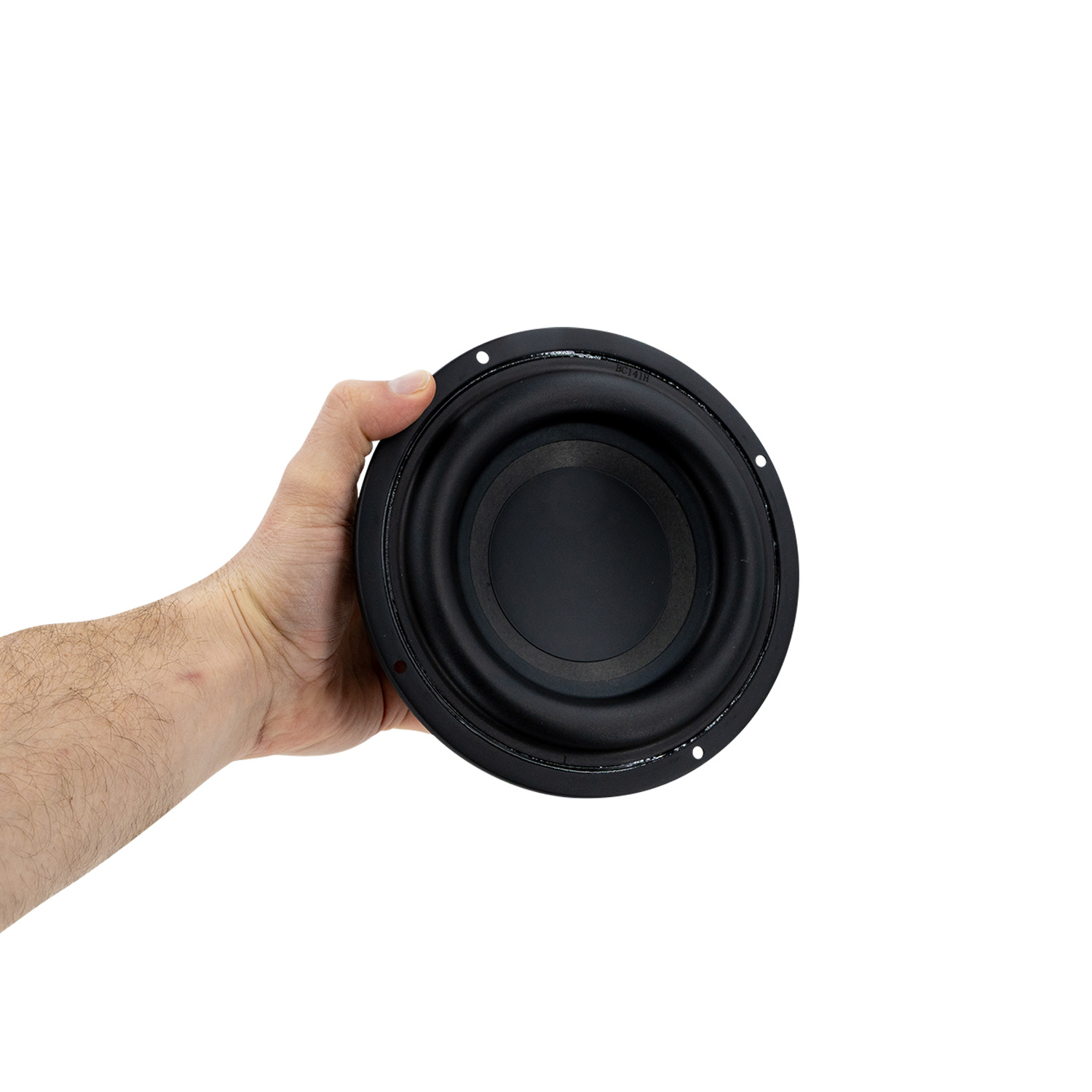

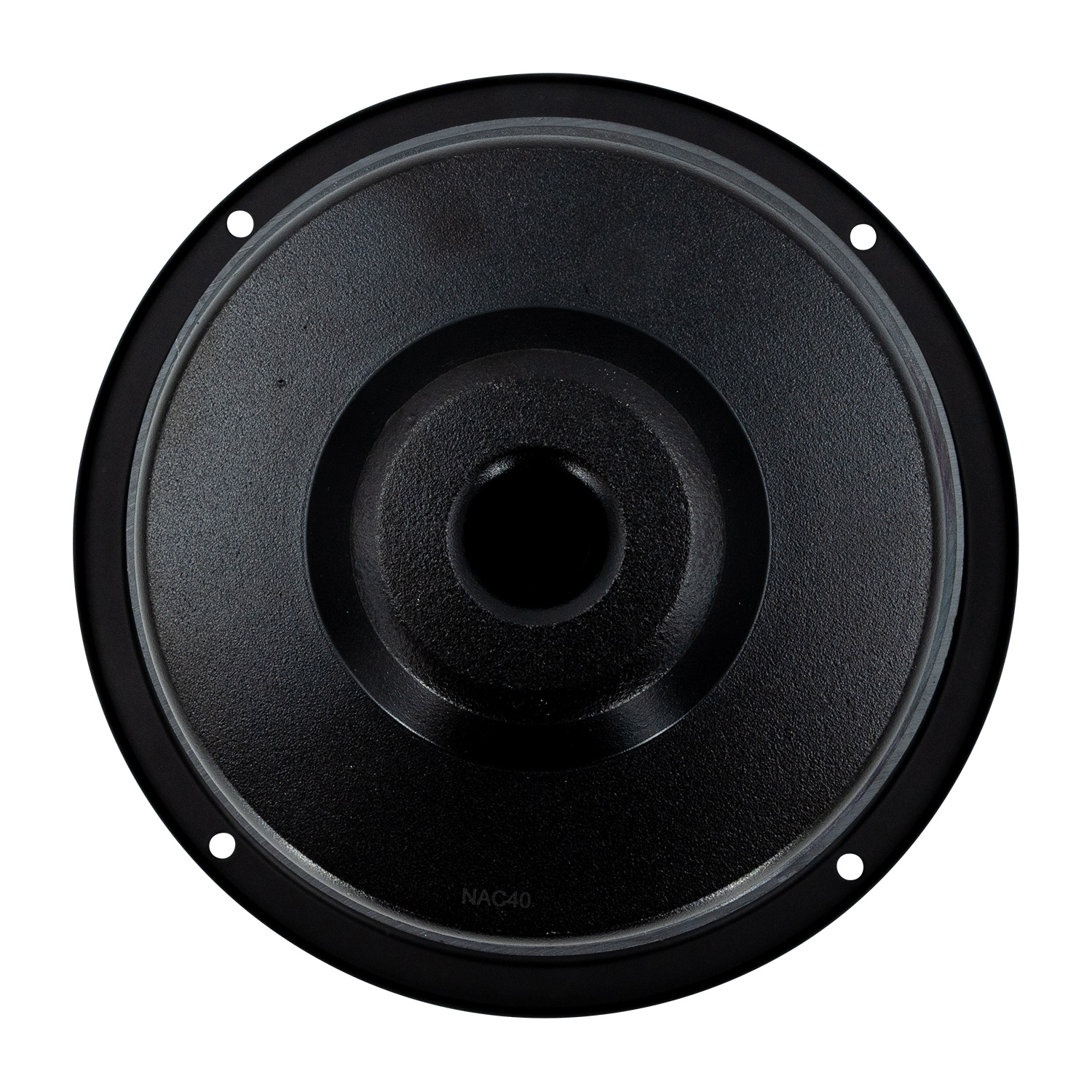

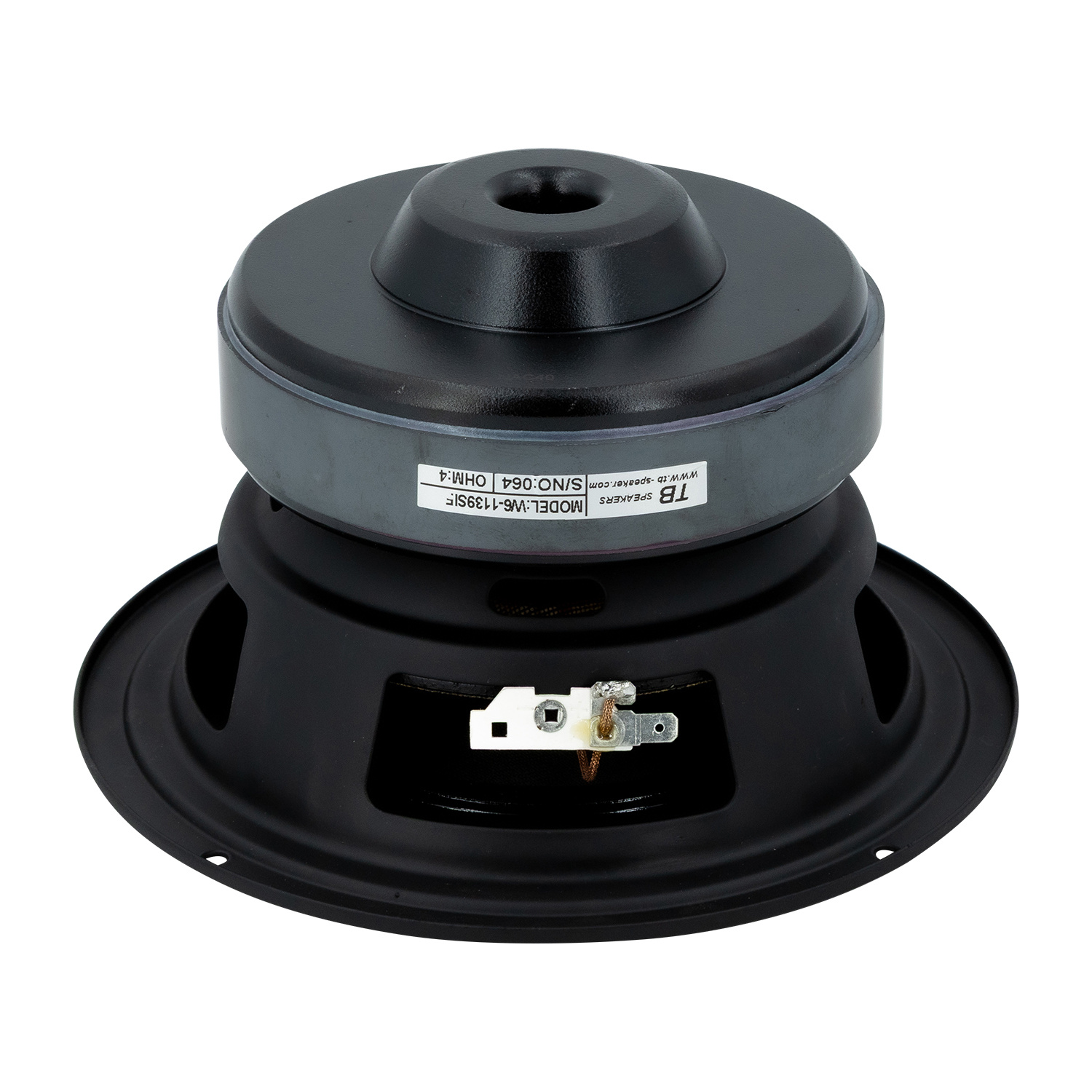

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

€ 66,07€ 79,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The Tang Band W6-1139SIF 6-1/2" driver will surprise and impress when installed in subwoofer systems for compact home theater systems, multimedia setups, and mobile audio installations.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €75,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Tang Band W6-1139SIF 6-1/2" driver will surprise and impress when installed in subwoofer systems for compact home theater systems, multimedia setups, and mobile audio installations.



Highlights

  • 11.5 mm xmax, amazing low frequency capability for a driver this small!
  • Wide half-roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure exceptional output
  • Vented pole piece and vented spider promote voice coil cooling
  • Features a rugged stamped steel basket and bumped back plate



Product details

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker



The Tang Band W6-1139SIF 6-1/2" subwoofer's wide half-roll surround, raised flat spider, and large 1-1/2" 4-layer voice coil ensure exceptional output and high power handling. Boasting 11.5 mm of Xmax, the W6-1139SIF is capable of producing prodigious amounts of deep, low-distortion, punchy bass. A vented pole piece and vented spider promote voice coil cooling by improving heat dissipation and reducing efficiency-robbing power compression. This 4 ohm driver also features a rugged stamped steel basket and bumped back plate.

Eigenschaften

Artikelnummer:
W6-1139SIF
Woofer Type
Subwoofer
Nominal Diameter
6-1/2"
Power Handling (RMS)
50 Watts
Power Handling (max)
100 Watts
Impedance
4 ohms
Sensitivity
83 dB 1W/1m
Frequency Response
35 to 800 Hz
Voice Coil Diameter
1.52"
Magnet Weight
29.2 oz.
DC Resistance (Re)
3.6 ohms
Voice Coil Inductance (Le)
0.47 mH
Resonant Frequency (Fs)
35 Hz
Mechanical Q (Qms)
2.65
Electromagnetic Q (Qes)
0.47
Total Q (Qts)
0.4
Diaphragm Mass Inc. Airload (Mms)
39.91g
Mechanical Compliance of Suspension (Cms)
0.6 mm/N
Surface Area of Cone (Sd)
140 cm²
Volume of Displacement (Vd)
161 cm³
BL Product (BL)
8.47 Tm
Compliance Equivalent Volume (Vas)
11.78 liters
Maximum Linear Excursion (Xmax)
11.5 mm
Cone / Diaphragm Material
Paper
Surround Material
Rubber
Basket / Frame Material
Steel
Magnet Material
Ferrite
Overall Outside Diameter
6.95"
Overall Depth
4.33"
Baffle Cutout Diameter
5.57"
# Mounting Holes
4
Sealed Volume
0.13 ft.³
Sealed F3
70 Hz
Vented Volume
0.33 ft.³
Vented F3
38 Hz

Bewertungen

4 from 5Based on 5 reviews
Produkt bewerten
2 van 5
Hello. This is useless speaker because the box must be as big as for 25cm woofer. If You have more membrane then You don't need so big x-max and You get more bass at lower freq and higher effeciency. I have built 3 different boxes for this speaker and none of them is good. This is kind of air pump without sound xD
Durch Arek on 8 April 2020
5 van 5
No description was given
Durch Sakari T. on 9 Dezember 2019
