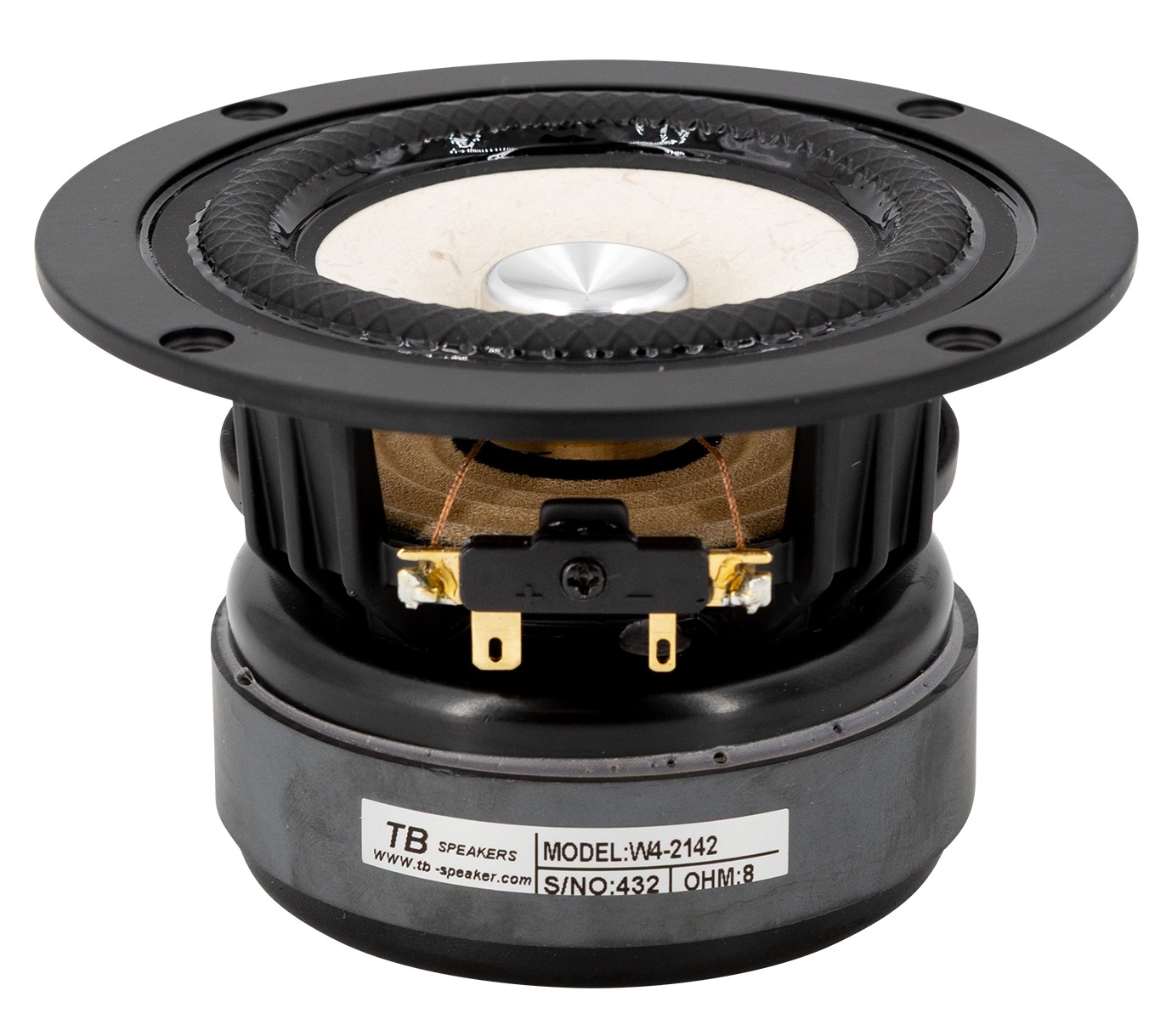

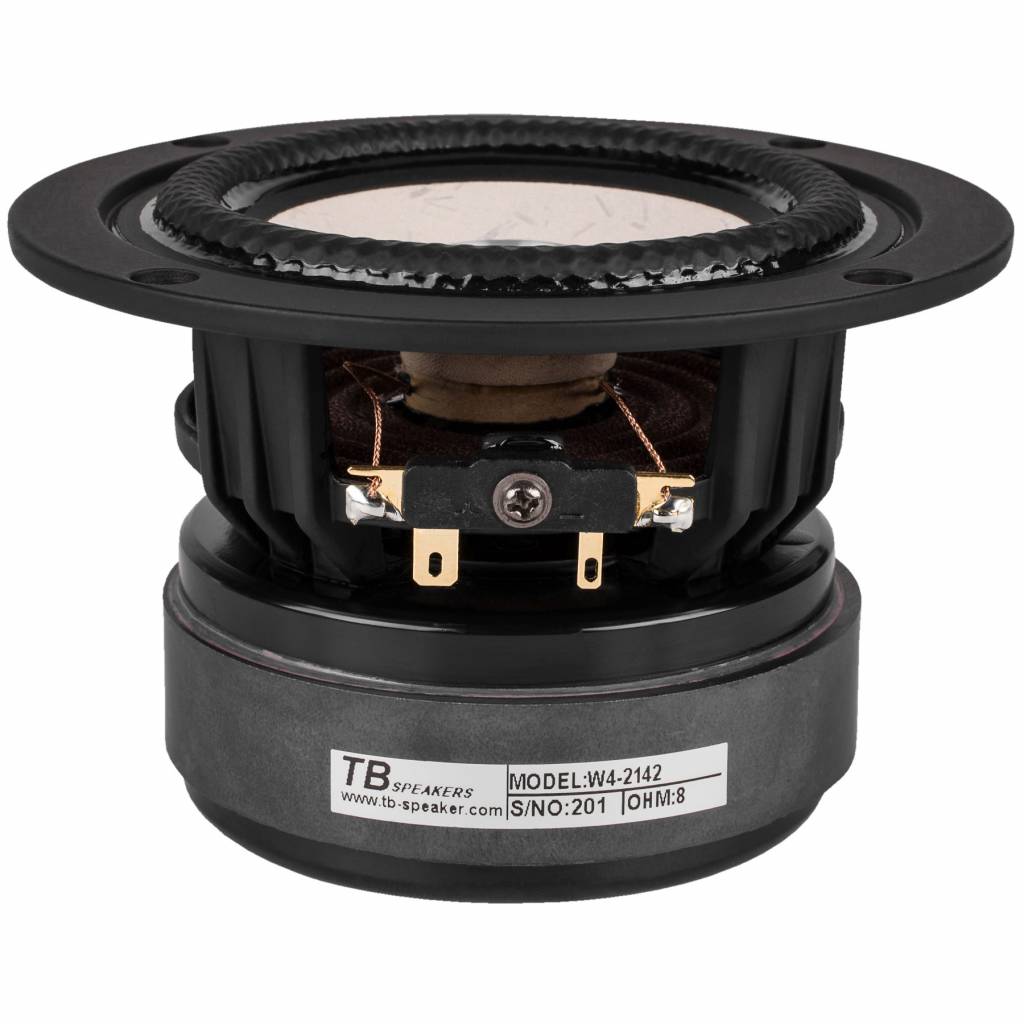

Tang Band W4-2142 4" Paper Cone Full Range Driver 8 Ohm

€ 69,95 6 Auf Lager: Lieferzeit 1-3 Werktage
With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W4-2142 4" full range from Tang Band has impressive response from 60 to 20,000 with very low distortion.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €66,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W4-2142 4" full range from Tang Band has impressive response from 60 to 20,000 with very low distortion.



Highlights

  • Underhung voice coil improves control for lower distortion
  • Aluminum phase plug also acts as a shorting ring for lower distortion
  • Impressive efficiency (88 dB 1W/1m) for a driver this small
  • Unique surround and large spider keeps cone linear well beyond the rated xmax



Product details

Tang Band W4-2142 4" Paper Cone Full Range Driver 8 Ohm

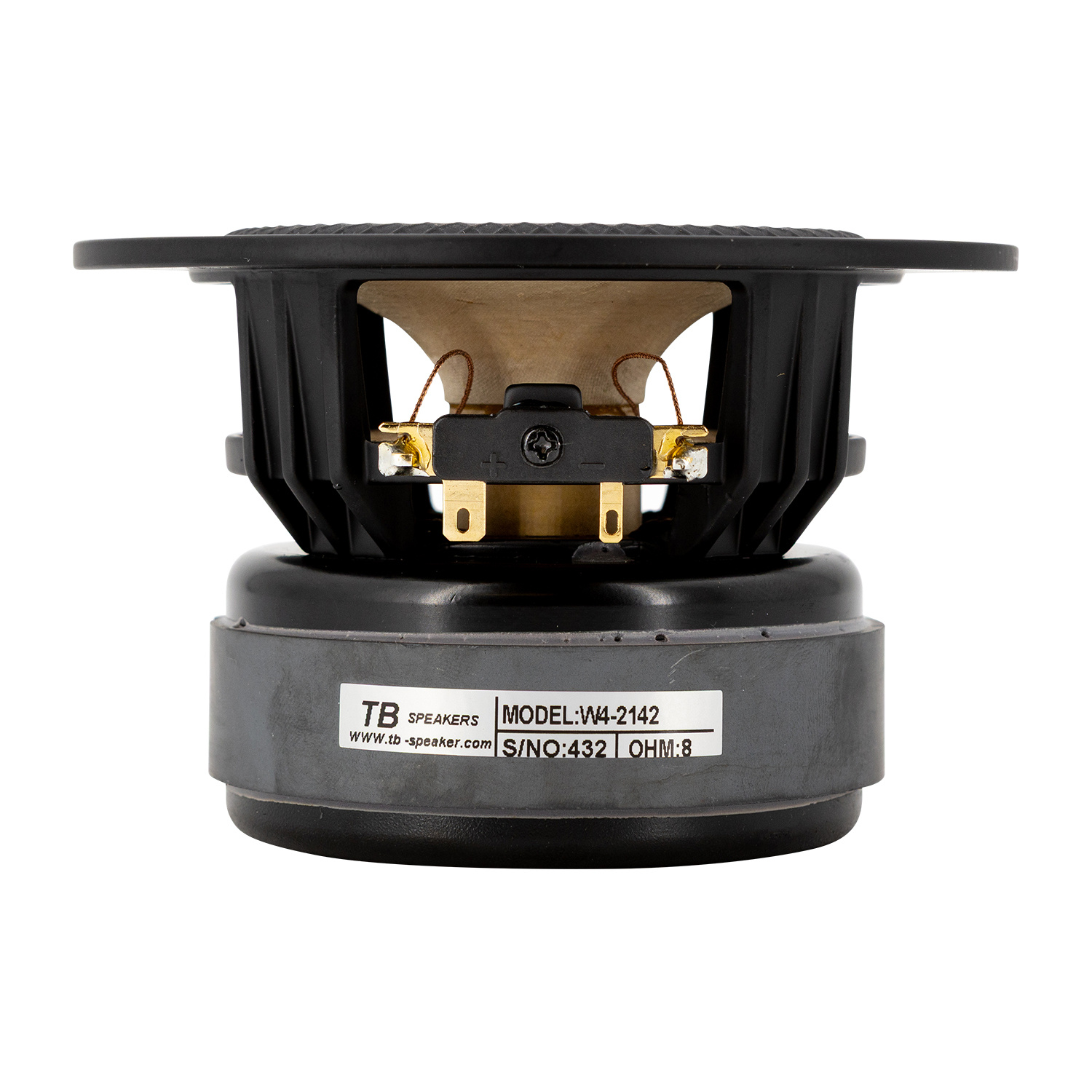

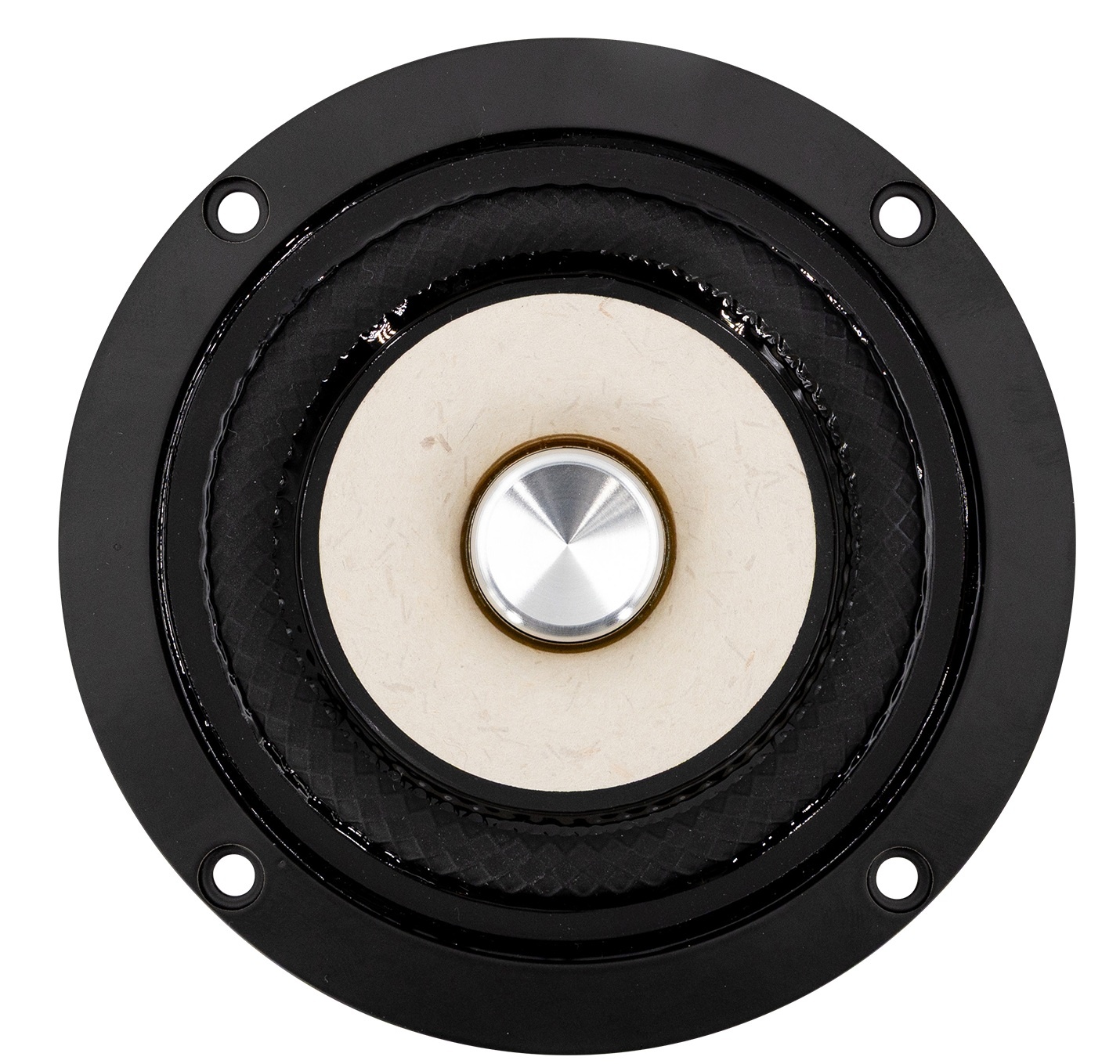

Tang Band's versatile W4-2142 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

Eigenschaften

Artikelnummer:
W4-2142
Woofer Type
Full-range
Nominal Diameter
4"
Power Handling (RMS)
25 Watts
Power Handling (max)
50 Watts
Impedance
8 ohms
Sensitivity
88 dB 1W/1m
Frequency Response
60 to 20,000 Hz
Voice Coil Diameter
1"
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
0.022 mH
Resonant Frequency (Fs)
60 Hz
Mechanical Q (Qms)
2.2
Electromagnetic Q (Qes)
0.39
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
4.61g
Mechanical Compliance of Suspension (Cms)
1.52 mm/N
Surface Area of Cone (Sd)
54.3 cm²
BL Product (BL)
5.41 Tm
Compliance Equivalent Volume (Vas)
0.22 ft.³
Maximum Linear Excursion (Xmax)
2.4 mm
Cone / Diaphragm Material
Bamboo Fiber / Paper
Surround Material
Santoprene®
Voice Coil Wire Material
Copper
Voice Coil Former
Kapton® / Polyimide
Basket / Frame Material
Cast Aluminum
Magnet Material
Ferrite
Overall Outside Diameter
4.92"
Overall Depth
3.18"
Baffle Cutout Diameter
3.74"
Bolt Circle Diameter
4.5"
# Mounting Holes
4
Sealed Volume
0.063 ft.³
Sealed F3
150 Hz
Vented Volume
0.10 ft.³
Vented F3
88 Hz

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
An exceptional driver for its size with remarkable sensitivity and low-frequency response. Have not found a driver similarly priced that has the same specifications.
Durch Andrew on 31 Januar 2020
5 van 5
Prima
Durch Wim M. on 7 September 2019
