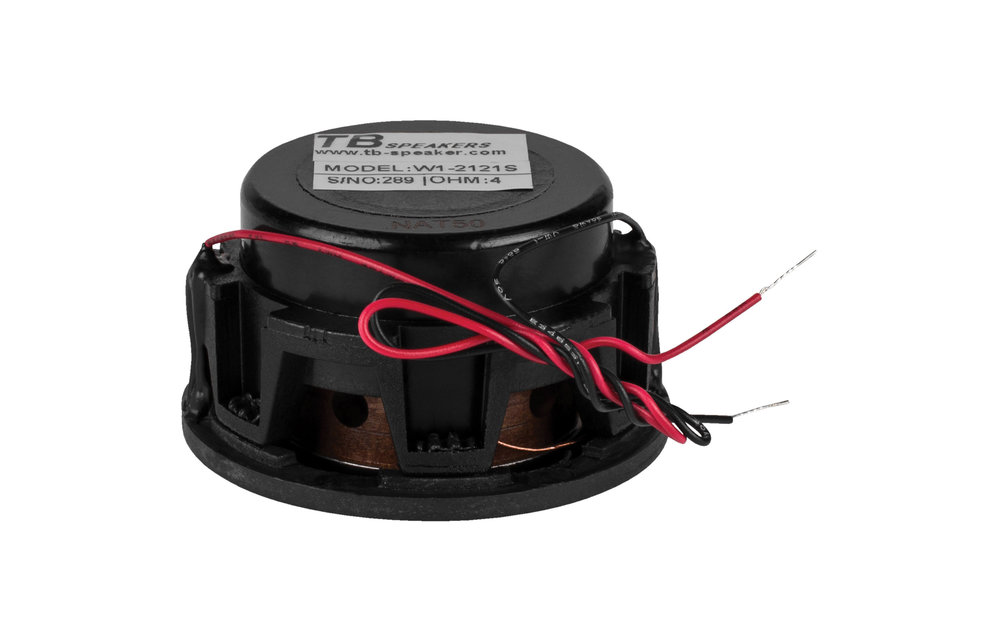

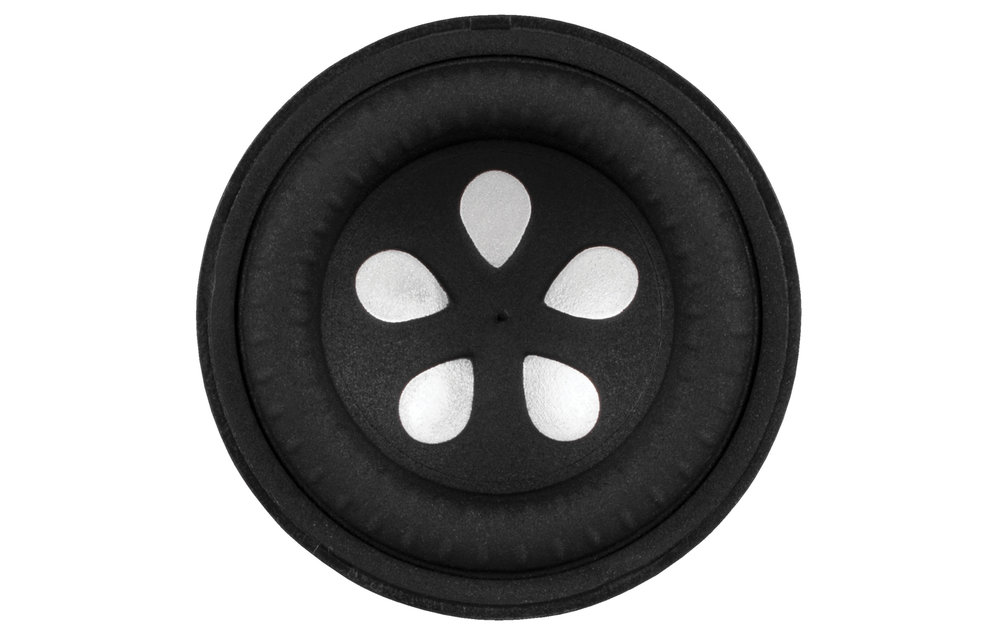

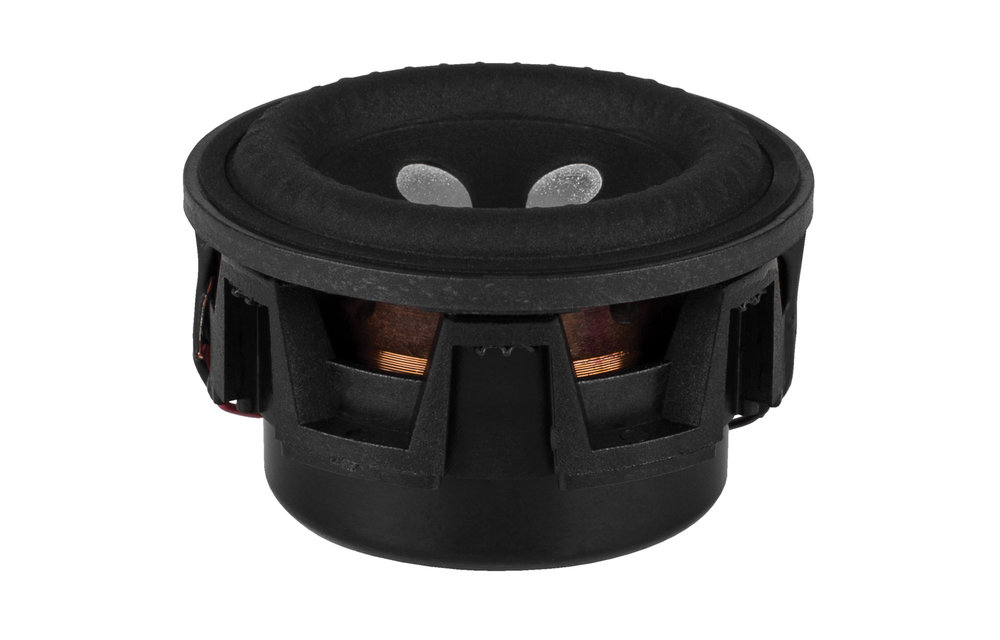

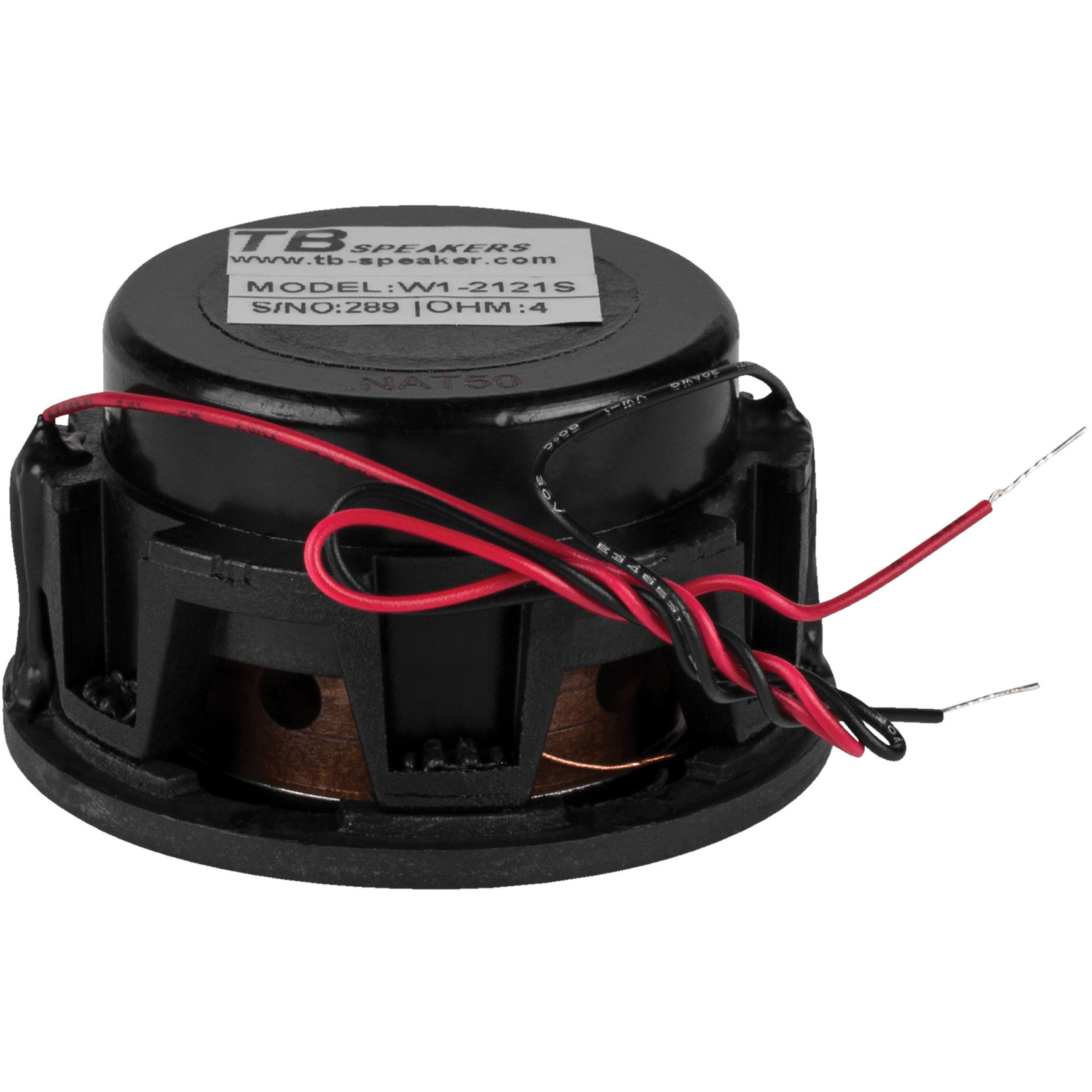

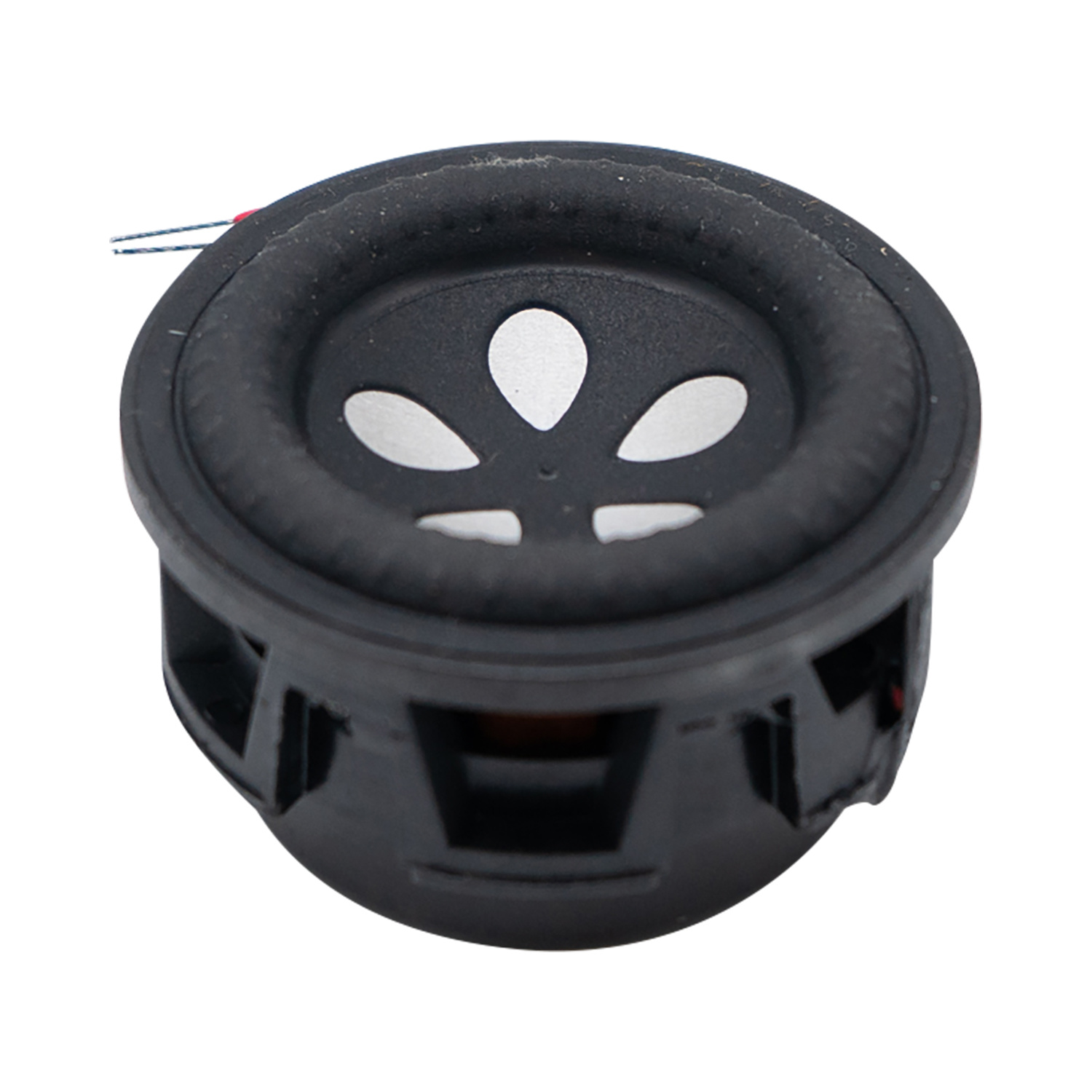

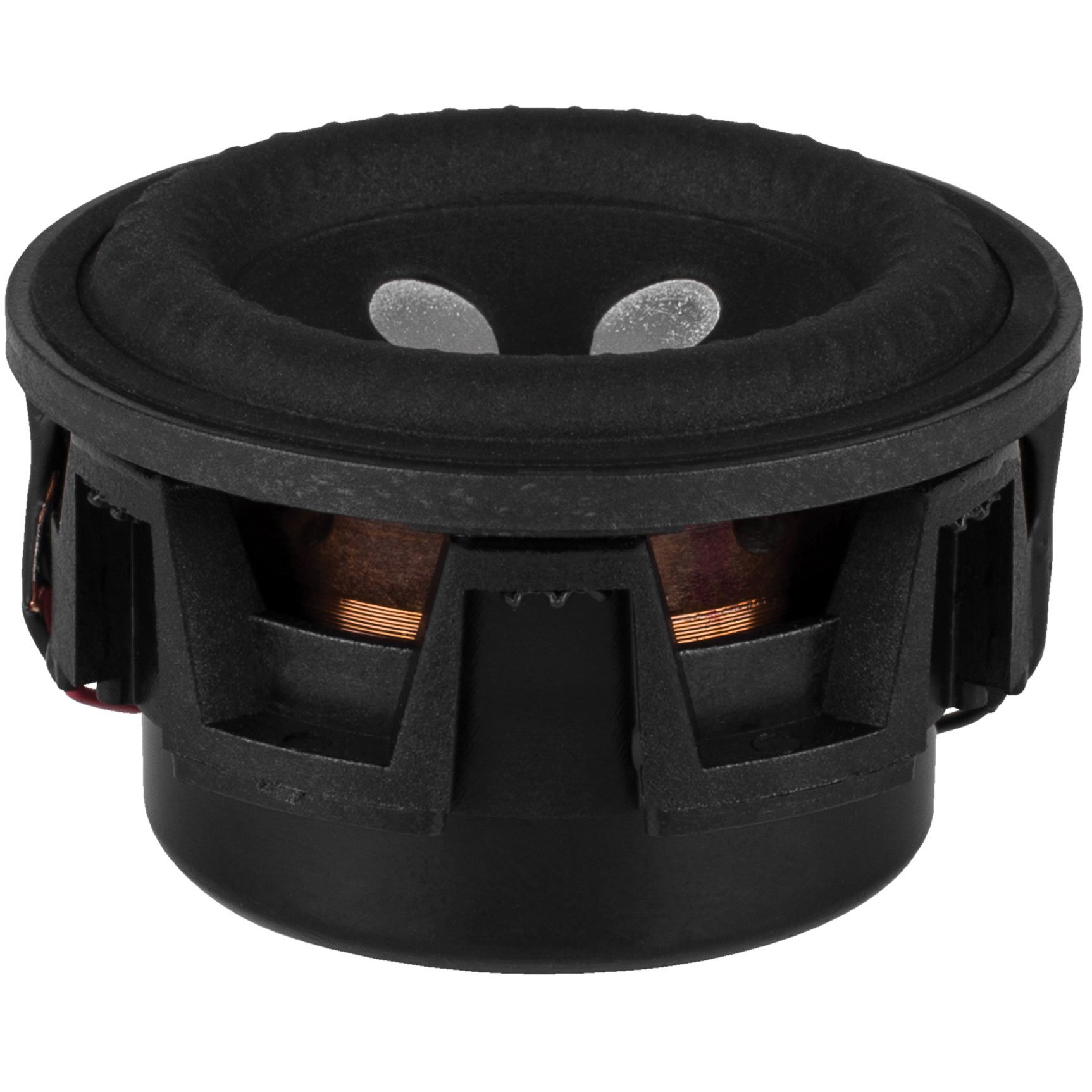

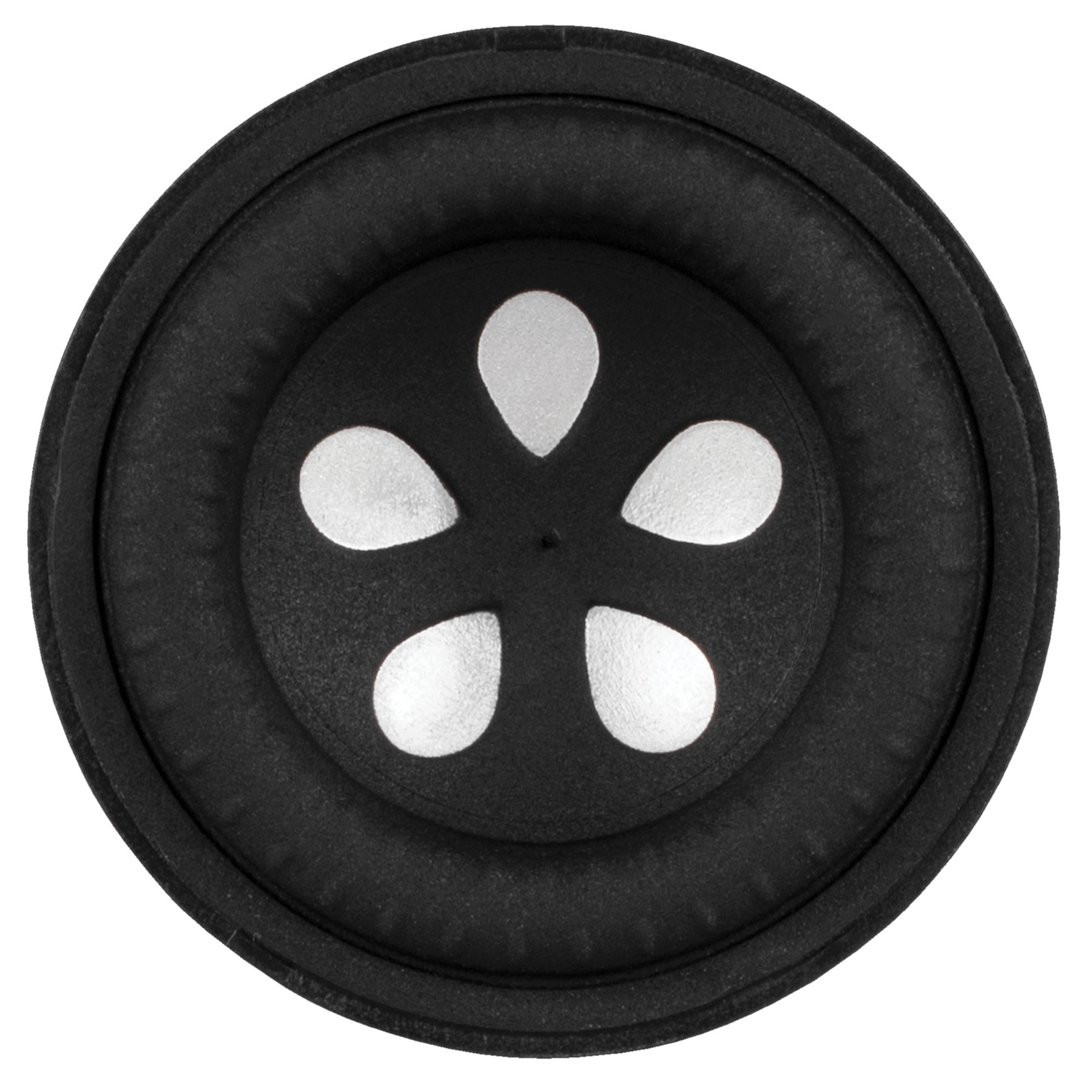

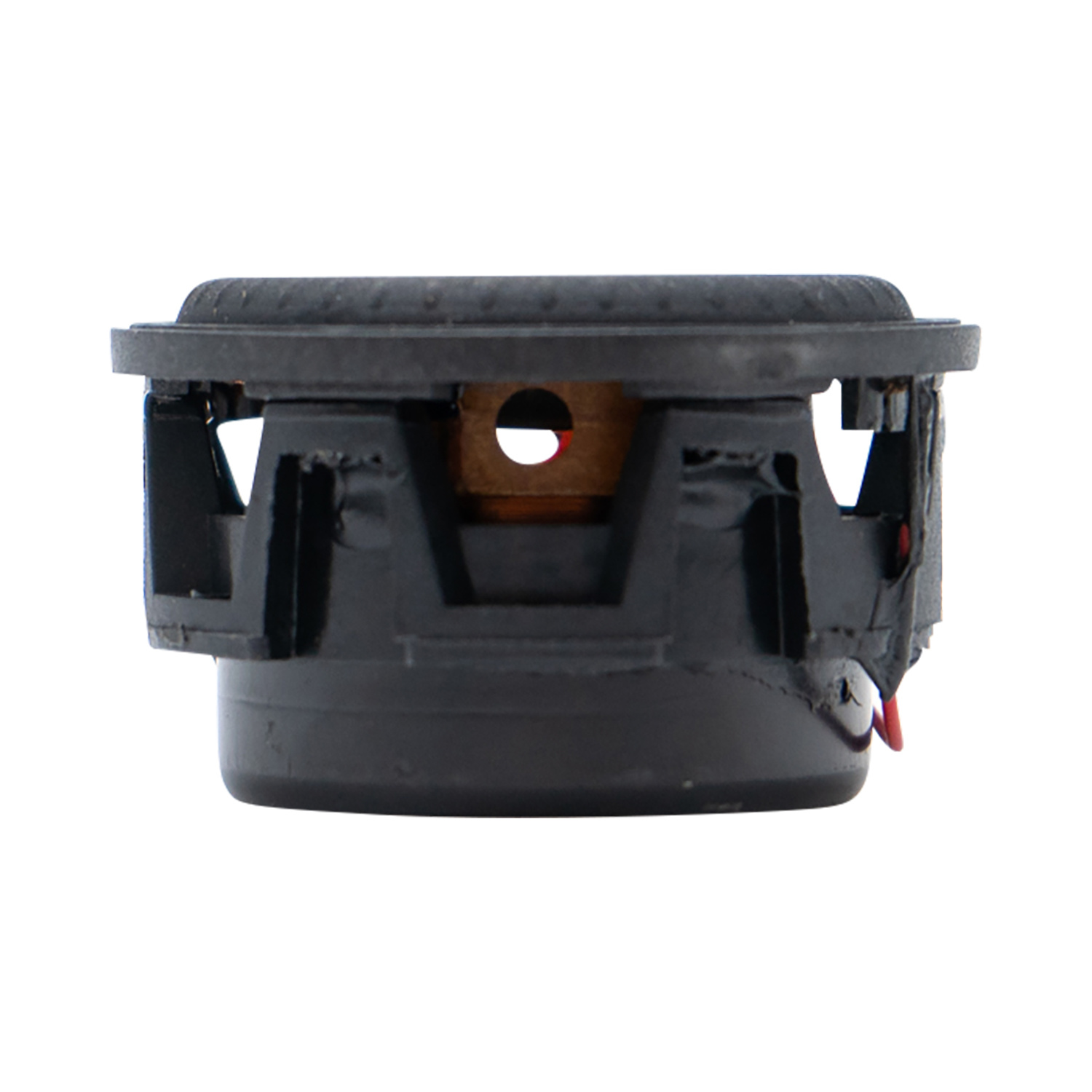

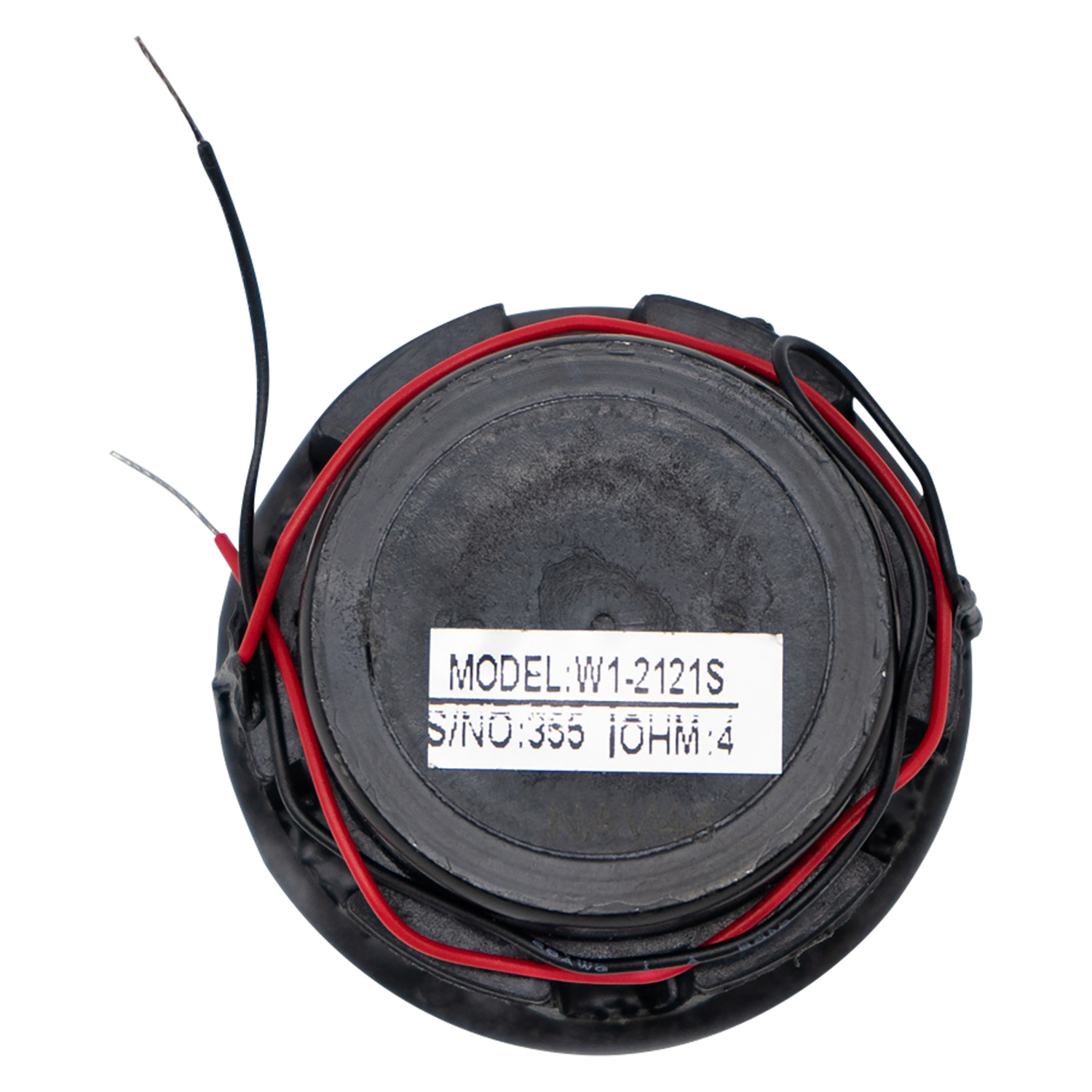

Tang Band W1-2121S Aluminum Full Range Neodymium Driver

€ 29,95 4 Auf Lager: Lieferzeit 1-3 Werktage
Tang Band, one of the leaders in small full range technology, presents the W1-2121S aluminum cone full range. This driver is a perfect candidate for use in portable speakers, computer speakers, or even TV sound bars.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Tang Band, one of the leaders in small full range technology, presents the W1-2121S aluminum cone full range. This driver is a perfect candidate for use in portable speakers, computer speakers, or even TV sound bars.



Highlights

  • Unique Santoprene surround provides damping for the aluminum cone
  • Smooth response down to 120 Hz for easy transition to a subwoofer
  • Powerful neodymium motor keeps size and weight to a minimum
  • Excellent choice for use in line arrays and modern mini-speaker designs



Product Details

Tang Band W1-2121S 1-3/4" Aluminum Full Range Neodymium Driver

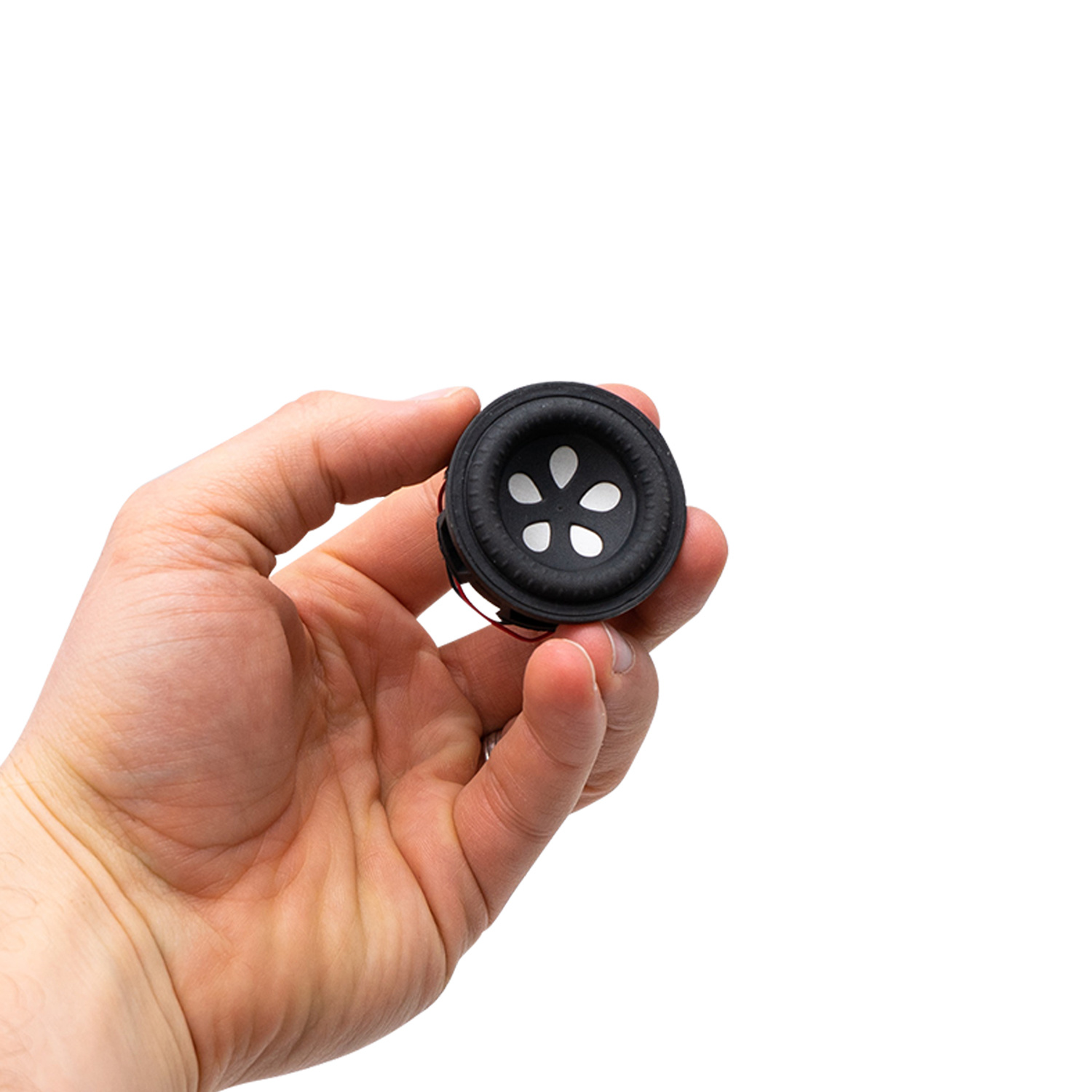

Speakers today are becoming smaller and smaller and the need for small drivers is constantly increasing. Tang Band has been one of the leaders in small driver technology and now they bring you the 4 ohm W1-2121S 1-3/4" aluminum cone full range. At only 46 mm outside diameter, this driver will fit almost anywhere you can imagine. The incredibly smooth response from 120 to 15,000 Hz makes it excellent for use in portable Bluetooth speakers and small sound bars. When teamed up with a subwoofer the W1-2121S delivers superb performance in portable speakers or even an ultra-small satellite.

Eigenschaften

Artikelnummer:
W1-2121S
Woofer Type
Full-range
Nominal Diameter
1-3/4"
Power Handling (RMS)
6 Watts
Power Handling (max)
12 Watts
Impedance
4 ohms
Sensitivity
79 dB 1W/1m
Frequency Response
120 to 15,000 Hz
Voice Coil Diameter
1.1"
DC Resistance (Re)
3.5 ohms
Voice Coil Inductance (Le)
0.07 mH
Resonant Frequency (Fs)
120 Hz
Mechanical Q (Qms)
1.33
Electromagnetic Q (Qes)
0.47
Diaphragm Mass Inc. Airload (Mms)
1.68g
Mechanical Compliance of Suspension (Cms)
0.949 mm/N
Surface Area of Cone (Sd)
8.935 cm²
BL Product (BL)
3.14 Tm
Compliance Equivalent Volume (Vas)
0.0038 ft.³
Maximum Linear Excursion (Xmax)
2.3 mm
Cone / Diaphragm Material
Aluminum
Surround Material
Santoprene®
Voice Coil Wire Material
Copper
Basket / Frame Material
Polymer
Magnet Material
Neodymium
Overall Outside Diameter
1.81"
Overall Depth
1.07"
Baffle Cutout Diameter
1.67"
Sealed Volume
0.00698 ft.³
Sealed F3
294 Hz
Vented Volume
0.00181 ft.³
Vented F3
167.9 Hz
