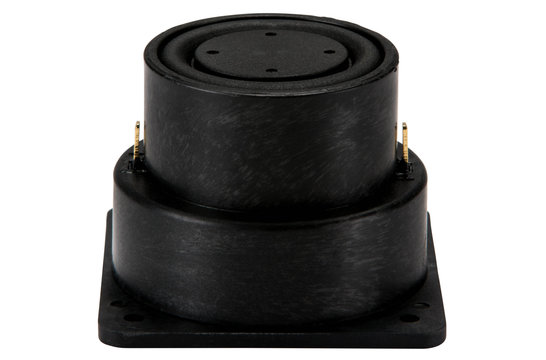

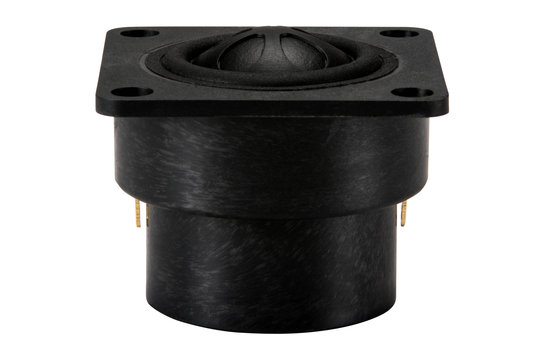

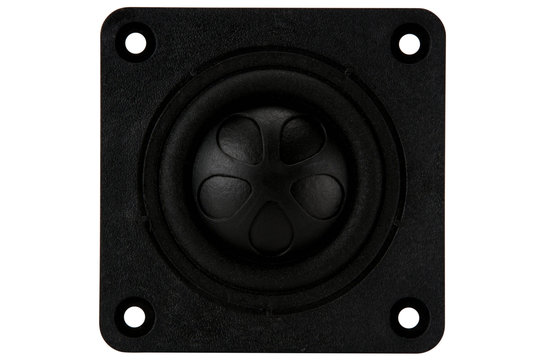

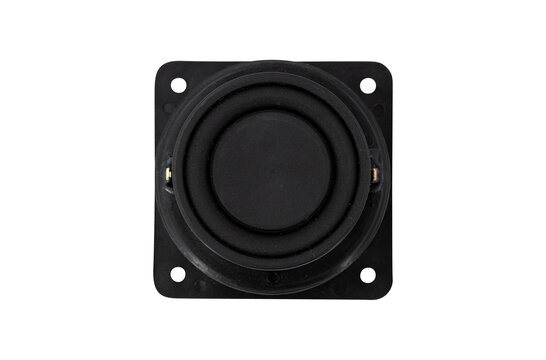

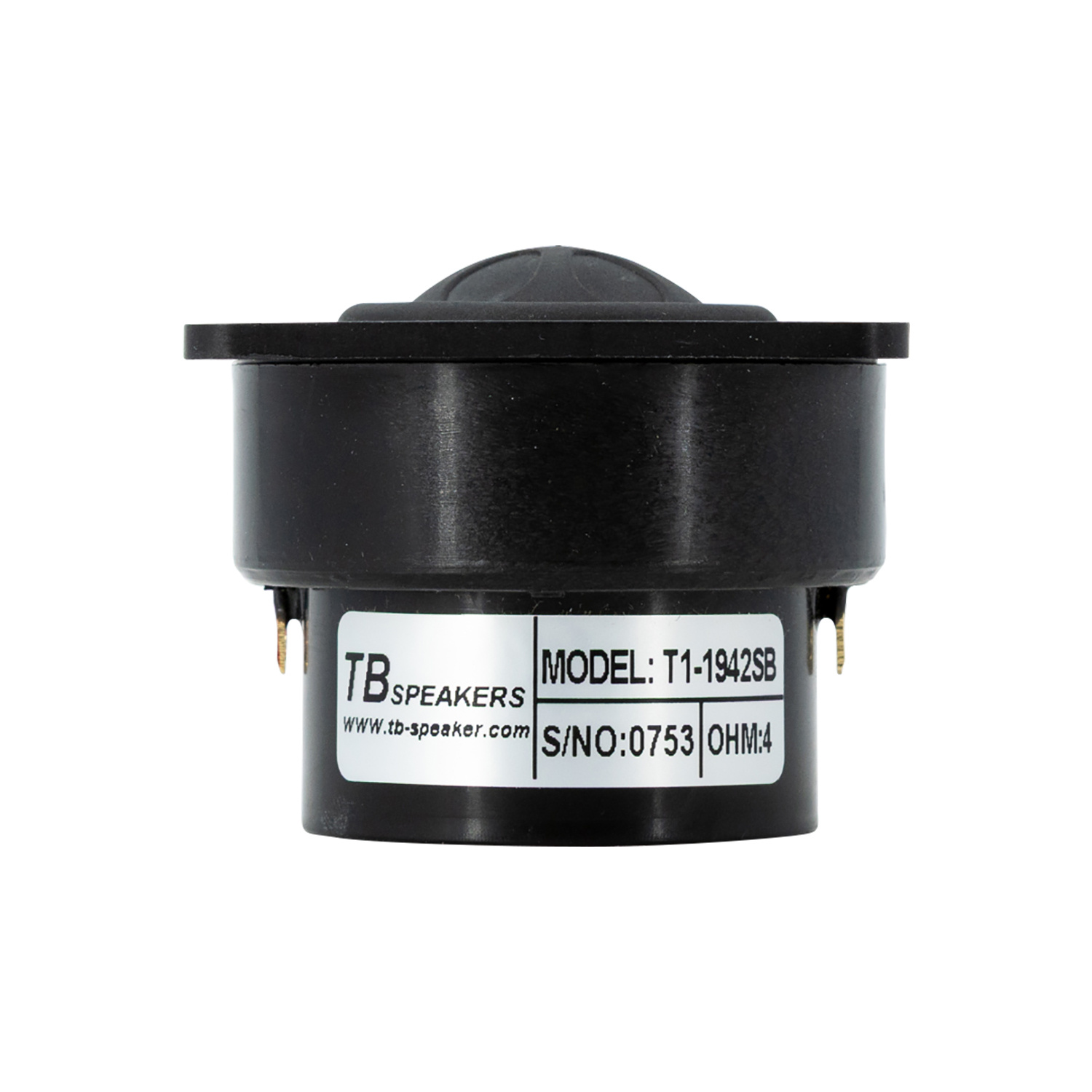

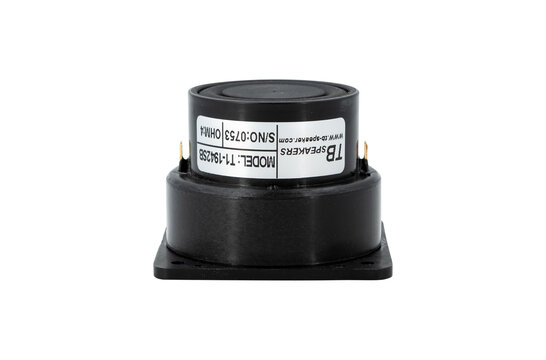

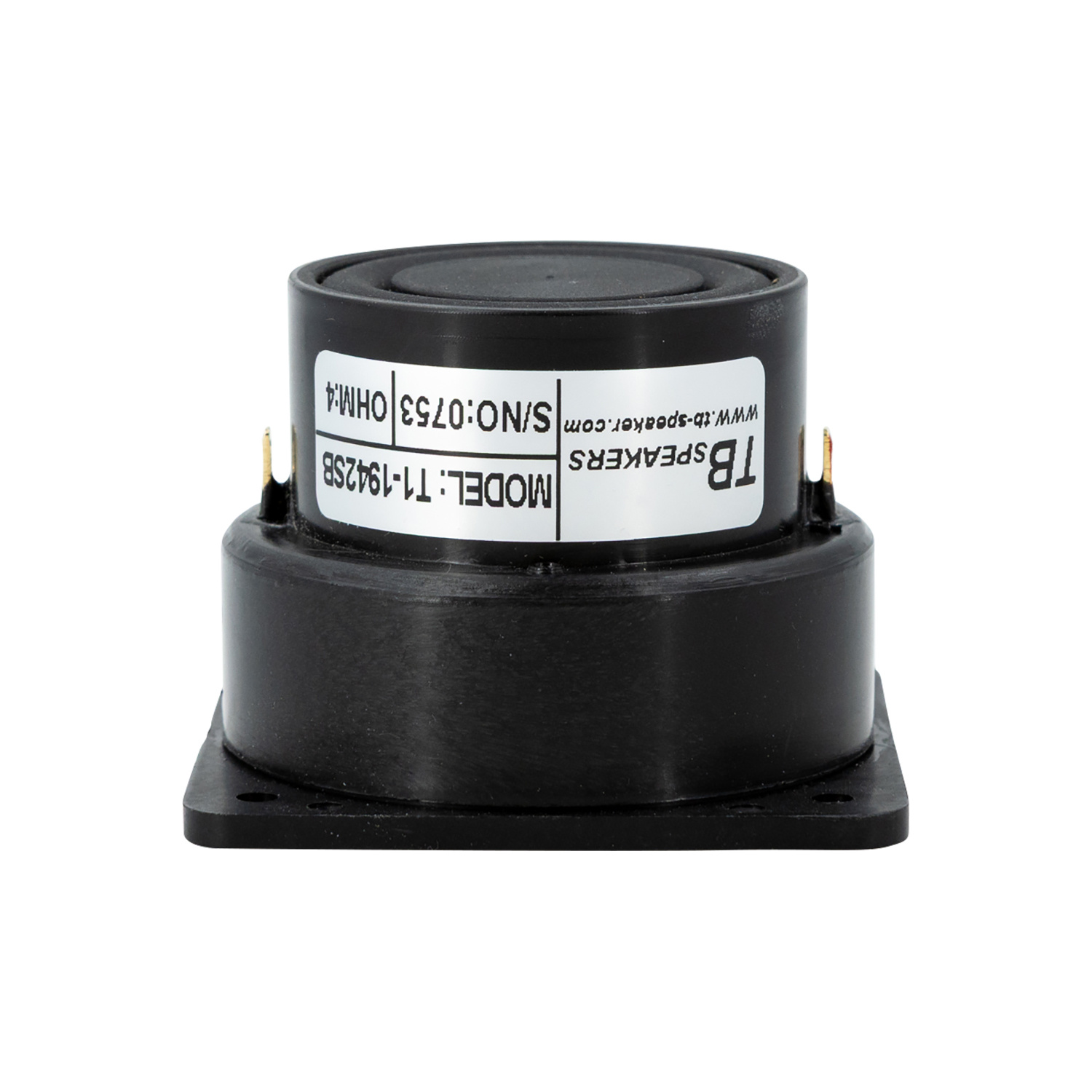

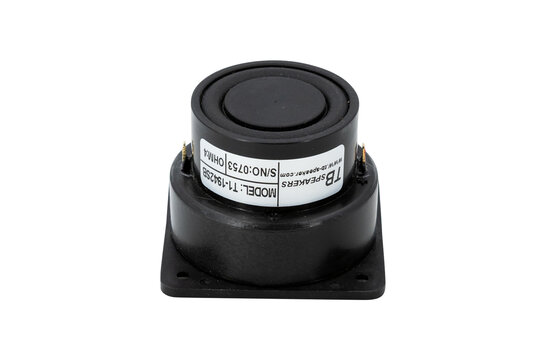

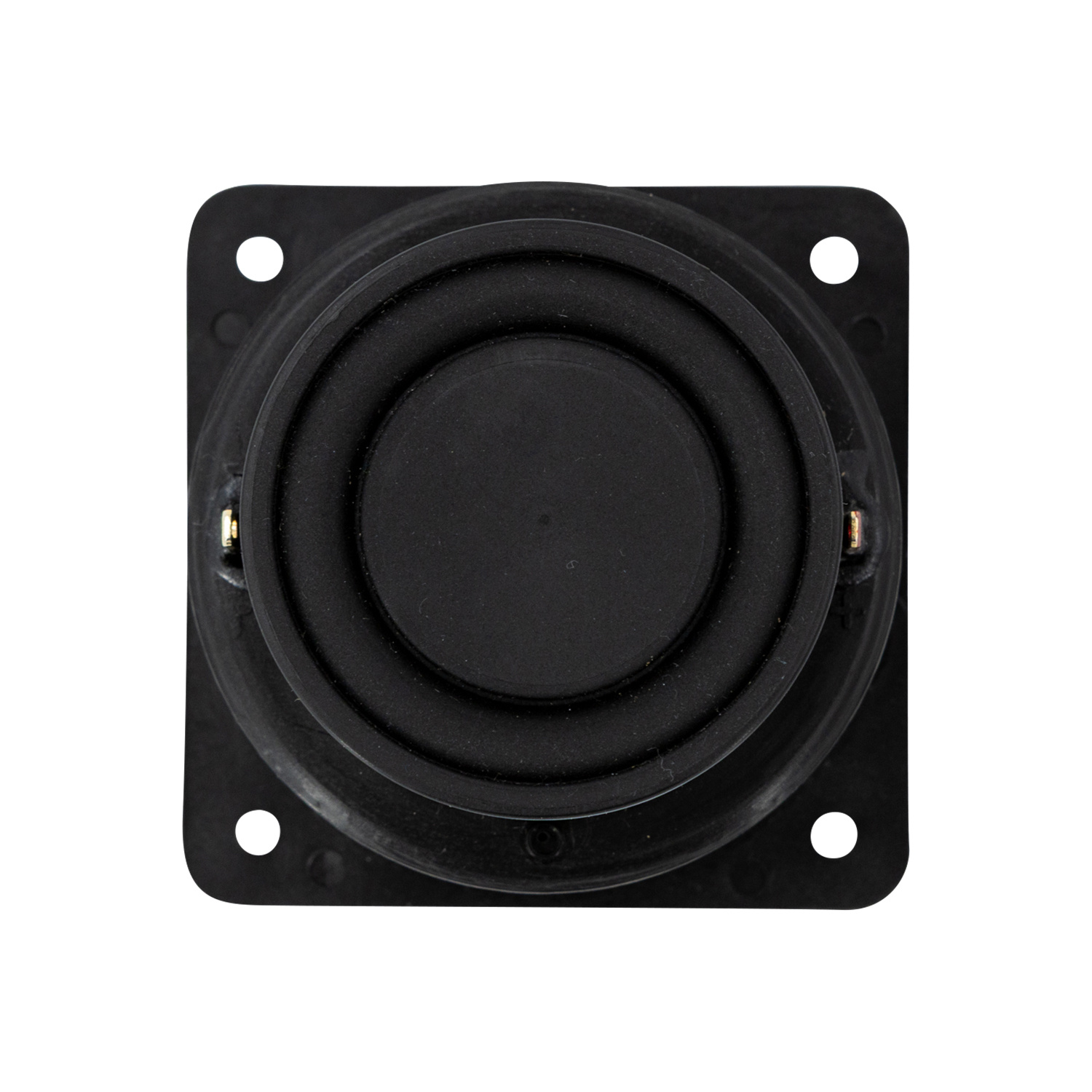

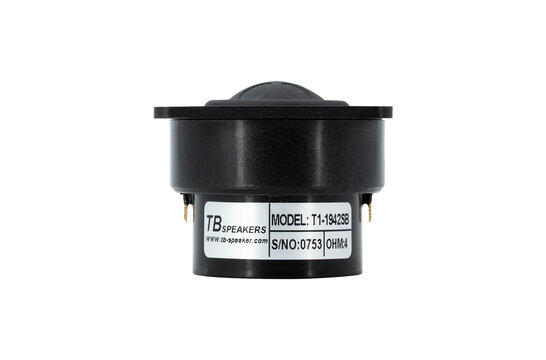

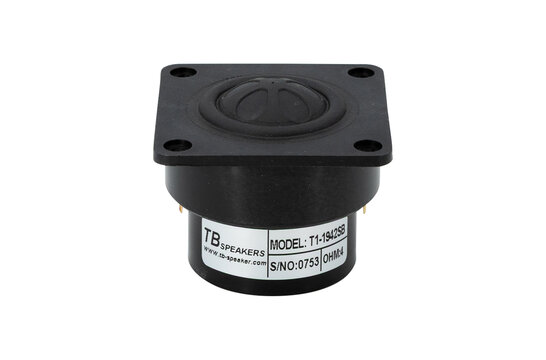

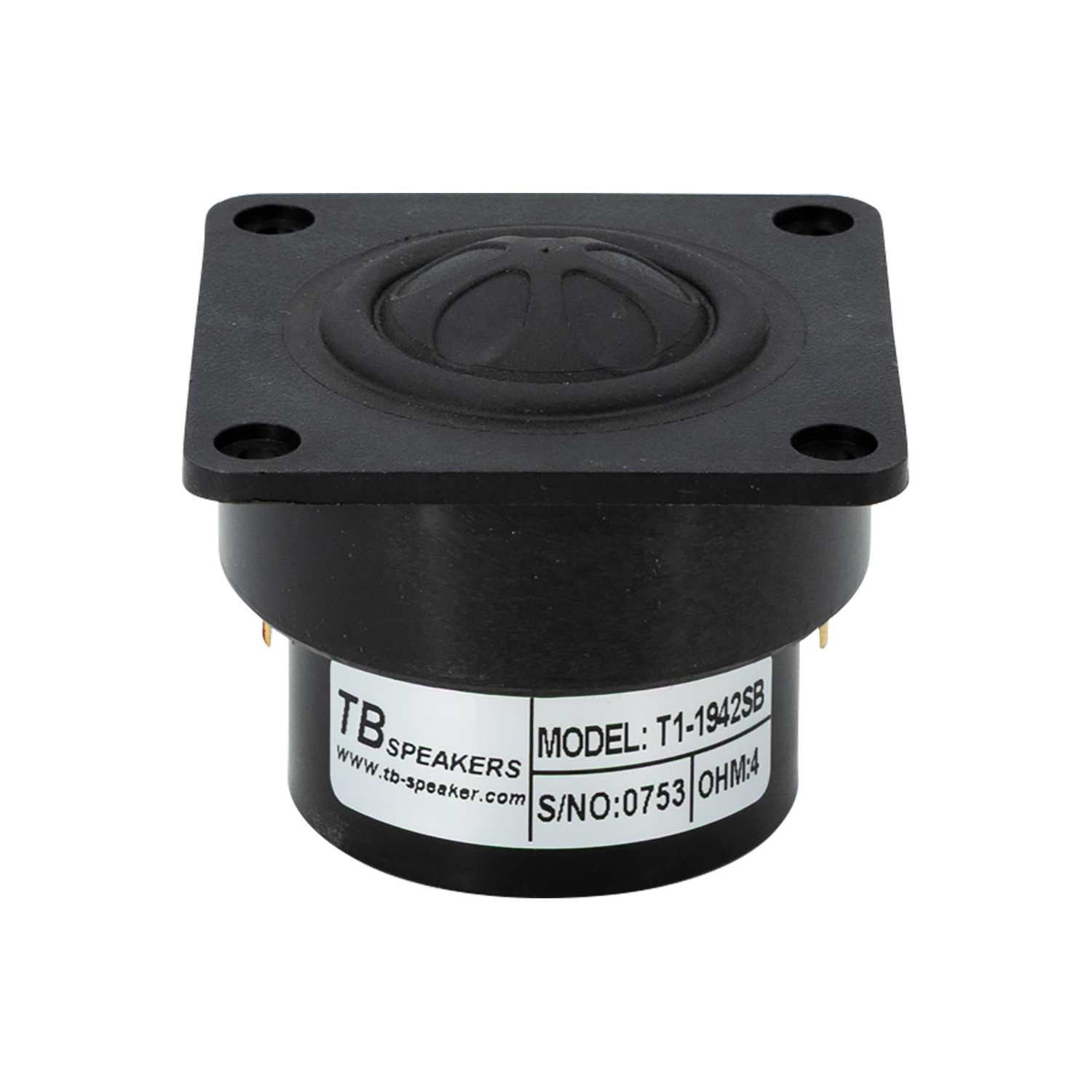

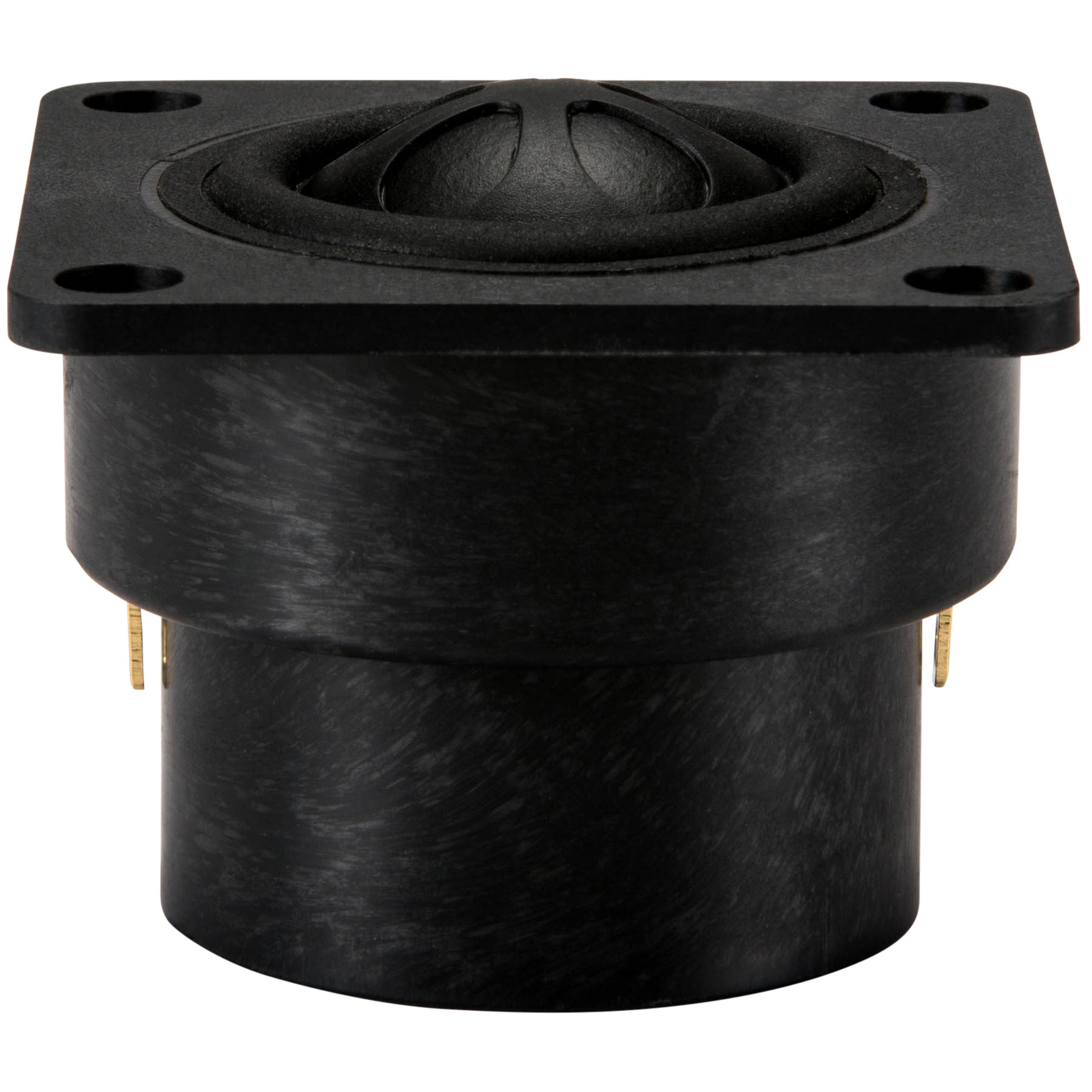

Tang Band T1-1942SB Speaker Module 2-5/16" x 2-5/16"

€ 28,88€ 34,95 3 Auf Lager: Lieferzeit 1-3 Werktage
Tang Band's T1-1942SB features a passive radiator-assisted 46 mm driver that plays from 75 to 20,000 Hz in a tiny 2.32" package. Design modern speakers never before thought possible.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €33,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Tang Band's T1-1942SB features a passive radiator-assisted 46 mm driver that plays from 75 to 20,000 Hz in a tiny 2.32" package. Design modern speakers never before thought possible.



Highlights

  • 46 mm polypropylene-composite inverted dome driver
  • Rear-mounted passive radiator extends response to 75 Hz

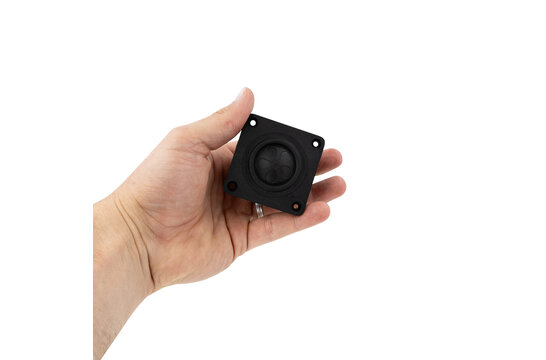

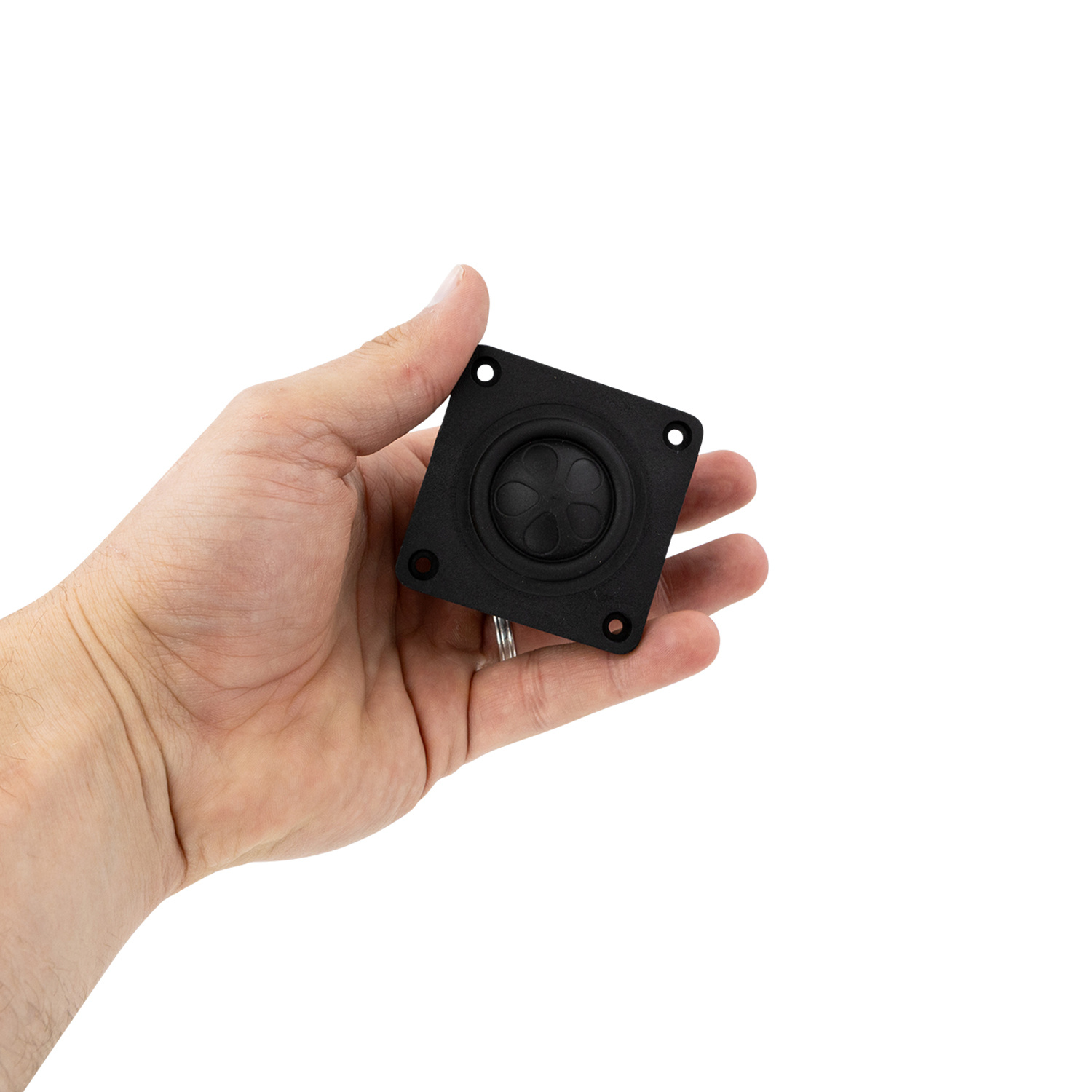

  • Tiny 2.32" self-contained design
  • Just add an amplifier for high-quality, full-range sound!



Product Details

Tang Band T1-1942SB Speaker Module 2-5/16" x 2-5/16"



Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.



The T1-1942SB speaker module is built around a passive radiator assisted, polypropylene composite 46 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.



Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 80 Hz high pass filter for the best possible sound. Higher power handling and output is possible by deploying multiple modules together.

Eigenschaften

Artikelnummer:
T1-1942SB
Woofer Type
Passive radiator
Power Handling (RMS)
4 Watts
Power Handling (max)
8 Watts
Impedance
4 ohms
Sensitivity
82 dB 1W/1m
Frequency Response
75 to 20,000 Hz
Voice Coil Diameter
1.10"
Resonant Frequency (Fs)
75 Hz
Cone / Diaphragm Material
Poly Composite
Surround Material
Rubber
Basket / Frame Material
Polymer
Magnet Material
Neodymium
Overall Outside Diameter
2.32" x 2.32"
Overall Depth
1.72"
Baffle Cutout Diameter
2.20"
Bolt Circle Diameter
2.6"
# Mounting Holes
4
