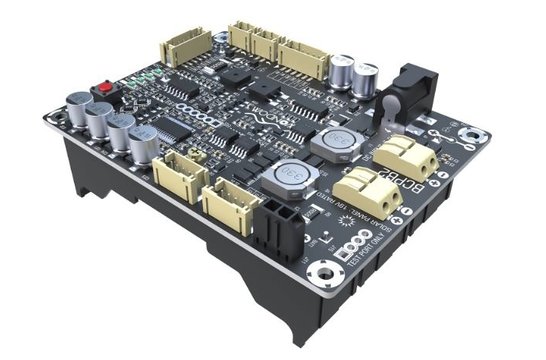

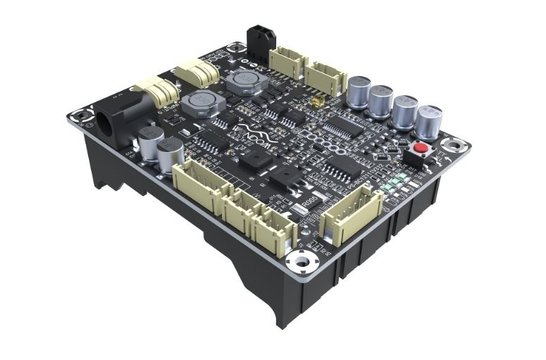

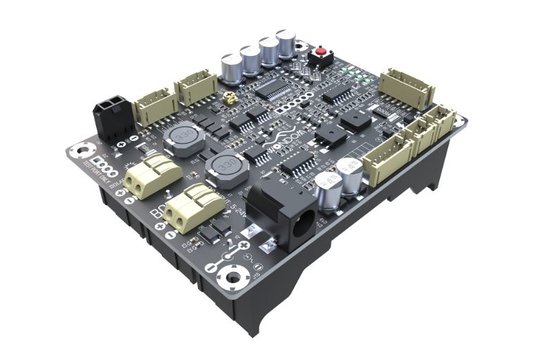

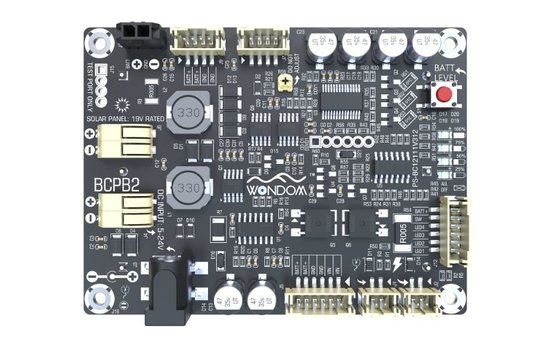

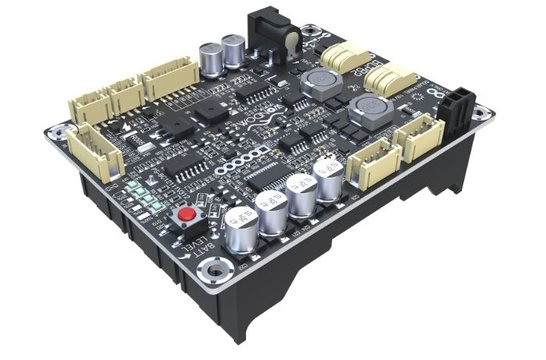

Sure Electronics 3S 18650 Lithium Battery Charger and Balance Protection Board - BCPB2

€ 11,78€ 14,25 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The 3S 18650 Lithium battery charger and balance protection board is a charging and protection module for 3 pcs Lithium batteries pack. It is highly integrated and can be used as portable power bank.
With MPPT charging ICs equipped, this board works as c... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €13,54 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Balances cells while charging
  • Four-LED status indicator
  • 3S configuration for a mean voltage of 11.1V and maximum voltage of 12.6V
  • Solar Charging Supported
  • Charge/discharge protection



Product details

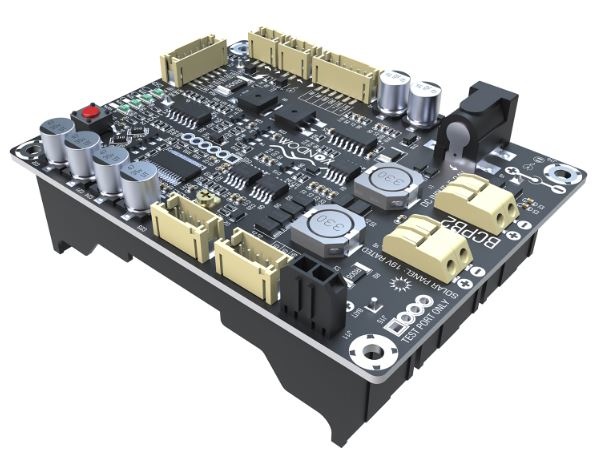

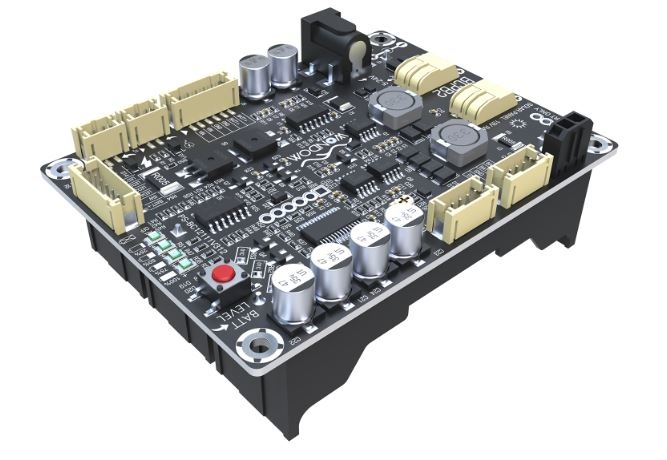

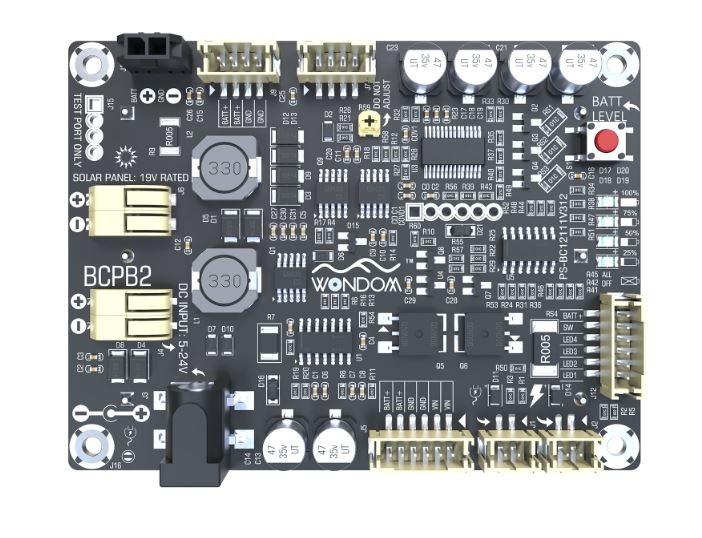

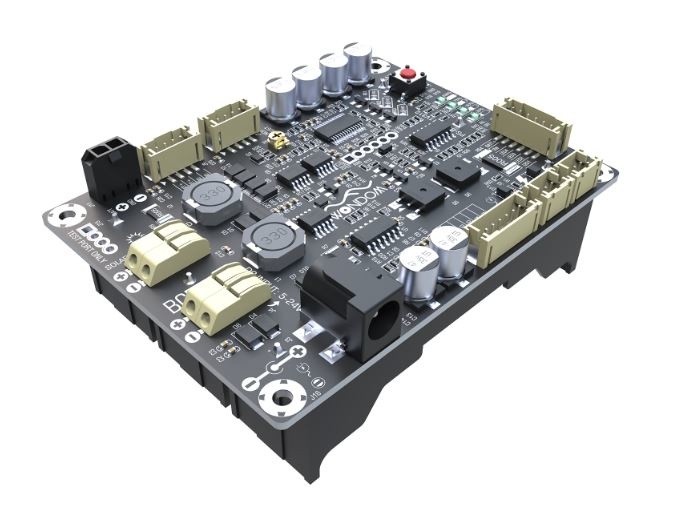

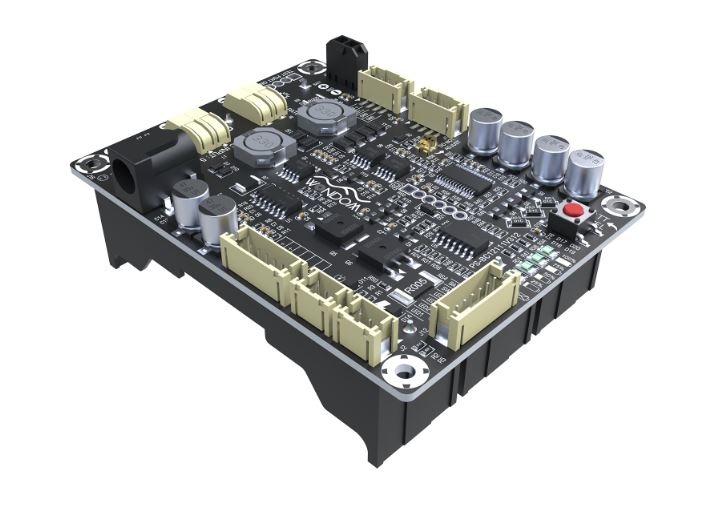

Sure Electronics PS-BC12111 | 3S 18650 Lithium Battery Charger and Balance Protection Board - BCPB2



The 3S 18650 Lithium battery charger and balance protection board is a charging and protection module for 3 pcs Lithium batteries pack. It is highly integrated and can be used as portable power bank.
With MPPT charging ICs equipped, this board works as charger and supports 15-24V power supply for charging. Four indicators are equipped as battery status reminder.
The Lithium battery charger and balance protection board works constantly to monitor each cell’s voltage, the current of charge or discharge, and the temperature of the environment to provide overcharge, over-discharge, overcurrent and over-temperature protections, etc.

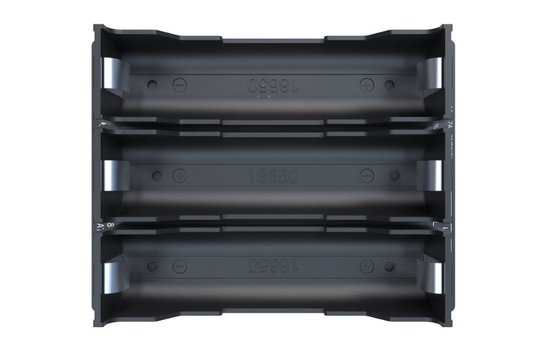

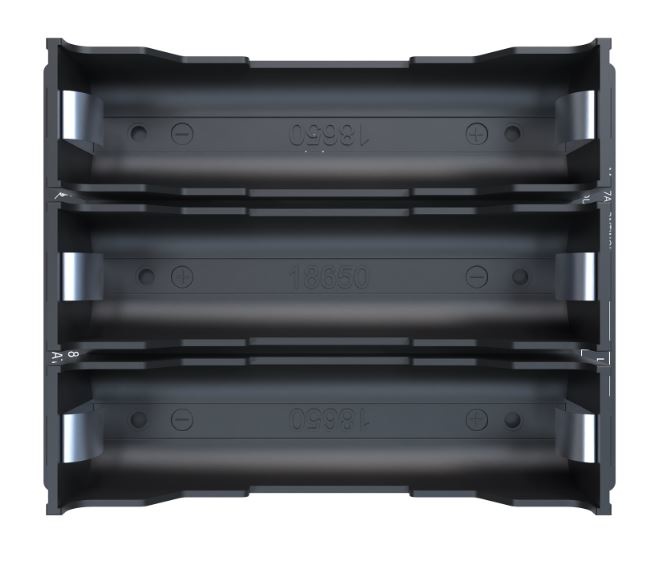

The battery charger and balance protection board is designed for 3 pcs 18650 Lithium batteries in series, which aren’t included in the package. You need to prepare the Lithium-ion batteries with 3.6V typical working voltage and 4.2V overcharge protection voltage. Besides, any other batteries especially LiFePO4 battery are prohibited.



Product specifications:

Charging Voltage from 15V-24V

Solar Charging Supported

Three Ports for Discharging

Battery Status Indicators

Charging Indicator

High-accuracy voltage detection for each cell

Weight: 124g/0.27lbs (±10%)

Size: 3.60 x 2.70 x 1.19 inches





Note:

  1. We do not provide technical support for any behavior of connecting the battery charger and balance protection board with power supply out of the recommended range. Warranty will be lost due to this.
  2. Please check the battery polarity before installation.

Eigenschaften

Artikelnummer:
PS-BC12111

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
4 van 5
Werkt prima. Maar de Maximum Power Point Tracking staat niet optimaal ingesteld voor de zonnecellen die wij gebruiken. De documentatie is te summier. We weten dus niet hoe we de MPPT kunnen bijregelen.
Durch Jan t. on 17 März 2020
5 van 5
Great way to power diy mobile devices!
Durch Florian H. on 8 November 2019
