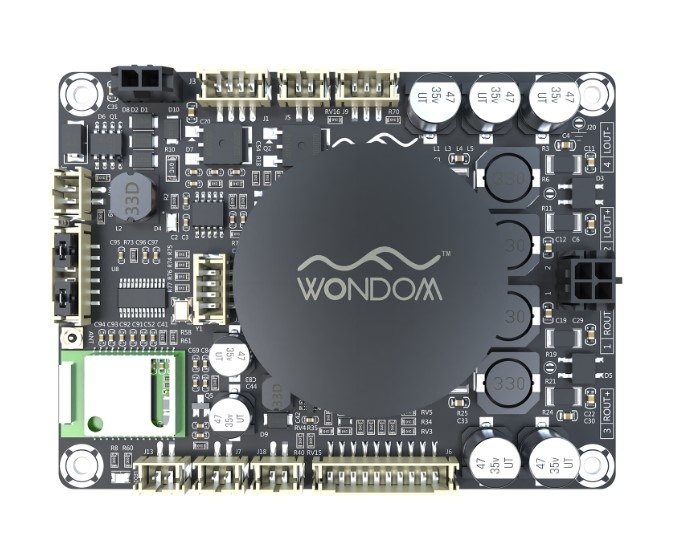

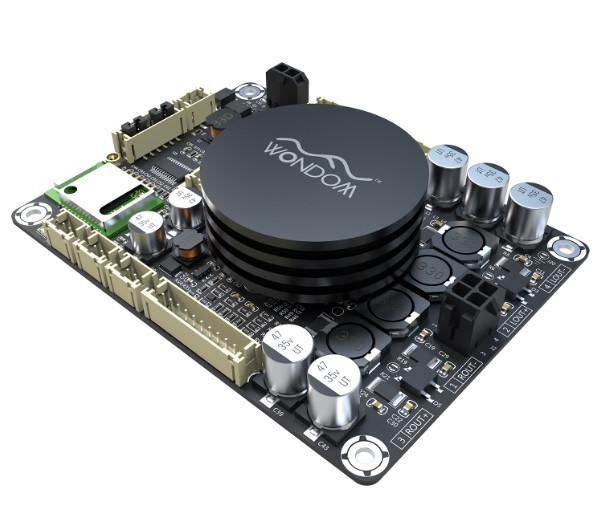

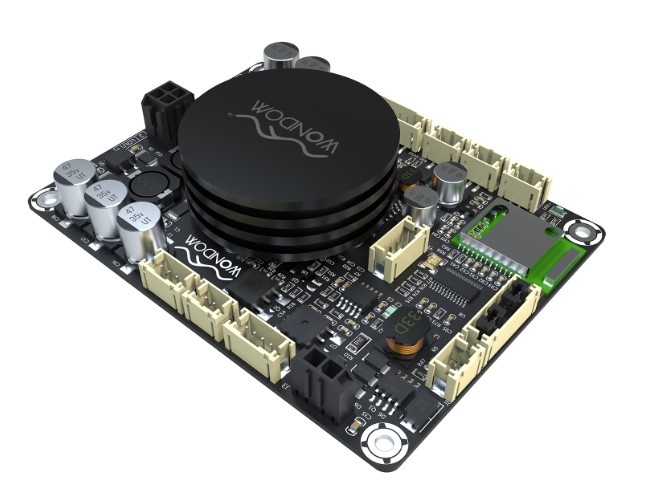

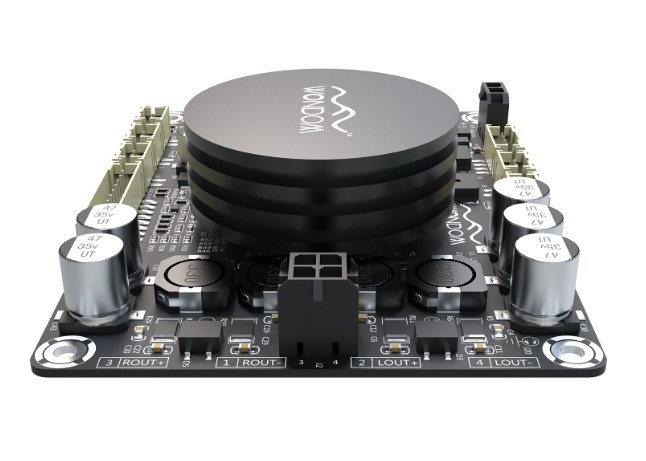

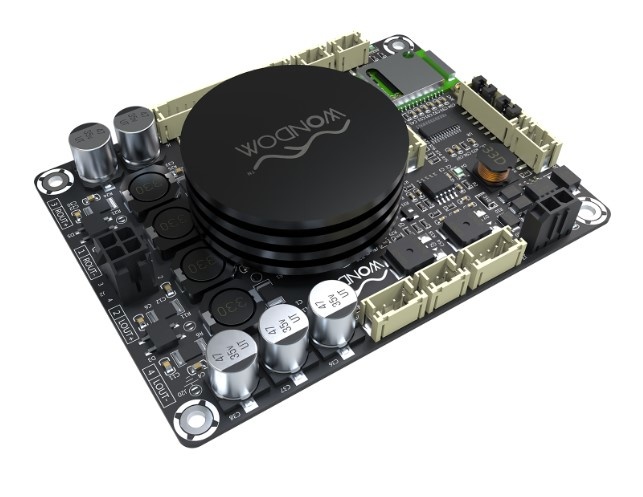

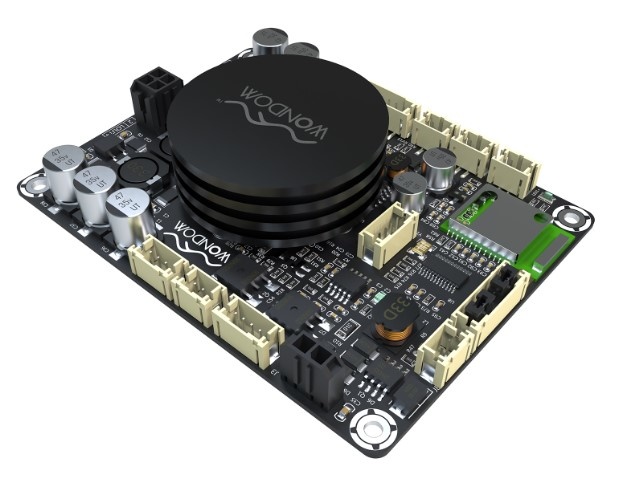

Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50

€ 45,41€ 54,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to d... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €52,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

The Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers.



Highlights

  • Bluetooth V4.0 APT-X +EDR, A2DP
  • LED Status Indicators
  • 6 x 2.7 Inches PCB Size
  • Power Management Circuit
  • Volume Control Port (Potentiometer)
  • U.FL IPX coaxial connector for internal or external Bluetooth antenna (internal antenna included) and a Bluetooth pairing reset switch



Connections:



High Quality Audio Performance

The Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50 delivers high quality sound without drawing a lot power. This is due to the highly efficient Texas Instruments TPA3116 Class-D amplifier chip. The TI TPA3116 operates at 90% efficiency, which becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.



Extremely low standby power

The Sure Electronics JAB2-50 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).



Integrated Bluetooth

The Sure Electronics JAB2-50 Amplifier Board offers a built-in Bluetooth 4.0 module with aptX which offers both high quality sound and low power consumption. It enables easy pairing with any mobile device or tablet for convenient access to audio. It is also CE and FCC ready for certification purposes.



Multiple Power Paths

The Sure Electronics JAB2-50 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.



Applications





Package includes

  • 1 x Sure Electronics JAB2-50 2 x 50 Watt Class D Audio Amplifier with Bluetooth 4.0 APT-X
  • 1 x power cable
  • 1 x 4-conductor speaker cable

Eigenschaften

Artikelnummer:
AA-JA32171
Rated power output
2 x 50 watts at 8 ohms
Minimum load
4 ohms
Efficiency
90 %
Signal-to-noise ratio (SNR)
92 dB
Distortion
0.02 % THD at 1 kHz, 8 ohms, 10 watts
Frequency Response
22 - 22,000 Hz
Gain
26 dB
Input sensitivity
-
Input impedance
-
Amplifier Classification
Class D
Circuit Topology
Texas Instruments TPA3116
Speaker output channels
2
Input connection type

4 pin PCB connector
Bluetooth

Speaker output connection type
4 pin PCB connector
DSP function
-
Bluetooth
check version 4.0
EQ Adjustment
-
Power Requirements
12 - 24 VDC
Power inlet connector
2 pin PCB connector
Current limit
-
Under/over voltage protection
-
Dimensions (L x W x H)
91 x 69 x 23 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm

Bewertungen

3 from 5Based on 1 reviews
Produkt bewerten
3 van 5
Easy to install. Sound is good! Bluetooth does not function properly. Sometimes it is hard to connect. I use a 19V, 4.7A adapter
Durch Jarno v. on 8 September 2018
