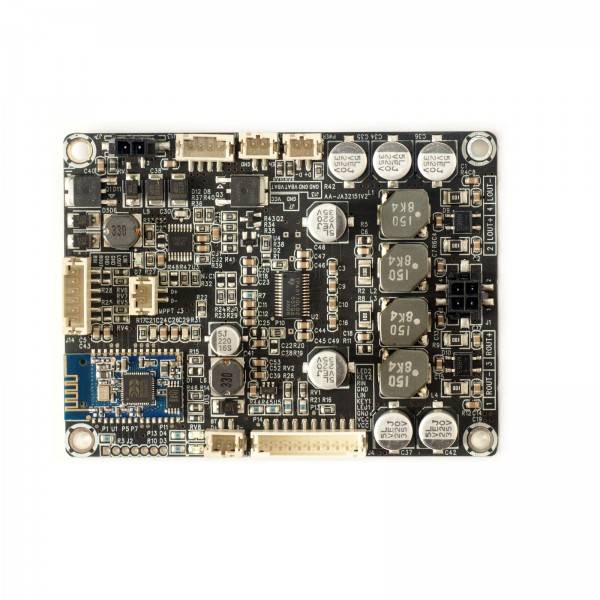

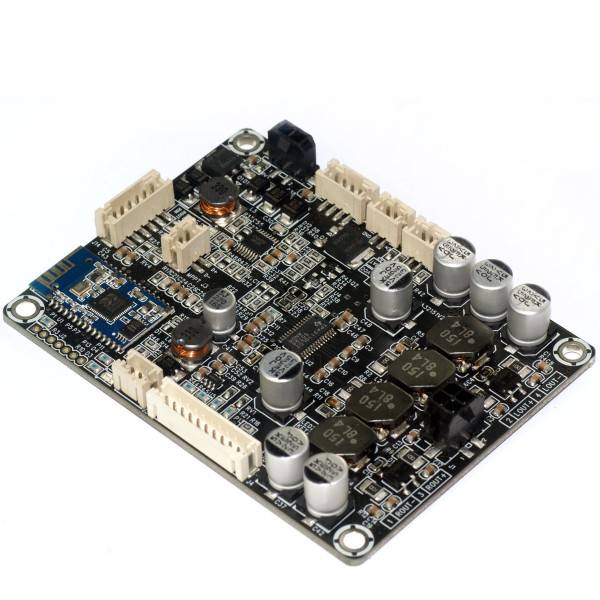

Sure Electronics AA-JA32151 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1

€ 32,45 7 Auf Lager: Lieferzeit 1-3 Werktage
The Sure Electronics 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €30,83 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The Sure Electronics 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers.



Highlights

  • Bluetooth V2.1 +EDR, A2DP
  • LED Status Indicators
  • Size: 3.6“ x 2.7“

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.

Connections:





High Quality Audio Performance

The Sure Electronics AA-JA32151 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1 delivers high quality sound without drawing a lot power. This is due to the highly efficient Texas Instruments TPA3110 Class-D amplifier chip. The TI TPA3110 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.



Extremely low standby power

The Sure Electronics JAB1 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).



Integrated Bluetooth

The Sure Electronics JAB1 Amplifier Board offers a built-in Bluetooth 2.1 module which enables easy pairing with any mobile device or tablet for convenient access to audio. It is also CE and FCC ready for certification purposes.



Multiple Power Paths

The Sure Electronics JAB1 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.



Applications



Package includes

  • 1 x Sure Electronics AA-JA32151 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1
  • 1 x power cable
  • 1 x 4-conductor speaker cable

Eigenschaften

Artikelnummer:
AA-JA32151
Rated power output
2 x 15 watts at 8 ohms
Minimum load
4 ohms
Efficiency
90 %
Signal-to-noise ratio (SNR)
82 dB
Distortion
0.07 % THD at 1 kHz, 8 ohms, 10 watts
Frequency Response
22 - 22,000 Hz
Gain
36 dB
Input sensitivity
-
Input impedance
-
Amplifier Classification
Class D
Circuit Topology
Texas Instruments TPA3110
Speaker output channels
2
Input connection type
<p>4 pin PCB connector</br>Bluetooth</p>
Speaker output connection type
4 pin PCB connector
DSP function
-
Bluetooth
check version 2.1
EQ Adjustment
-
Power Requirements
12 - 24 VDC
Power inlet connector
2 pin PCB connector
Current limit
-
Under/over voltage protection
-
Dimensions (L x W x H)
91 x 69 x 23 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm
