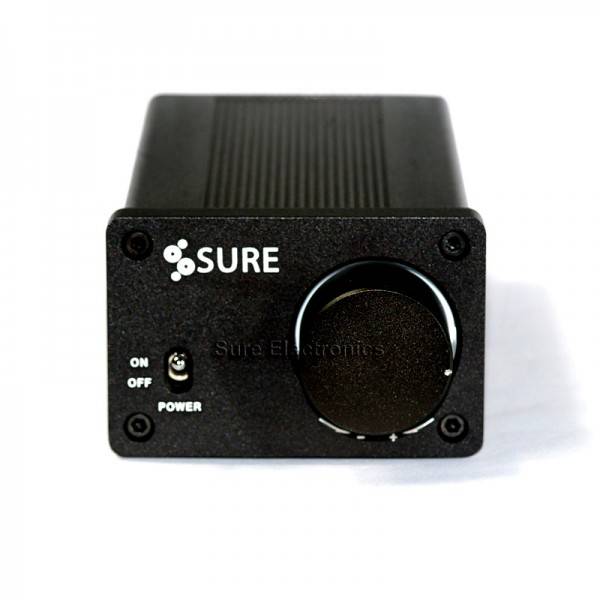

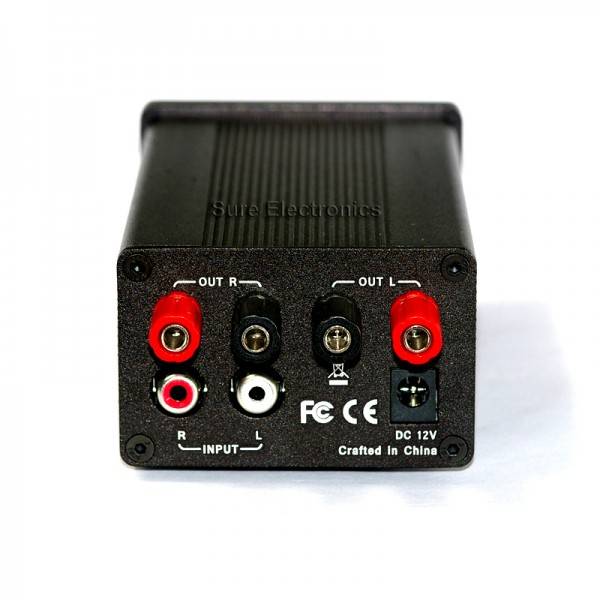

Sure Electronics 2 x 15 Watt 4 Ohm Class D Digital Audio Amplifier - TA2024 (AA-AS32157)

€ 39,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
Sure Electronics 2 x 15 Watt 4 Ohm Class D Digital Audio Amplifier integrates a high-quality rotary encoder which employs high-quality digital volume control IC ensuring precise shaft rotation and accurate volume adjustment and delivering 15 watts power p... Mehr anzeigen
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

The AA-AS32157 integrates a high-quality rotary encoder which employs high-quality digital volume control IC ensuring precise shaft rotation and accurate volume adjustment.
The AA-AS32157 supports dual-channel amplification and each channel is rated at 15W.
You can use it to drive any 4Ω or 8Ω passive speakers.



Highlights

  • Size: 6.4 inch x 2.9 inch x 1.9 inch
  • Signal Noise Ratio: 90dB

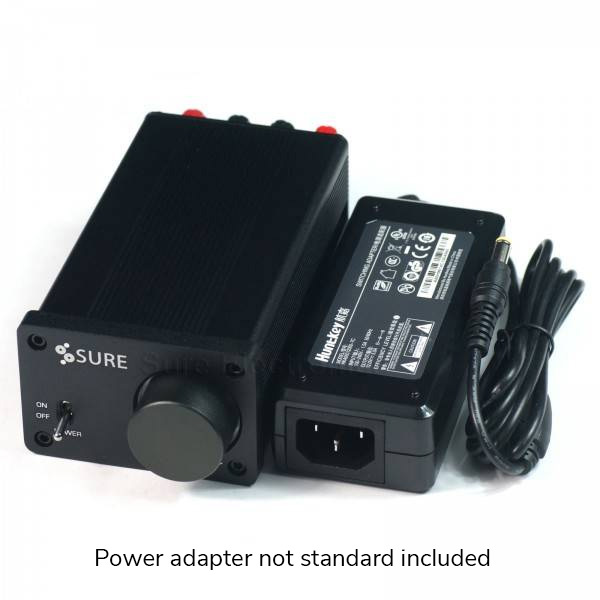

  • Power supply Optional



Product details

Sure Electronics AA-AS32157 | 2 x 15 Watt 4 Ohm Class D Digital Audio Amplifier - TA2024



The AA-AS32157 houses TA2024 audio amplifier chip which is currently popular around the world. It not only provides dream sound but also has high efficiency, thus it can dissipate the heat after long-time working to ensure that the amplifier can works in a stable condition for long time.
A high-quality rotary encoder is integrated in the AA-AS32157 which employs high-quality digital volume control IC ensuring precise shaft rotation and accurate volume adjustment. AA-AS32157 supports dual-channel amplification and each channel is rated at 15W. With built-in MCU, this product can provide over/under voltage protection, low current protection and display LED state.
This product can be powered by any DC power supply ranging from 9 to 14V. You can use it to drive any 4Ω or 8Ω passive speakers.



Eigenschaften

Artikelnummer:
AA-AS32157
Rated power output (RMS)
2 x 15 watts at 4 ohms
Bridged power output (RMS)
-
Minimum load
4
Signal-to-noise ratio (SNR)
90 dB
Distortion
0.037% at 4 ohms, 1 watts, 1 kHz
Distortion bridged
-
Efficiency
84% at 15 watts, 4 ohms / 90% at 10 watts, 8 ohms
Frequency response
20 - 22,000 Hz
Input impedance
10-20k ohms
Input sensitivity
642-662 mV
Auto turn-on sensitivity
-
DSP
-
DAC
-
Maximum sampling rate
-
Circuit Topology
Tripath TA2024
Amplifier classification
Class D
Speaker output channels
2
Subwoofer output channel
-
Analog in/out
-/-
Optical S/PDIF in/out
-/-
Coaxial in/out
-/-
RCA in/out
1/-
AUX in/out
-/-
Bus in/out
-/-
XLR in/out
-/-
USB
-
Memory card slot
-
Network connection
-
Headphone jack
-
Subwoofer pre-out
-
Bluetooth
-
NFC
-
Wi-Fi
-
Banana plug compatible
check
Remote control
-
App control
-
Auto turn-on
-
Accepted file formats
-
Equalizer (EQ) adjustment
-
Equalizer (EQ) profiles
-
Multi zone/room
-
Crossover frequency adjustment
-
Bridge mode
-
Power requirements
9-14 VDC, 3A, 36 watts
Power inlet connector
Jack
Power consumption
30 watts / 3.1 A max
Stand-by power consumption
-
Case material
Aluminum
