Sure Electronics Audio Digital Signal Processor Kernal Board - ADAU1701

€ 18,55€ 22,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
This Audio DSP Board comes with all the necessary components installed and demonstration firmware, all that customers need to do is to connect it and play.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €21,33 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This Audio DSP Board comes with all the necessary components installed and demonstration

firmware, all that customers need to do is to connect it and play.



Highlights

  • Speaker Equalization
  • Active Crossovers
  • Subwoofer Integration
  • Noise Cancellation System
  • Digital Car Audio System
  • Home Theater, Karaoke, Musical Instruments



Product details

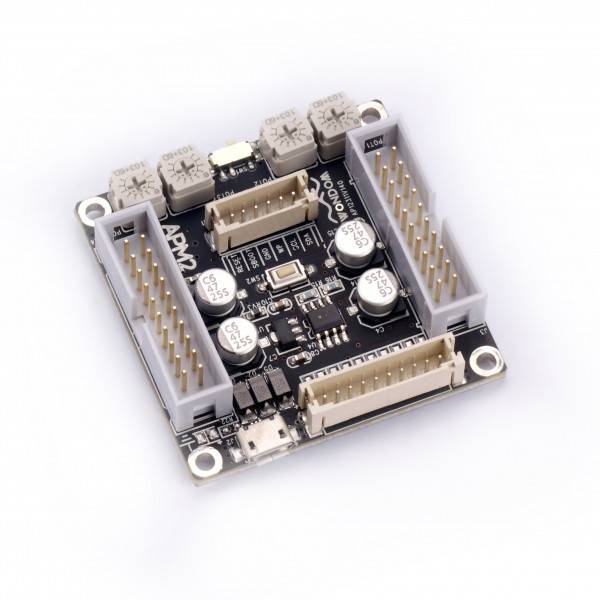

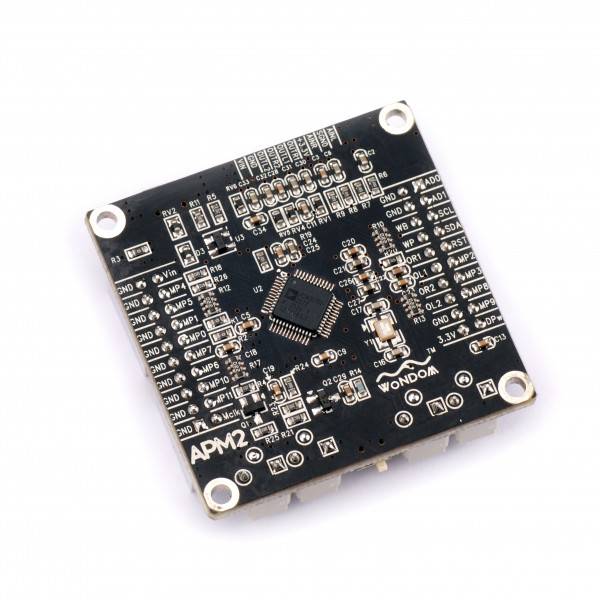

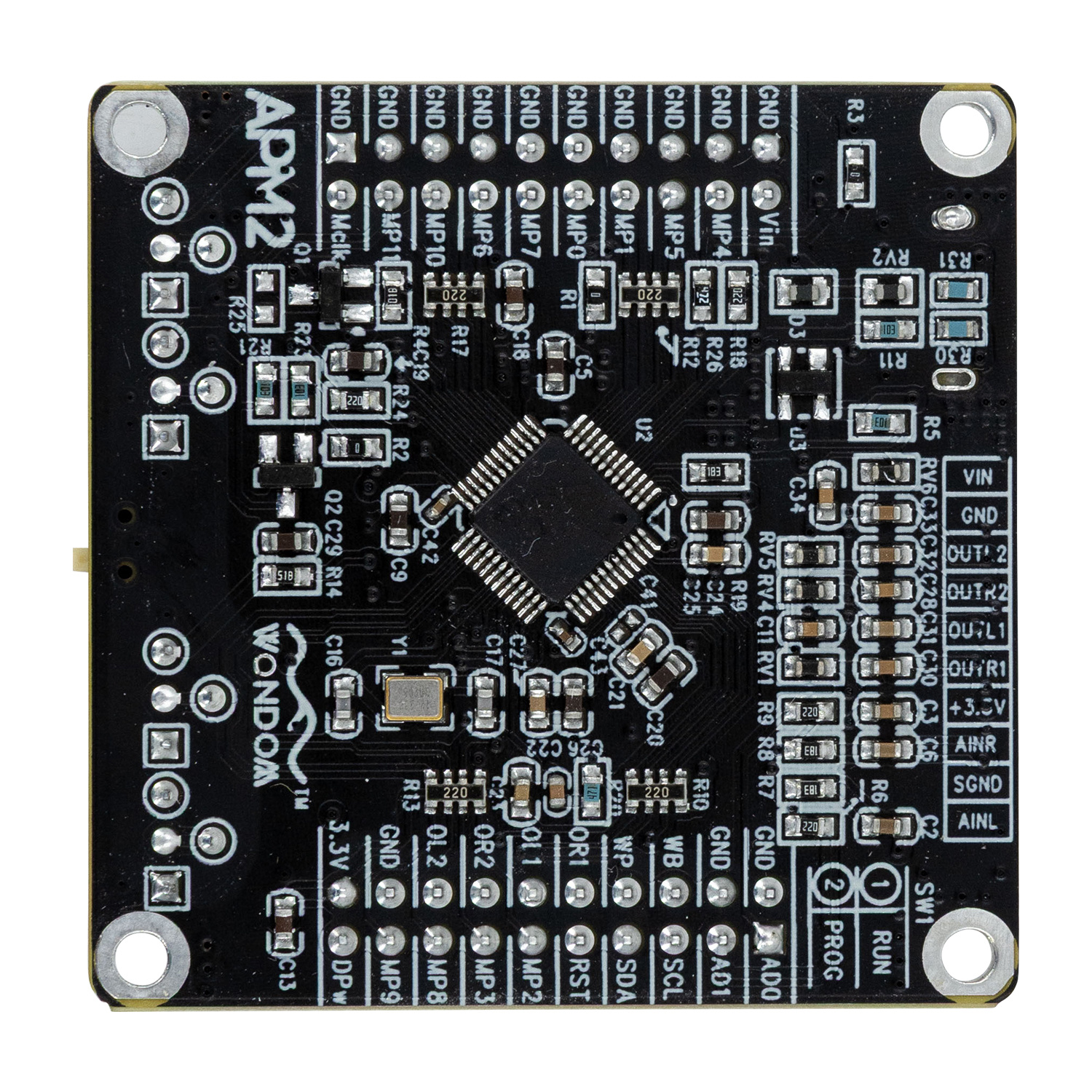

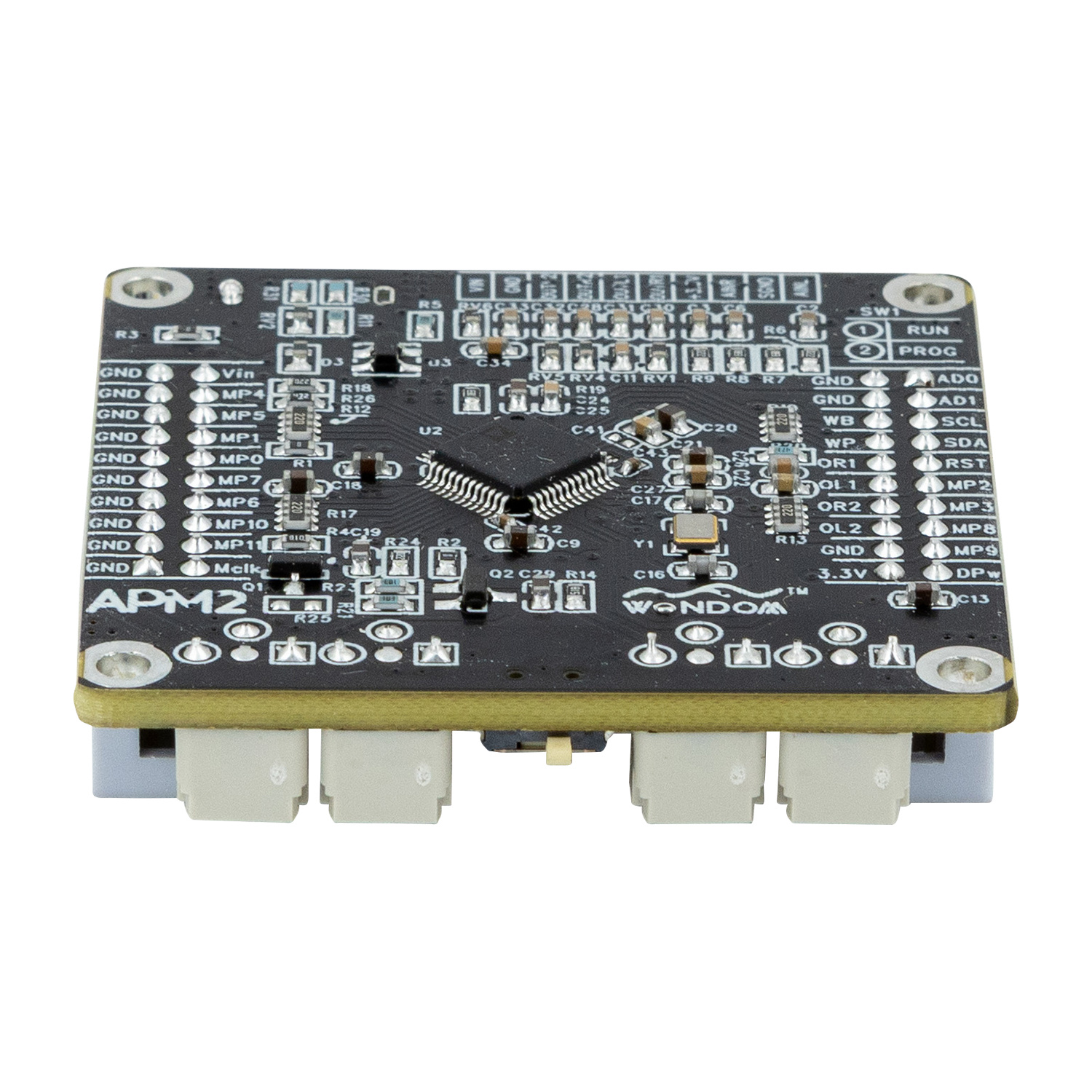

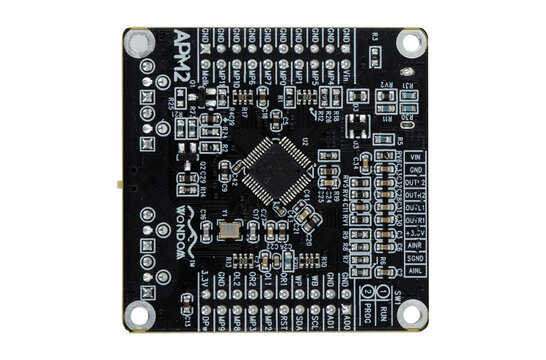

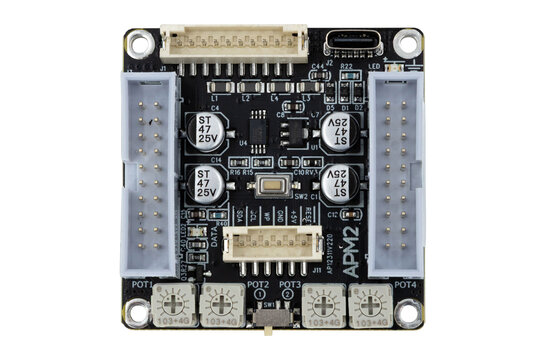

Sure Electronics Audio Digital Signal Processor Kernal Board - ADAU1701

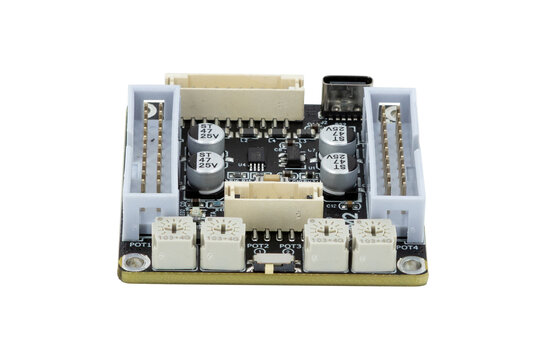

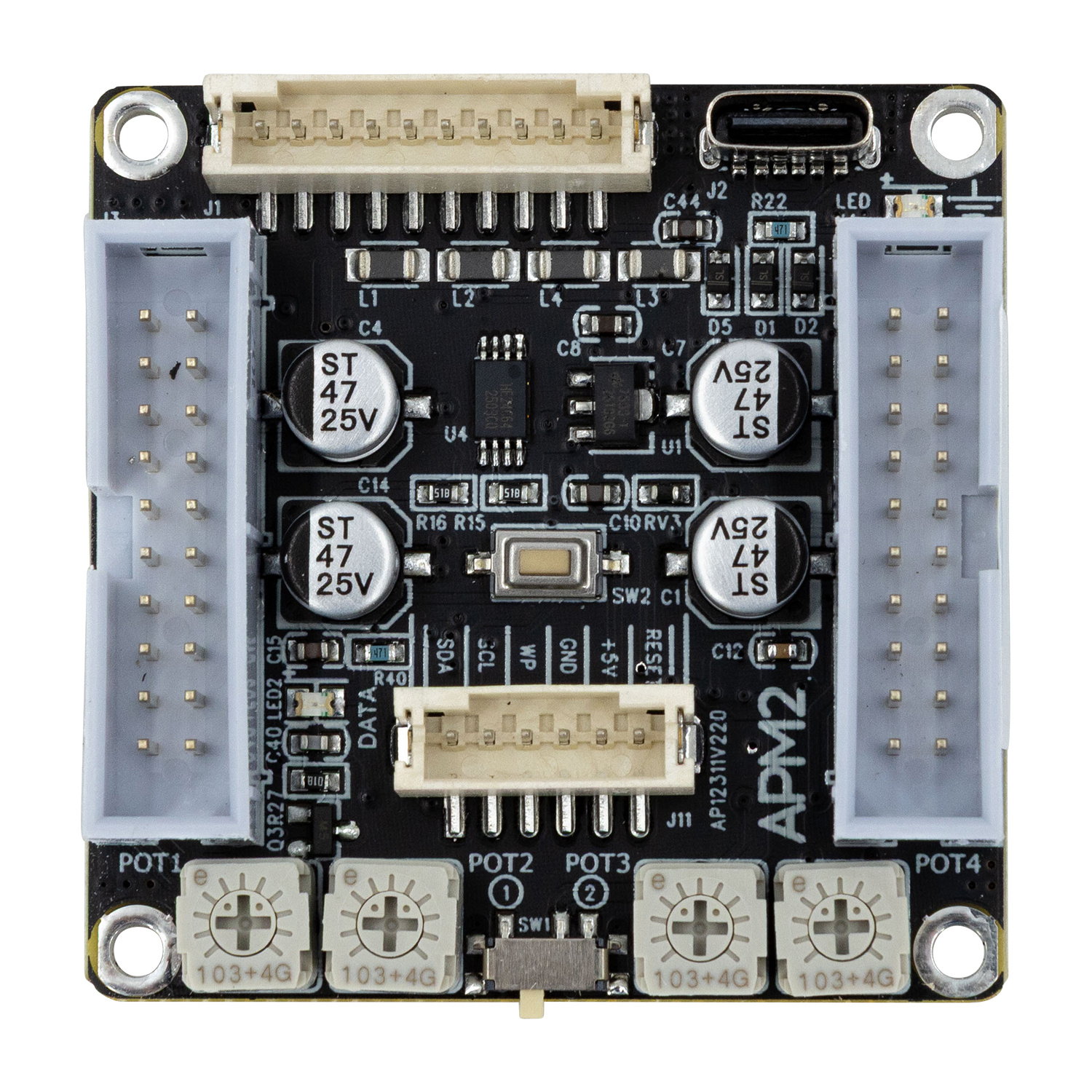

The ADAU1701 employs the flexible audio DSP connector (10Pin Extension cable

attached with Extension board). After connecting the Kernal board with interface extension

board, just power up the Kernal board with a universal microUSB cable, and then turn the

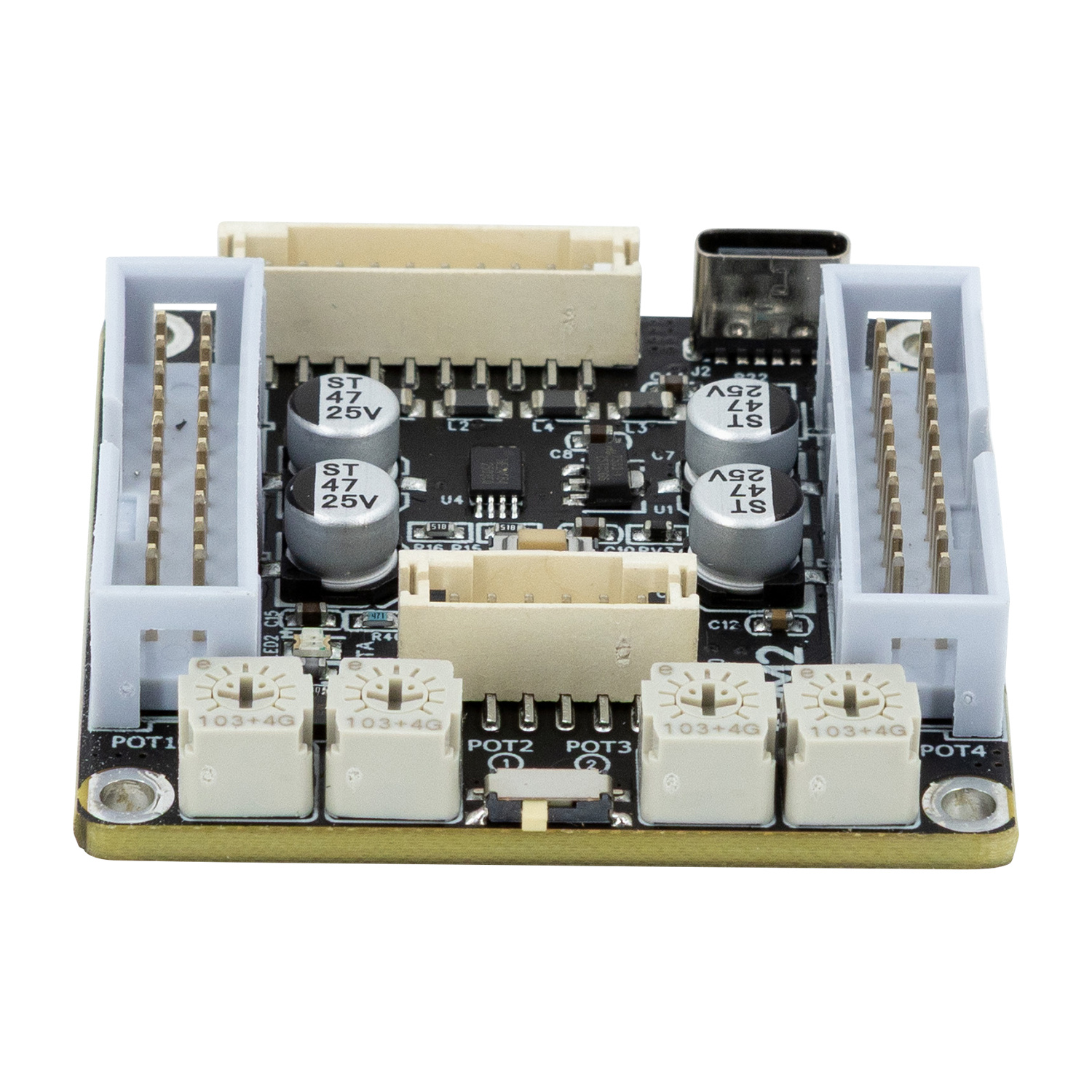

potentiometers on board to adjust main volume, treble volume, bass volume and cut off

frequency, while also toggling the slide switch on the board to mute or enable the audio output.

Select AA-AA11428 to get this interface extension board.



This Audio DSP board employs the Analog Device ADAU1701 whose signal processing is comparable to that found in high end studio equipment. The dynamic range of its two Σ-Δ ADCs and four Σ-Δ DACs reaches high up to 98.5dB. Each ADC has a THD + N of -83 dB, and each DAC has a THD + N of -90 dB. Besides that, the optimal PCB layout of power filtering and signal loop as well as the capacitive components also contribute to the high sound quality.



Thanks to all the available interface of the Audio DSP, including analogue and digital audio input

and output, control IOs and I2C programming interface, this Audio DSP board can provide a

platform with the ADAU1701 for easy integration of digital audio applications with an affordable

price.



Eigenschaften

Artikelnummer:
AA-AP23122
Device type
Kit
Device serie
-
DSP chip
Analog Devices ADAU1701
Internal processing resolution & sample rate
24 - 56 bit / 48 kHz
Input / ouput configuration
2 / 3
Audio input connectivity
pin header
Audio output connectivity
pin header
Max input level
-
Max output level
-
Input impedance
-
Output impedance
-
Calibration software
Analog Devices Sigma SigmaStudio
IIR
check
FIR
-
Dirac Live®
-
DSP presets
-
Impulse response correction
-
Infrared remote learning
-
Windows / Mac compatible
check/ -
UMIK-1 included
-
Room EQ wizard support
-

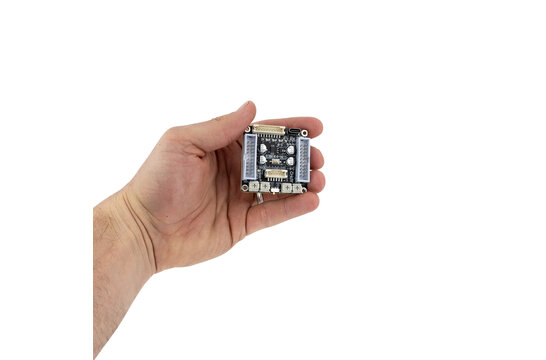

Dimensions
50 x 50 x 13 mm
Power
5 VDC (USB powered)

Bewertungen

4 from 5Based on 5 reviews
Produkt bewerten
5 van 5
When you know the quirks of this board it's an exceptionally versatile piece of kit. De audio quality is great especially when used with a digital input as source which is possible given the MCLK input allowing synchronous I2S audio.
Durch Pascal v. on 14 Mai 2020
5 van 5
Fantastisches Preis / Leistungsverhältnis
Durch Thorsten H. on 20 November 2019
