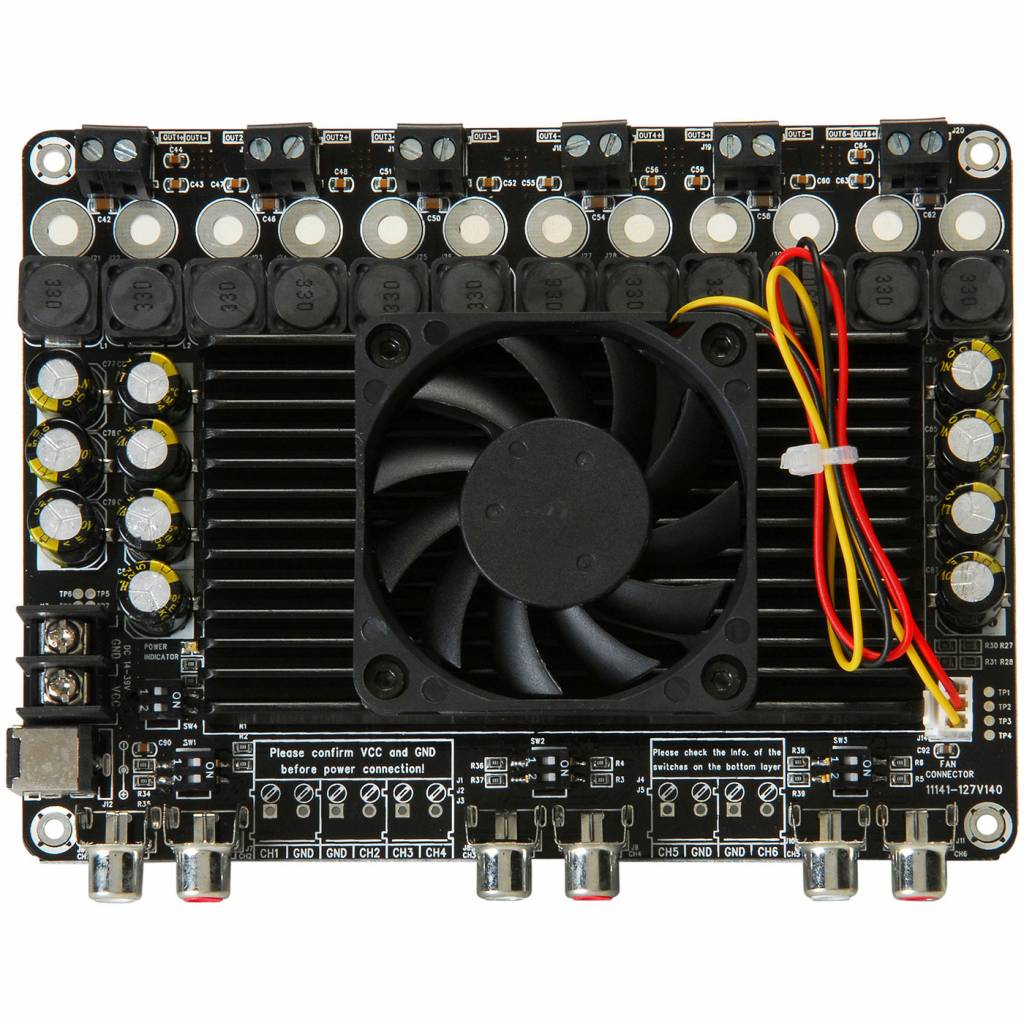

Sure Electronics AA-AB34181 6x100W TDA7498 Class-D Amplifier Board

€ 76,41€ 92,45 9 Auf Lager: Lieferzeit 1-3 Werktage
This amplifier board uses three Class-D TDA7498s to generate up to 100W x 6-channels, making it the perfect 5.1 amplifier solution.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €87,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This amplifier board uses three Class-D TDA7498s to generate up to 100W x 6-channels, making it the perfect 5.1 amplifier solution.



Highlights

  • 6 x 100W Class-D amplifier
  • Small footprint for space limited applications
  • Perfect amplifier board for DIY 5.1 amplification
  • Built-in cooling fan and over-temp protection circuit
  • 14 to 39 VDC power supply required



Product details

Sure Electronics AA-AB34181 6x100W TDA7498 Class-D Amplifier Board

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



Build your own high-power 5.1 amplifier with this 6-channel amplifier board. Three Class-D TDA7498s are used for extreme efficiency. The small 3.6" wide by 4.8" long footprint allows this amplifier board to be used in many applications were size constraints limit the use of conventional amplifiers. Additionally, separate inputs and outputs make this amplifier board perfect for tri-amplifier use. Just add a 14 to 39 VDC power supply, signal source, and speakers!



A low noise cooling fan is mounted atop the robust heatsink to maximize heat dissipation. Thermal, over/under voltage, and current protection circuits are also included to extend the longevity of the amplifier board. Four fixed gain settings are available to allow for volume control at the source, and dual stereo RCA line-level inputs are pre-attached. Mounting holes are provided as is a 2.1 mm x 5.5 mm power jack for quick connection. Screw-down phoenix-type terminals are included for quick speaker wire connection.



Features:
• Three Class-D TDA7498 amplifier ICs
• Heatsink with attached fan
• Pre-drilled mounting holes
• Over-temperature, over/under voltage, and over current protection circuits
• Phoenix-type speaker terminals
• Six line-level RCA inputs

Eigenschaften

Artikelnummer:
AA-AB34181
Rated power output
6 x 100 watts at 6 ohms
Minimum load
6 ohms
Efficiency
90 - 95 %
Signal-to-noise ratio (SNR)
94.4 dB
Distortion

0.053 % THD at 1 kHz, 6 ohms, 1 watt
0.0938 % THD at 1 kHz, 6 ohms, 10 watts

Frequency Response
20 - 20,000 Hz
Gain
25.6 - 37.6 dB (switchable)
Input sensitivity
1.271 V
Input impedance
33k ohms
Amplifier Classification
Class D
Circuit Topology
STMicroelectronics TDA7498
Speaker output channels
6
Input connection type

RCA
PCB solder connection

Speaker output connection type

Screw terminals
PCB solder connection

DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
14 - 36 VDC
Power inlet connector

DC jack (5.5 mm)
screw terminals

Current limit
18.1 A
Under/over voltage protection
-
Dimensions (L x W x H)
152.4 x 101.6 x 38.9 mm
Mounting hole spacing
-
Mounting hole diameter
3.8 mm

Bewertungen

4 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Hervorragend - ganz leichtes ,absolut
tolerables Rauschen , zur Verbes-serung Stützelkos (20000 myF) in der Stromversorgung und zusätzliches LC Siebglied an den Ausgängen . In den
Stromzuleitungen auf hohe Quer-schnitte achten !
Durch Kurt-Michael N. on 22 März 2021
3 van 5
-
Durch H.R.J. G. on 30 Oktober 2017
