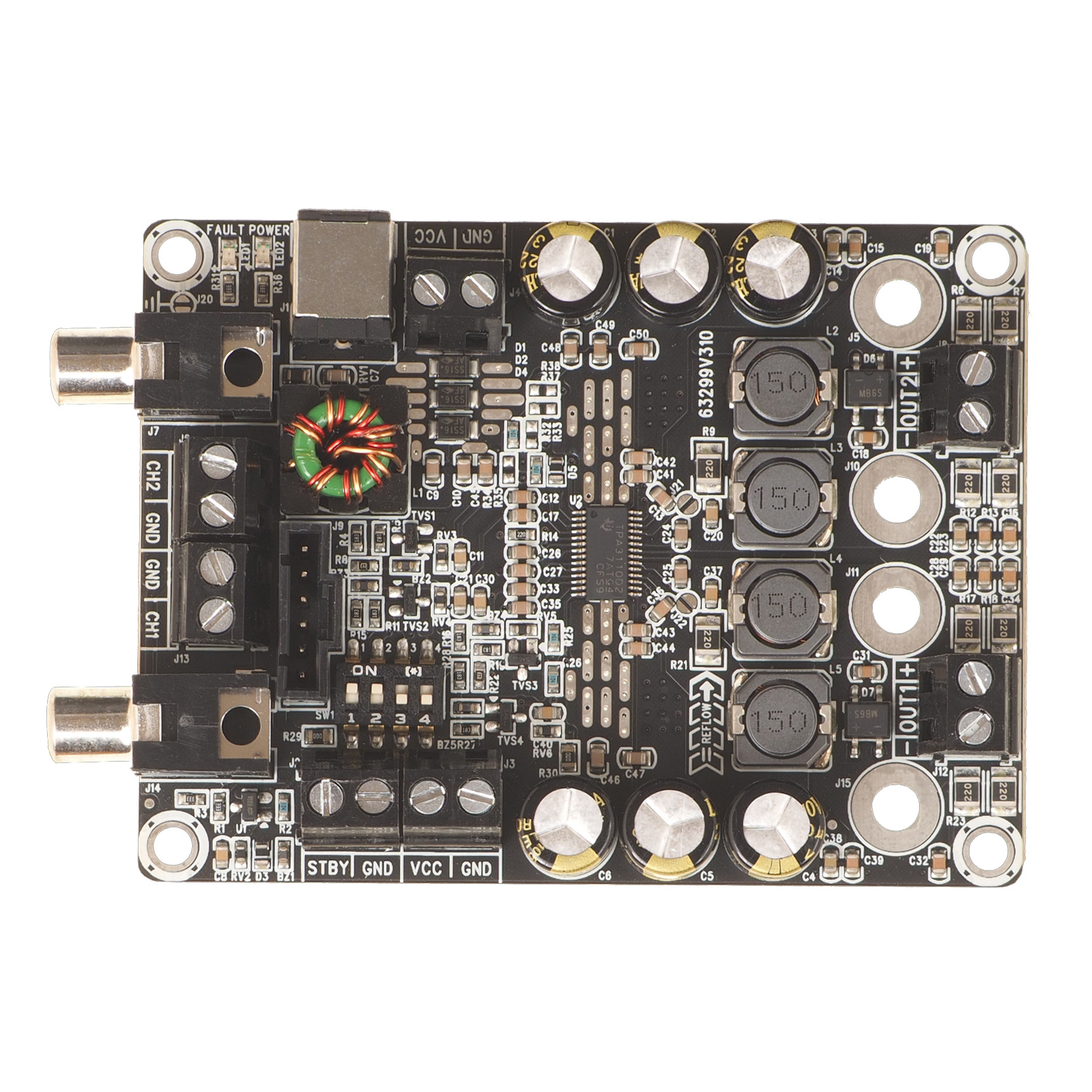

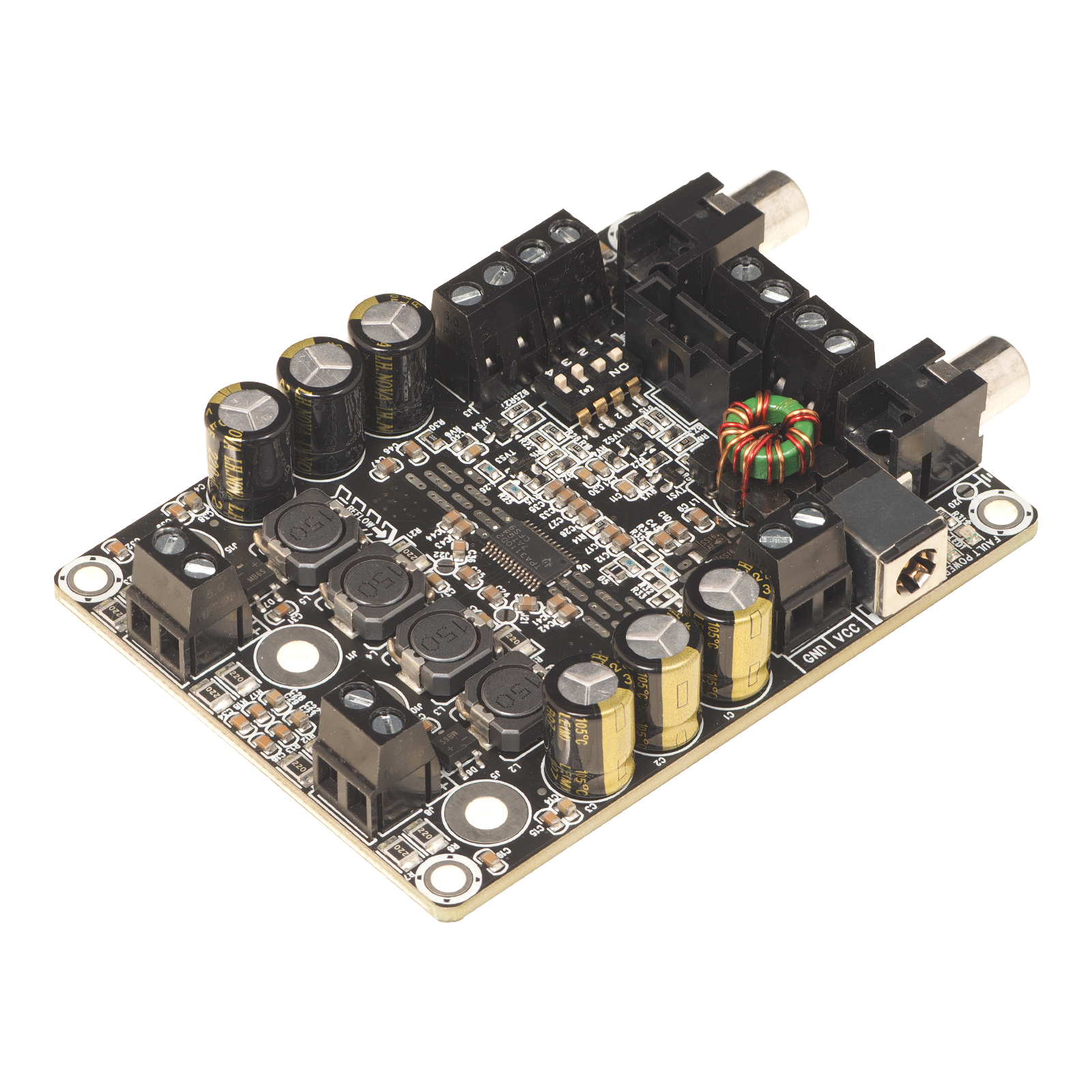

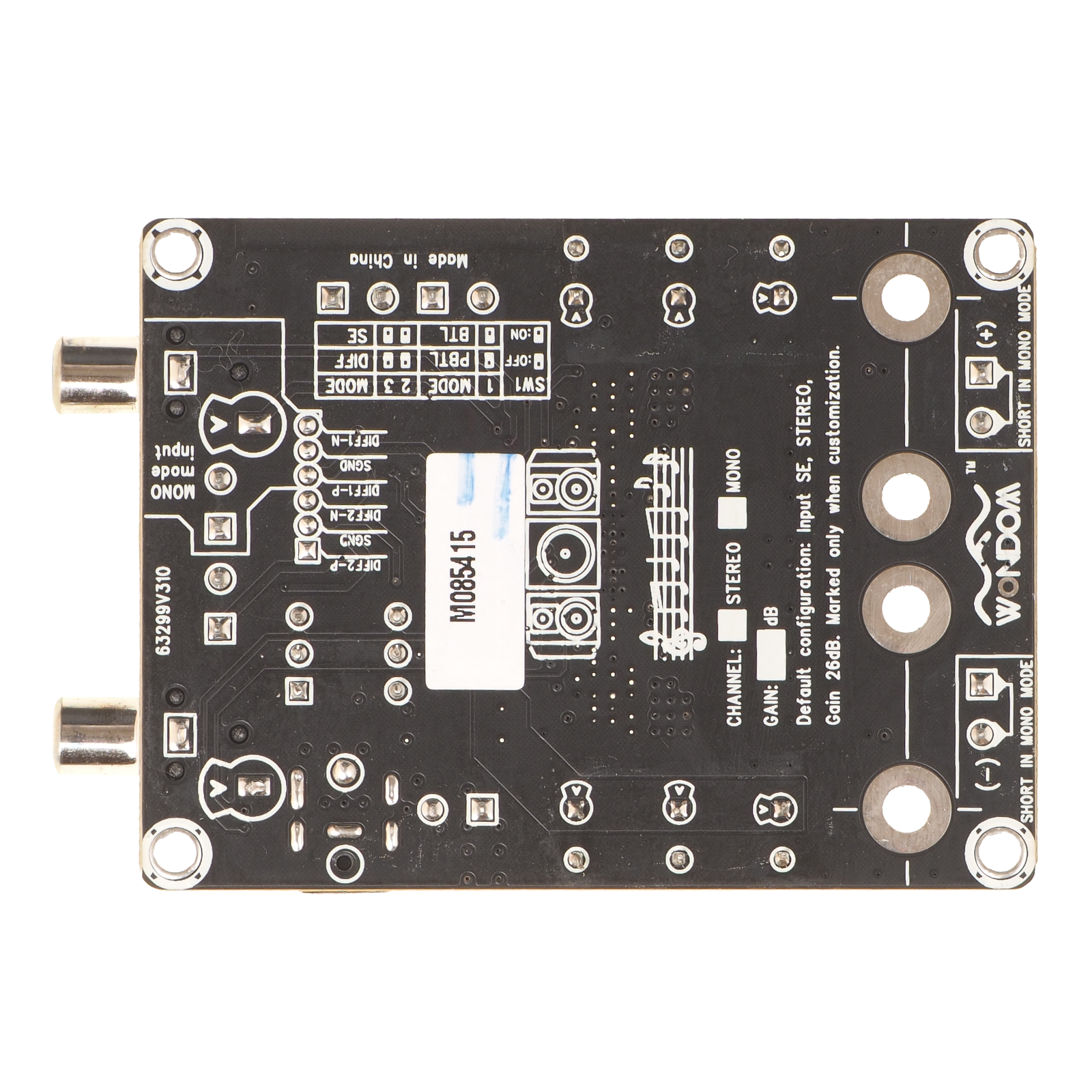

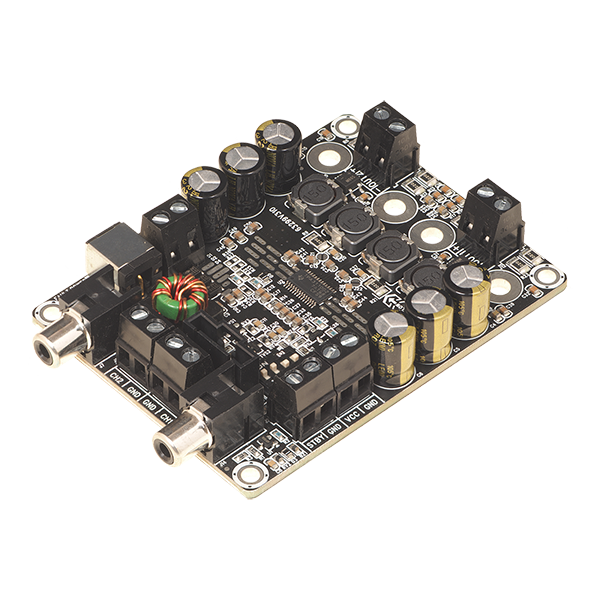

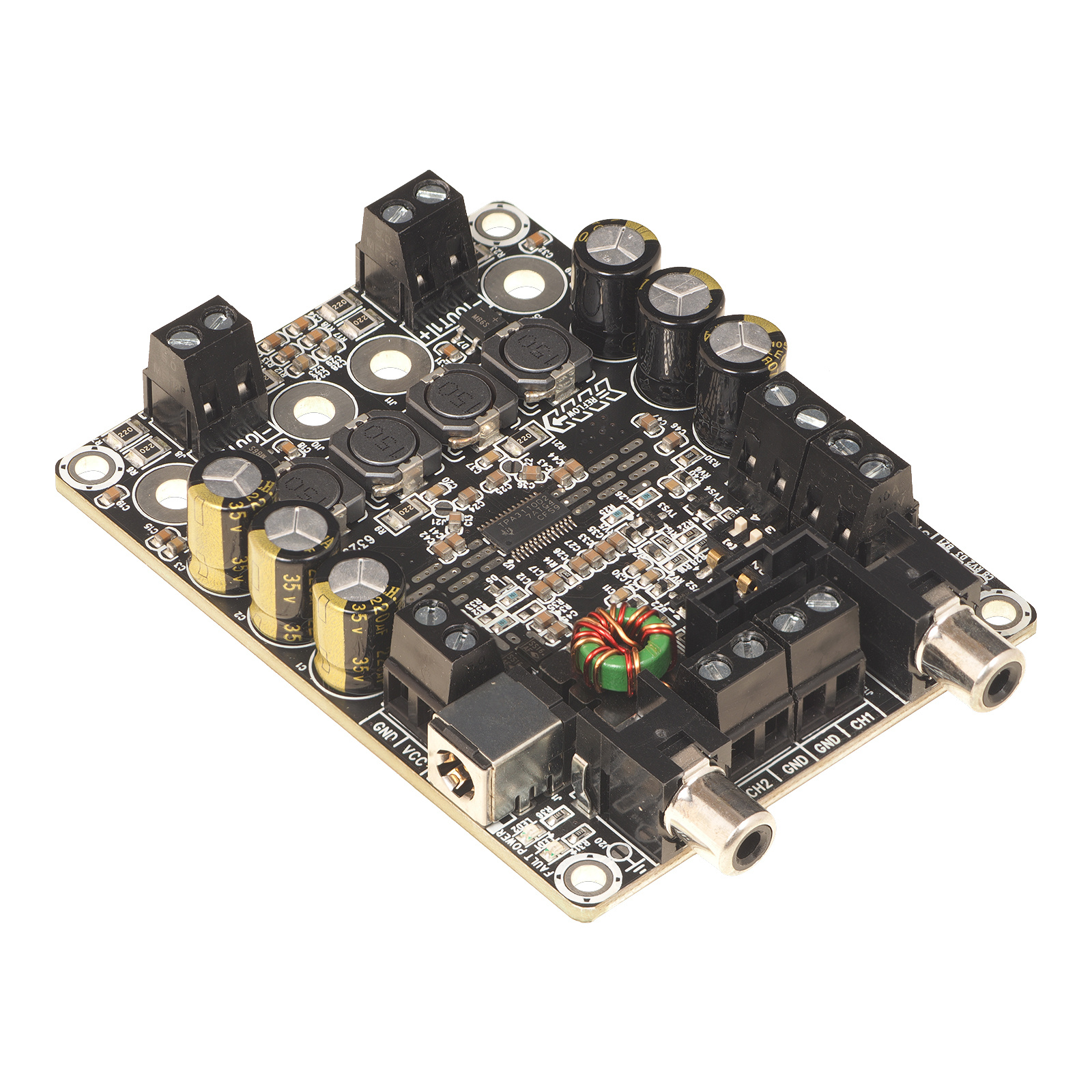

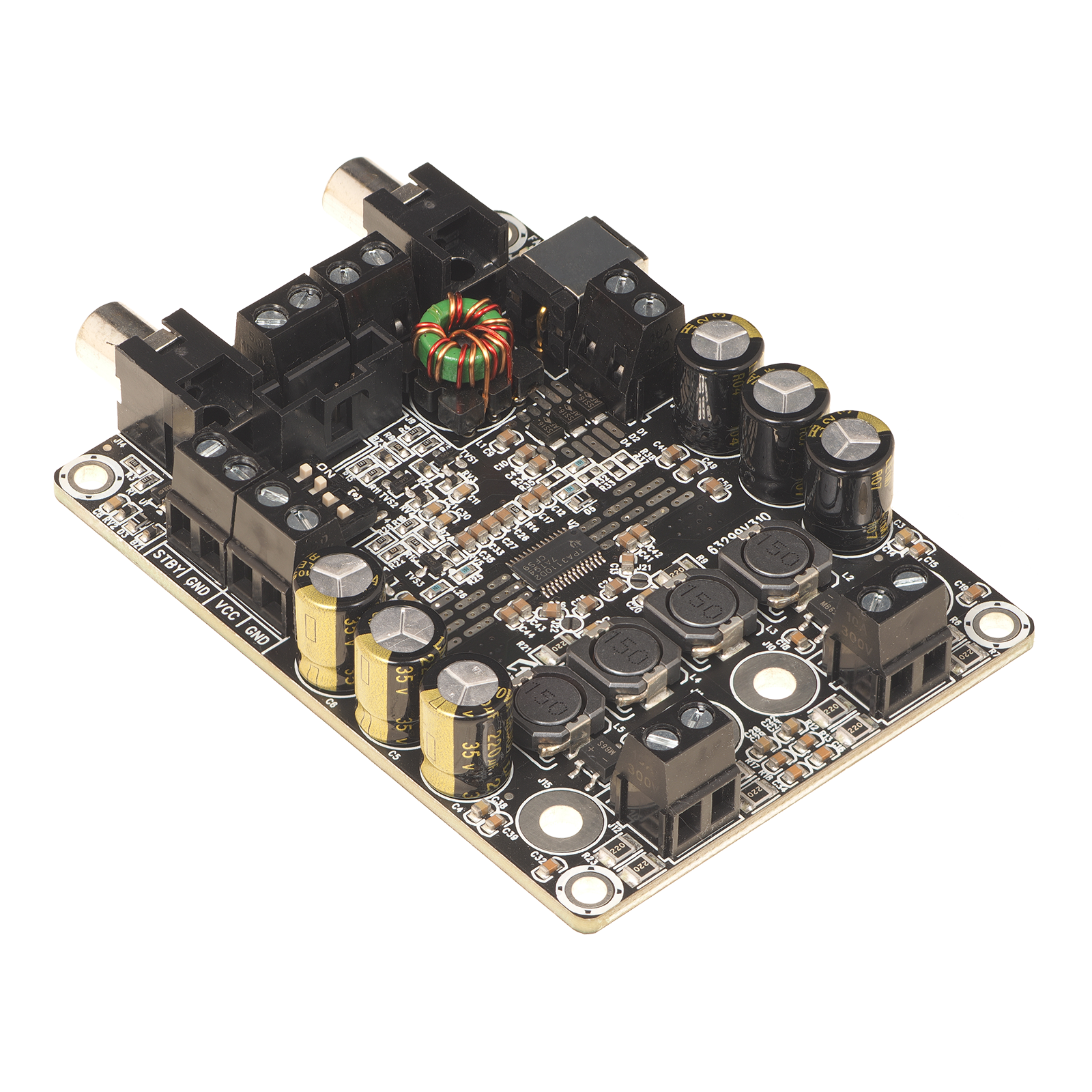

Sure Electronics AA-AB32996 2x15W 8 Ohm TPA3110 Class D Audio Amplifier Board

€ 19,38€ 23,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
This 2 x 15W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip to deliver excellent sound quality for budget-friendly price.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €22,28 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This 2 x 15W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip to deliver excellent sound quality for budget-friendly price.



Highlights

  • Pre-assembled, pre-tested
  • Superb sound quality
  • Perfect Class-D architecture
  • Two channels—each up to 15W
  • Up to 88% efficiency
  • Does not require a heat sink for most applications



Product details

Sure Electronics AA-AB32996 2x15W 8 Ohm TPA3110 Class-D Audio Amplifier Board

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



Each channel of this Class D dual channel amplifier board is rated at 15 watts, delivered with state-of-the-art sound quality. The TPA3110's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. With its high efficiency, it is especially suitable for outdoor venues where power supply is always in consideration. Requires a DC power supply ranging from 10 to 16V (available separately).



Connections:

Eigenschaften

Artikelnummer:
AA-AB32996
Rated power output
2 x 15 watts at 8 ohms
Minimum load
4.8 ohms
Efficiency
87.2 %
Signal-to-noise ratio (SNR)
94.4 dB
Distortion

0.0257 % THD at 1 kHz, 8 ohms, 1 watt
0.36 % THD at 1 kHz, 8 ohms, 10 watts

Frequency Response
20 - 20,000 Hz
Gain
25 dB
Input sensitivity
0.59 V
Input impedance
22k ohms
Amplifier Classification
Class D
Circuit Topology
Texas Instruments TPA3110
Speaker output channels
2
Input connection type

RCA
PCB solder connection

Speaker output connection type

Screw terminal
PCB solder connection

DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
10 - 24 VDC
Power inlet connector

2.6 mm DC jack
PCB solder connection

Current limit
2.2 A
Under/over voltage protection
-
Dimensions (L x W x H)
91 x 69 x 17 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm
