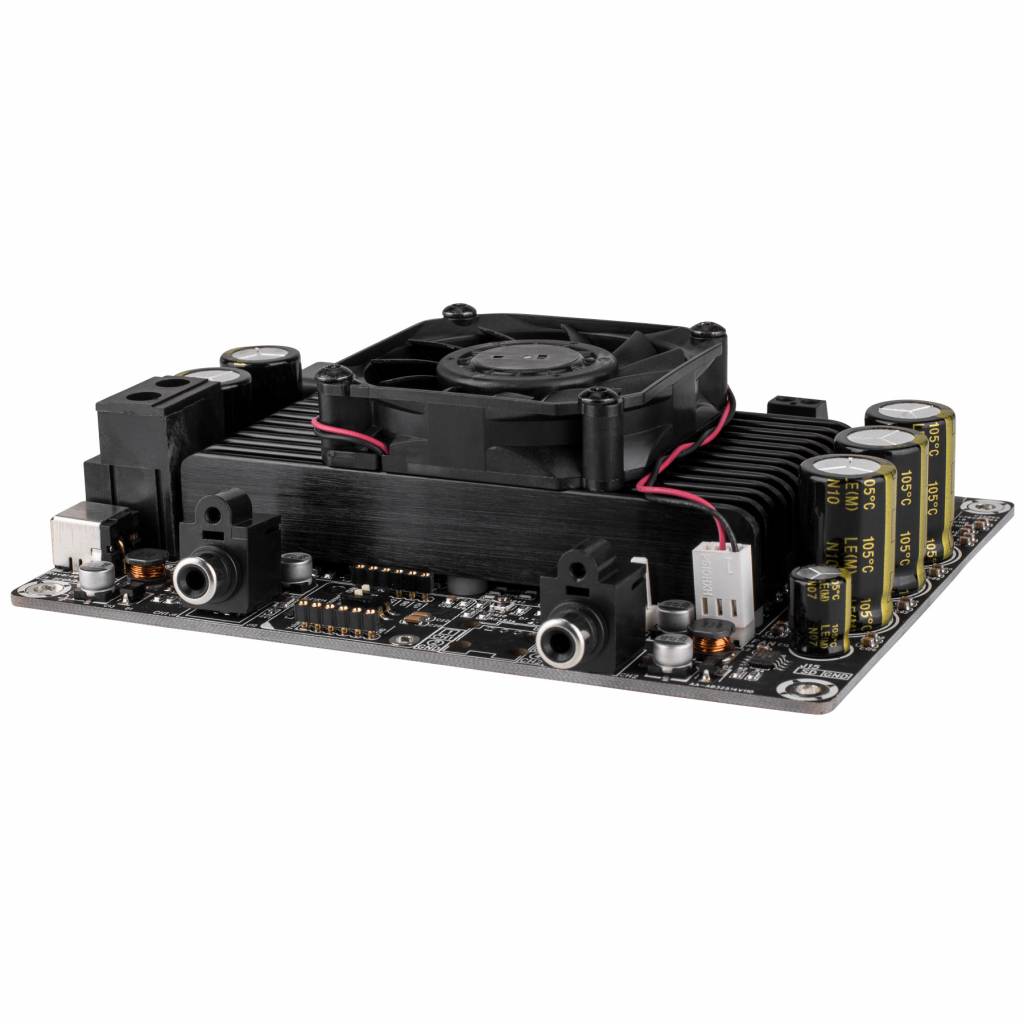

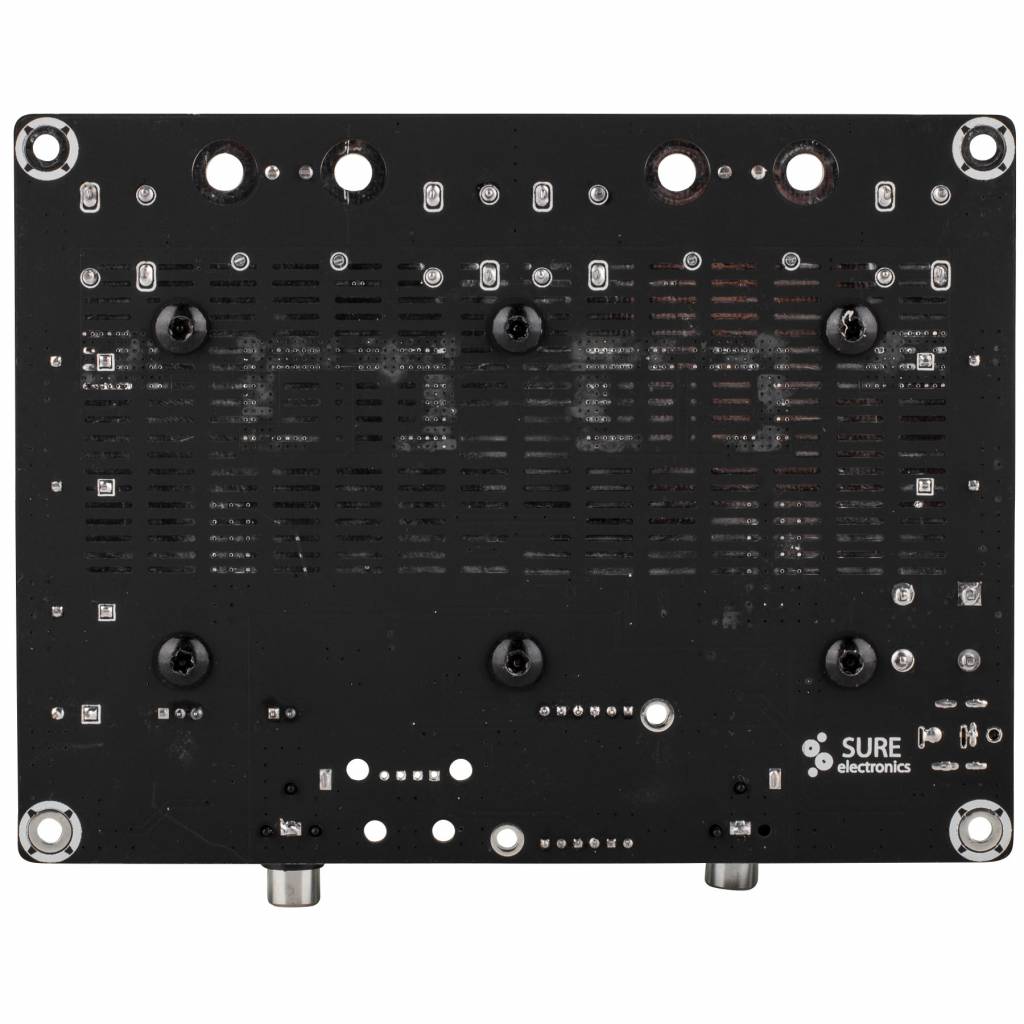

Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp

€ 142,95 4 Auf Lager: Lieferzeit 1-3 Werktage
Design your own powered subwoofer, powered speaker or audio amplifier with Sure's 2 x 500 watt stereo amp board. It's ready to handle mid power demanding audio projects.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €135,80 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Design your own powered subwoofer, powered speaker or audio amplifier with Sure's 2 x 500 watt stereo amp board. It's ready to handle mid power demanding audio projects.



Highlights

  • Temperature controlled cooling fan
  • Over-engineered protection circuits
  • Versatile 3-ohm stability
  • Perfect size for use as a subwoofer amplifier for home or vehicle
  • Up to 1,000 watts max power
  • Requires 24 to 50 VDC power supply



Product details

Sure Electronics AA-AB32514 2x500W Class D Audio Amplifier Board - T-Amp



This mid power stereo amplifier board means serious business! This audio amplifier board cranks out 1,000 watts of power using Sure Electronics T-AMP technology, featuring low distortion and low noise level. For do-it-yourselfers, looking for an audio amp for your home or vehicle.



Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. This amp board has three fixed gain settings or you can use Sure's plug in volume control option. A 24 to 50 VDC power supply is required.



Note: The minimum recommended wire gauge to be used for power is 16 AWG.



Connections:



Typical Performance Graphs:

Frequency response:


Noise Floor:

THD+N VS Frequency:

Thermal Image:

All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.



Eigenschaften

Artikelnummer:
AA-AB32514
Rated power output
2 x 500 watt at 3 ohms
Minimum load
3 ohms
Efficiency
91 - 96 %
Signal-to-noise ratio (SNR)
95 dB
Distortion
<p>0.01 % THD at 3 ohms, 1 watt, 1 kHz<br />0.019 % THD at 3 ohms, 10 watts, 1 kHz</p>
Frequency Response
20 - 20,000 Hz
Gain
30.5 dB
Input sensitivity
1.76 V
Input impedance
10k ohms
Amplifier Classification
Class D
Circuit Topology
Sure Electronics T-AMP
Speaker output channels
2
Input connection type
RCA
Speaker output connection type
<p>Screw terminals<br />PCB solder connection</p>
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
24 - 50 VDC
Power inlet connector
<p>Screw terminals<br />DC jack 2.5 x 5.5 mm</p>
Current limit
21.5 A
Under/over voltage protection
check
Dimensions (L x W x H)
152.4 x 114.3 x 38.86 mm
Mounting hole spacing
-
Mounting hole diameter
3.56 mm

Bewertungen

4 from 5Based on 1 reviews
Produkt bewerten
4 van 5
Das Ding funktioniert. Kein Rauschen und passender Sound. Auch ordetlich Leistung.
Durch Bernhard S. on 15 Dezember 2020
