      AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

      AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

      €29,95

      Sure Electronics AA-AB32472 2x30W 8 Ohm Class D Audio Amplifier Board - TPA3118

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      24,75 €29,95 € 9 Auf Lager
      • -5% Bestelle 4 für nur € 28,45 je Stück

      Buy now, pay later

      • Wir versenden nach
      • Vor 16:00 Uhr bestellt, heute versandt
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • Excellent heat dissipation
      • Reverse Polarity Protection
      • Power Indicator
      • Power supply not included

      Produktbeschreibung

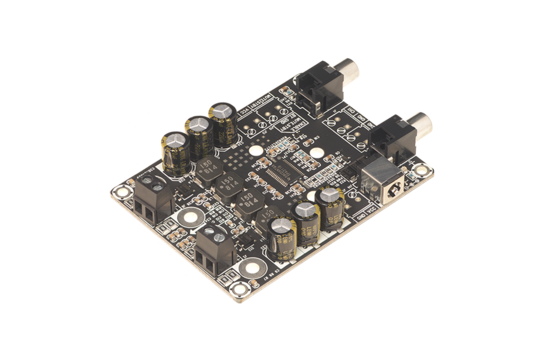

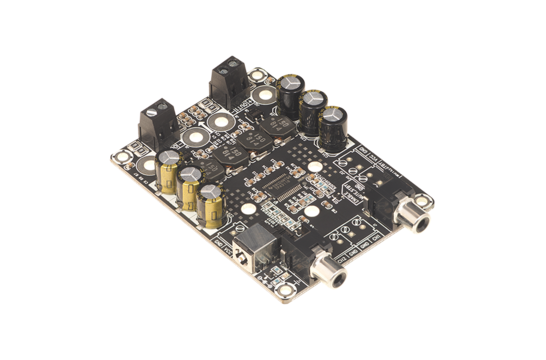

      This stereo mid-power audio amplifier board is capable of delivering 30W output power per channel into an 8Ohm load based on Class D topology and TI' TPA3118 Amplifier IC, featuring high efficiency up to 92.6% and high sound quality with low distortion and low noise level. Compact size, easy installation and mid power output makes this audio amplifier board suitable for home audio, DIY audio, desktop amplifier, toy audio and demanding industrial applications. A DC10 – 26V power supply is required.



      Highlights

      • Easy installation
      • Compact size
      • Full protection circuit
      • Class D



      Product details

      Sure Electronics AA-AB32472 Amplifier Board


      High Quality Audio Performance. By means of dedicated PCB layout design and engineers’ attentive debugging, this mid-power audio amplifier board features such high audio performance that you can get pure enjoy of the music, whose SNR reaches up to 100dB and THD+N performs well as 0.0516% @ 8Ohm, 1W, 1kHz. The output noise level is only 84.8µV.


      High Reliability and Long Service Time. The module dissipates only 0.72W with no signal when in ON mode (around 0.07W when in stand-by mode). Excellent heat dissipation eliminates the requirement of an extra heatsink and increases its reliability. Mute and Standby functions are offered with this amplifier module for easy control. Full protection circuit, like over temperature protection, overcurrent protection and reverse polarity protection, is equipped on this board for high reliability and long service time.


      Easy for Installation. Four screw holes provided make this amplifier board easy for installation and quick for integration in any cabinet. All the necessary terminals for power supply, audio input and audio output are pre-mounted on the board. Therefore, you only need to plug in the cables and enjoy music without any need of soldering. If you want all the terminals to be mounted for your applications, please contact us. MOQ would be required. Power indicator is provided on board for customers to have an overview of the power condition of the amplifier board.


      Package Includes
      1pc AA-AB32472

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      AA-AB32472
      Nennleistung
      30W @ 8Ohm
      Signal-Rausch-Verhältnis (SNR)
      23W @8Ω THD+N 1%
      Eingangsempfindlichkeit
      @8Ω, 30W, 1KHz
      Leistungsbedarf
      10V-26V
      Abmessungen (L x B x H)
      91.4 4mm x 68.58 mm
