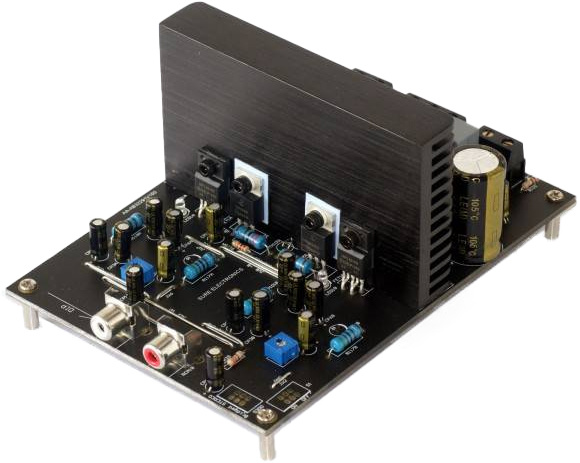

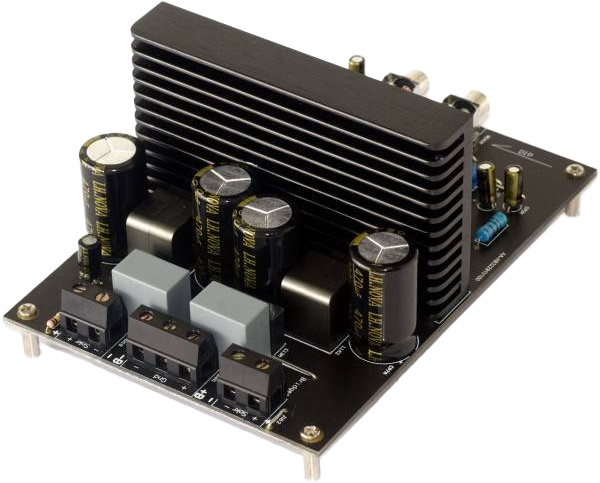

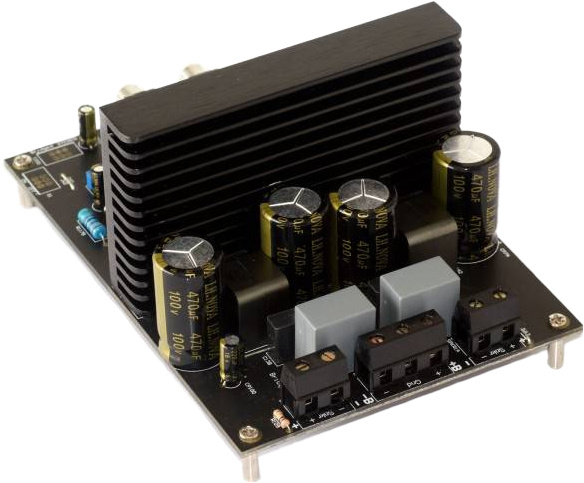

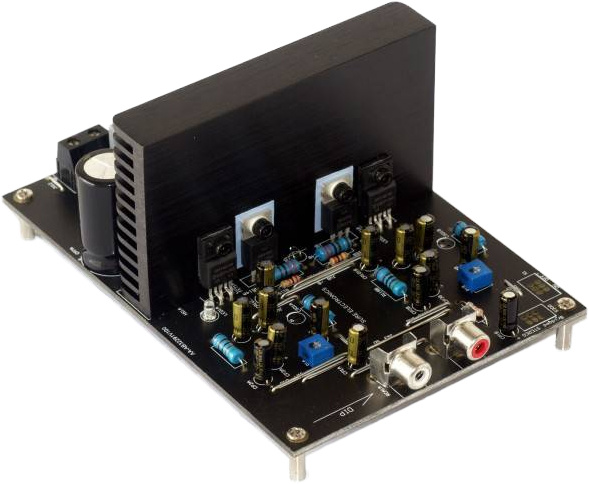

Sure Electronics AA-AB32321 2x125W IRS2092 8 Ohm Class D Audio Amplifier Board

€ 52,65 7 Auf Lager: Lieferzeit 1-3 Werktage
This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifie... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €50,02 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifier enthusiasts or hobbyists to finish a complete amplifier system.



Highlights

  • Class-D IRS2092 amp IC
  • Over-engineered protection circuits
  • Requires 45 to 60 VDC power supply



Product details

Sure Electronics AA-AB32321 2x125W Class D Audio Amplifier Board – IRS2092



This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifier enthusiasts or hobbyists to finish a complete amplifier system.



This amplifier board also includes a myriad of protection features: over current, over/under voltage, DC output, and temperature protection circuits are built-in. A rather small footprint lends itself for use in space limited applications. Dimensions: 6" X 4.5"

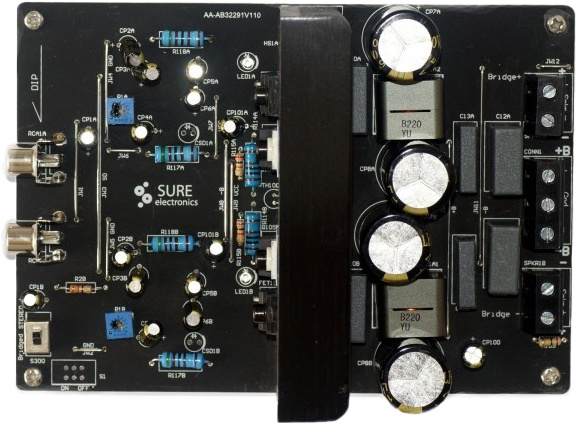

Connections:



Typical Performance Graphs:

Frequency response:





Noise Floor:



THD+N VS Frequency:



Thermal Image:



All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.



Eigenschaften

Artikelnummer:
AA-AB32321
Rated power output
2 x 125 watts at 8 ohms
Minimum load
8 ohms
Efficiency
85-90 %
Signal-to-noise ratio (SNR)
96 dB
Distortion
<p>0.023 % THD at 8 ohms, 1 watts, 1 kHz<br />0.054 % THD at 8 ohms, 10 watts, 1 kHz</p>
Frequency Response
20 - 20,000 Hz
Gain
31 dB
Input sensitivity
839 mV for rated power output
Input impedance
100k ohms
Amplifier Classification
Class D
Circuit Topology
Infineon Technologies IRS2092
Speaker output channels
2
Input connection type
RCA
Speaker output connection type
Screw terminals
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
45 - 60 VDC
Power inlet connector
Screw terminals
Current limit
5.9 A
Under/over voltage protection
check
Dimensions (L x W x H)
152.4 x 114.3 mm
Mounting hole spacing
134.62 / 91.44 mm
Mounting hole diameter
3.6 mm

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
Dit was mijn eerste bestelling bij SoundImports, zeker niet de laatste. Spullen supersnel in huis, grote plus voor mij is de klantenservice: ik had een probleempje gemeld per email. Zeer snel reactie ontvangen, er werd meegedacht, gewoon heel goed en professioneel. 5 sterren!

De versterker module: niets op aan te merken. PCB ziet er netjes uit, geen vuiligheid oid. Plug & Play; + en - 45 tot 50 V aansluiten, bron en speakers en het speelt. Nog niet kritisch geluisterd, maar vind 'm verbazingwekkend goed (voor die prijs). Prijs/kwaliteit vind ik m 5 sterren zeker waard.
Durch Bart V. on 21 Januar 2021
4 van 5
This device works very well it can produce transient, details and grain I like from my diy dipole speaker. Comparing with tpa3116 solutions, there’s a better control of diaphragm motion.
The major issue is related to the gain: too much gain can emphathize noise coming from the sources. I solved the issue by replacing the 3k input resistor with a 6k one, reducing the gain to 26dB: more than enough for my setup. I’m planning to replace or remove completely the input caps to reduce distortion.
Durch Francesco P. on 13 März 2019
