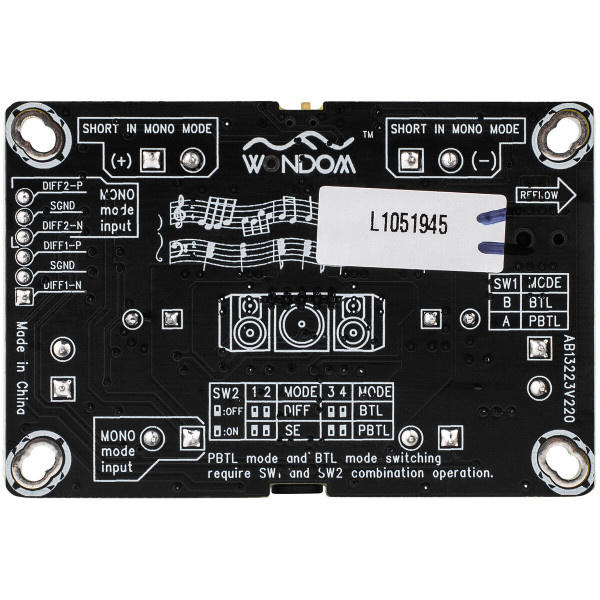

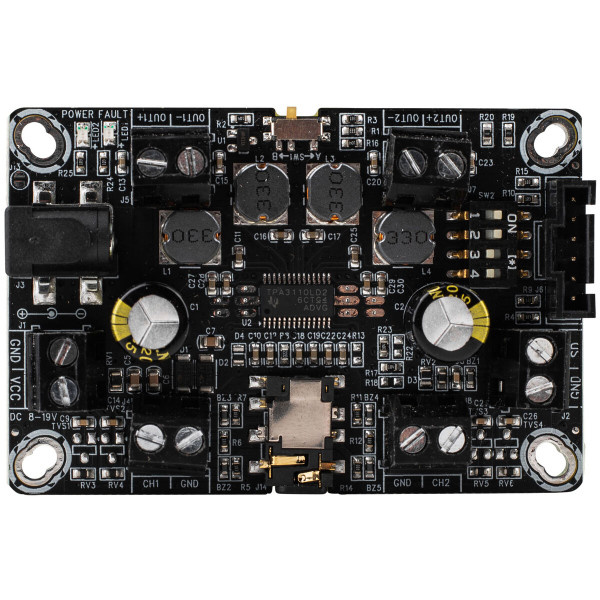

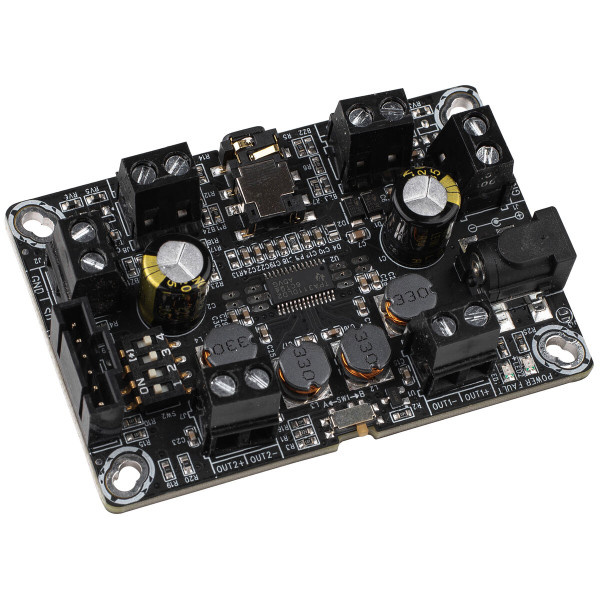

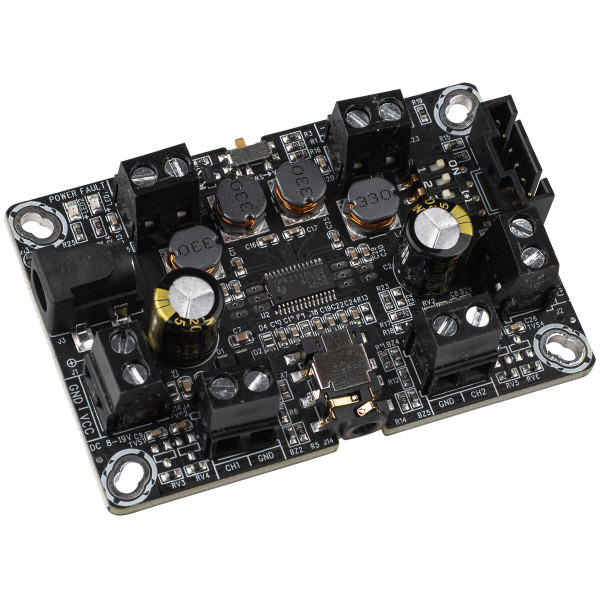

Sure Electronics AA-AB32231 2x8W at 4 Ohm Class-D Audio Amplifier Board - TPA3110

€ 17,25 >10 Auf Lager: Lieferzeit 1-3 Werktage
This 2 x 8W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip. Each channel is rated at 8 watts, delivered with state-of-the-art sound quality.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €16,39 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

This 2 x 8W Class D dual channel amplifier board employs a Tripath-style Texas Instruments TPA3110 chip. Each channel is rated at 8 watts, delivered with state-of-the-art sound quality.



Highlights

  • Pre-assembled, pre-tested
  • Superb sound quality
  • Perfect Class-D architecture
  • Fully-bridged stereo output
  • Two channels—each up to 8W
  • Up to 92% efficiency
  • Does not require a heat sink for most applications



Product details

Sure Electronics AA-AB32231 2x8W at 4 Ohm TPA3110 Class-D Audio Amplifier Board

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



Each channel of this Class D dual channel amplifier board is rated at 8 watts, delivered with state-of-the-art sound quality. The TPA3110's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality SMD and MKP plug-in capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 10 to 16V (available separately) and performs admirably with 4 ohm and 8 ohm speakers.

Eigenschaften

Artikelnummer:
AA-AB32231
Rated power output
<p>2 x 8 watts at 4 ohms </br>2 x 5 watts at 8 ohms </p>
Minimum load
8 ohms
Efficiency
90 %
Signal-to-noise ratio (SNR)
<p>95 dB (s.e.)</br>97 dB (diff.)</p>
Distortion
<p>0.2 % THD+N at 1 kHz, 8 ohms, 8 watts s.e.</br>0.1 % THD+N at 1 kHz, 8 ohms, 8 watts diff.
Frequency Response
20 - 20,000 Hz
Gain
<p>26 dB (s.e.)</br>12 dB (diff.)</p>
Input sensitivity
<p>0.4 V (s.e.)</br>2 V (diff.)</p>
Input impedance
<p>30k ohms (s.e.)</br>45k ohms (diff.)</p>
Amplifier Classification
Class D
Circuit Topology
Texas Instruments TPA3110
Speaker output channels
2
Input connection type
<p>3.5 mm jack</br> PCB solder connection</p>
Speaker output connection type
Screw terminal
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
10 - 16 VDC
Power inlet connector
2.1 mm DC jack
Current limit
-
Under/over voltage protection
-
Dimensions (L x W x H)
91 x 69 x 17 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm

Bewertungen

4 from 5Based on 1 reviews
Produkt bewerten
4 van 5
A technical layout would have been nice! But still a good product!
Durch Pierre-louis D. on 18 Januar 2019
