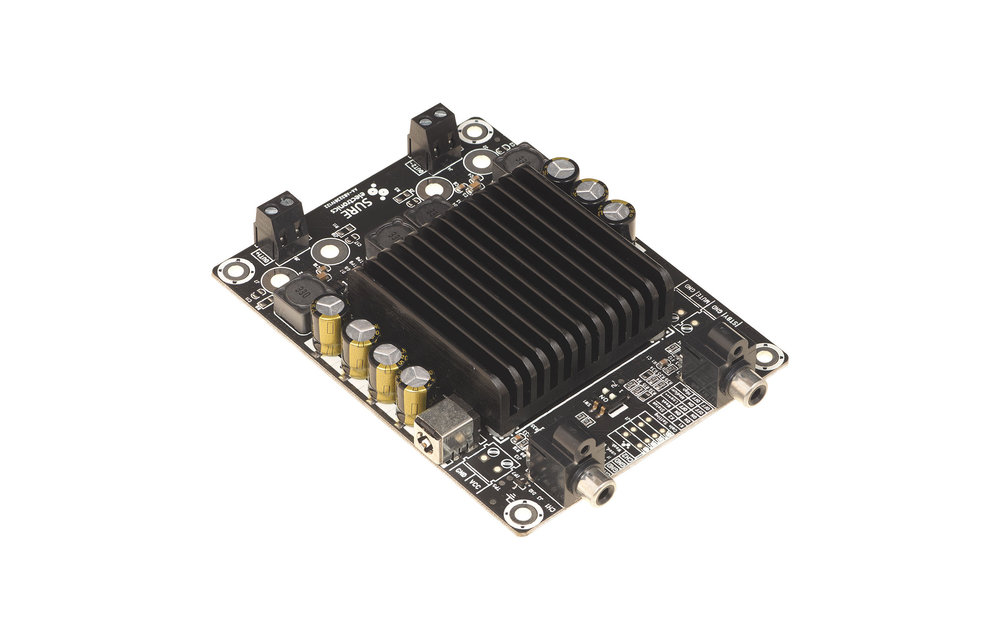

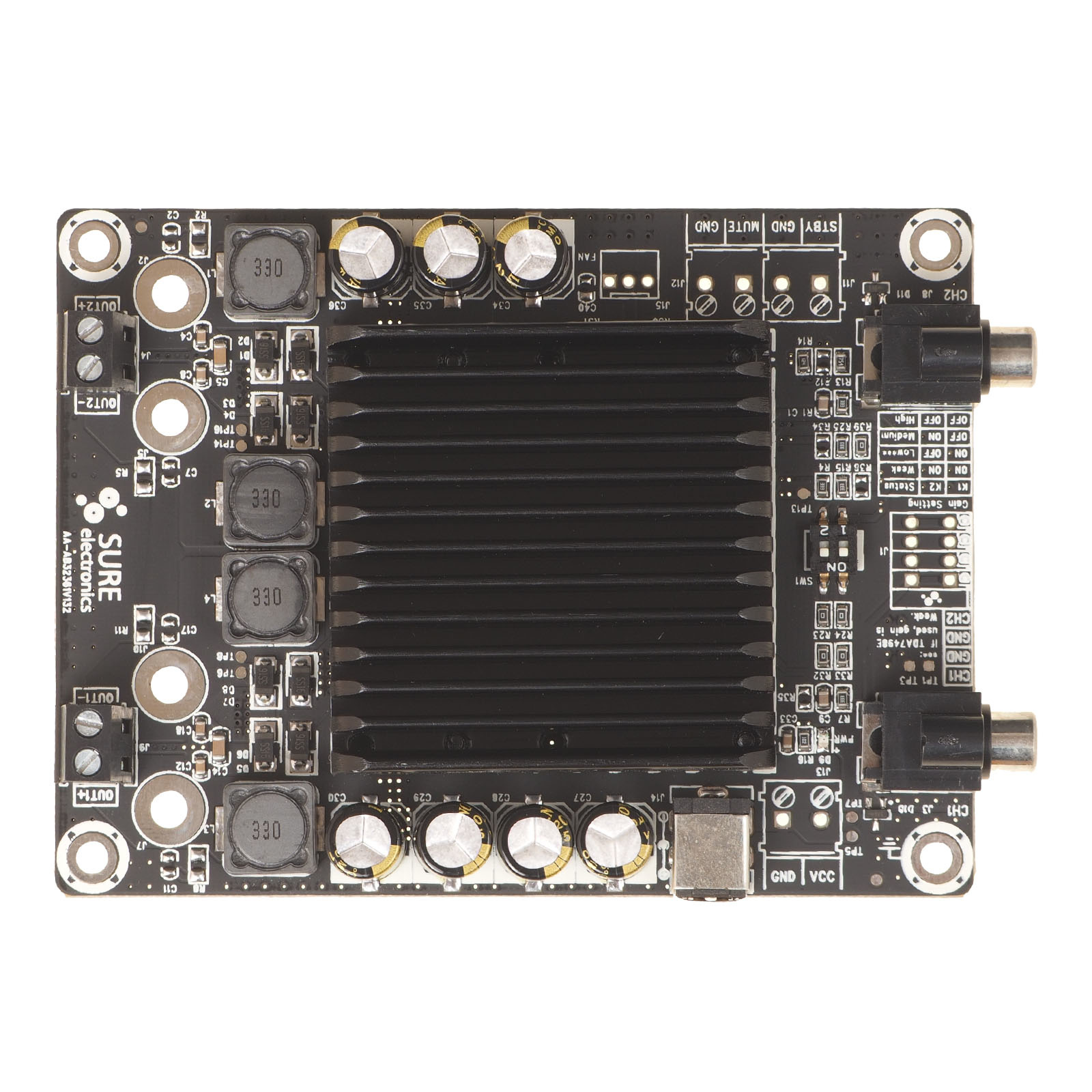

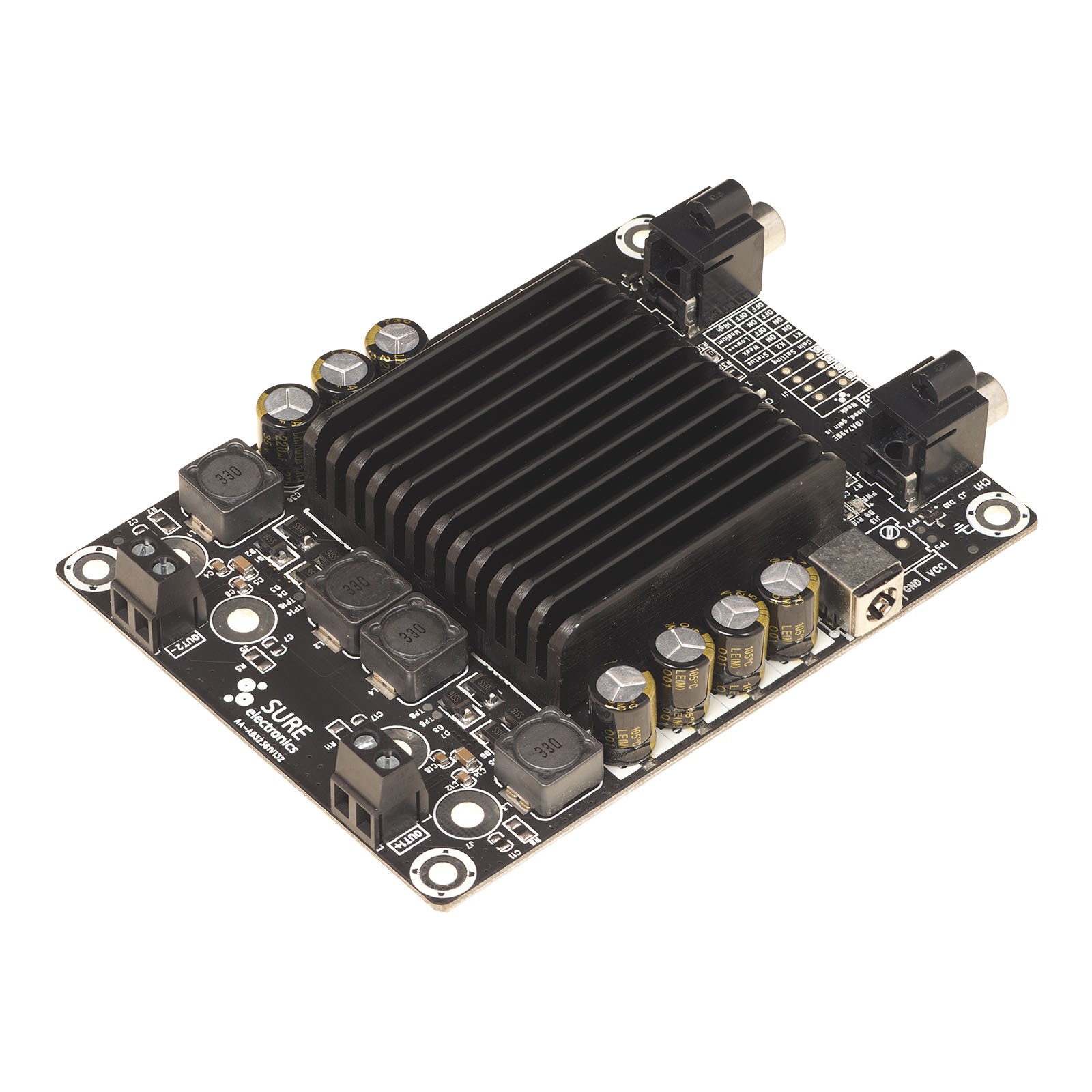

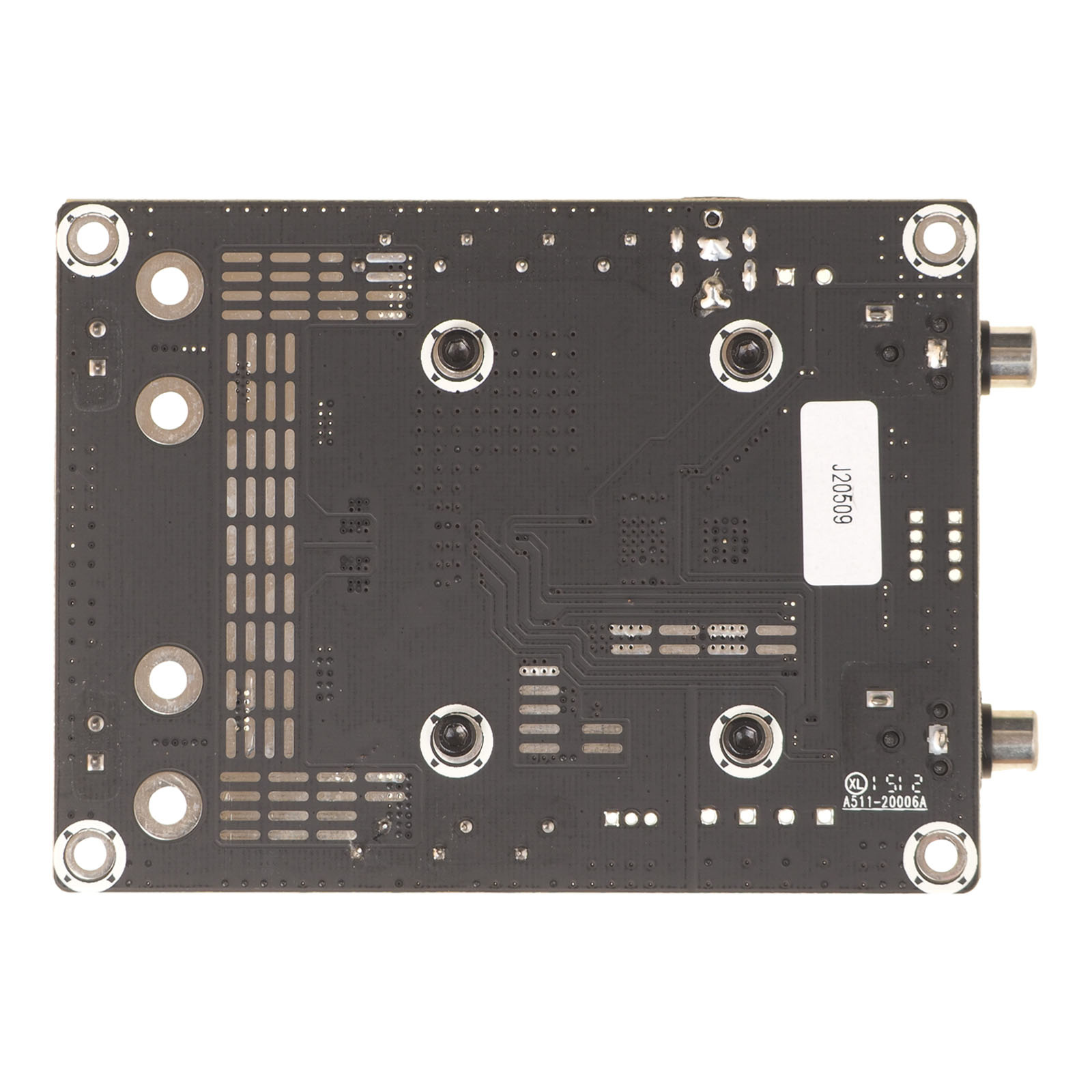

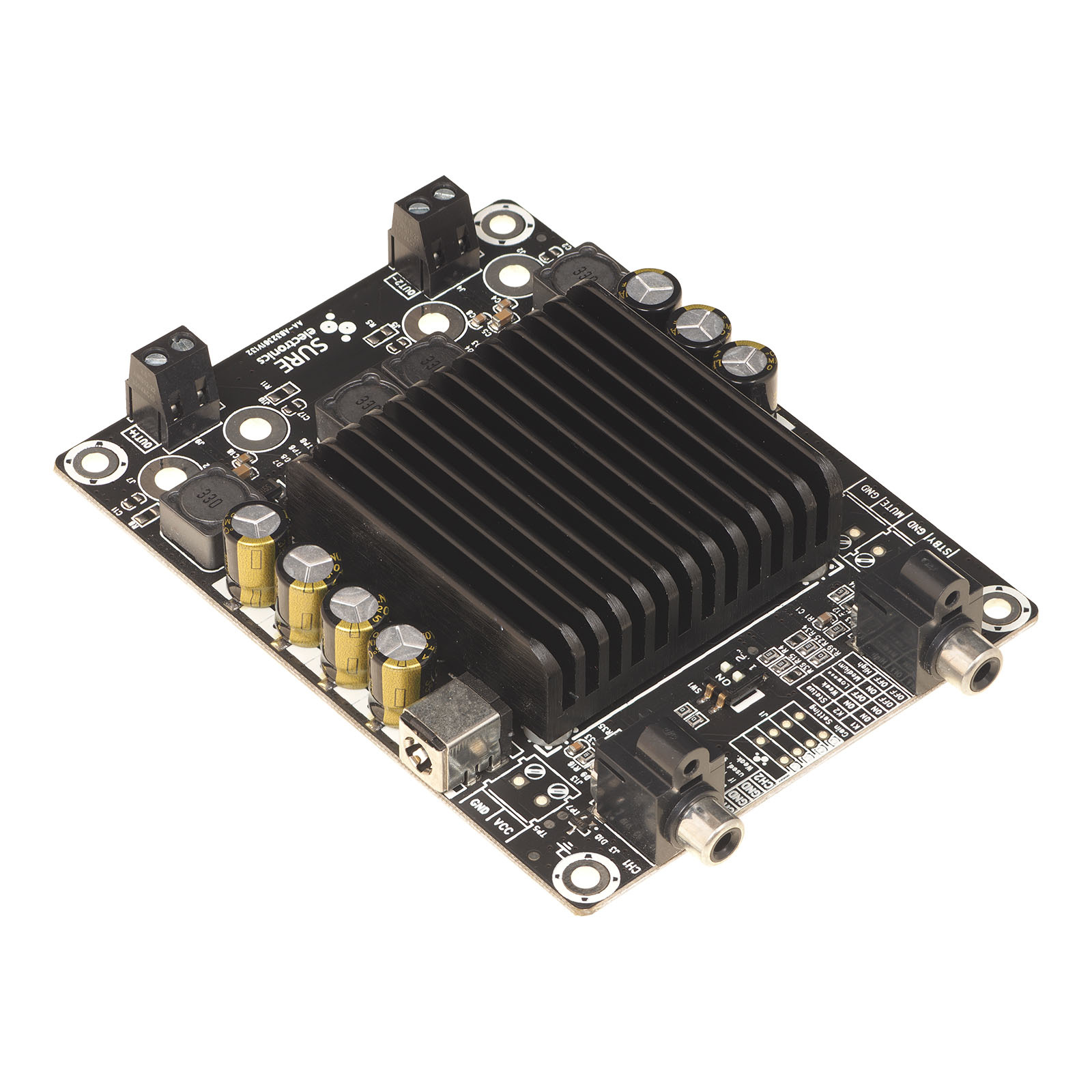

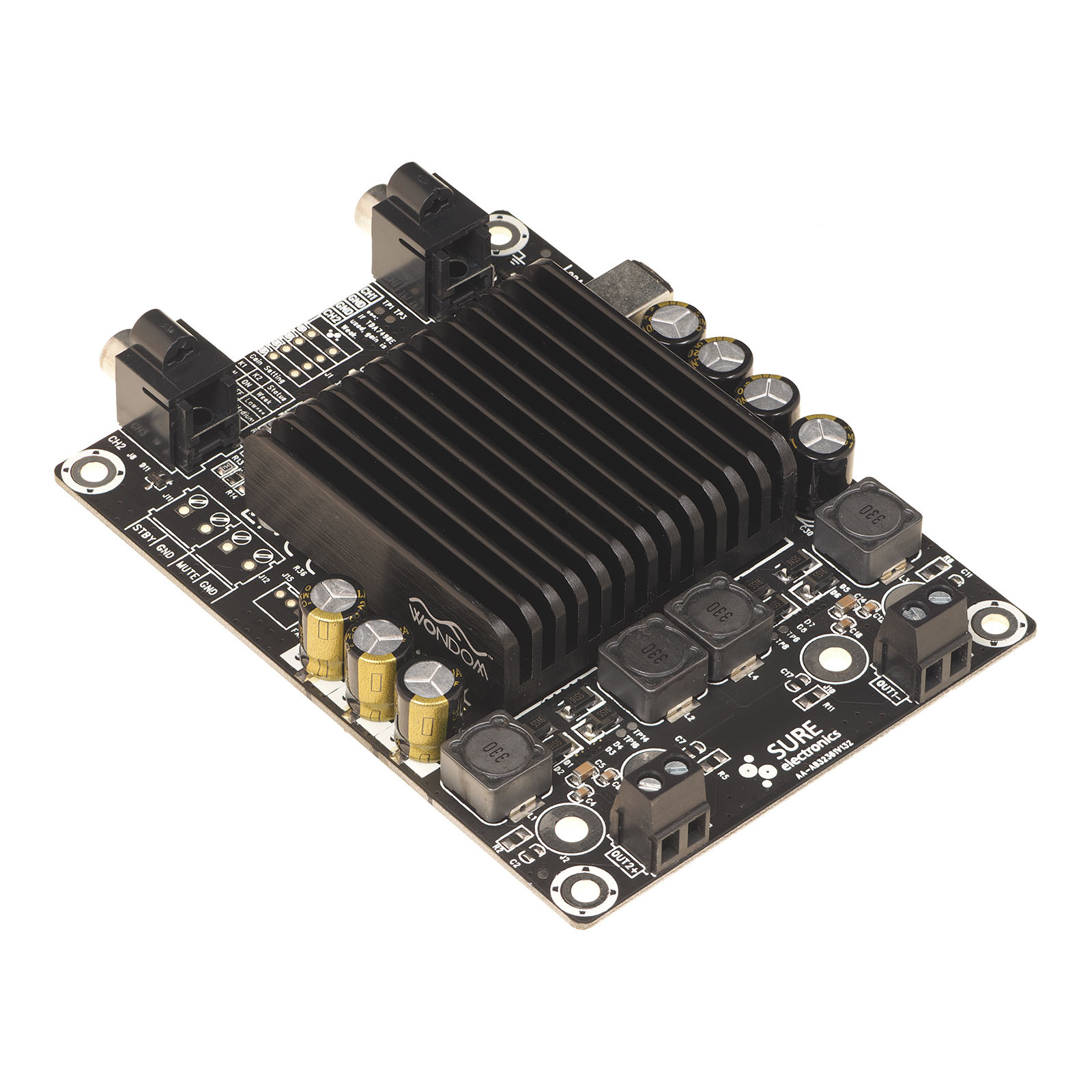

Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

€ 31,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument's Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €30,35 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Choose this 2 x 25 watt amplifier board to power your next speaker project. A Texas Instrument's Class D TDA7492 amplifier chip is employed to produce high fidelity sound efficiently.



Highlights

  • Pre-assembled, pre-tested
  • Superb sound quality
  • Perfect Class D architecture
  • Two channels—each up to 25W
  • Up to 90% efficiency
  • Does not require a heat sink for most applications
  • Line level analog audio input



Product details

Sure Electronics AA-AB32165 2x25W 6 Ohm TDA7492 Class-D Audio Amplifier Board

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



This Class D dual channel amplifier board employs a Tripath-style Texas Instruments TDA7492 chip. Each channel is rated at 25W, delivered with state-of-the-art sound quality. The TDA7492's efficiency eliminates the need for an external heat sink when playing music under average listening conditions. Integration of high-quality capacitors ensures hi-fi amplification output. Requires a DC power supply ranging from 14 to 19 VDC (available separately) and can be used to drive any 4 ohm or 8 ohm passive speakers. Gain control is accomplished by setting two DIP switches, and there are four gain modes available: 24.6 to 26.6 dB, 30.6 to 32.6 dB, 34.1 to 36.1 dB, and 36.6 to 38.6 dB.

Eigenschaften

Artikelnummer:
AA-AB32165
Rated power output
<p>2 x 20 watts at 8 ohms </br>2 x 25 watts at 6 ohms </p>
Minimum load
4 ohms
Efficiency
87 - 93 %
Signal-to-noise ratio (SNR)
91 dB
Distortion
0.05 % THD at 1 kHz, 6 ohms, 1 watt
Frequency Response
20 - 20,000 Hz
Gain
<p>20.6 - 22.6 dB</br>26.6 - 28.6 dB </br>30.1 - 32.1 dB</br>32.6 - 34.6 dB</p>
Input sensitivity
<p>1.5 V at 22 dB</br>0.7 V at 28 dB </br>0.5 V at 31 dB</br>0.4 V at 34 dB </p>
Input impedance
60k ohms
Amplifier Classification
Class D
Circuit Topology
STMicroelectronics TDA7492
Speaker output channels
2
Input connection type
<p>RCA</br>PCB solder connection</p>
Speaker output connection type
<p>Screw terminal</br> PCB solder connection</p>
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
14 - 19 VDC
Power inlet connector
<p>Screw terminal</br> PCB solder connection</p>
Current limit
3.5 A
Under/over voltage protection
-
Dimensions (L x W x H)
122 x 91 x 24 mm
Mounting hole spacing
112 x 81 mm
Mounting hole diameter
3.8 mm
