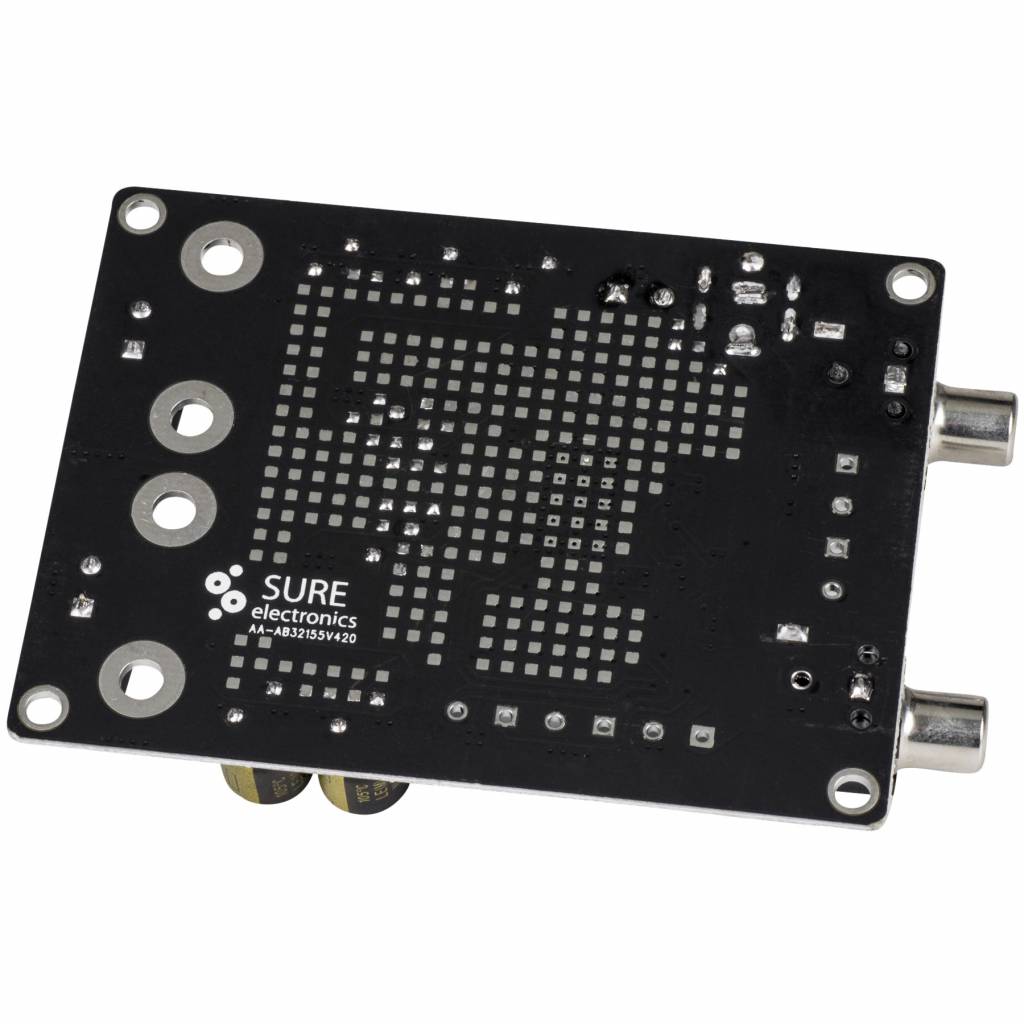

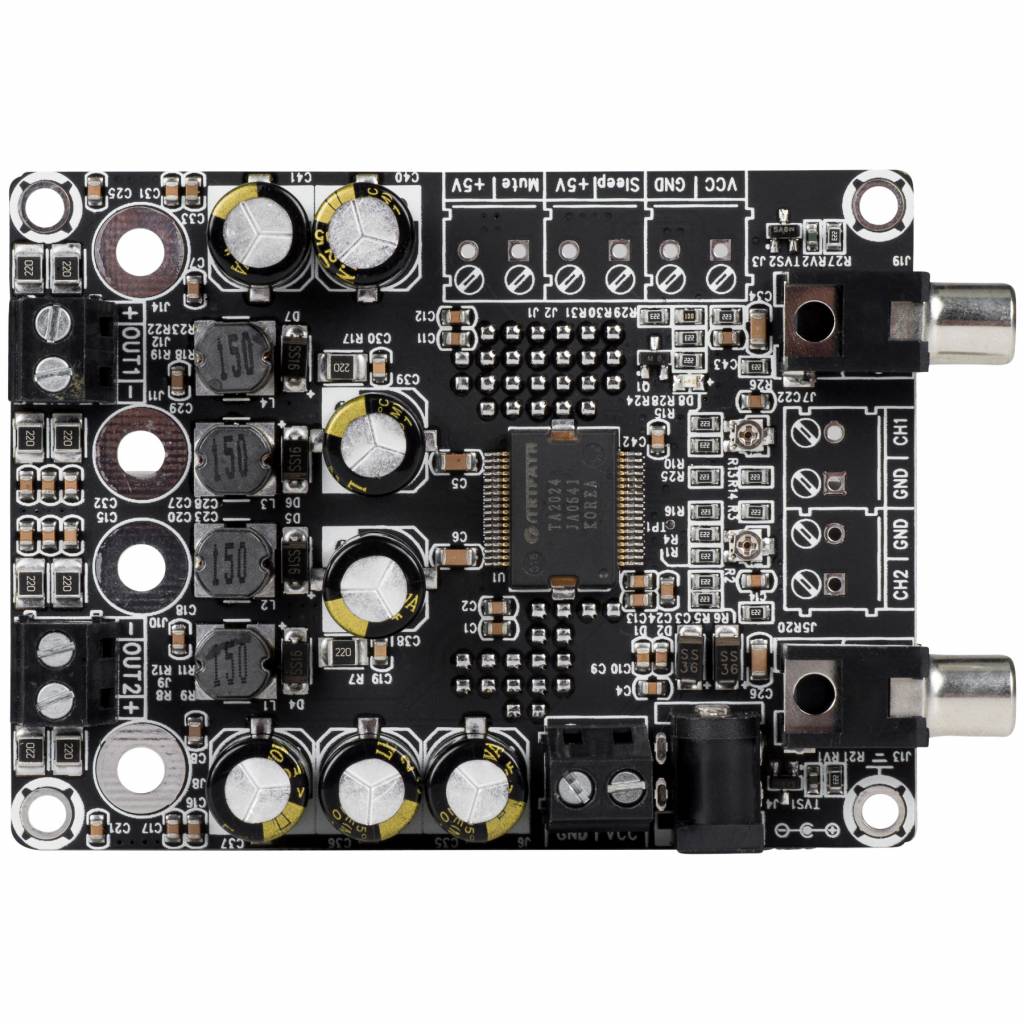

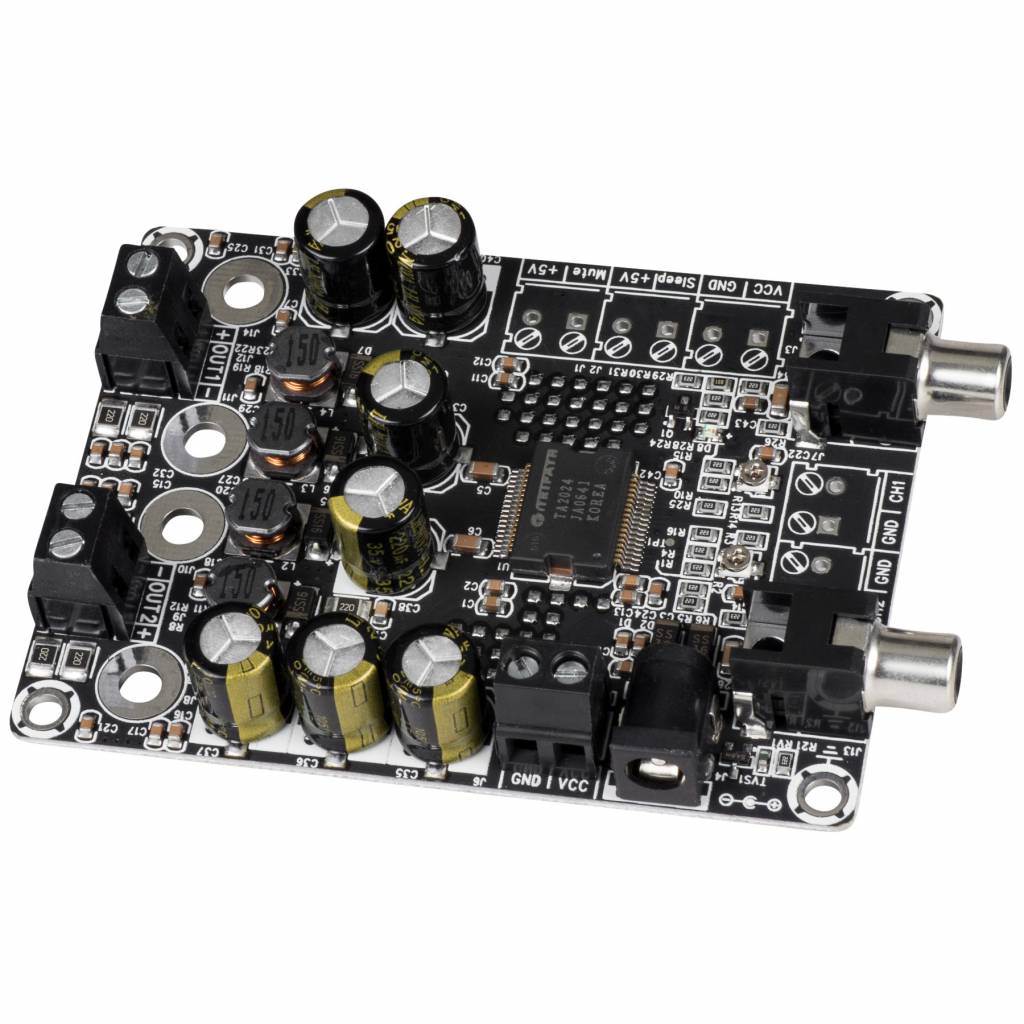

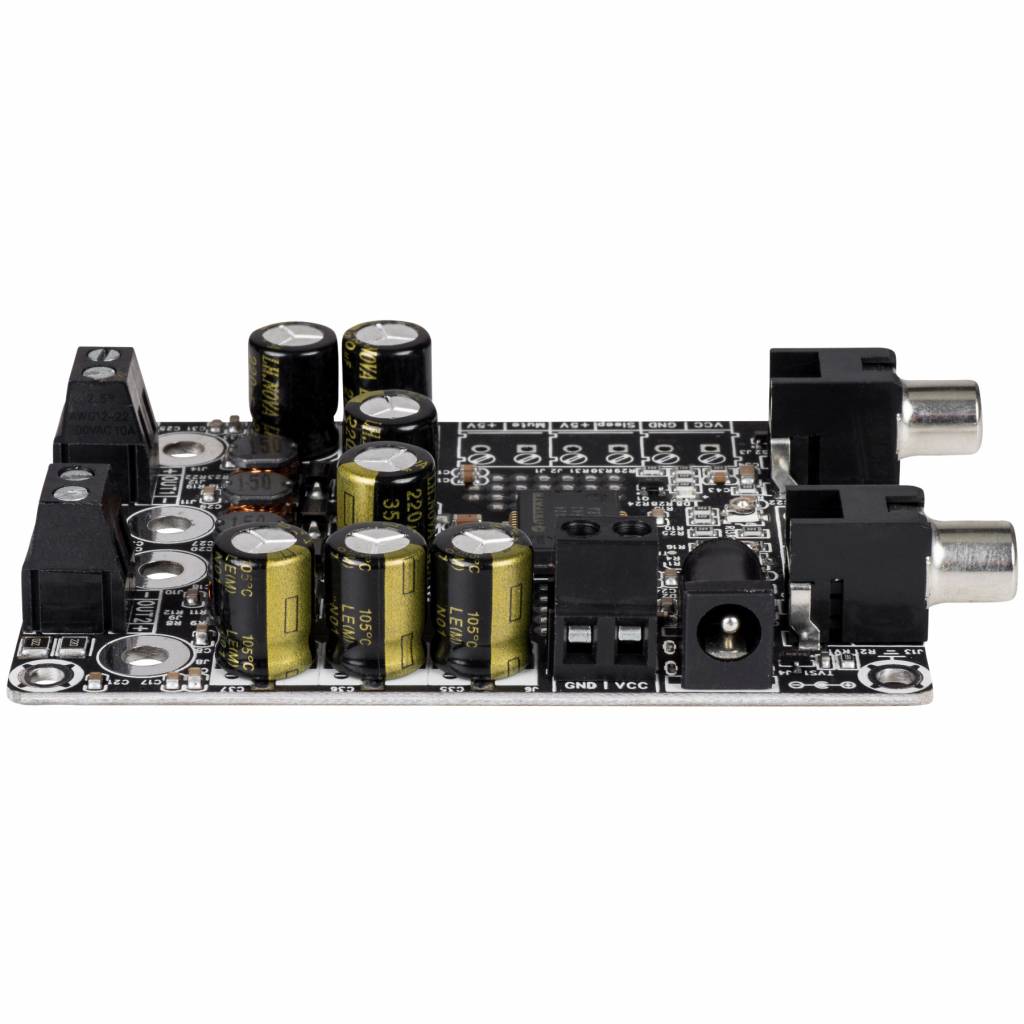

Sure Electronics AA-AB32155 2x15W 4 Ohm TA2024 Class-D Audio Amplifier Board

€ 29,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
This assembled and tested Class-T amplifier board features proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €28,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

This assembled and tested Class-T amplifier board features proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications.



Highlights

  • Tripath TA2024 Class-D/Class-T architecture
  • Proprietary digital power processing technology
  • Audiophile performance
  • Two channels, 4 or 8 ohm loads
  • No heat sink required
  • Up to 88% efficiency
  • Line level analog audio input



Product details

Sure Electronics AA-AB32155 2x15W 4 Ohm TA2024 Class-D Audio Amplifier Board



Assembled and tested, this Class-T amplifier is designed with proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications. Features include: mute and sleep inputs, turn-on/turn-off pop suppression, intelligent short-circuit protection, and over-temperature protection. Requires single 12 VDC power source. Recommended power supply: 12VDC, 2000 mA, regulated. Board only, mounting hardware not included.

Eigenschaften

Artikelnummer:
AA-AB32155
Rated power output
2 x 15 watts at 4 ohms
Minimum load
4 ohms
Efficiency
80 - 85 %
Signal-to-noise ratio (SNR)
84.4 dB
Distortion
<p>0.024 % THD at 1 kHz, 4 ohms, 1 watt</br>0.54 % THD at 1 kHz, 4 ohms, 10 watts</p>
Frequency Response
20 - 20,000 Hz
Gain
21 dB
Input sensitivity
0.75 V
Input impedance
22k ohms
Amplifier Classification
Class D
Circuit Topology
Tripath TA2024
Speaker output channels
2
Input connection type
<p>RCA</br> PCB solder connection</p>
Speaker output connection type
<p>Screw terminal</br> PCB solder connection</p>
DSP function
-
Bluetooth
-
Power Requirements
10 - 14 VDC
Power inlet connector
<p>2.6 mm DC jack</br>Screw terminal</p>
Current limit
3 A
Under/over voltage protection
-
Dimensions (L x W x H)
91 x 69 x 17 mm
Mounting hole spacing
84 x 61 mm
Mounting hole diameter
3.5 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Werkt perfect met weinig stroomverbruik.
Durch Jacques D. on 1 Oktober 2020
