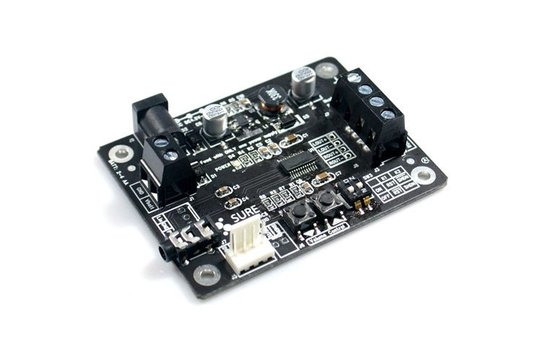

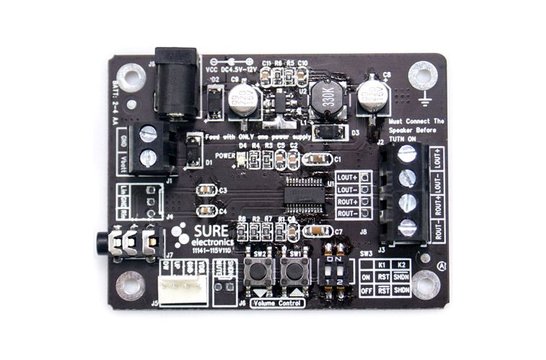

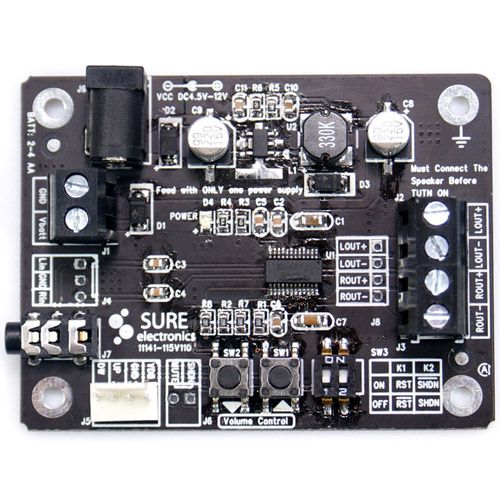

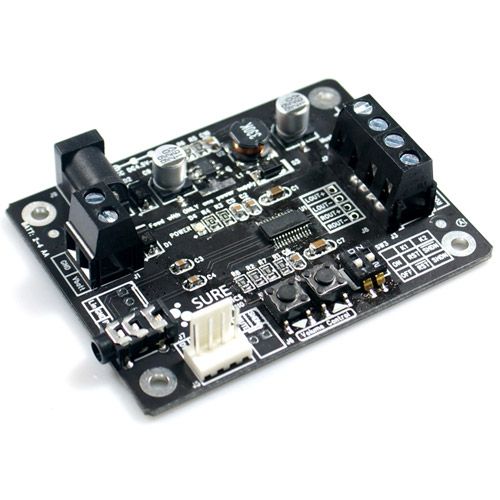

Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

Name: Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
Brand: Sure Electronics
Price: 15.95 EUR
Availability: InStock

Marke: Sure Electronics

Alle anzeigen Audio-Komponenten

Vergleichen

2 x 2 W

€ 15,95 7 Auf Lager: Lieferzeit 1-3 Werktage

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.... Mehr anzeigen

Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag*
Bezahlung mit PayPal, Kreditkarte und mehr
Hausinterner technischer Support

Produktbeschreibung

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.

Highlights

Pre-assembled, pre-tested
Small size but big sound quality
Perfect Class-D architecture
Fully-bridged stereo output
Two channels—each up to 2W
Up to 88% efficiency
Does not require a heat sink for most applications

Product details

Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

Tip: Take a look at the table in this blogpost to see which power supply to choose for this product.

This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load. A PAM's PAM8803 IC offers ultra-low total harmonic distortion and noise, allowing it to deliver outstanding sound reproduction. Especially suitable for small speakers with an impedance of 4 or 8 ohms. This board can be powered by an external DC supply (4.5V to 12V) via a power port, 2.5V to 4.0V DC via a terminal block, or 2 to 3 AA batteries. Audio signal is input by a 2510 connector or 3.5 mm headphone jack, and volume control is adjustable by on-board buttons.

Eigenschaften

Artikelnummer:: AA-AB32131
Rated power output: 2 x 2.6 watts at 4 ohms 2 x 1.5 watts at 8 ohms
Minimum load: 4 ohms
Efficiency: 70 - 75 %
Signal-to-noise ratio (SNR): 84 dB
Distortion: 0.17 % THD at 1 kHz, 4 ohms, 1 watt0.19 % THD at 1 kHz, 8 ohms, 0.5 watt
Frequency Response: 20 - 20,000 Hz
Gain: 23.8 dB
Input sensitivity: 0.72 V
Input impedance: 60k ohms
Amplifier Classification: Class D
Circuit Topology: Diodes Incorporated PAM8803
Speaker output channels: 2
Input connection type: 3.5 mm jackPCB solder connection
Speaker output connection type: Screw terminal
DSP function: -
Bluetooth: -
EQ Adjustment: -
Power Requirements: 4.5 - 12 VDC (DC jack) 2.5 - 4 VDC (PCB screw terminal)
Power inlet connector: 2.1 mm DC jack PCB solder connection
Current limit: 0.46 A
Under/over voltage protection: -
Dimensions (L x W x H): 72 x 55 x 18 mm
Mounting hole spacing: 62 x 45 mm
Mounting hole diameter: -
