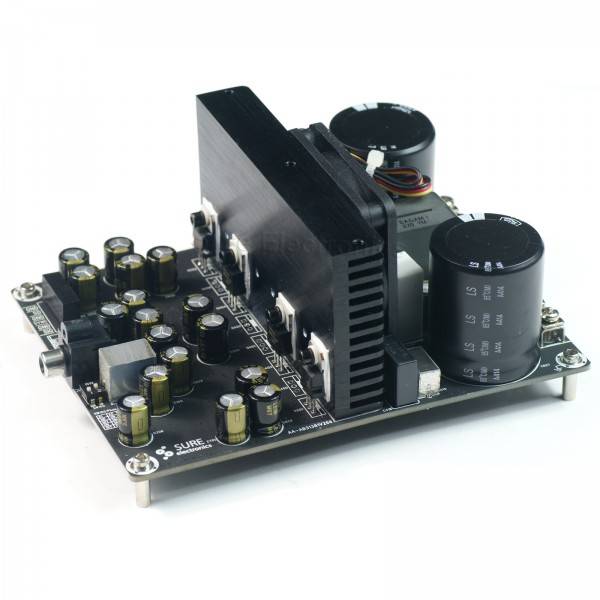

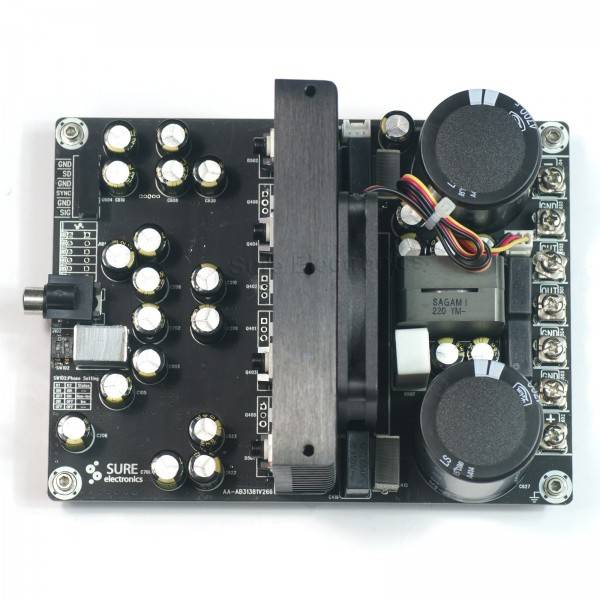

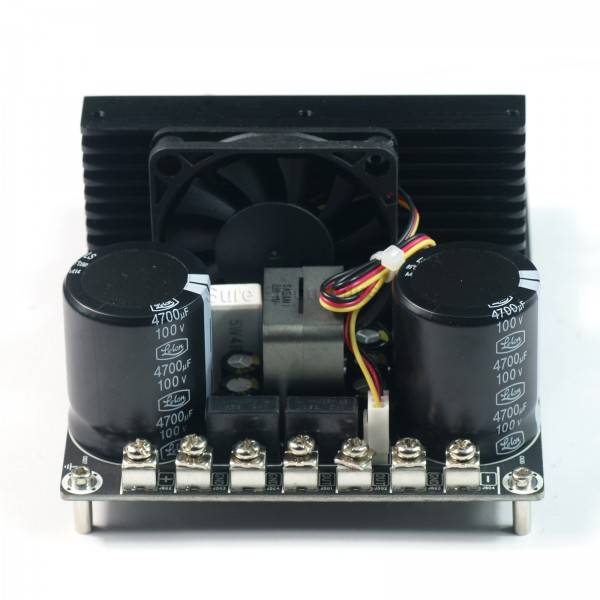

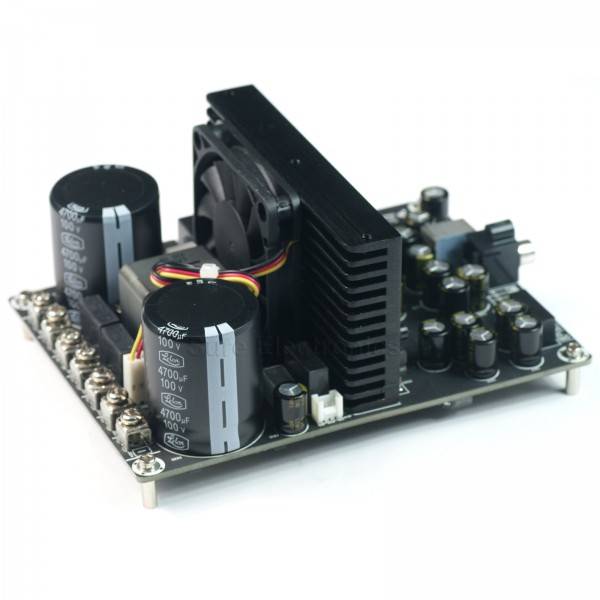

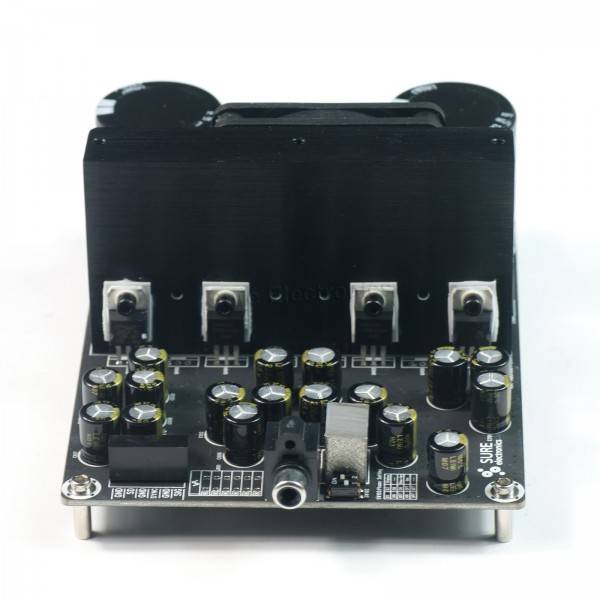

Sure Electronics AA-AB31512 1x500W IRS2092 4 Ohm Class D Audio Amplifier Board

€ 124,95 3 Auf Lager: Lieferzeit 1-3 Werktage
If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It integrates high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 by using one channe... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €118,70 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It integrates high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 by using one channel half bridge topology.



Highlights

  • Self-oscillating half-bridge topology
  • Capable of 500W RMS output @ 4 Ohm continuously
  • Requires 55 to 65 VDC power supply



Product details

Sure Electronics AA-AB31512 1x500W IRS2092 4 Ohm Class D Audio Amplifier Board



If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It integrates high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 by using one channel half bridge topology.



Two 55 to 65 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.



Connection:





Typical Performance Graphs:

Frequency response:





Noise Floor:





THD+N VS Frequency:





Thermal Image:





All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

Eigenschaften

Artikelnummer:
AA-AB31512
Rated power output
1 x 500 watts at 4 ohms
Minimum load
4 ohms
Efficiency
88 - 93 %
Signal-to-noise ratio (SNR)
98 dB
Distortion
<p>0.03 % at 4 ohms, 1 watts, 1 kHz<br />0.04 % at 4 ohms, 10 watts, 1 kHz</p>
Frequency Response
20 - 20,000 Hz
Gain
30 dB
Input sensitivity
1.44 V
Input impedance
3,3k ohms
Amplifier Classification
Class D
Circuit Topology
Infineon Technologies IRS2092
Speaker output channels
1
Input connection type
RCA
Speaker output connection type
Screw terminals
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
2 x 55 - 65 VDC
Power inlet connector
Screw terminals
Current limit
9.1 A
Under/over voltage protection
check
Dimensions (L x W x H)
152.4 x 114.3 x 63.5 mm
Mounting hole spacing
-
Mounting hole diameter
3.8 mm
