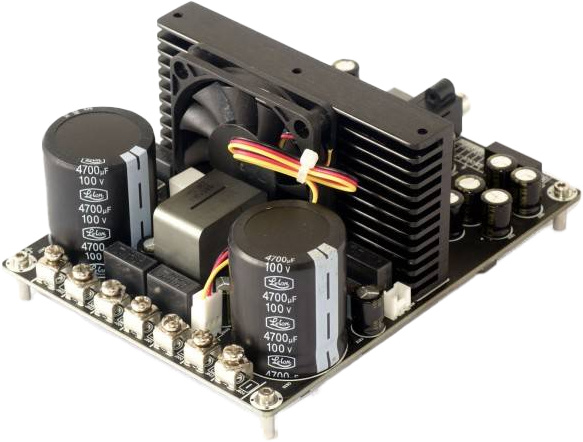

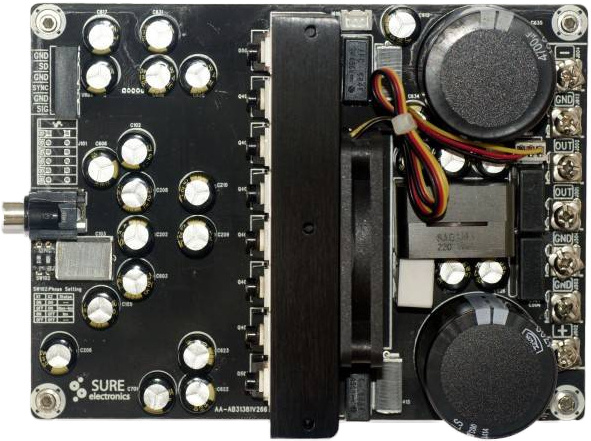

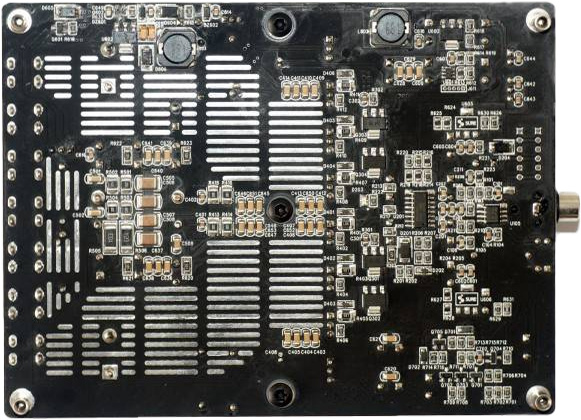

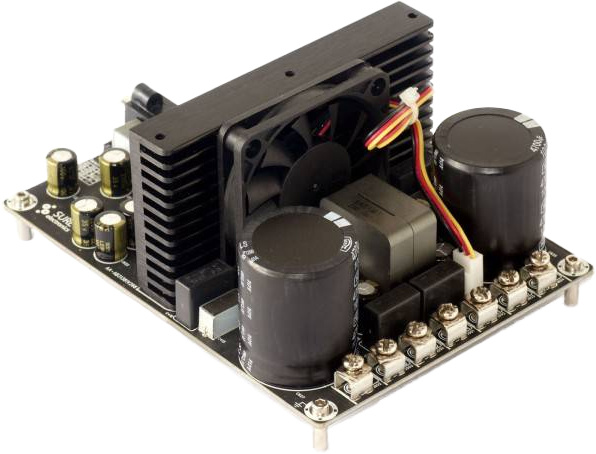

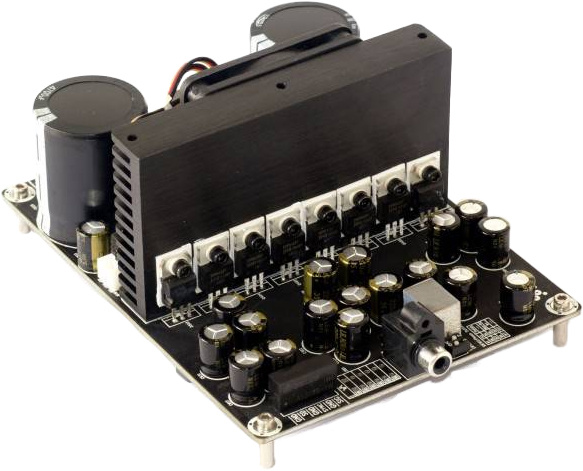

Sure Electronics AA-AB31381 1x2000W 2 Ohm IRS2092 Class D Audio Amplifier

€ 198,31€ 239,95 1 Auf Lager: Lieferzeit 1-3 Werktage
2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topo... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €227,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.



Highlights

  • Self-oscillating half-bridge topology with optional clock synchronization
  • Capable of 2000W RMS output @ 2 Ohm continuously
  • Requires 55 to 85 VDC power supply



Product details

Sure Electronics AA-AB31381 1x2000W Class D Audio Amplifier Board – IRS2092



2,000 watts of clean monoblock power are available with this amplifier board. It integrates high performance IRS2092 and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 supporting single channel audio amplification by using one channel half bridge topology.



Two 55 to 85 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.



Connection:





Typical Performance Graphs:

Frequency response:





Noise Floor:





THD+N VS Frequency:





Thermal Image:





All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

Eigenschaften

Artikelnummer:
AA-AB31381
Rated power output
1 x 2000 watts at 2 ohms
Minimum load
1 ohms
Efficiency
95 %
Signal-to-noise ratio (SNR)
99 dB
Distortion

0.011 % at 2 ohms, 1 watts, 1 kHz
0.023 % at 2 ohms, 10 watts, 1 kHz

Frequency Response
20 - 20,000 Hz
Gain
31 dB
Input sensitivity
2.1 V
Input impedance
3.3k ohms
Amplifier Classification
Class D
Circuit Topology
Infineon Technologies IRS2092
Speaker output channels
1
Input connection type
RCA
Speaker output connection type
Screw terminals
DSP function
-
Bluetooth
-
EQ Adjustment
-
Power Requirements
2 x 55 - 85 VDC
Power inlet connector
Screw terminals
Current limit
25.1 A
Under/over voltage protection
check
Dimensions (L x W x H)
152.40 x 114.3 x 63.5 mm
Mounting hole spacing
-
Mounting hole diameter
3.60 mm
