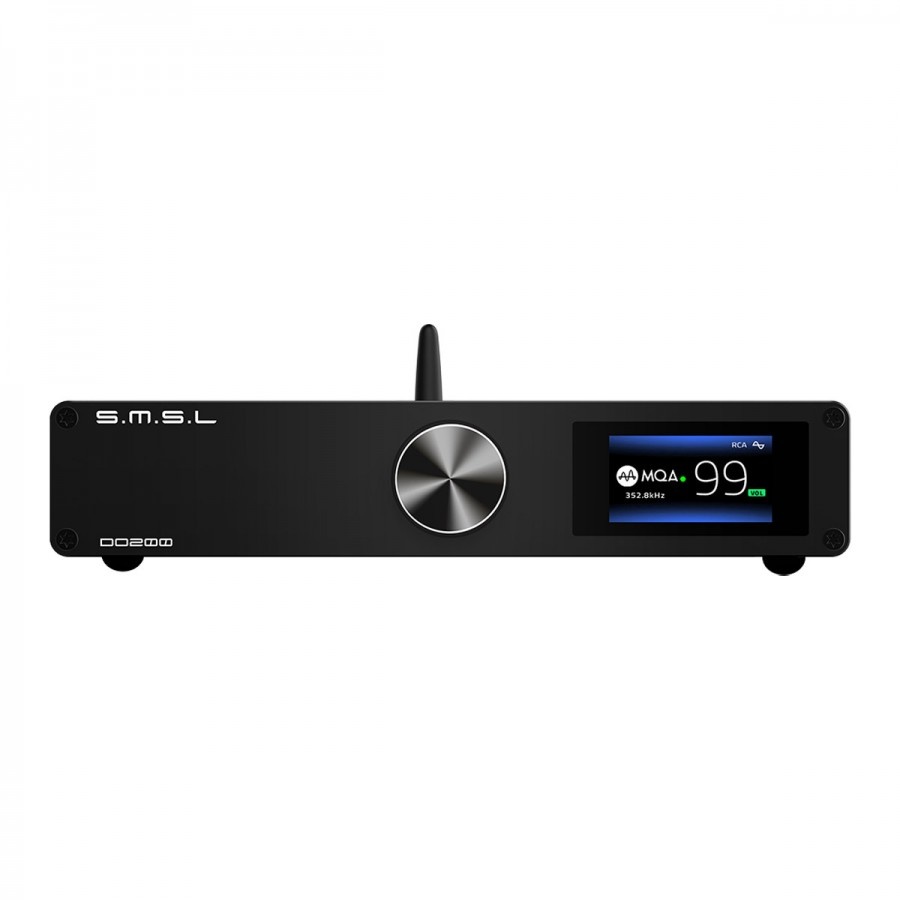

    SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA

    € 437,98€ 529,95 2 Auf Lager: Lieferzeit 1-3 Werktage
    • Versicherter Versand mit Sendungsverfolgung
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag
    • Hausinterner technischer Support
    Haben Sie eine Frage zu diesem Produkt?

    Haben Sie eine Frage zu diesem Produkt?

    Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

    Produktbeschreibung

    S.M.S.L presents you its advanced Desktop DAC, the DO200 with full MQA decoding support. The device is loaded with a top-quality ES9068AS*2 Dual DAC chipset that delivers astounding performance with ultra-low distortion ratings. DO200 is designed with ultimate components to ensure high-quality performance. It is among the only few DAC’s in the market that supports MQA decoding in all input interfaces.



    Highlights

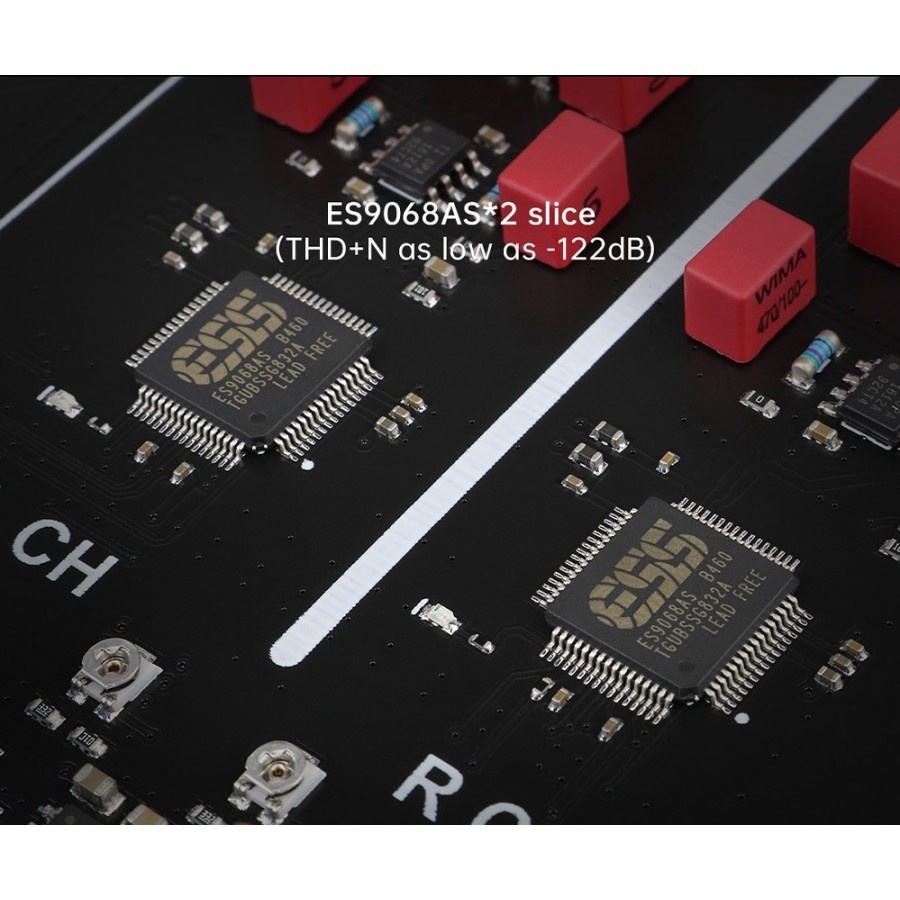

    • High-Quality ES9068AS ESS Sabre DAC chip
    • Full MQA decoding support
    • Premium audio components including high-end OPA1612 OPAMPs
    • Latest XMOS XU216 16-core USB Processor
    • High-resolution audio signal decoding including PCM 32-Bit/768kHz and native DSD512
    • Qualcomm’s latest Bluetooth chip
    • High-quality gold-plated input and output ports
    • 1.9” TFT LCD display
    • Ultra-low clock jitter
    • MQA support across all input interfaces
    • DSD decoding across all inputs, coaxial and optical supports DoP64

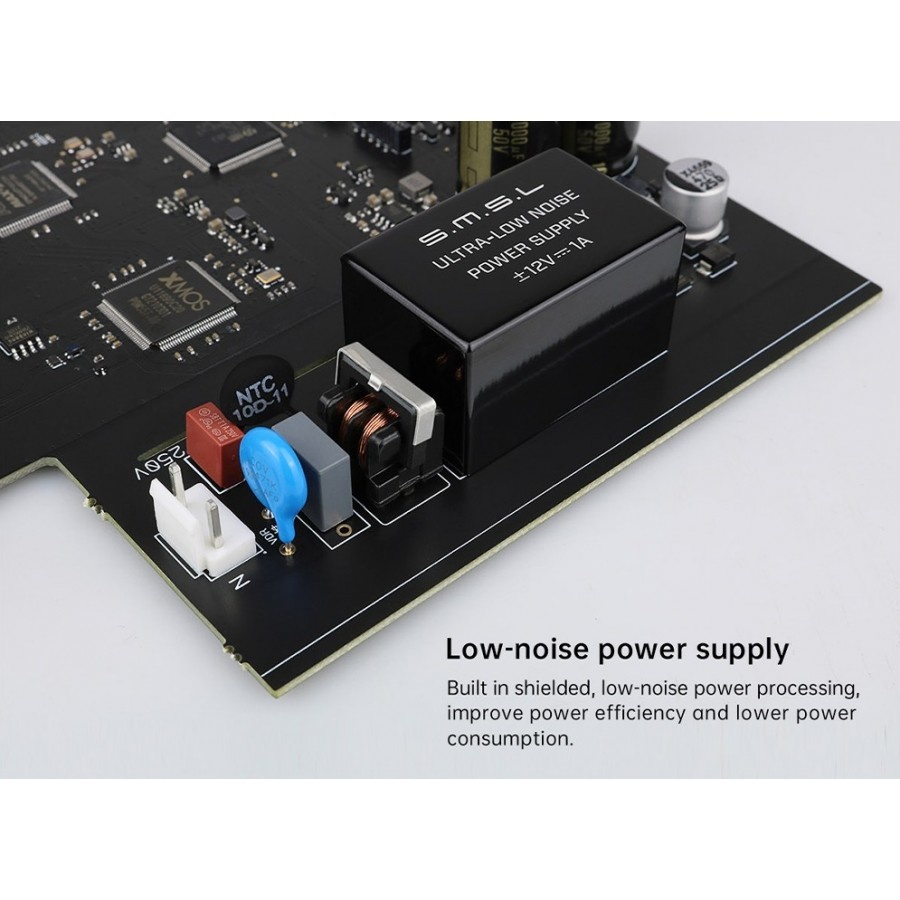

    • Improved power efficiency with built-in shielded low-noise power supply
    • Specially designed discrete component linear regulated power supply
    • Fully-functional remote control
    • JAS Hi-Res certification.



    Product details

    SMSL DO200 DAC 2x ES9068AS XMOS Bluetooth 5.0 LDAC 32bit 768kHz DSD512 MQA



    SMSL offers with its DO200 a small, powerful and complete DAC. Its digital/analog conversion stage is equipped with a 2x ESS9068AS DAC chip, able to offer a transparent, rich, and precise sound reproduction. Added to this DAC is an excellent XMOS XU216 USB interface. The association of these two components allows the support of high sampling rates, up to PCM 32bit 768kHz, DSD512 as well as the decoding of MQA files.



    MQA Decoding

    MQA (Master Quality Authenticated) is an award-winning British technology that restores the sound of the original recording. The MQA Master file is authenticated by the artists, producers, or rights holders. These files are light enough to stream or download. The DO200 incorporates an MQA decoder to read these files in order to provide the best possible audio quality.

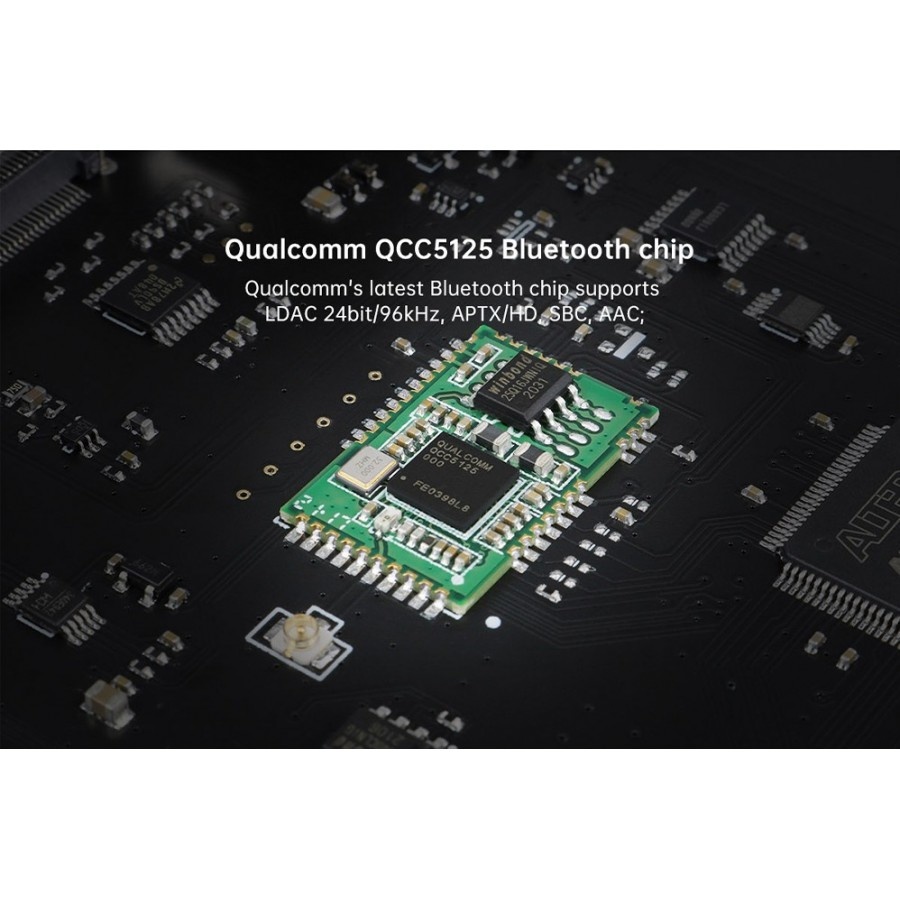

    Bluetooth 5.0 - QCC5125

    Particularly practical, the DO200, in addition to its connectivity, is equipped with a Bluetooth 5.0 receiver from Qualcomm. This one supports the classic codecs SBC and AAC, as well as the high-quality codecs aptX, aptX-HD, and LDAC, allowing to reach restitution close to that of the CD, in wireless.

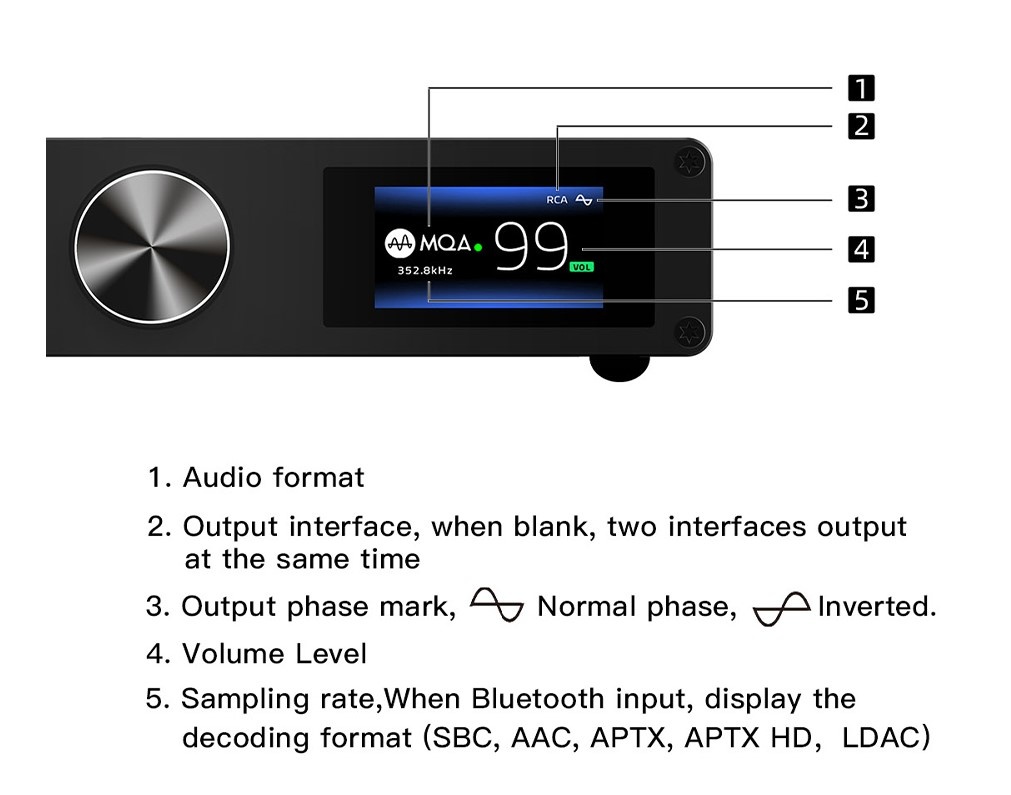

    A readable and practical screen

    The DO200 is equipped with a beautiful, bright, and readable display, protected by a tempered glass window. It clearly displays all the essential information for the comfortable use of the device.

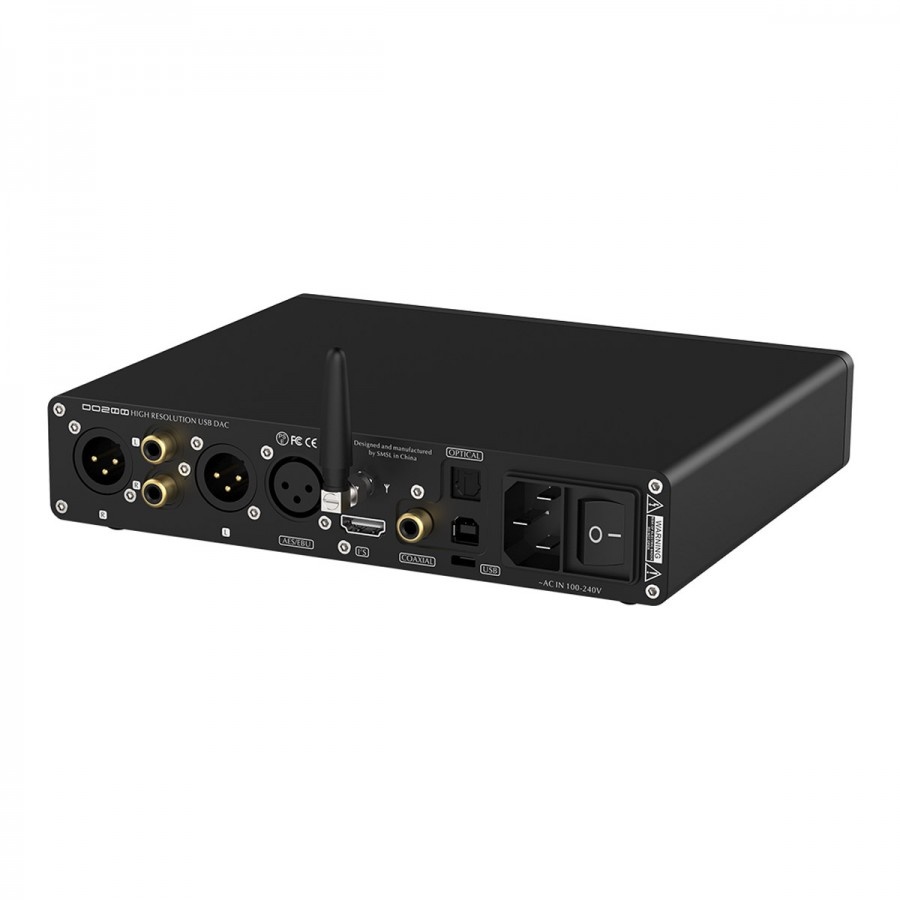

    Flexible connectivity

    The back of DO200 reveals a particularly complete connection, allowing the DAC to adapt to the great majority of audio systems. On the input side, we find USB-B, I2S via HDMI, AES/EBU, Optical, Coaxial, and of course Bluetooth. On the output side, the DO200 provides single-ended stereo RCA and balanced stereo XLR.



    Specifications: Product type: DAC • DAC Chip: 2x ES9068AS • Inputs: Bluetooth 5.0, 1x AES/EBU, 1x I2S via HDMI,1x Coaxial,1x USB-B, 1x Optical Toslink • Outputs: 1x Single-ended stereo RCA, 1x Balanced stereo XLR • THD+N: 0.00008% (-122dB) • Dynamic range: XLR : 129dB, RCA : 125dB • SNR: 129dB • Output impedance: < 10Ω • USB transmission mode: Asynchronous • Supported sampling rates: USB, I2S : PCM up to 32bit 768kHz, DSD up to DSD512; Optical, Coaxial, AES/EBU : PCM up to 24bit 192kHz, DSD DoP up to DSD64 • Supply voltage: 100-240VAC (Power cable included) • Consumption: 5W • Standby consumption: < 0.5W • Dimensions / Weight: 210x40x170mm / 1,2kg • Remote: Yes • Housing material: Aluminum • Color: Black



    Whats In The Box

    • 1x SMSL DO200
    • 1x Remote control
    • 1x Antenna
    • 1x USB Cable
    • 1x Power cable

    Eigenschaften

    Artikelnummer:
    DO200
    Produkttyp
    Audio DAC
    Drahtlose Konnektivität
    Bluetooth 5.0 (APTX/HD, SBC, AAC)
    DAC Chipset
    2x ES9068AS
    Codec Unterstützung
    MQA
    DSD512
    PCM
    Eingänge
    1x AES/EBU
    1x I2S via HDMI
    1x Coaxial
    1x USB-B
    1x Optical Toslink
    Ausgänge
    1x Single-ended stereo RCA
    1x Balanced stereo XLR
    THD(+N)
    0.00008% (-122dB)
    Dynamikbereich
    XLR : 129dB
    RCA : 125dB
    SRV
    129dB
    USB Kompatibilität
    Windows 7+
    Mac OSX
    Linux
    Rechenauflösung und Abtastrate
    > 32-bit / 768 kHz (USB, I2S)
    > 24-bit / 192 kHz (TOSLINK, COAX, AES/EBU)
    DSD64
    Energiebedarf
    100 - 240 VAC
    Stromverbrauch
    5 watts
    Stromverbrauch im Ruhezustand
    < 0.5 watts
    Fernbedienung
    Yes
    Abmessungen
    210 x 40 x 170 mm
    Gewicht
    1200 gr.
