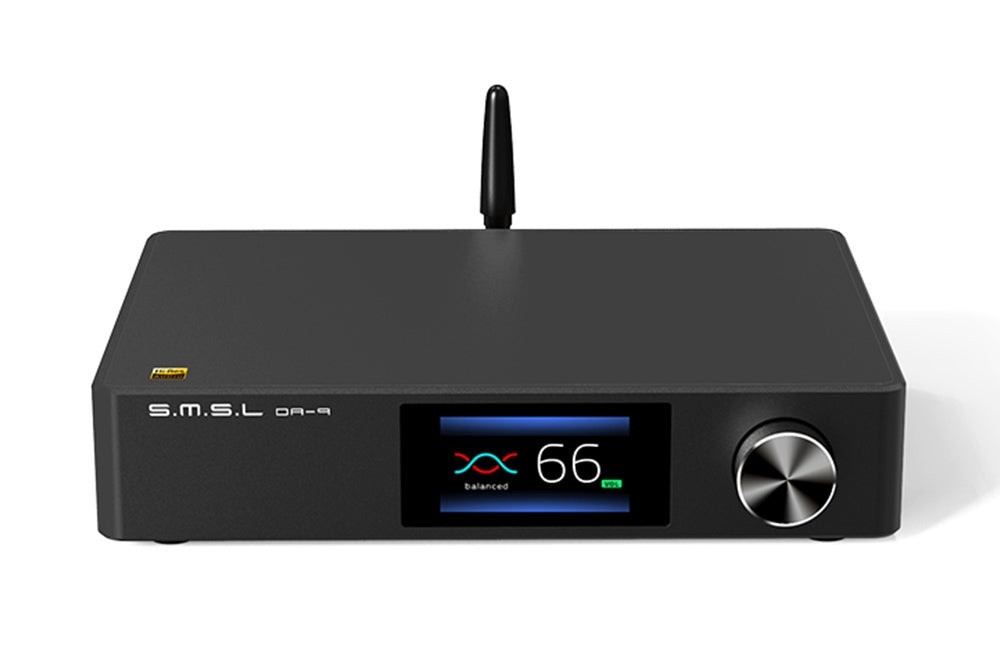

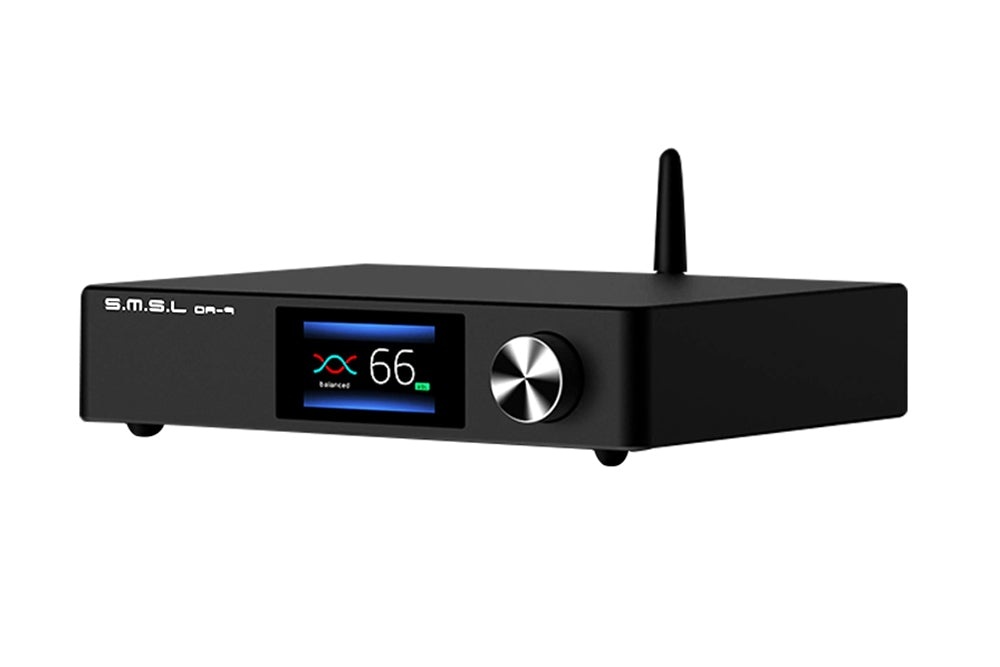

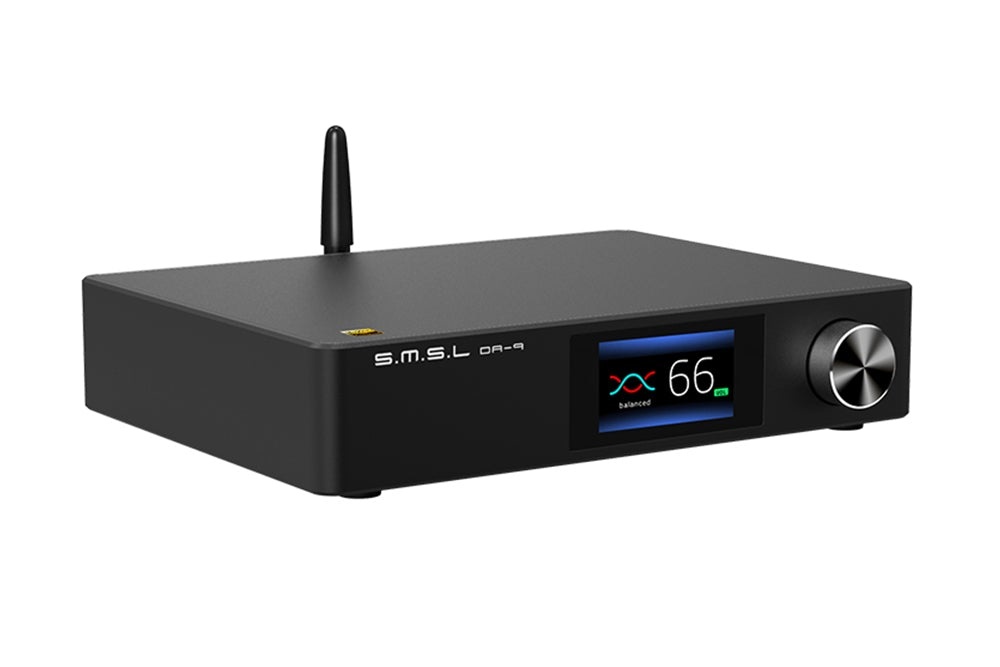

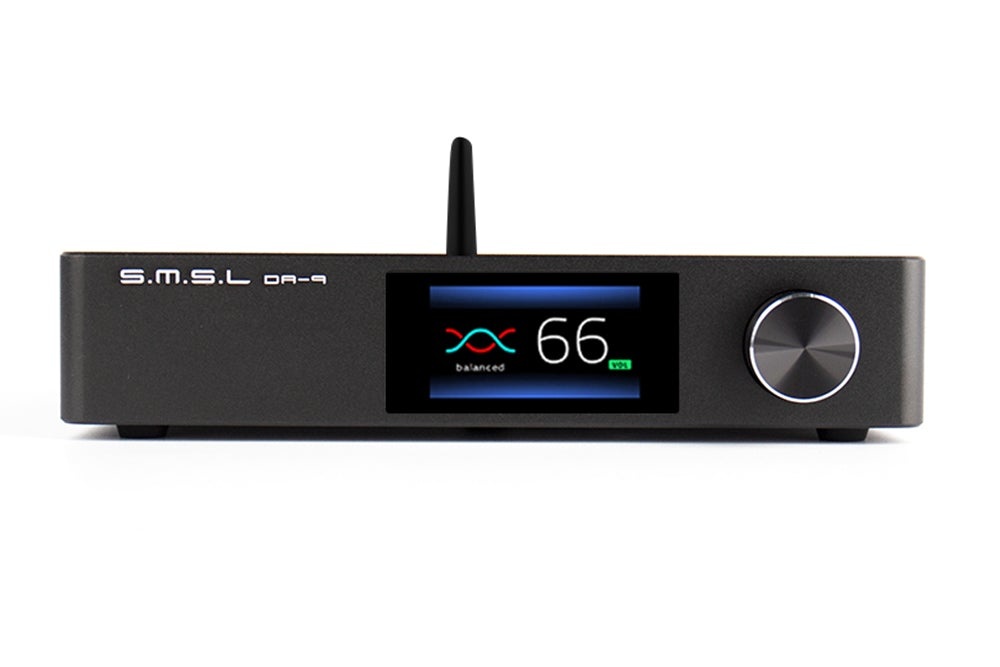

SMSL DA-9 Stereoverstärker

Name: SMSL DA-9 Stereoverstärker
Brand: SMSL
SKU: DA-9
Price: 249.95 EUR
Availability: InStock

0 reviews

Marke: SMSL

Alle anzeigen Neue Produkte

Vergleichen

2 x 90 W NEW

€ 206,57€ 249,95 1 Auf Lager: Lieferzeit 1-3 Werktage

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Haben Sie eine Frage zu diesem Produkt?

Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

Produktbeschreibung

The SMSL DA-9 is a desktop power amplifier featuring Bluetooth 5.0, aptX decoding, and is capable of up to 90W into 4Ω.

Highlights

2xGerman Infineon's new technology class D power amplifier chip, higher quality, efficiency up to 92%, further reducing power consumption;
Using NJRC's electronic volume control chip NJW1194 from Japan, precise volume control and low distortion;
The true fully balanced design, from input to speaker output, greatly reducing distortion caused by signal transmission;
Built-in SMSL SDB patented sound and treble/bass adjustment for easy matching of a variety of speakers and music;
Subwoofer pre out for 2.1 system application.
New Bluetooth 5.0 reception, better sound quality, longer transmission distance, support APT-X!
All aluminum alloy CNC precision processing shell, anodizing technology and chamfering process, exquisite workmanship and delicate touch;
Color LCD display and user-friendly operating system are simple and easy to understand, equipped with full-featured remote control function;
Low power standby function to meet the latest European ErP2 standard;
A large number of professional Hi-Fi audio components are used to enhance the sound experience;
High quality gold-plated input and output terminals;
Perfect protection circuit for overheating, overcurrent, etc.
Built-in high-quality power supply, specially designed for audio!

Product details

SMSL DA-9 Balanced Class D Amplifier 2x MA12070 Bluetooth 5.0 2x90W 4 Ohm

The SMSL DA-9 is a high-quality amplifier with symmetrical architecture that allows it to reveal a rich and precise musical sound reproduction. Using high-end components for excellent performance, the device is also practical with Bluetooth support for remote broadcasting of your music. The DA-9 also features a subwoofer output, allowing for the integration of a 2.1 audio system.

Bluetooth 5.0

The DA-9 incorporates Bluetooth 5.0 transmission technology, allowing you to stream your music simply and remotely directly from your smartphone. In addition, it supports the aptX and UAT transmission codec for a sound quality close to that of CD in Bluetooth.

Predefined equalizers

In order to adapt to each person's listening style, the SMSL DA-9 offers many predefined equalizers.

Optimized circuits

The DA-9 incorporates many high-end components dedicated to audio. These include a NJRC NJW1194 volume control for precise adjustment and low distortion, two high-output Infineon Class D amplifiers, a fully balanced circuit, a power supply optimized for low interference and dynamic range, and dual filtering at the input stage.

Specifications: Product type: Amplifier • Amplifier chip: 2x Infineon MA12070 • Inputs: XLR. RCA. BT • THD+N: 0.003% • SNR: 111dB • Channel separation: 96dB • Input Sensitivity/Input Impedance: 250mV/47k0 • Output Power: 150Wx2(2Ω)/90Wx2(4Ω)/50Wx2(8Ω) • Power Consumption: 40w( Normal Volume) • Standby Power: 0.5W • Dimensions:187.5X154X40mm(WxHxD) • Weight: 0.96kg • Weight(With Package): 1.45kg.

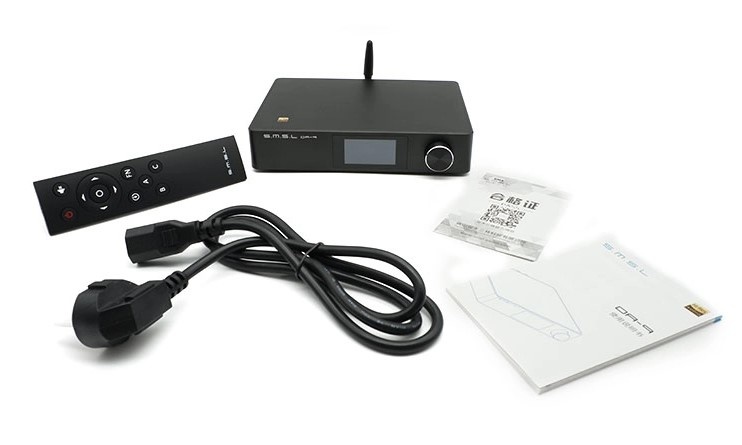

What’s In The Box

1x DA-9
1x Remote control
1x Power cable

Eigenschaften

Artikelnummer:: DA-9
Nennleistung (QMW): 2 x 150 watts at 2 ohm / 2 x 90 watts at 4 ohm / 2 x 50 watts at 8 ohm
Mindestlast: 2 ohm
Signal-Rausch-Verhältnis (SNR): 111dB
Verzerrung: 0.003% THD+N
Eingangsimpedanz: 47kΩ
Eingangsempfindlichkeit: 250mV
Verstärkertopologie: Infineon MA12070
Verstärkerklassifizierung: Class D
Subwoofer-Ausgangskanal: 1

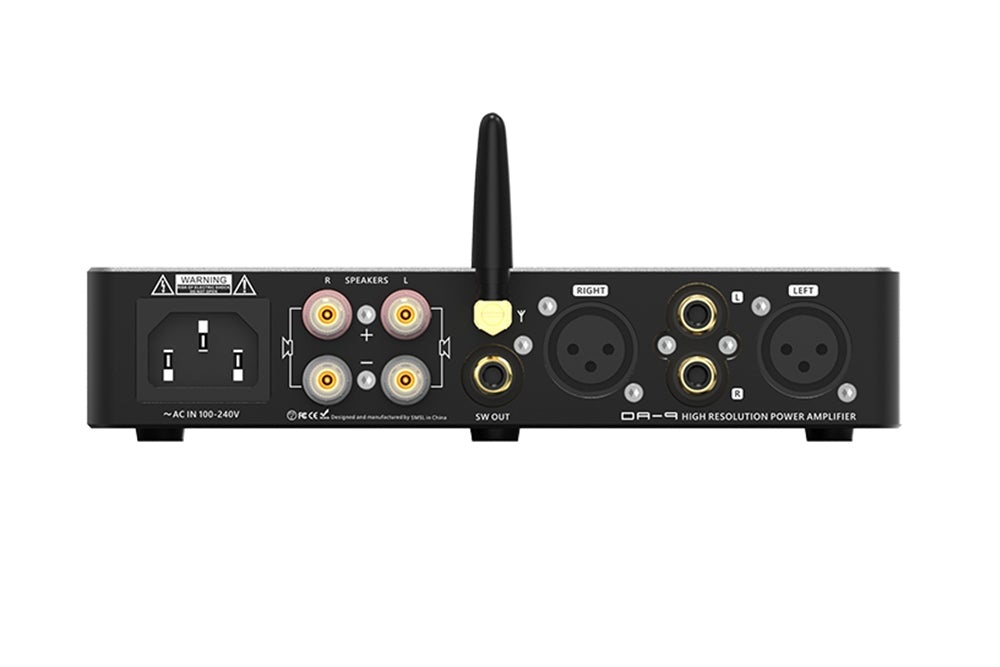

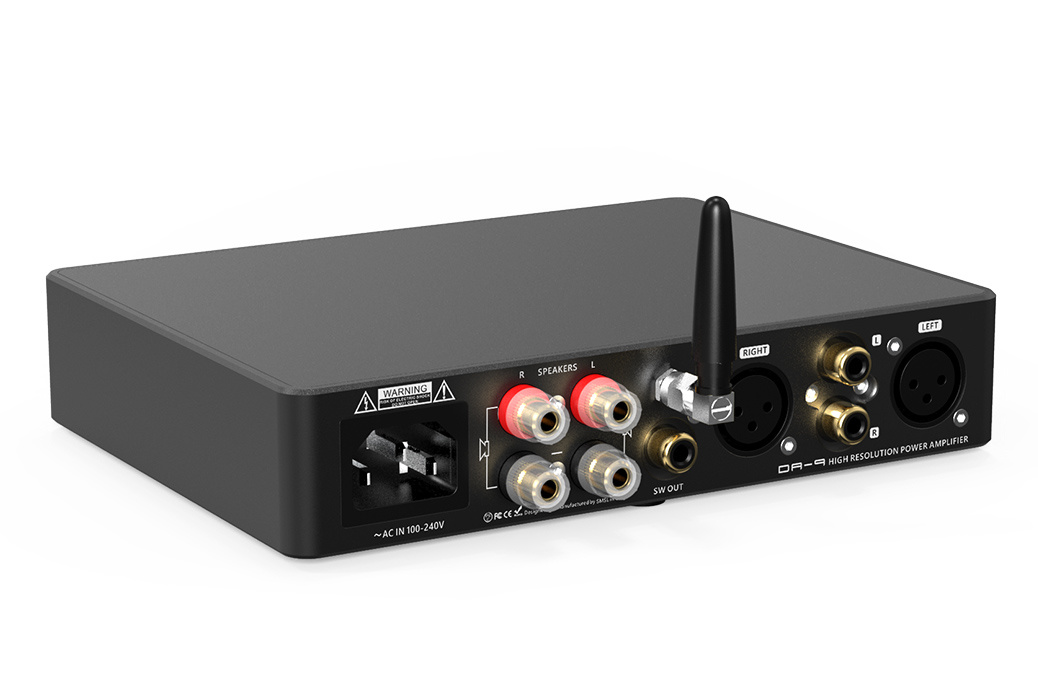

Cinch ein / aus: 1/0
XLR ein / aus: 1/0
Subwoofer pre-out: Yes
Bananenstecker: Yes
Fernbedienung: Yes
EQ-Korrektur: Yes
EQ-Profile: x8
Leistungsbedarf: 100~240 VAC, 50/60Hz
Stromanschlussstecker: C13
Energieverbrauch: 40w ( Normal Volume)
Standby-Stromverbrauch: 0.5W
Abmessungen (T x B x H): 40 x 187.5 x 154 mm
Gehäusematerial: Aluminum
