      A100 Stereoverstärker

      A100 Stereoverstärker

      €104,95

      SMSL A100 Stereoverstärker

      3 reviews
      4 von 5
      3 reviews
      5 Sterne
      33%
      4 Sterne
      33%
      3 Sterne
      33%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: SMSL
      86,74 €104,95 € Nicht auf Lager10+ erwartet auf 08-03-2024

      Buy now, pay later

      • Wir versenden nach
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Vor-und Nachteile

      Laut unserer Spezialisten
      • 2 x 80W at 4 ohm
      • Bluetooth version 5.0
      • Kein Display

      Produktbeschreibung

      SMSL offers with the A100 a compact and affordable but nevertheless powerful Class-D amplifier, based on an Infineon MA12070 chip allowing it to develop 2x80W under 4Ω. Simple and efficient, the A100 is simple to use and practical. It integrates what's more a Bluetooth 5.0 reception allowing it to broadcast its music remotely, directly from a smartphone or a tablet.



      Highlights

      • German Infineon's new technology Class-D power amplifier chip, higher quality, efficiency up to 92%, further reducing power consumption;
      • USB audio input and support for driver-free use;
      • Built-in 2 sets of subwoofer signal pre-output, for easy connection with active subwoofer system 2.1 or 2.2;
      • Bluetooth 5.0 receiver, Great sound quality, longer transmission distance;
      • Built-in low-noise, big-power audio dedicated switching power supply to ensure continuous powering;
      • A large number of audio grade components are used to enhance the sound experience;
      • High-quality gold-plated input and output terminals;
      • Perfect protection circuit for overheating, overcurrent, etc.
      • High-quality power adapter specially designed for audio.



      Product details

      SMSL A100 Bluetooth Infineon Class-D Stereo Amplifier



      SMSL offers with the A100 a compact and affordable but nevertheless powerful Class-D amplifier, based on an Infineon MA12070 chip allowing it to develop 2x80W under 4Ω. Simple and efficient, the A100 is simple to use and practical. It integrates what's more a Bluetooth 5.0 reception allowing to broadcast its music remotely, directly from a smartphone or a tablet.


      The Class-D amplification stage of the A100 is based on an Infineon MA12070 chip, offering a good energy reserve while ensuring a clear and faithful reproduction. This one takes advantage of the MERUS architecture, in which each half-bridge uses four MOSFETS.

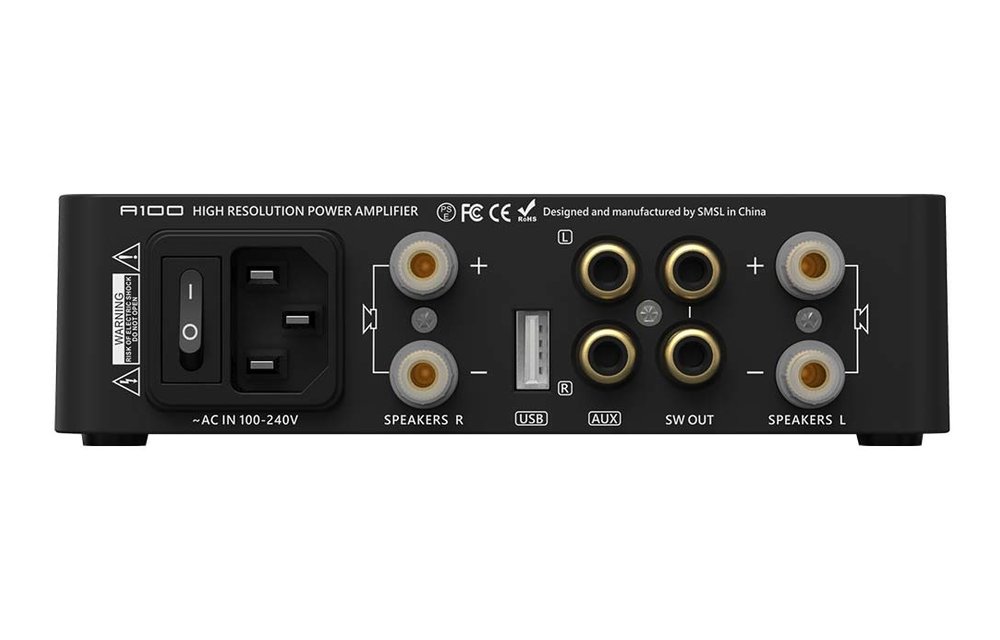

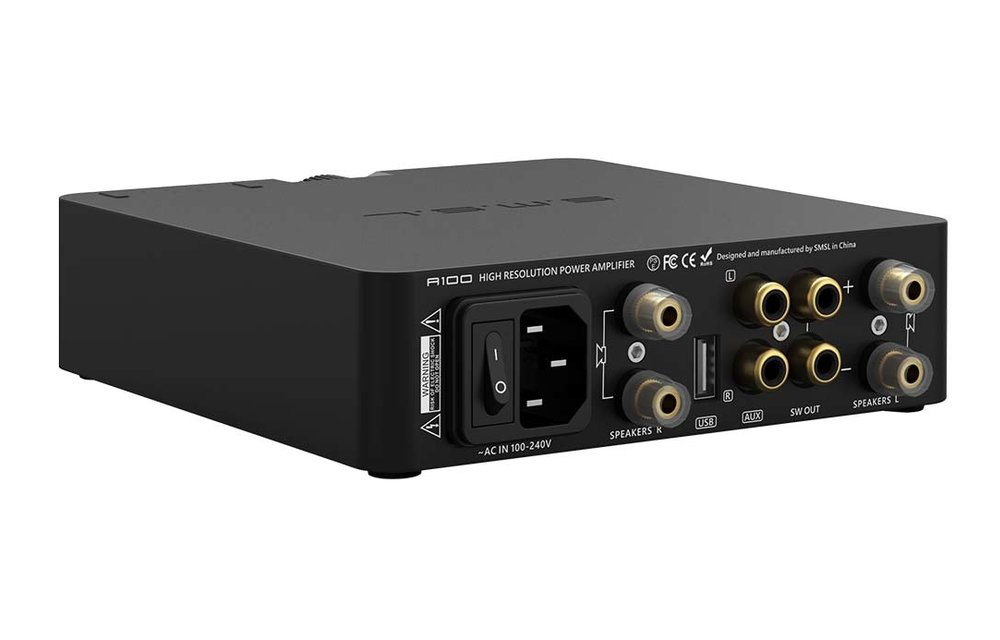

      In addition to its stereo RCA and USB-A input, the A100 embeds a Bluetooth 5.0 receiver allowing you to broadcast your music from a distance, from a connected smartphone for example. The integrated chip supports the aptX transmission codec ensuring very good audio quality and signal stability. In addition to the classic speaker output, the A100 is equipped with a subwoofer output on stereo RCA. It is thus possible to connect an active subwoofer and thus integrate a 2.1 system.

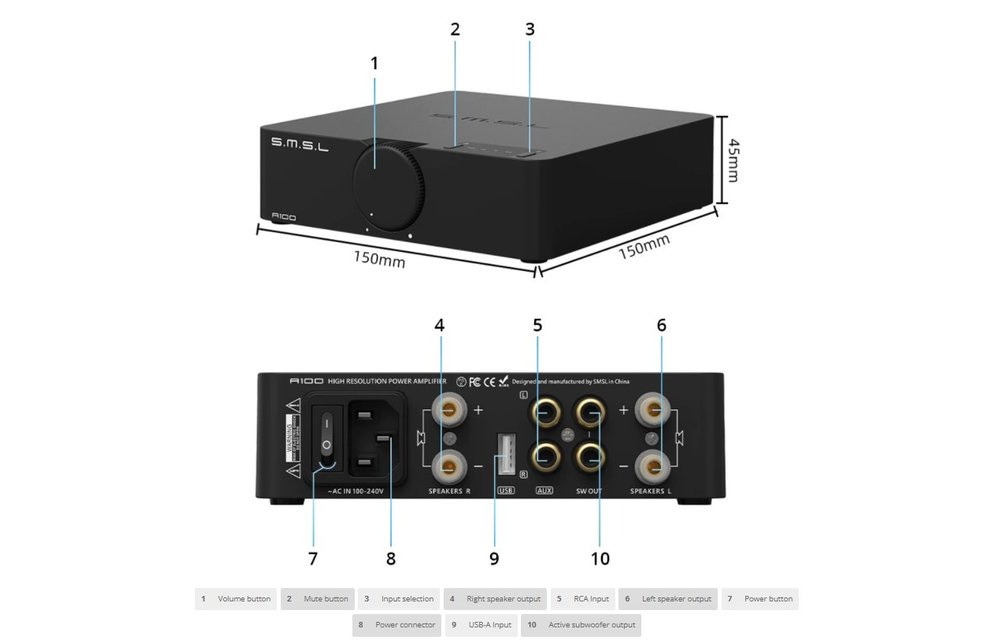

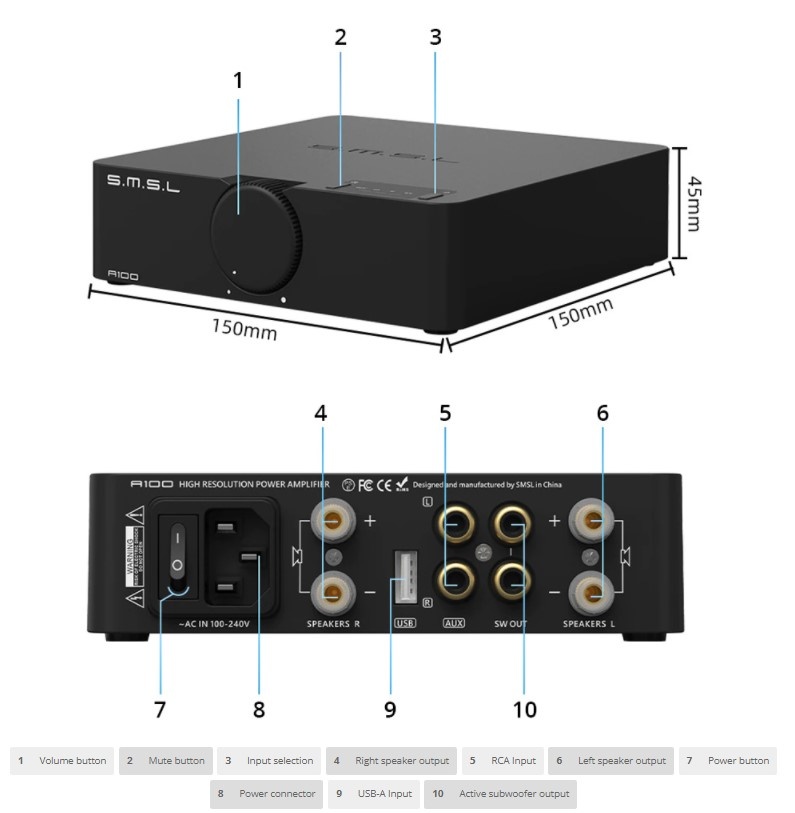

      Specifications: Product type: Amplifier • Amplifier type: Class-D • Inputs: Bluetooth 5.0, 1x USB-A, 1x Stereo RCA • Outputs: Speaker terminals, 1x Stereo RCA subwoofer output • THD+N: 0.005% • SNR: 103dB • Channel separation: 88dB • Output power: 2x80W @ 4Ω; 2x40W @ 8Ω • Input sensitivity: 180mW • Input impedance: 22kΩ • Supply voltage: 100-240VAC • Consumption: 35W • Dimensions: 165 x 150 x 43mm • Weight: 600g • Color: Black.



      Package Includes:

      • SMSL A100
      • 1x Power cable

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      SMSL A100
      Nennleistung (QMW)
      2 x 80W at 4 ohm
      2 x 40W at 8 ohm
      Mindestlast
      4 Ω
      Signal-Rausch-Verhältnis (SNR)
      103dB
      Verzerrung
      0.005 %
      Eingangsimpedanz
      22kΩ
      Eingangsempfindlichkeit
      180mV
      Verstärkertopologie
      Infineon MA12070
      Ausgangskanäle
      2
      Subwoofer-Ausgangskanal
      2x pre-output
      XLR ein / aus
      1/0
      USB
      USB audio input + support driver-free use
      Bluetooth
      5.0 apt-X & AAC
      Leistungsbedarf
      100-240VAC
      Energieverbrauch
      35 Watts (Normal Volume)
      Abmessungen (T x B x H)
      165 x 150 x 43 mm

      Mehr anzeigen

      4 von 5
      de A100 klinkt goed alleen via BT valt het wat tegen, te veel hoog, ook staat de volume knop op +60% open om een beetje volume te krijgen. Mijn Philips CD950 cd- speler via aux aangesloten en dat is toch een behoorlijk stuk beter, volume knop nu op 25-30% staan. Staan Chario's 4ohm op aangesloten.....
      Durch W on 17 April 2023
      3 von 5
      Voor de prijs is het een leuke versterker. Het is wel hoorbaar dat dit een digitale versterker betreft met niet veel vermogen. De features zijn wel fantastisch. USB- audio en BT maken het toch een heel makkelijk inzetbare versterker. Verwacht echter geen "High Fidelity".
      Durch Tim Hoolsteens on 5 Juli 2022
