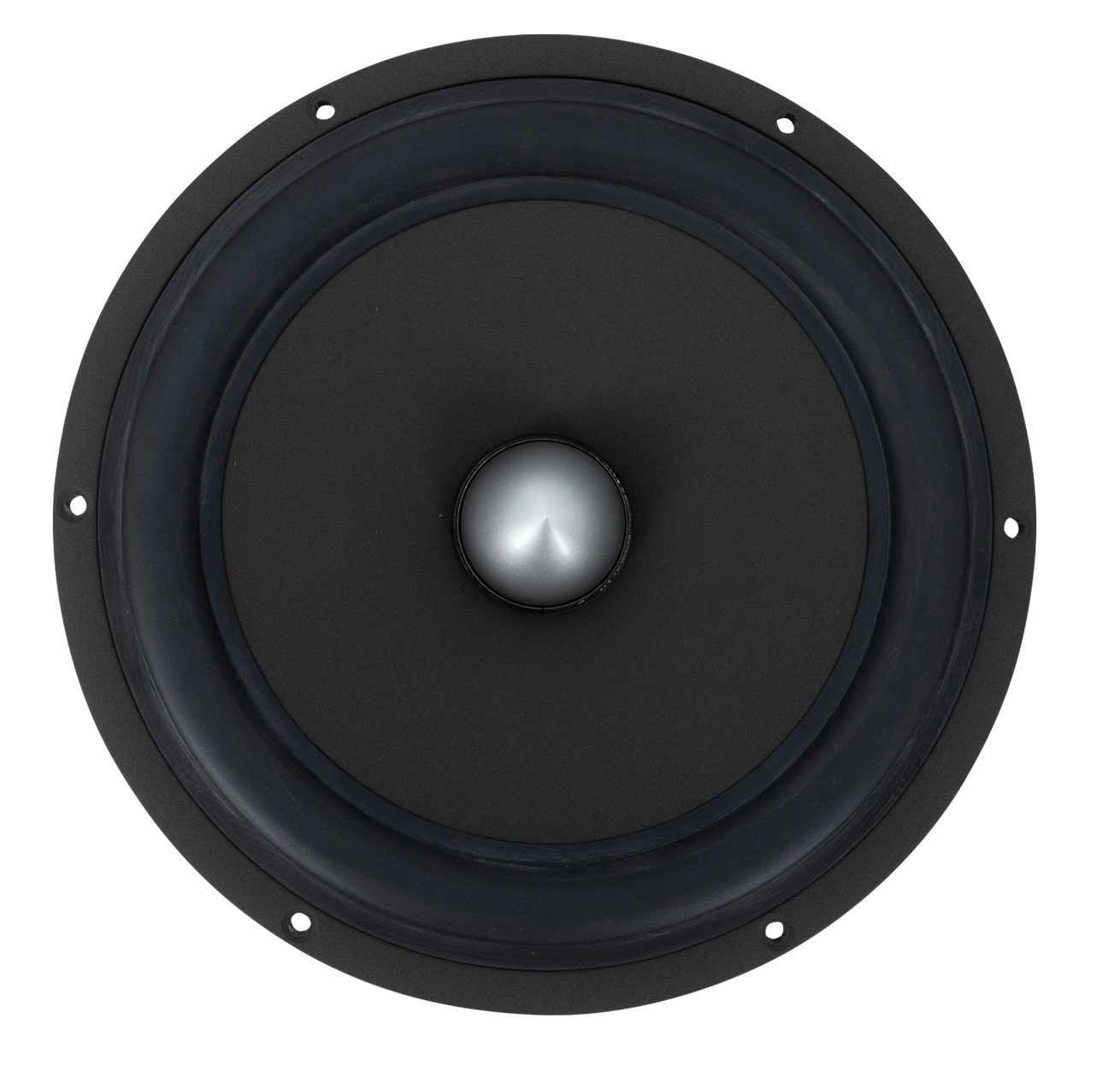

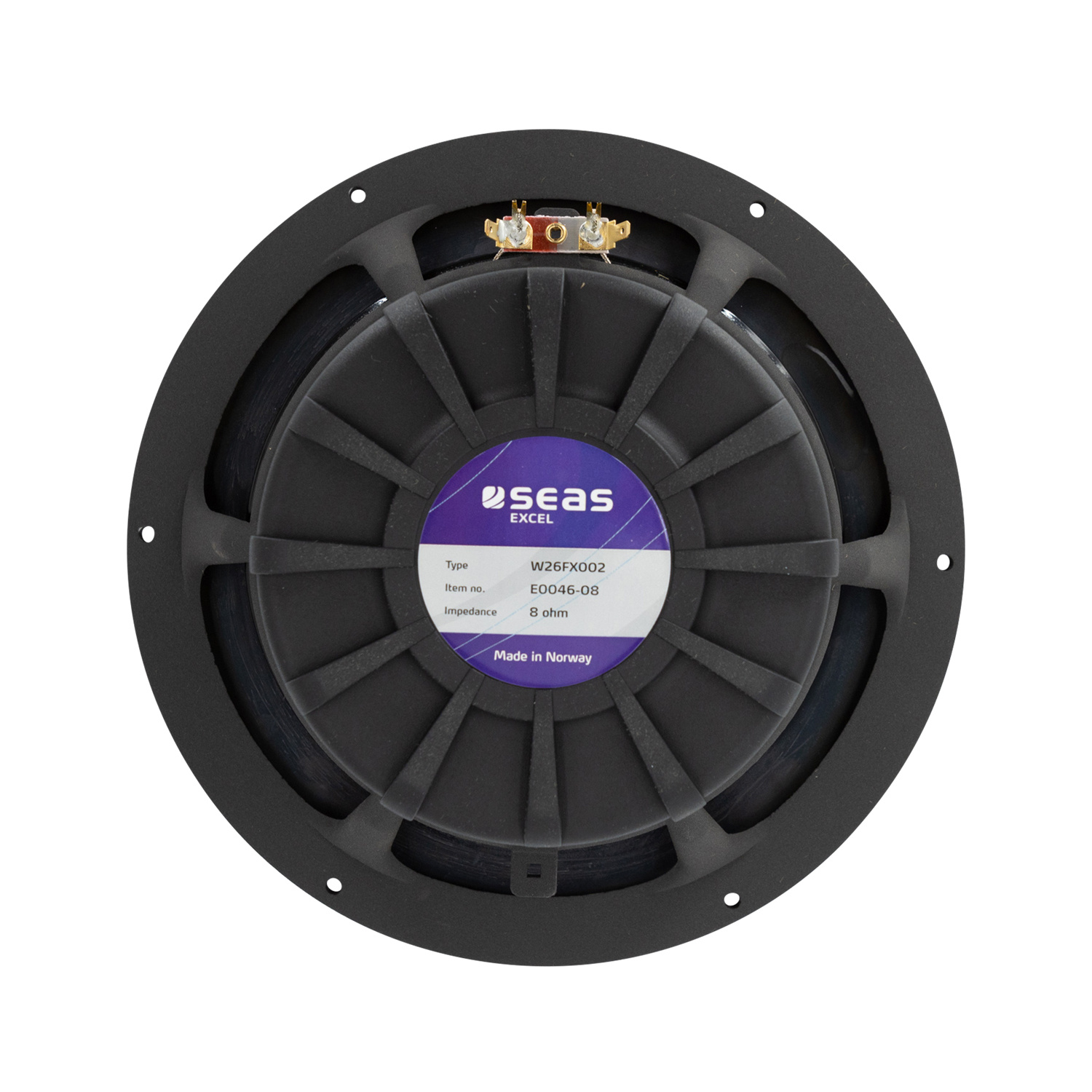

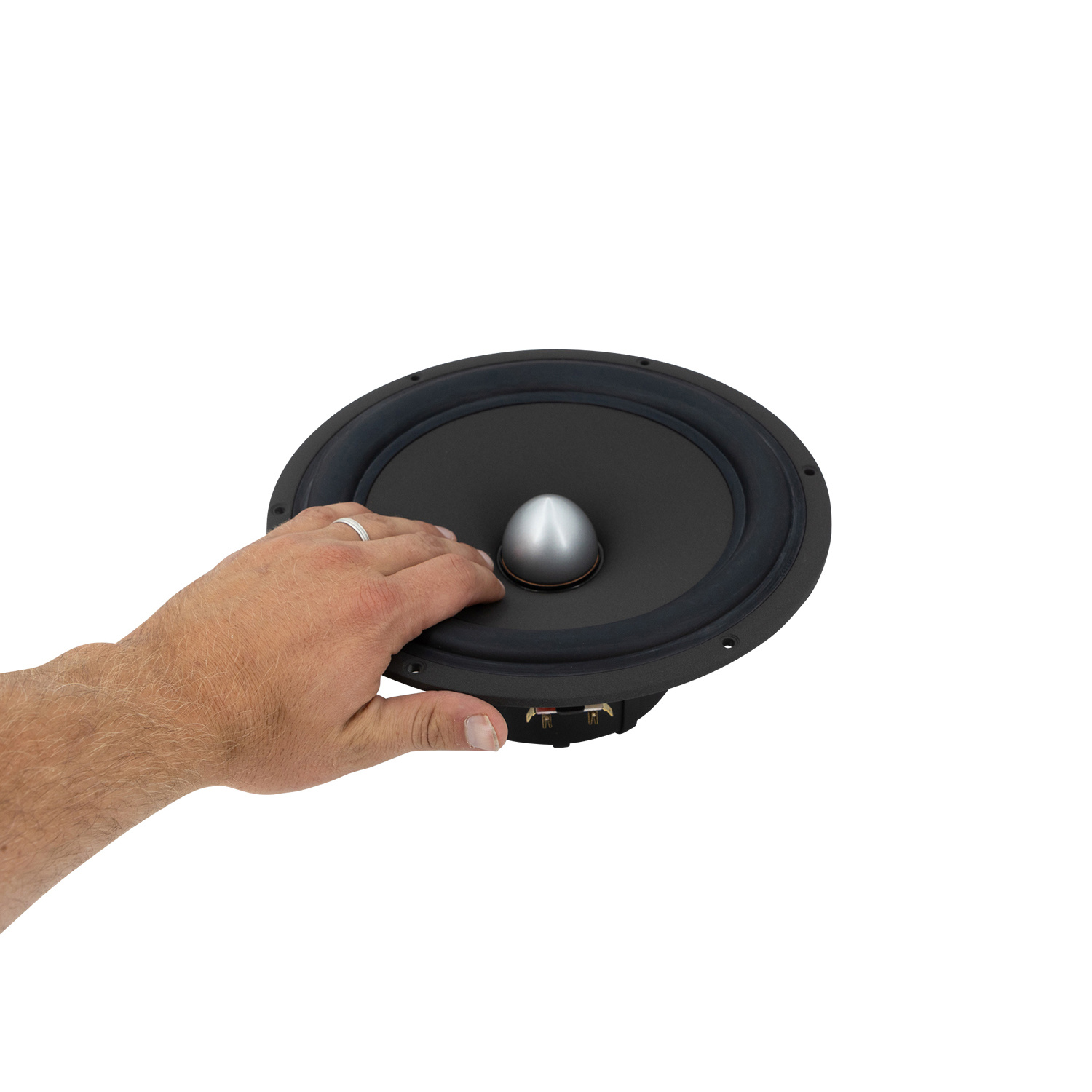

SEAS Excel W26FX002 - E0046-08S 10" Nextel Coated Paper Cone Woofer

€ 272,69€ 329,95 2 Auf Lager: Lieferzeit 1-3 Werktage
A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. 2” diameter high temperature voice coil with black anodized coil former for high power handling and reduced power compression.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €313,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 100 Watts
  • Unique Nextel coating ensures smooth frequency response and low distortion
  • Reduced compression, increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



Product details

Seas Excel W26FX002 - E0046-08S 10" Nextel Coated Paper Cone Woofer



A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. 2” diameter high temperature voice coil with black anodized coil former for high power handling and reduced power compression.



Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

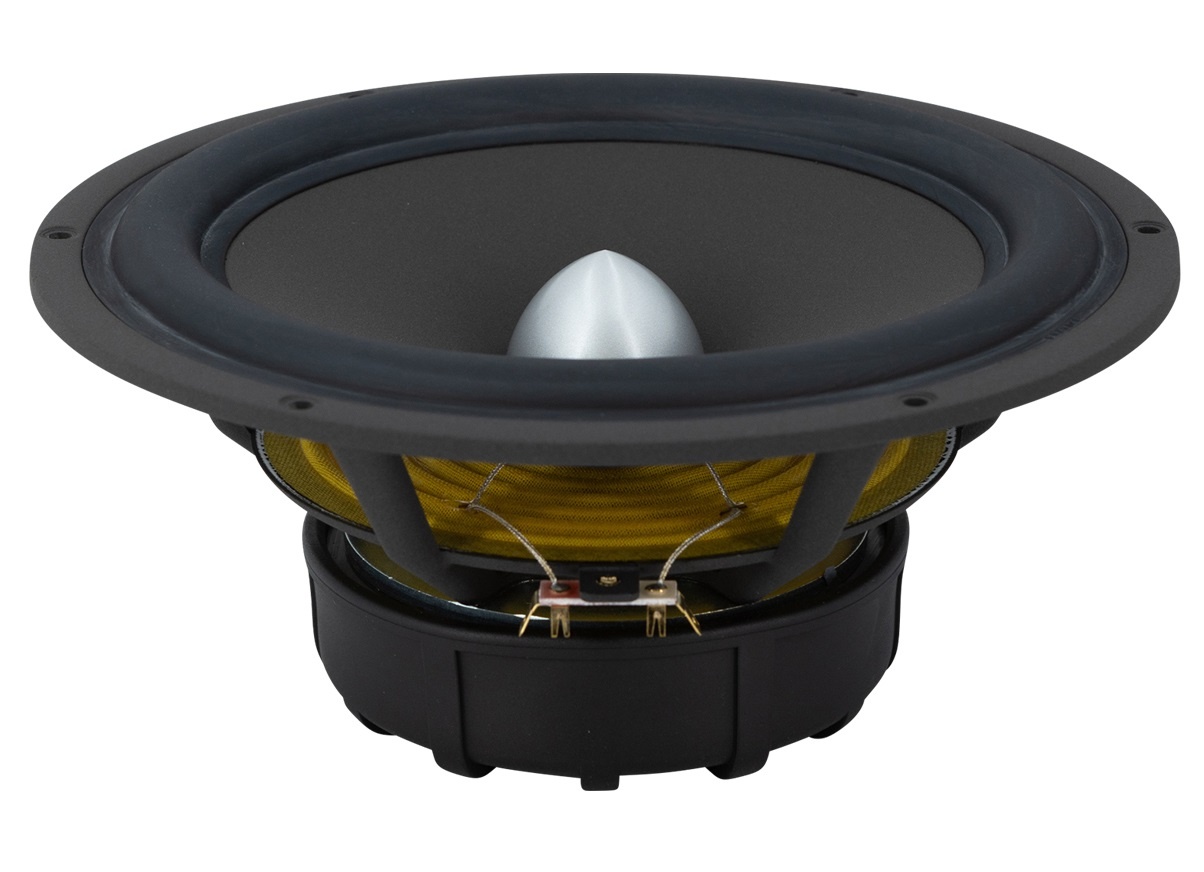

Extremely stiff and stable injection molded metal basket with Nextel paint keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
W26FX002
Woofer Series
Excel Series
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
100 Watts
Power Handling (max)
300 Watts
Impedance
8 ohms
Sensitivity
89 dB 2.83V/1m
Frequency Response
30 to 1,000 Hz
Voice Coil Diameter
2"
Magnet Weight
45.8 oz.
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.81 mH
Resonant Frequency (Fs)
31 Hz
Mechanical Q (Qms)
2.55
Electromagnetic Q (Qes)
0.47
Total Q (Qts)
0.39
Diaphragm Mass Inc. Airload (Mms)
42.4g
Mechanical Compliance of Suspension (Cms)
0.6 mm/N
Compliance Equivalent Volume (Vas)
3.07 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
10.59"
Overall Depth
4.54"
Baffle Cutout Diameter
9.14"
Bolt Circle Diameter
10.08"
# Mounting Holes
6
