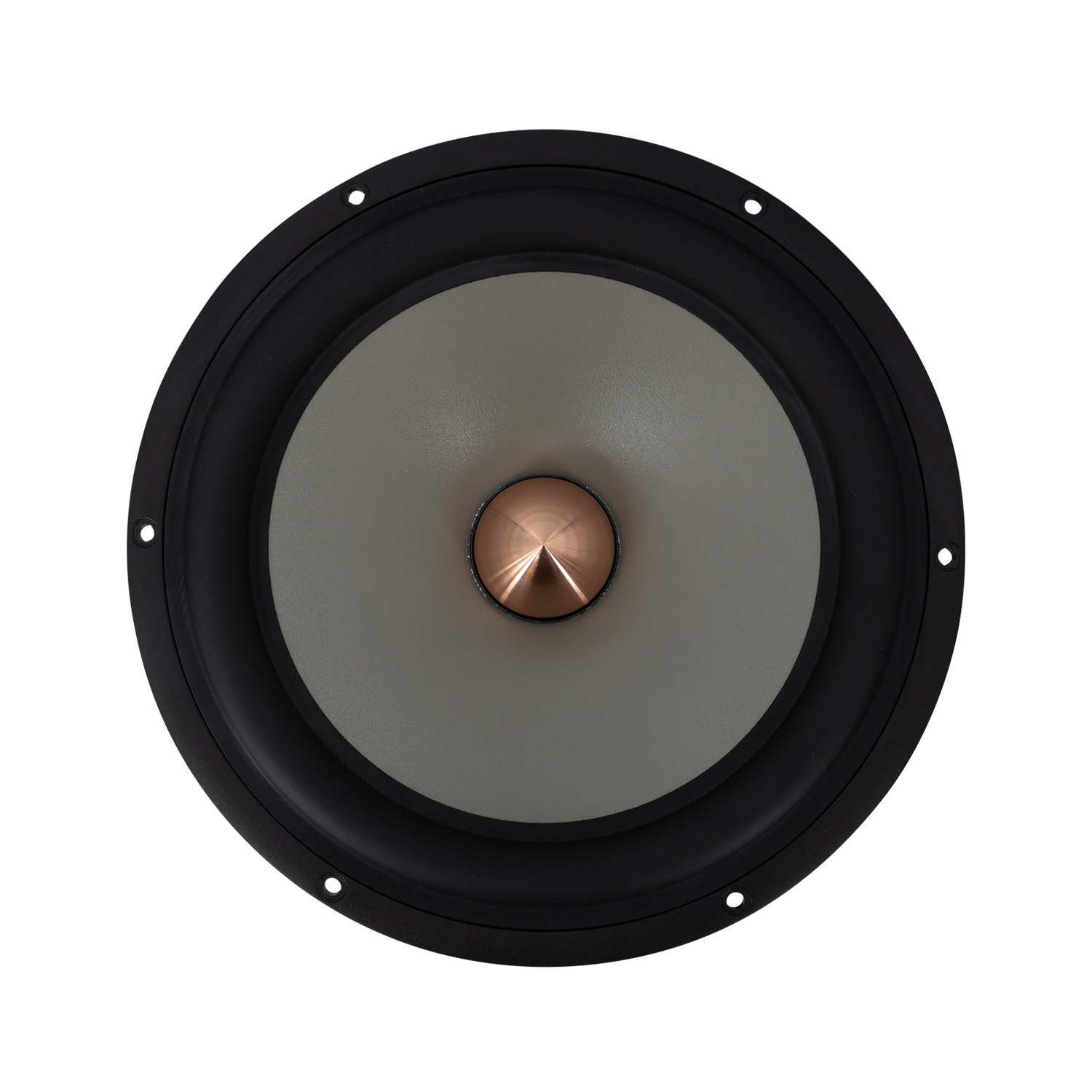

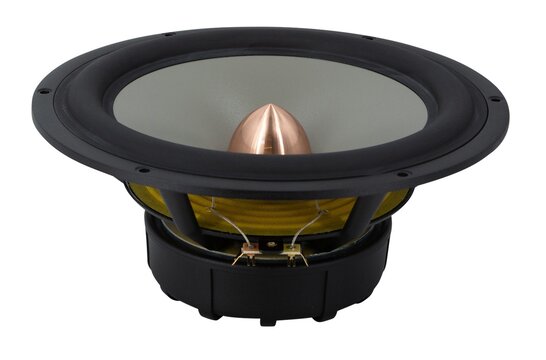

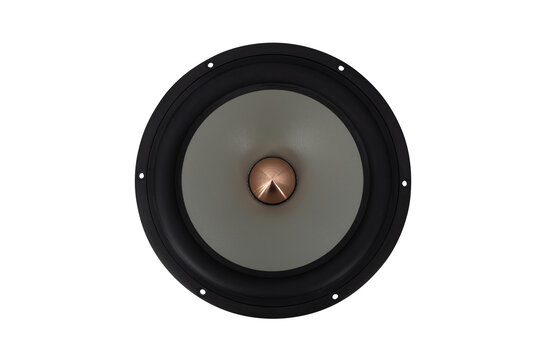

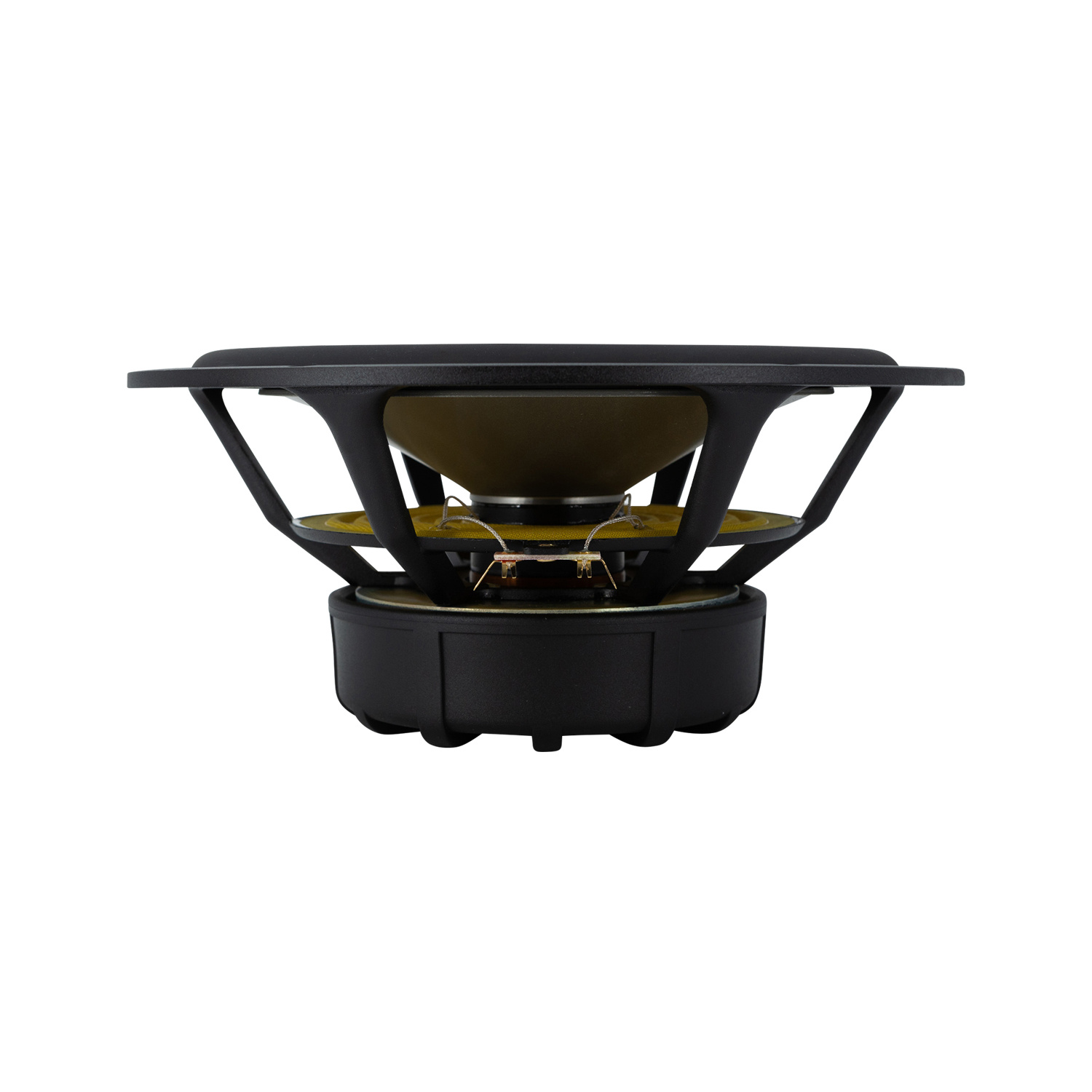

SEAS Excel W26FX001 - E0026-08S 10" Aluminum Alloy Cone Woofer

€ 330,54€ 399,95 1 Auf Lager: Lieferzeit 1-3 Werktage
The extremely stiff cone made from aluminum/magnesium alloy gives tremendous bass precision. 2” diameter high temperature voice coil with black anodized aluminum coil former for high power handling and reduced power compression.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €379,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 150 Watts
  • Tremendous bass precision provided by its stiff cone made from aluminum/magnesium alloy
  • Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability



Product details

Seas Excel W26FX001 - E0026-08S 10" Aluminum Alloy Cone Woofer



The extremely stiff cone made from aluminum/magnesium alloy gives tremendous bass precision. 2” diameter high temperature voice coil with black anodized aluminum coil former for high power handling and reduced power compression.

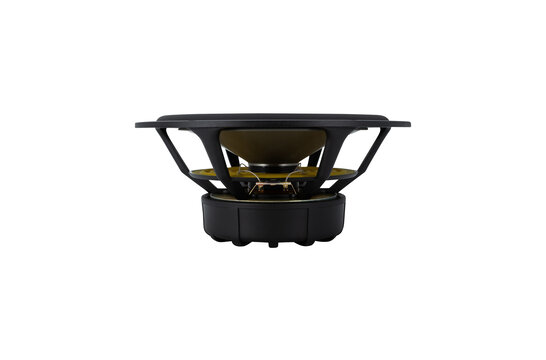

Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

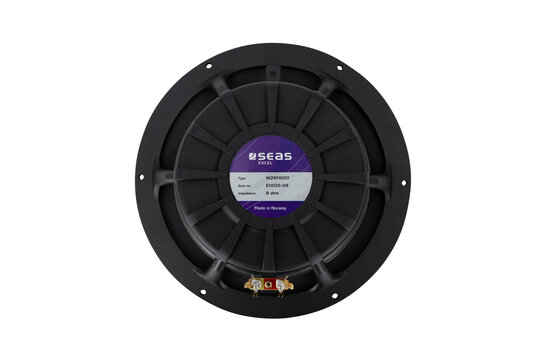

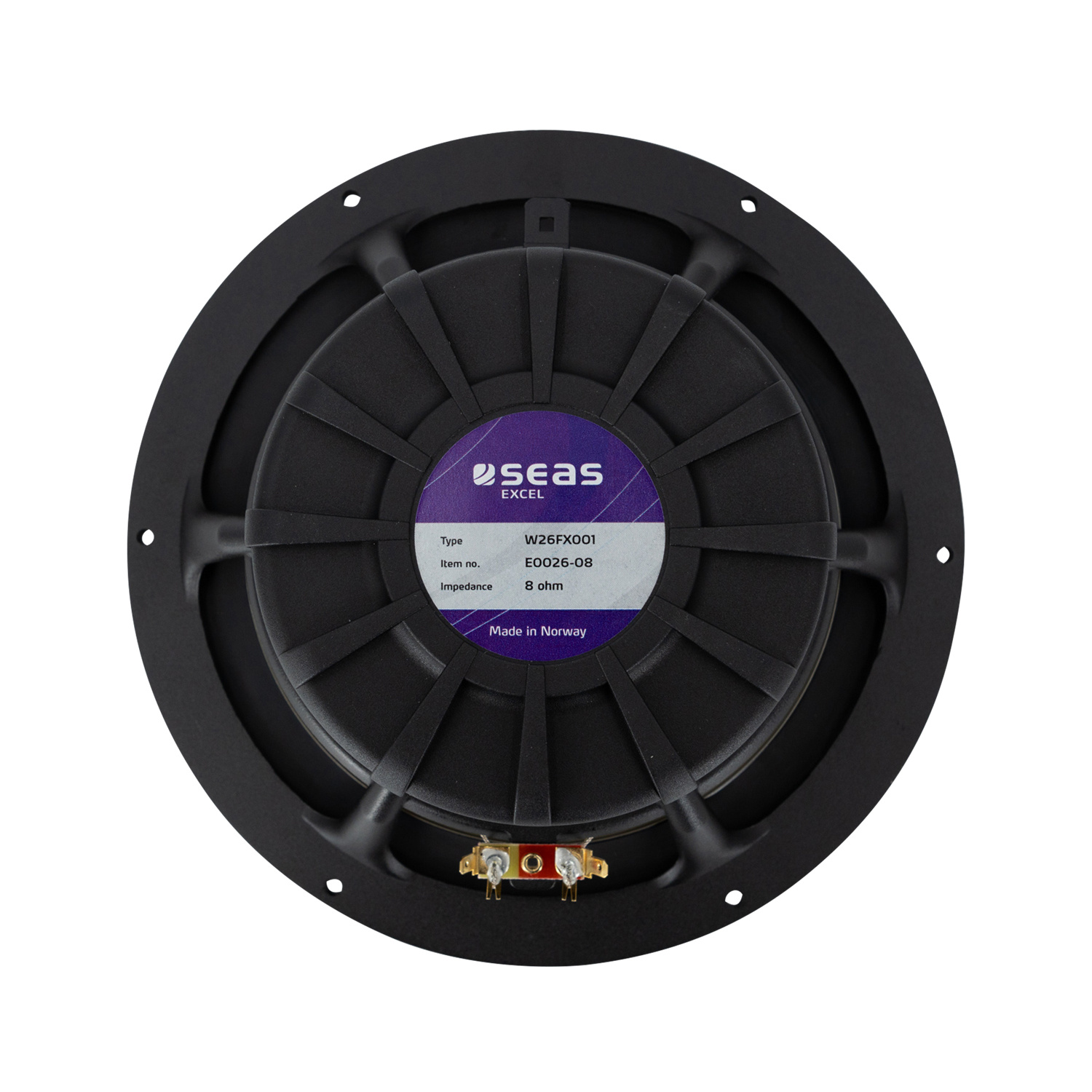

A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.

Eigenschaften

Artikelnummer:
W26FX001
Woofer Series
Excel Series
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
150 Watts
Power Handling (max)
400 Watts
Impedance
8 ohms
Sensitivity
87 dB 2.83V/1m
Frequency Response
20 to 1,000 Hz
Voice Coil Diameter
2"
Magnet Weight
45.8 oz.
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
1.43 mH
Resonant Frequency (Fs)
20 Hz
Mechanical Q (Qms)
2.34
Electromagnetic Q (Qes)
0.41
Total Q (Qts)
0.35
Diaphragm Mass Inc. Airload (Mms)
56.3g
Mechanical Compliance of Suspension (Cms)
1.1 mm/N
Compliance Equivalent Volume (Vas)
5.72 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
10.59
Overall Depth
4.54"
Baffle Cutout Diameter
9.14"
# Mounting Holes
6
