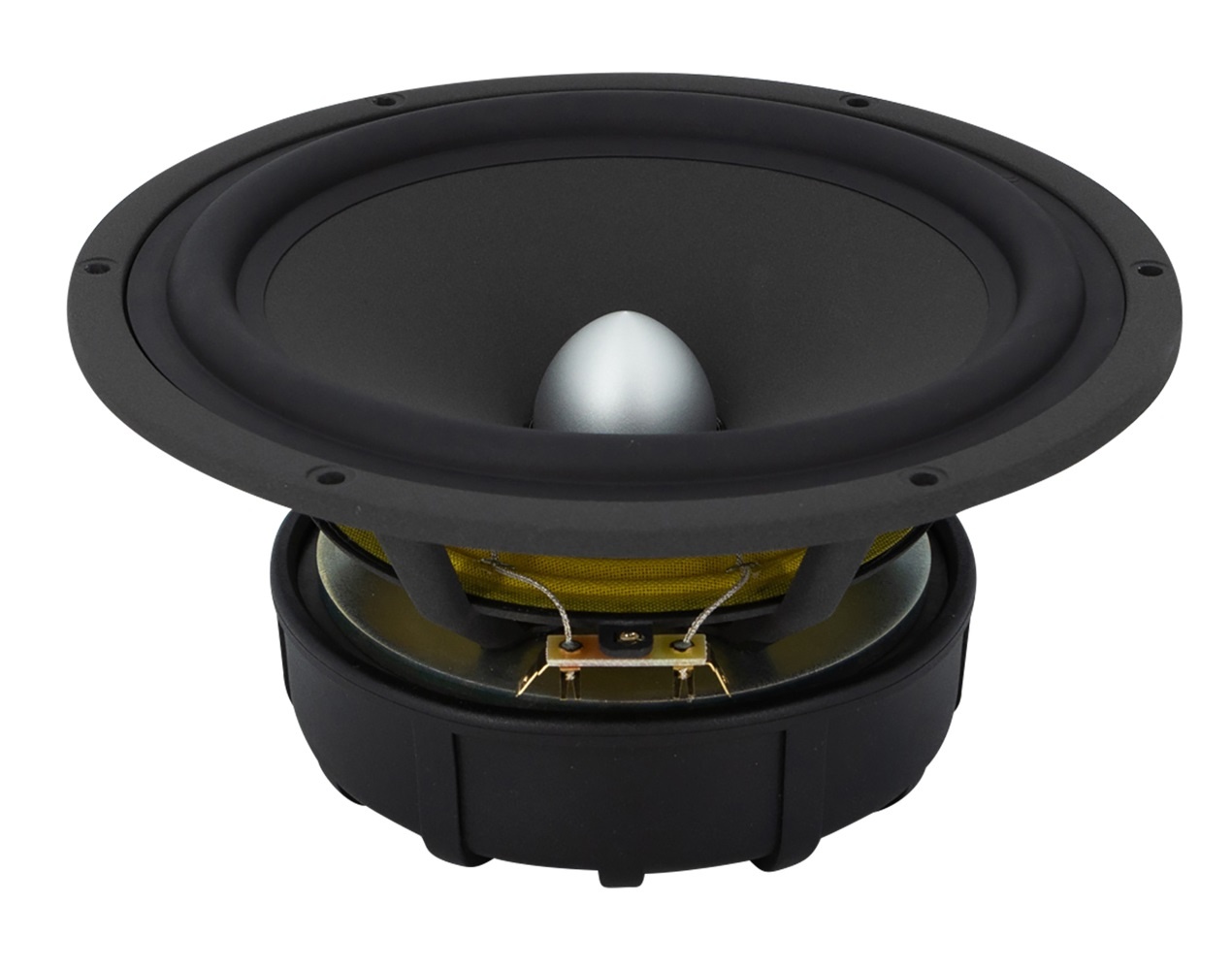

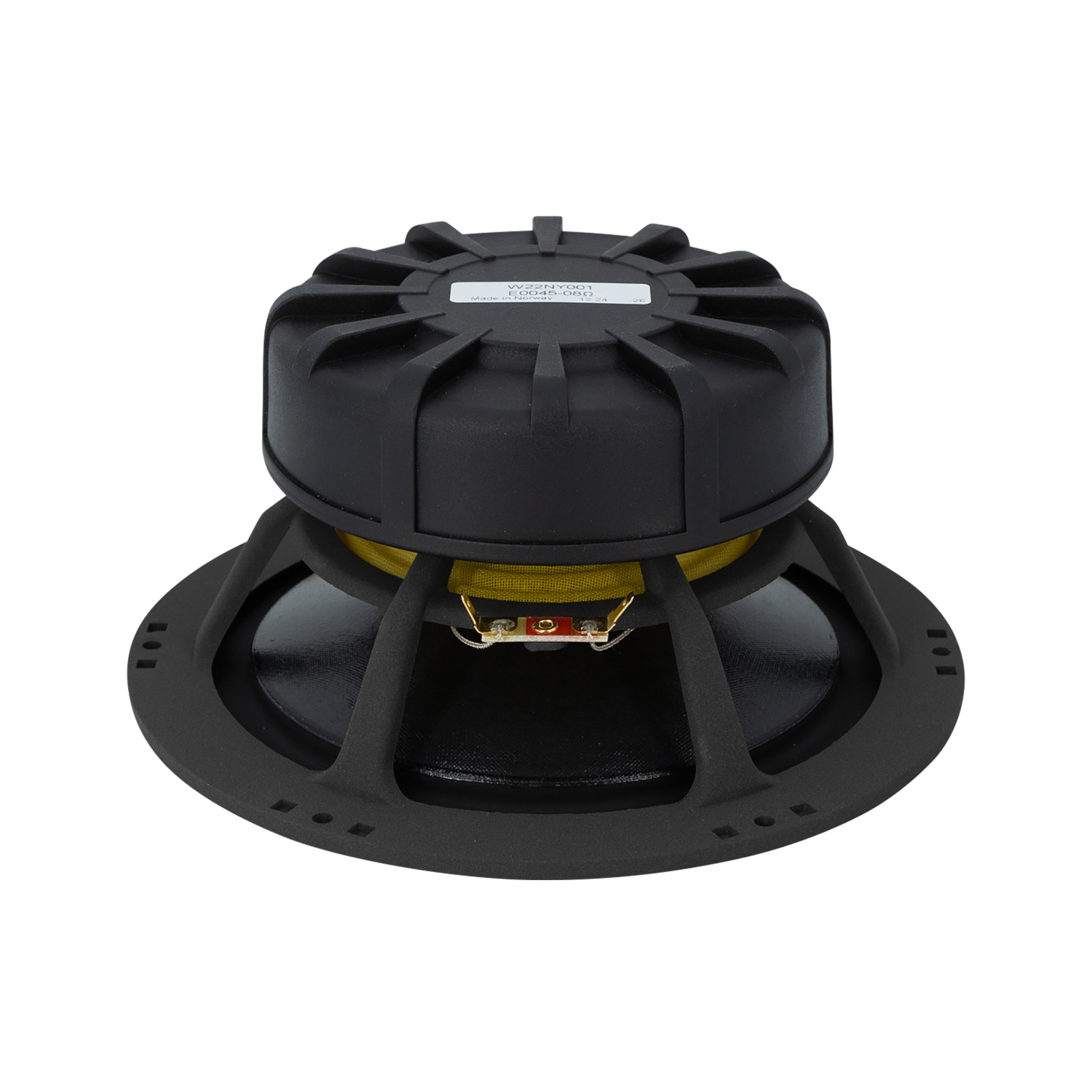

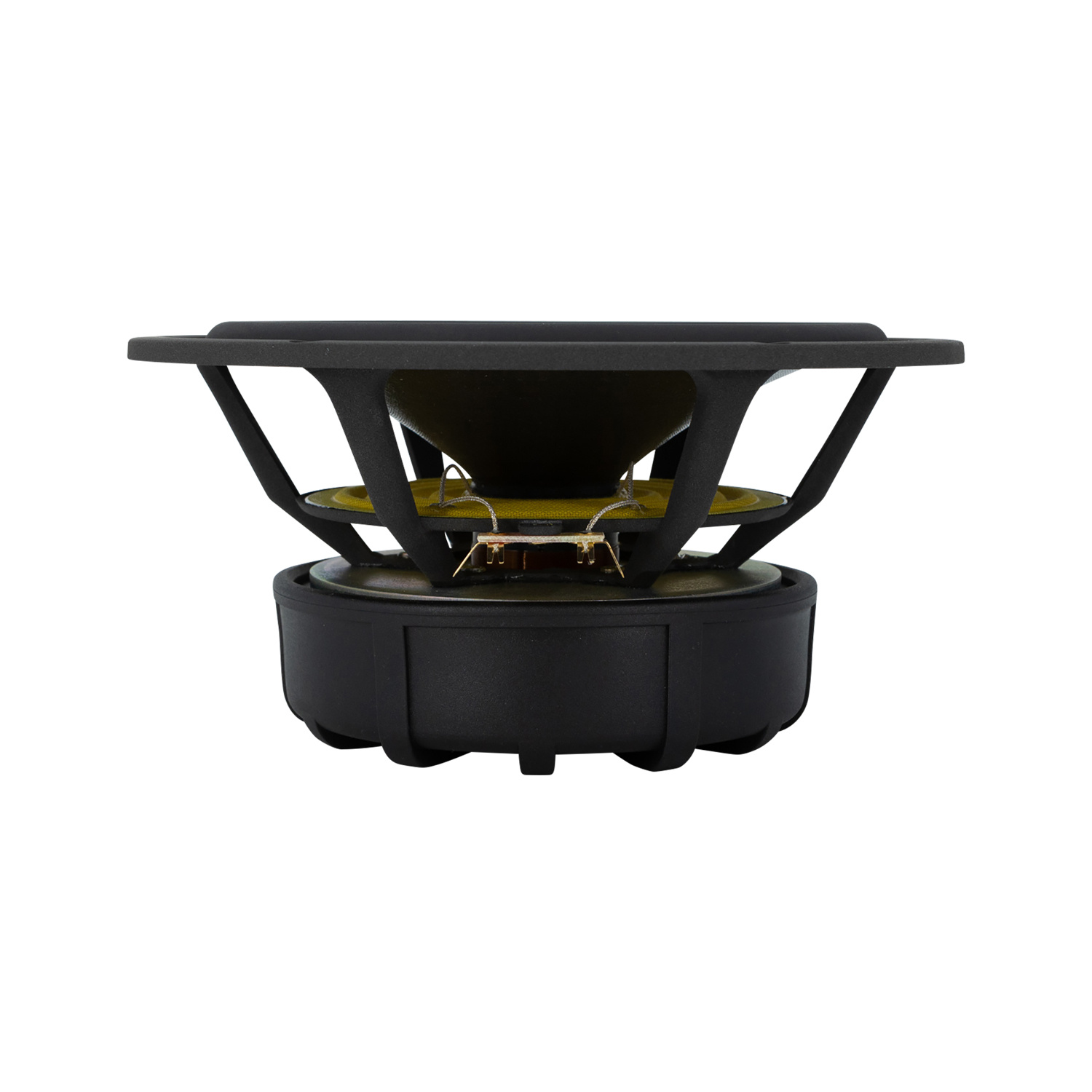

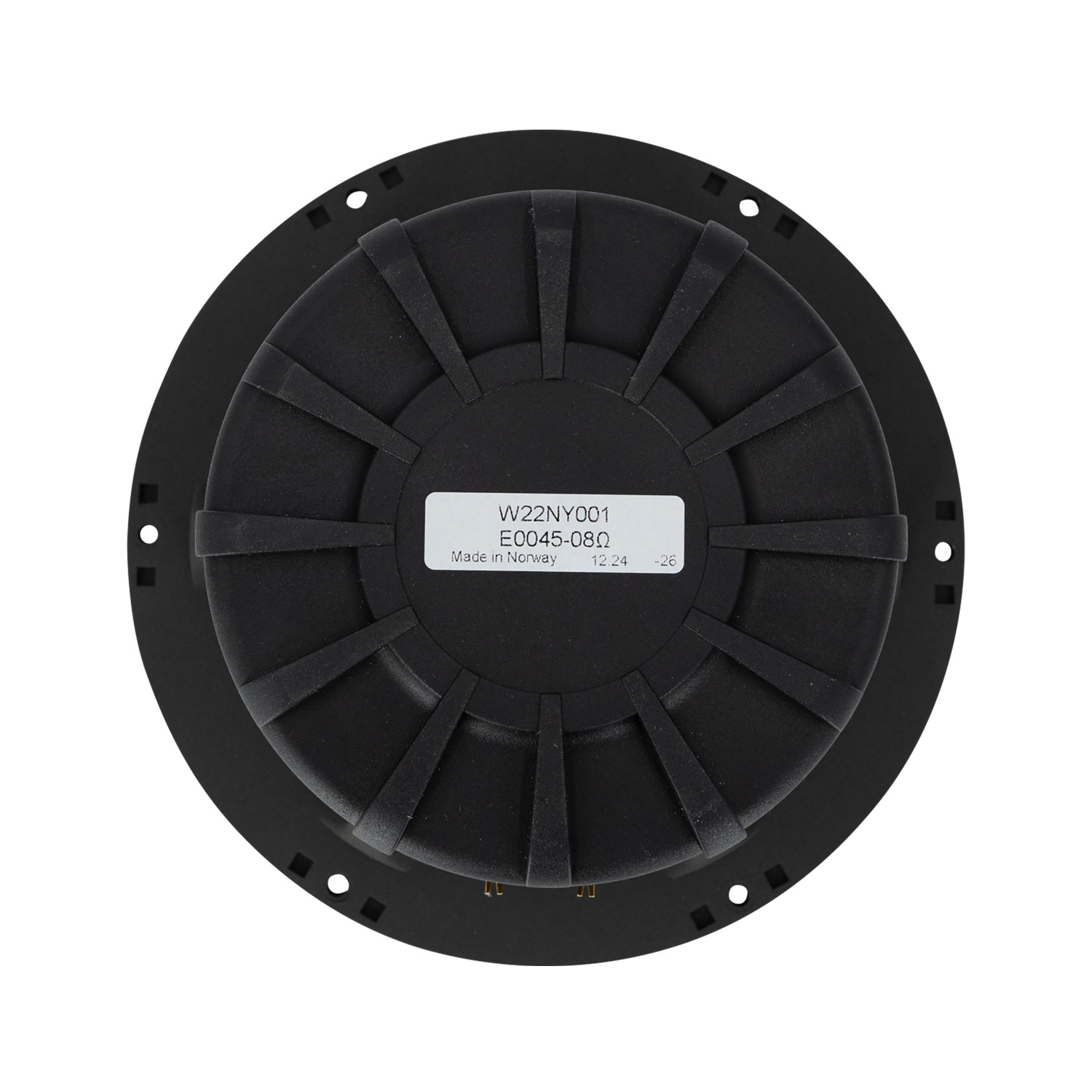

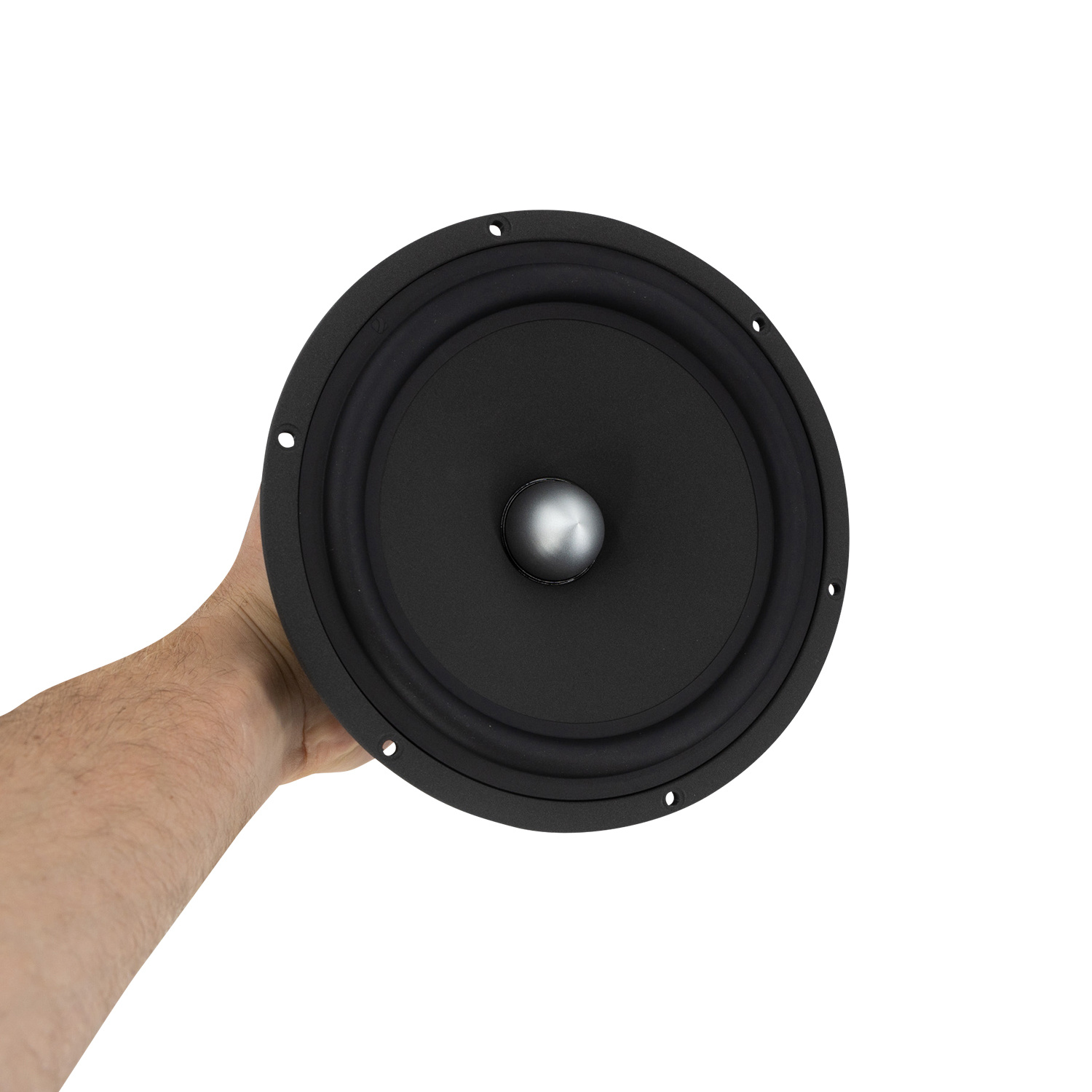

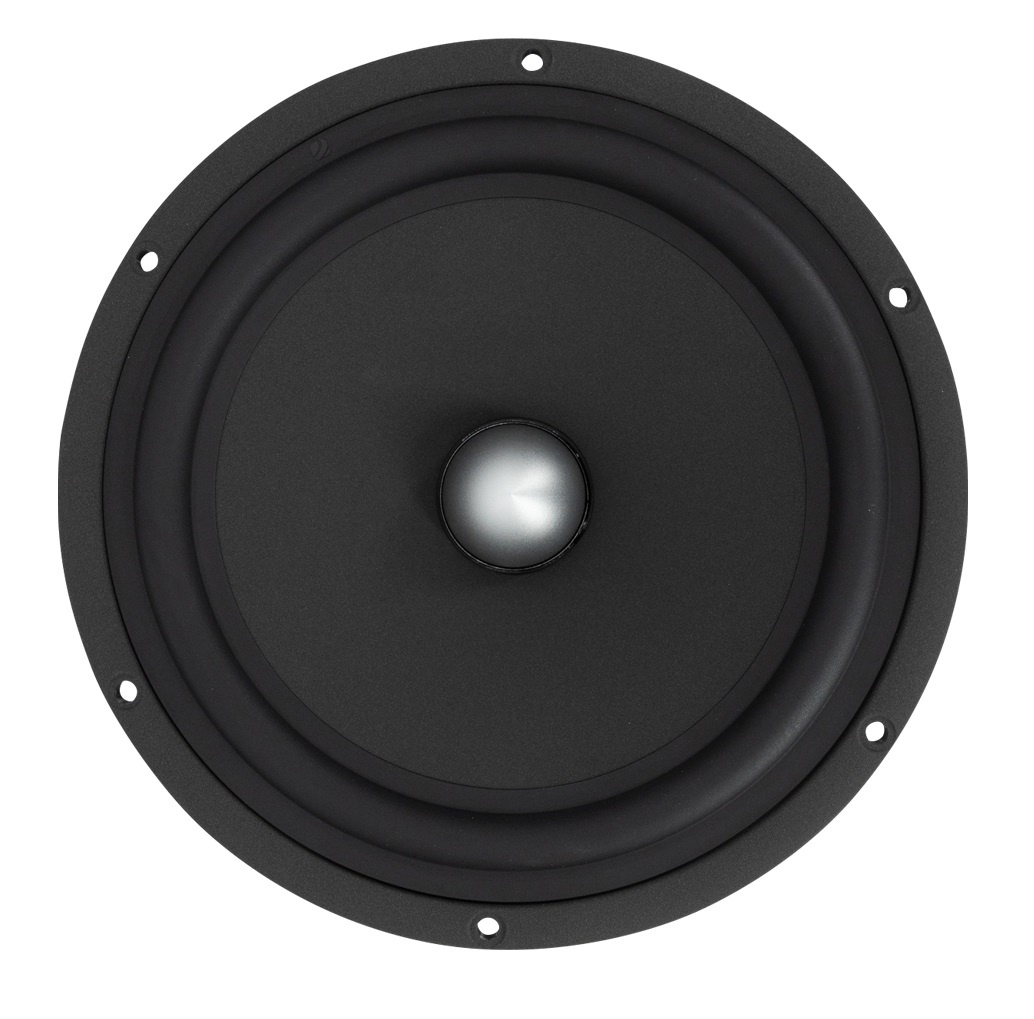

SEAS Excel W22NY001 - E0045-8S 8" Nextel Cone Woofer

€ 206,57€ 249,95 4 Auf Lager: Lieferzeit 1-3 Werktage
A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system with a bumped back plate, together with a very long and light weight CCAW voice coil, allow extreme coil excursion with low distortion an... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €237,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 90 Watts
  • Paper cone with a unique Nextel coating ensures smooth frequency response and low distortion
  • Excellent choice in a 2-way or for a powerful satellite in a sat/sub system



Product details

Seas Excel W22NY001 - E0045-8S 8" Nextel Cone Woofer



A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system with a bumped back plate, together with a very long and light weight CCAW voice coil, allow extreme coil excursion with low distortion and excellent transient response.



Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increase long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.



The extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. Exceptionally smooth response.  Excellent choice in a 2-way or for a powerful satellite in a sat/sub system.

Eigenschaften

Artikelnummer:
W22NY001
Woofer Series
Excel Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
90 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
90 dB 2.83V/1m
Frequency Response
30 to 3,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
45.8 oz.
DC Resistance (Re)
6.1 ohms
Voice Coil Inductance (Le)
0.61 mH
Resonant Frequency (Fs)
33 Hz
Mechanical Q (Qms)
1.73
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.30
Diaphragm Mass Inc. Airload (Mms)
20g
Mechanical Compliance of Suspension (Cms)
1.2 mm/N
Compliance Equivalent Volume (Vas)
2.54 ft.³
Maximum Linear Excursion (Xmax)
7 mm
