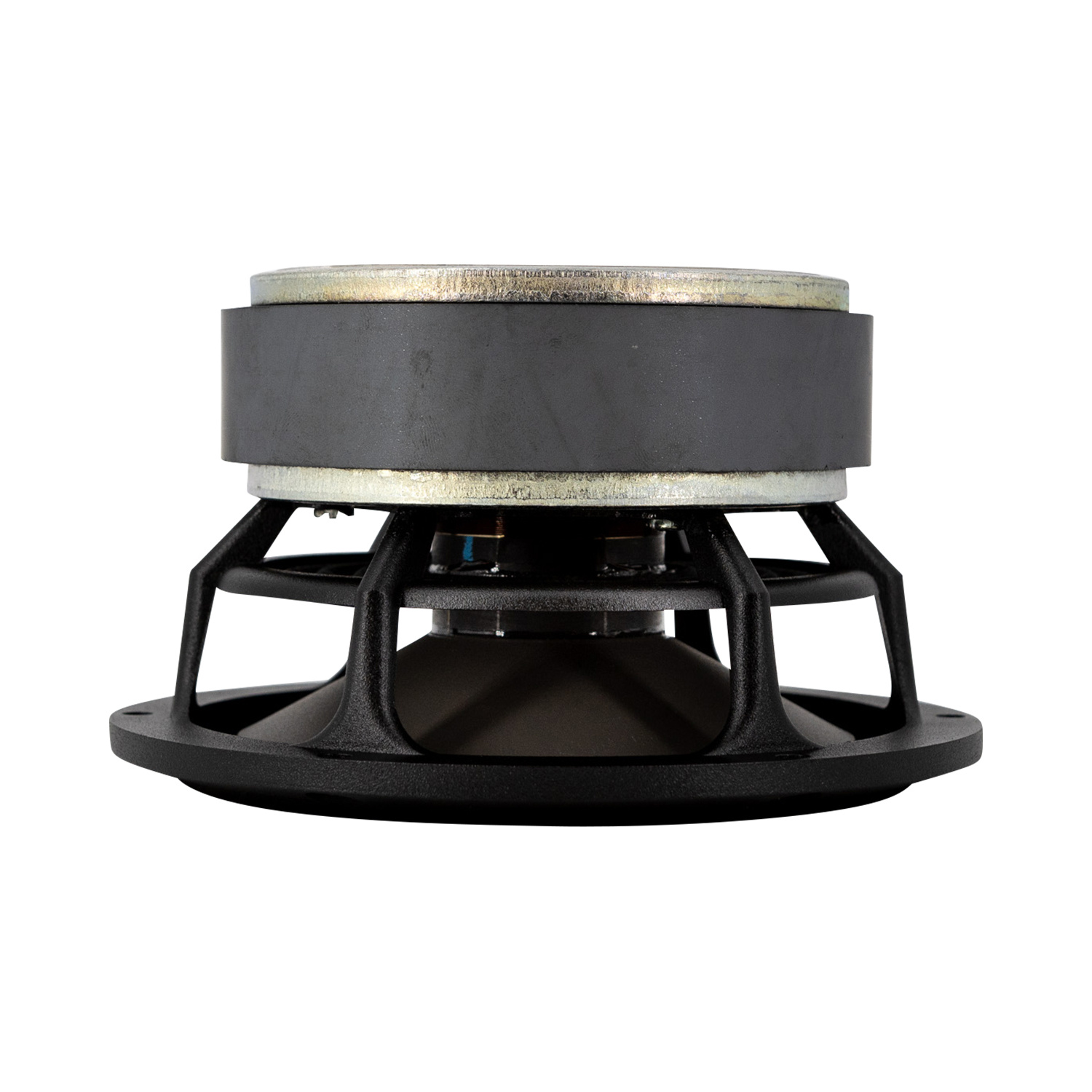

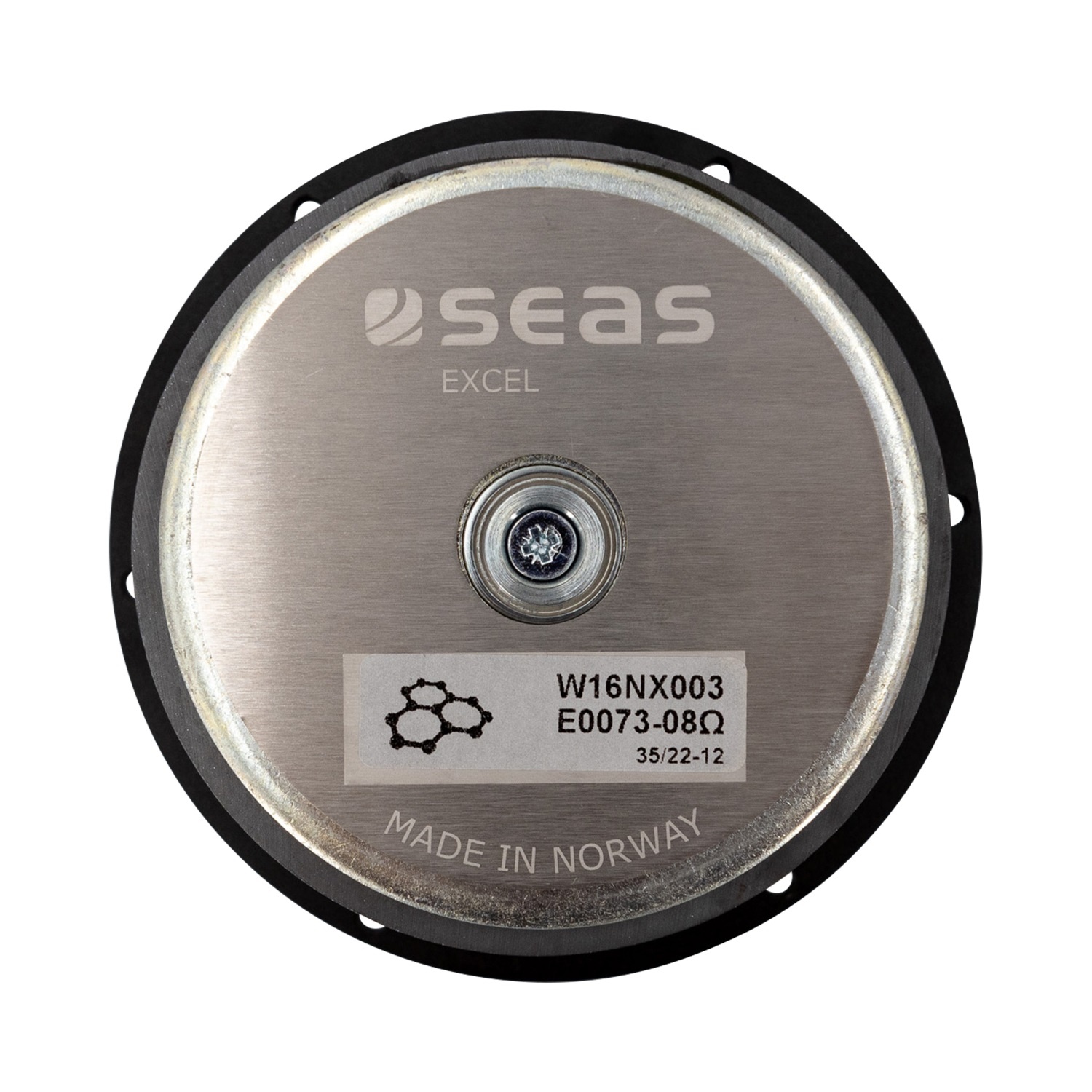

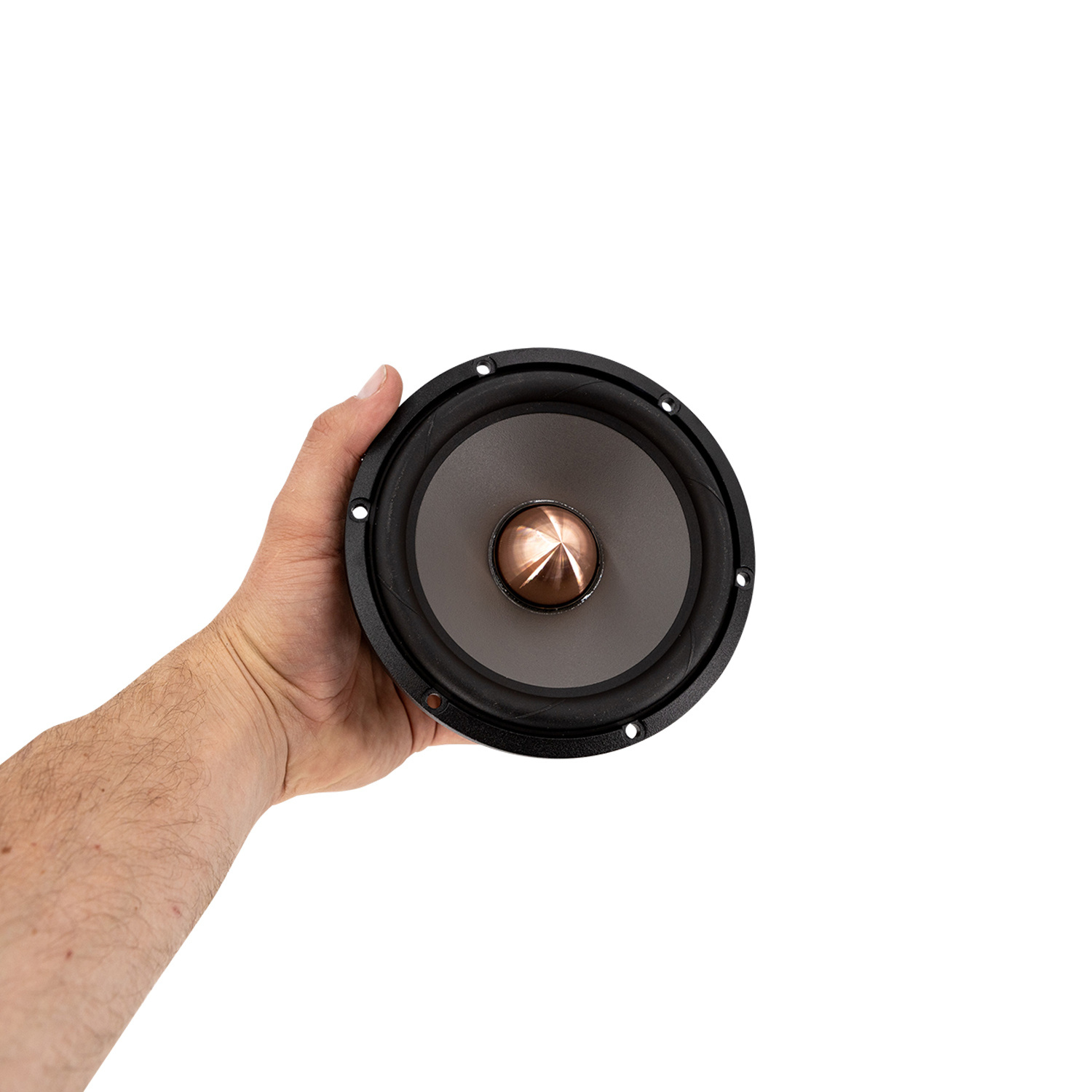

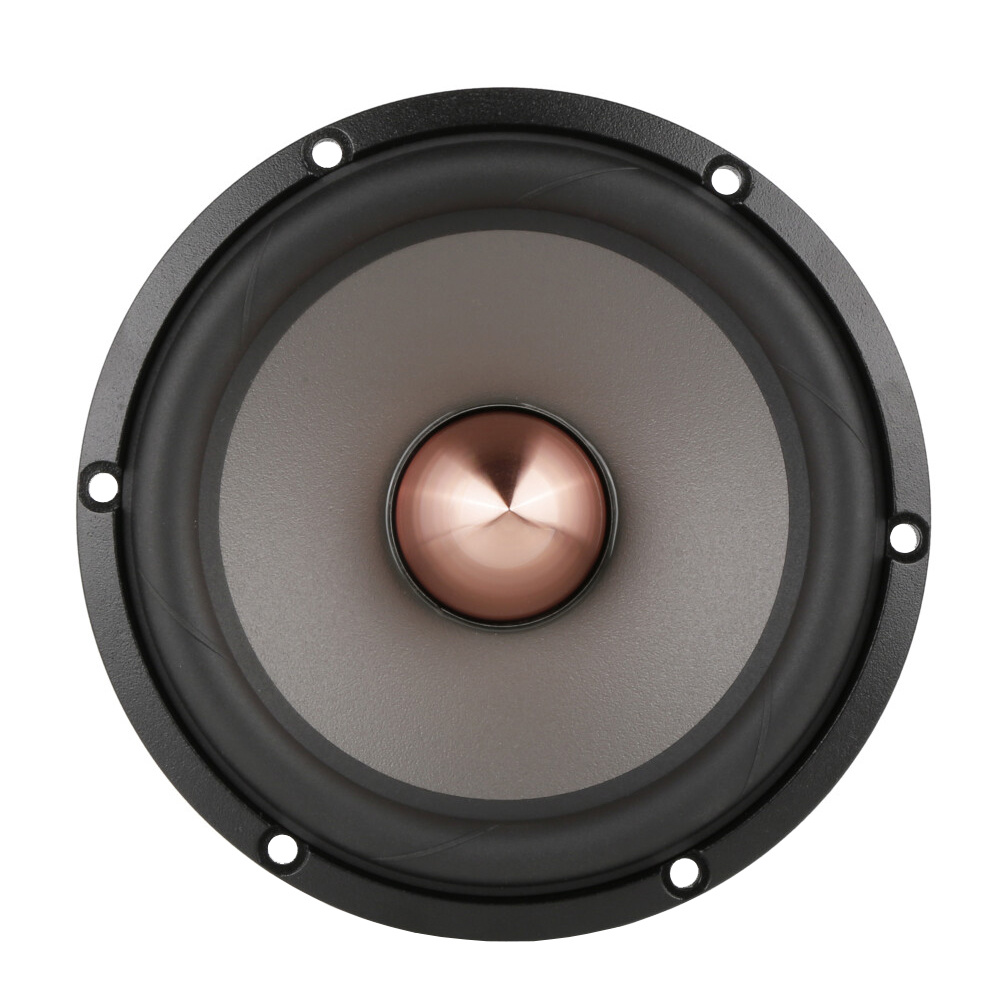

SEAS Excel Graphene W16NX003 - E0073-08 6" Woofer 8 Ohms

€ 449,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €427,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • FEA optimised magnet system
  • Graphene treated magnesium cone
  • Titanium voice coil former
  • Unique radial reinforced rubber surround
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

Seas Excel Graphene W16NX003 - E0073-08 6" Woofer 8 Ohms



The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.



A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. A unique radial reinforced rubber surround reduces radial resonances and prevents surround break up at large excursions. This combination results in very low mechanical damping for better clarity and brings out the micro details in the music.



An FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high power handling and low distortion.



The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
W16NX003
Woofer Series
Excel Graphene
Woofer Type
Woofer
Nominal Diameter
6"
Power Handling (RMS)
180 watts
Power Handling (max)
300 watts
Continuous Program Power
-
Impedance
8 ohms
Sensitivity
85.4 dB at 2.83V/1m
Frequency Response
20 - 3,000 Hz
Voice Coil Diameter
39 mm
Magnet Weight
900 grams
DC Resistance (Re)
6.4 ohms
Voice Coil Inductance (Le)
0.12 mH
Resonant Frequency (Fs)
36 Hz
Mechanical Q (Qms)
4.73
Electromagnetic Q (Qes)
0.36
Total Q (Qts)
0.34
Diaphragm Mass Inc. Airload (Mms)
14.2g
Mechanical Compliance of Suspension (Cms)
1.35 mm/N
Surface Area of Cone (Sd)
94 cm²
Volume of Displacement (Vd)
65.8 cm³
BL Product (BL)
-
Compliance Equivalent Volume (Vas)
17 liters
Maximum Linear Excursion (Xmax)
7 mm
Driver's Mechanical Losses (Rms)
-
Cone / Diaphragm Material
Graphene treated magnesium
Surround Material
Rubber
Voice Coil Wire Material
Copper-clad aluminum
Voice Coil Former
Titanium
Dual Voice Coil
-
Basket / Frame Material
-
Magnet Material
-
Shielded
-
Overall Outside Diameter
146 mm
Overall Depth
79 mm
Baffle Cutout Diameter
127 mm
Bolt Circle Diameter
137 mm
# Mounting Holes
6
Sealed Volume
-
Sealed F3
-
Vented Volume
-
Vented F3
-
