      Excel W15CH001 - E0037-08S Tieftöner

      SEAS Excel W15CH001 - E0037-08S Tieftöner

      €459,95

      6 Auf Lager

      SEAS Excel W15CH001 - E0037-08S Tieftöner

      0 klantbeoordelingen
      0 von 5
      0 klantbeoordelingen
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: SEAS
      380,12 €459,95 € 6 Auf Lager
      • -5% Bestelle 4 für nur 436,95 je Stück

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, morgen versandt
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      Produktbeschreibung SEAS W15CH001 - E0037-08S Tieftöner

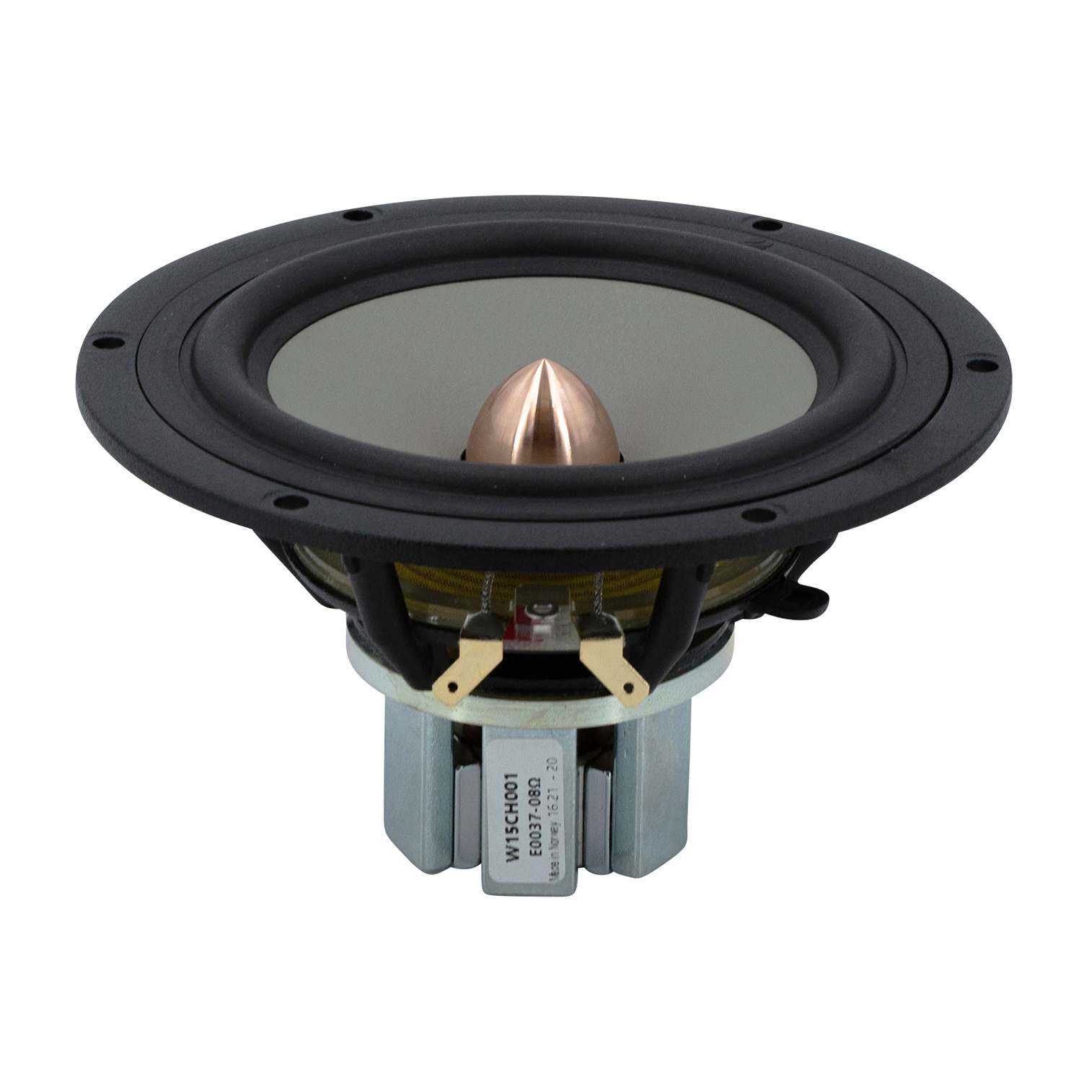

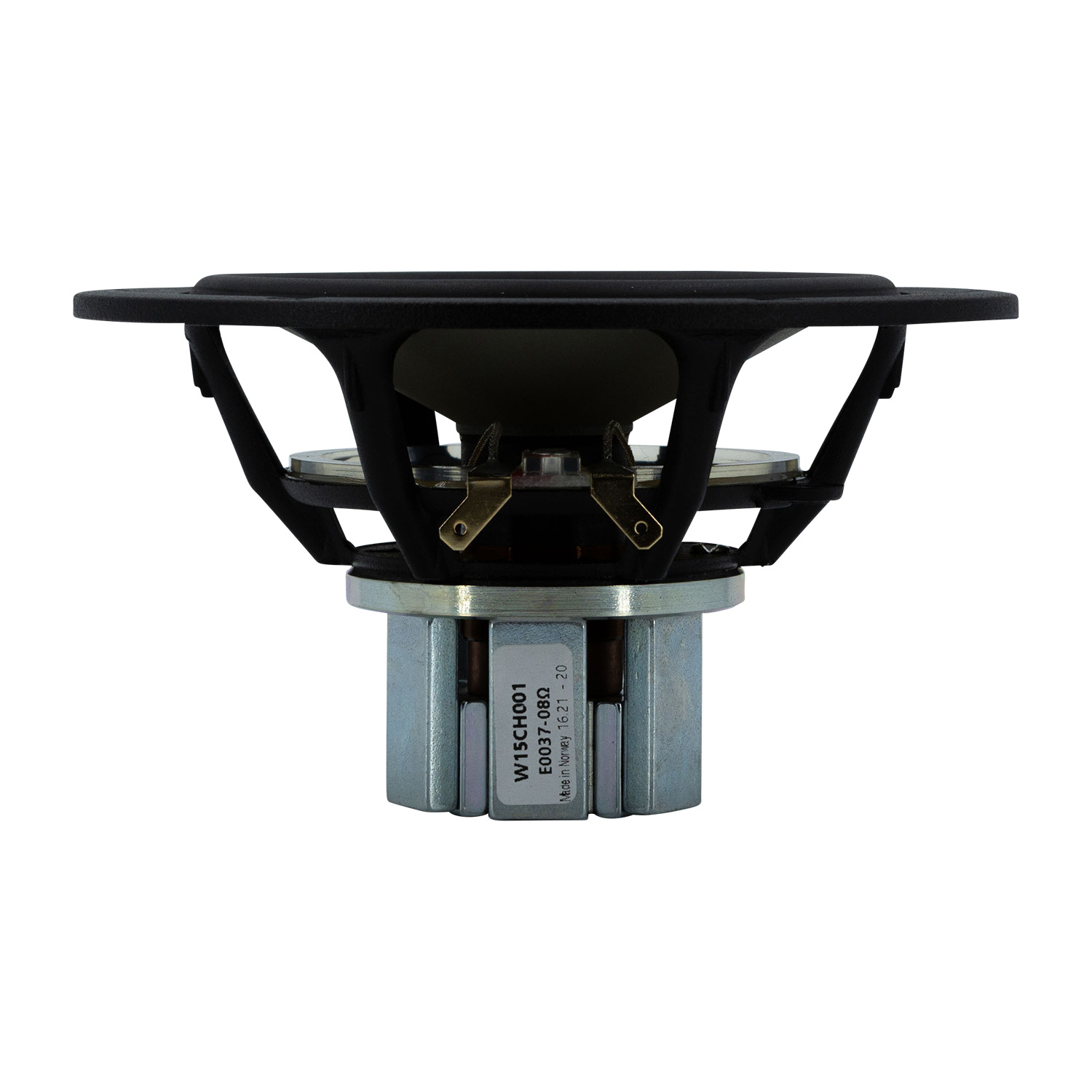

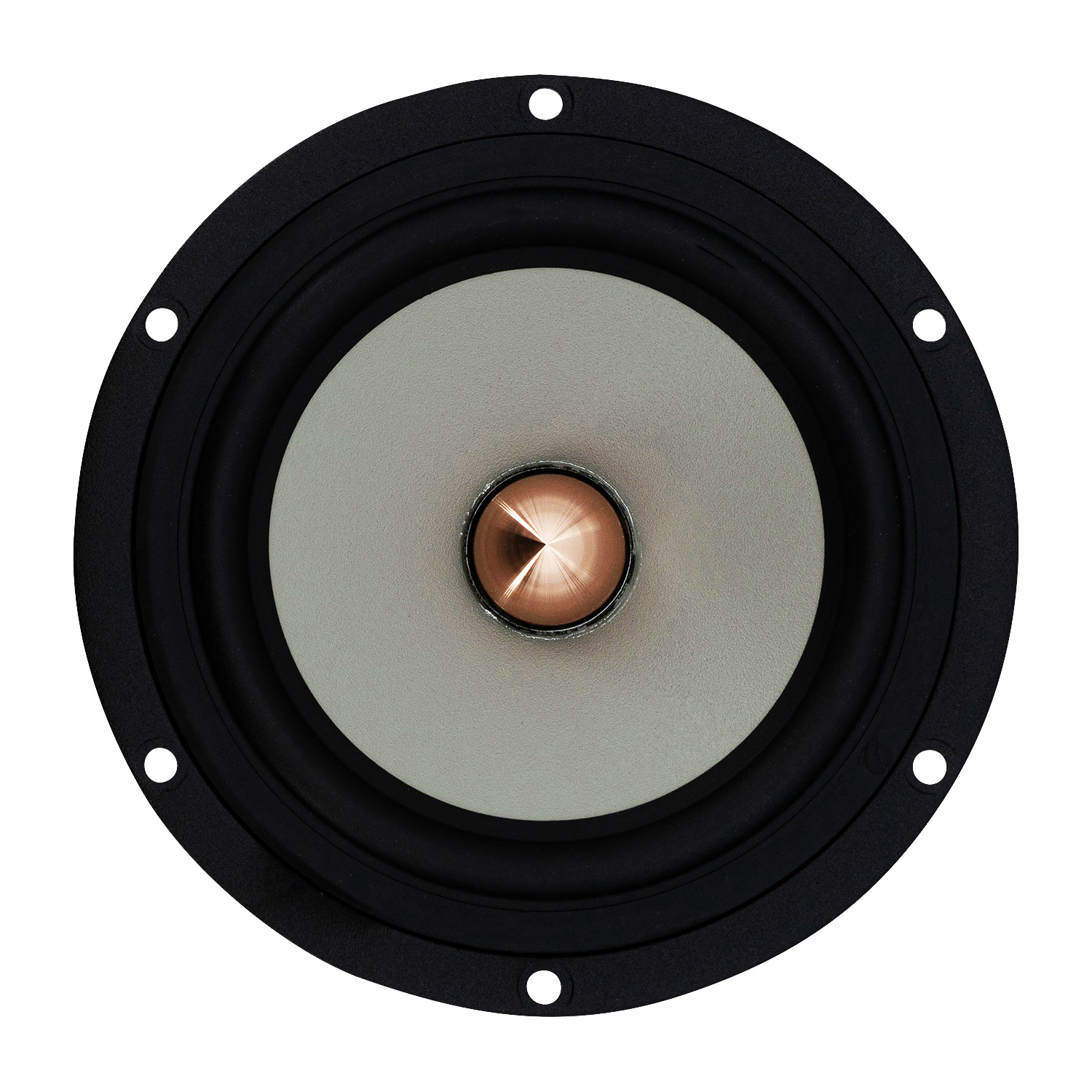

      The SEAS W15CH001 - E0037-08S is a 5.5-inch woofer that is designed for use in high-quality audio applications. It features a precision-cast and surface-treated magnesium cone, a natural rubber surround, a patented Hexadym magnet system, heavy copper rings, a solid copper phase plug, and an extremely stiff and stable injection-molded metal basket.



      Highlights

      • Excellent transient response
      • Detailed sound reproduction
      • Wide frequency response
      • Non-resonant natural rubber surround

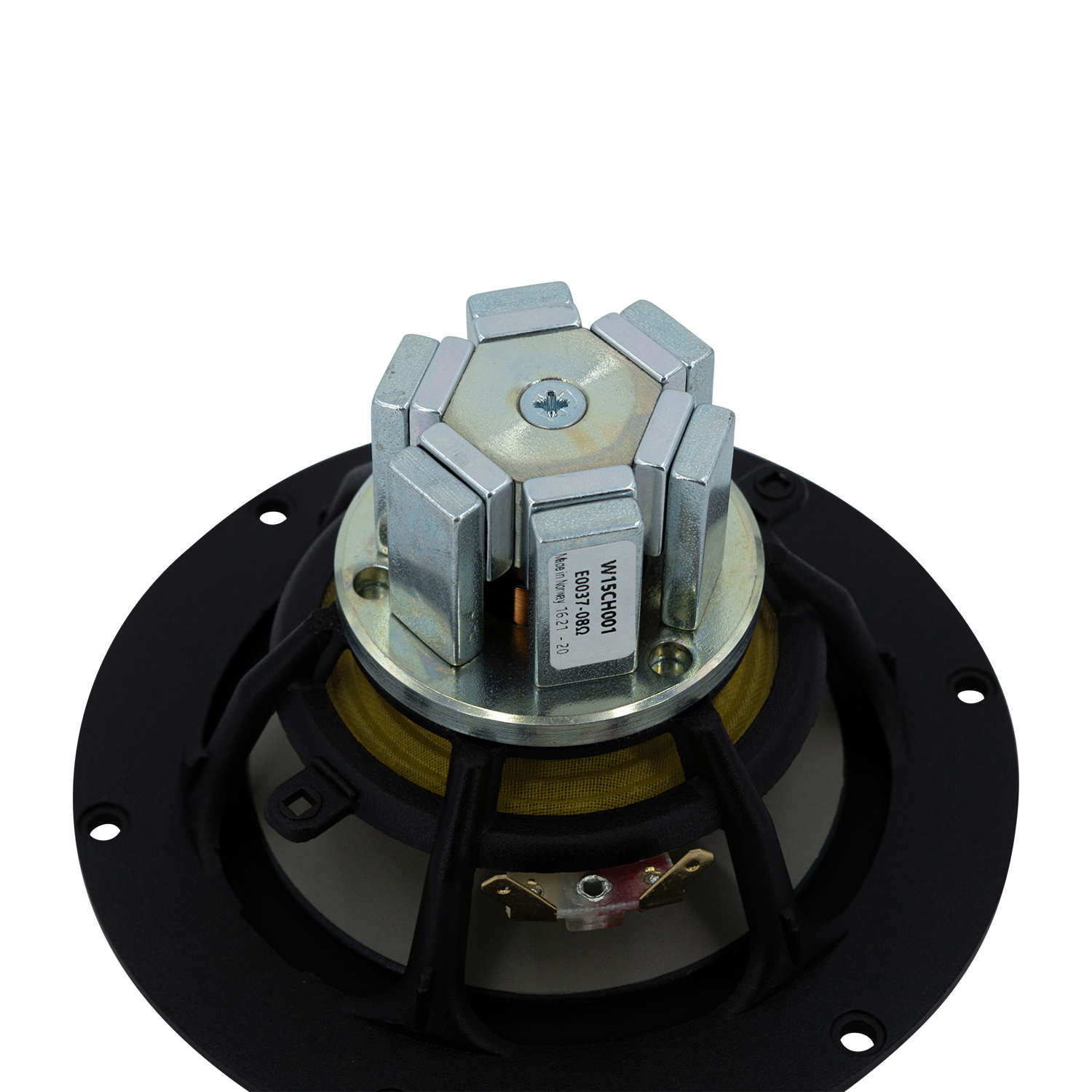

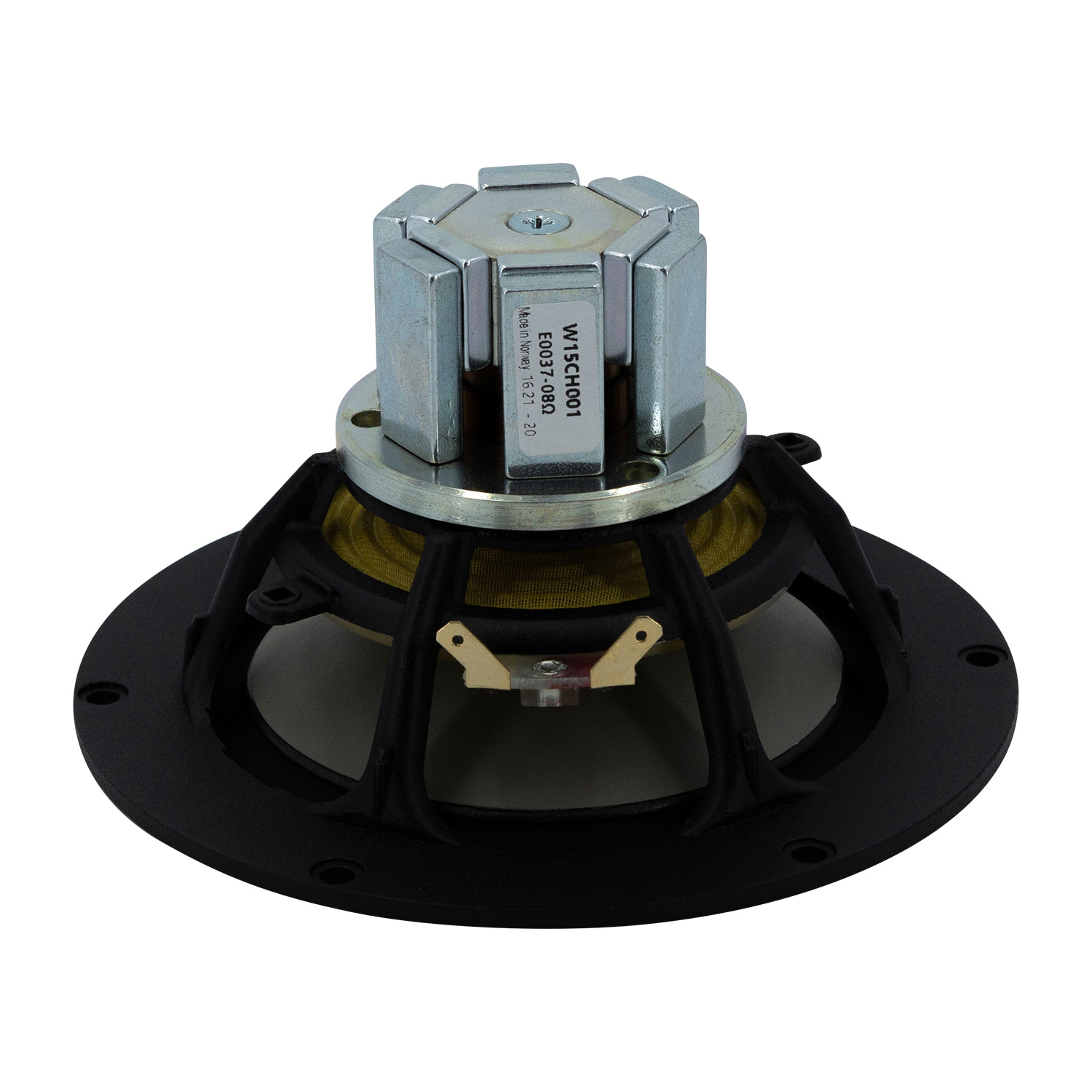

      • Patented Hexadym magnet system
      • Heavy copper rings
      • Solid copper phase plug
      • Extremely stiff and stable injection-molded metal basket



      Product details

      SEAS Excel W15CH001 - E0037-08S 5.5'' Woofer



      The magnesium cone provides the woofer with a high degree of stiffness and lightness, which results in excellent transient response and detail retrieval. The natural rubber surround is non-resonant and provides the woofer with a wide frequency response. The patented Hexadym magnet system is acoustically transparent and helps to reduce cavity resonances and air flow noise. The heavy copper rings reduce non-linear and modulation distortion, and increase the overload margin. The solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. The extremely stiff and stable injection-molded metal basket keeps the critical components in perfect alignment.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      W15CH001
      EAN
      8785256848706
      Tieftöner-Serie
      Excel
      Nenndurchmesser
      5 " | 145 mm
      Belastbarkeit (QMW)
      70 W
      Belastbarkeit (max)
      200 W
      Impedanz (Z)
      8 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      85 dB
      Frequenzgang
      50 - 3000 Hz
      Schwingspulendurchmesser
      26 mm
      Gewicht magnet
      0.06 kg
      Gleichstromwiderstand (Re)
      5.5 Ω
      Schwingspuleninduktion (Le)
      0.49 mH
      Resonanzfrequenz (Fs)
      38 Hz
      Mechanische Güte (Qms)
      2.58
      Elektrische Güte (Qes)
      0.50
      Gesamtgüte (Qts)
      0.42
      Bewegliche Masse (Mms)
      9.5 g
      Nachgiebigkeit der Aufhängung (Cms)
      1.8 mm/N
      Membranfläche (Sd)
      75 cm²
      Kraftfaktor (BL)
      5.1 N/A
      Äquivalentvolumen (Vas)
      14 L
      Maximale Auslenkung (Xmax)
      4 mm
      Driver's Mechanical Losses (Rms)
      0.91 Ns/m
      Cone / Diaphragm Material
      Magnesium
      Sicke-Material
      Rubber
      Korb- / Rahmenmaterial
      Injection moulded metal
      Magnetmaterial
      Neodymium
      Außendurchmesser
      145 mm
      Gesamttiefe
      76.0 mm
      Ausschnittdurchmesser
      114 mm
      Bolt Circle Diameter
      136.5 mm
      # Befestigungsbohrungen
      6
      Durchmesser Befestigungslochs
      5.0 mm

      Mehr anzeigen
