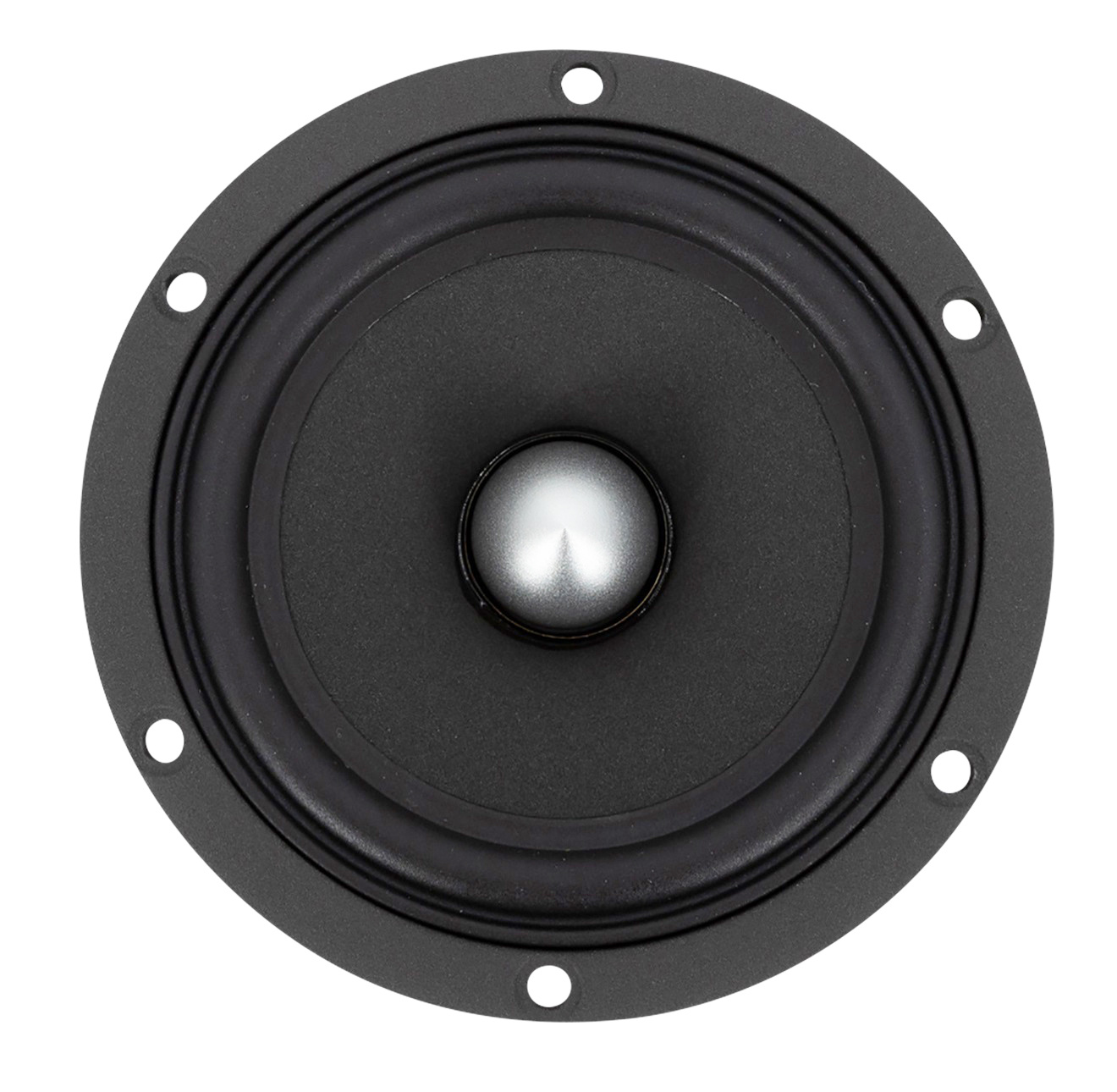

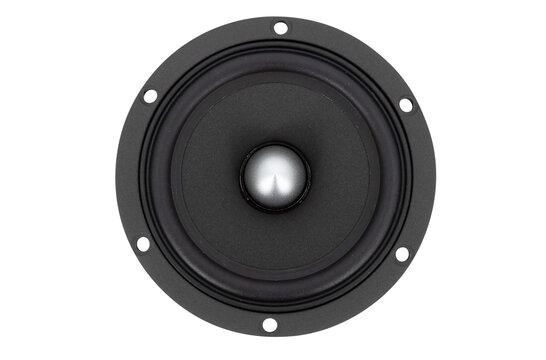

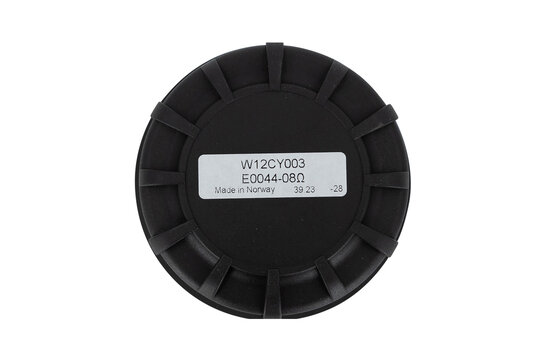

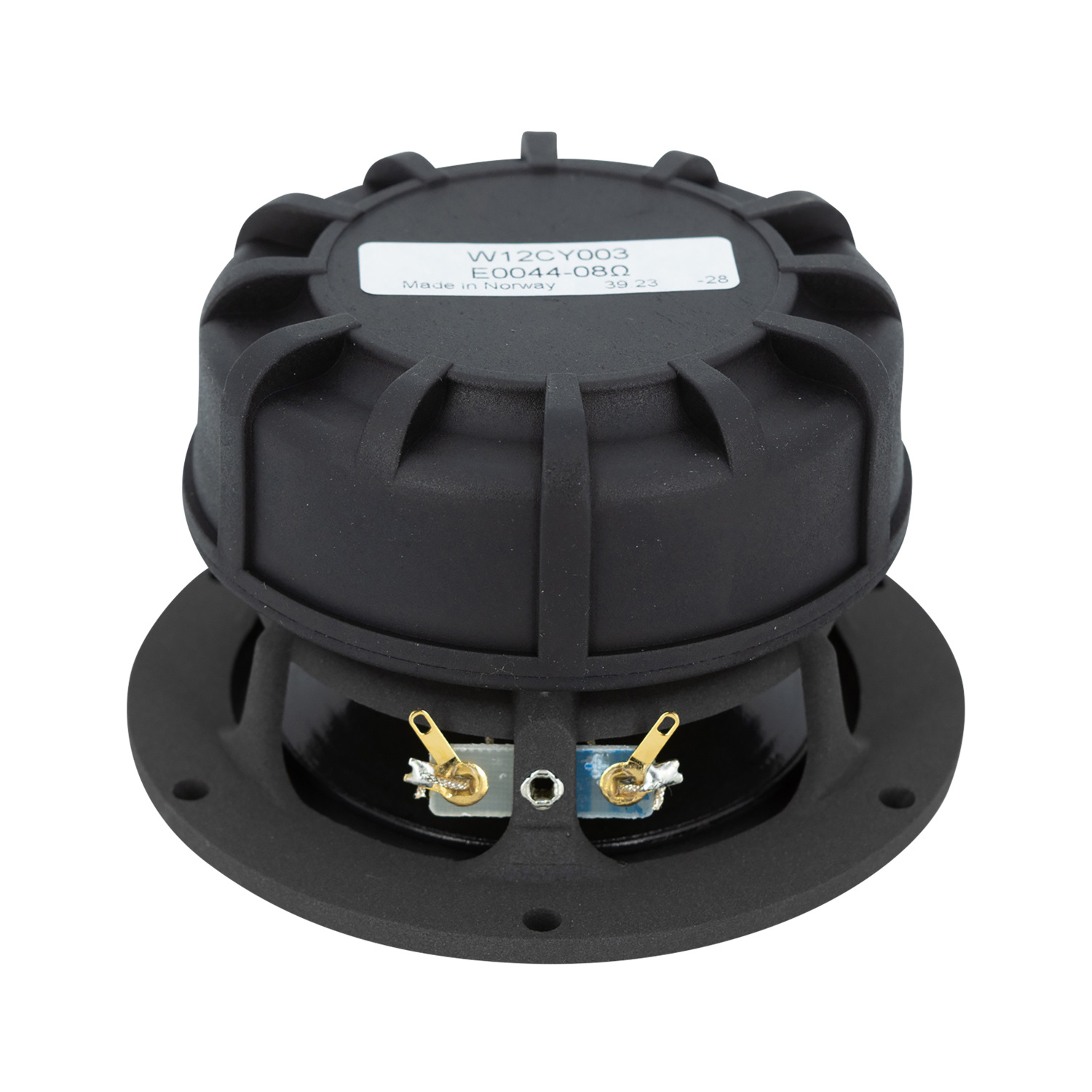

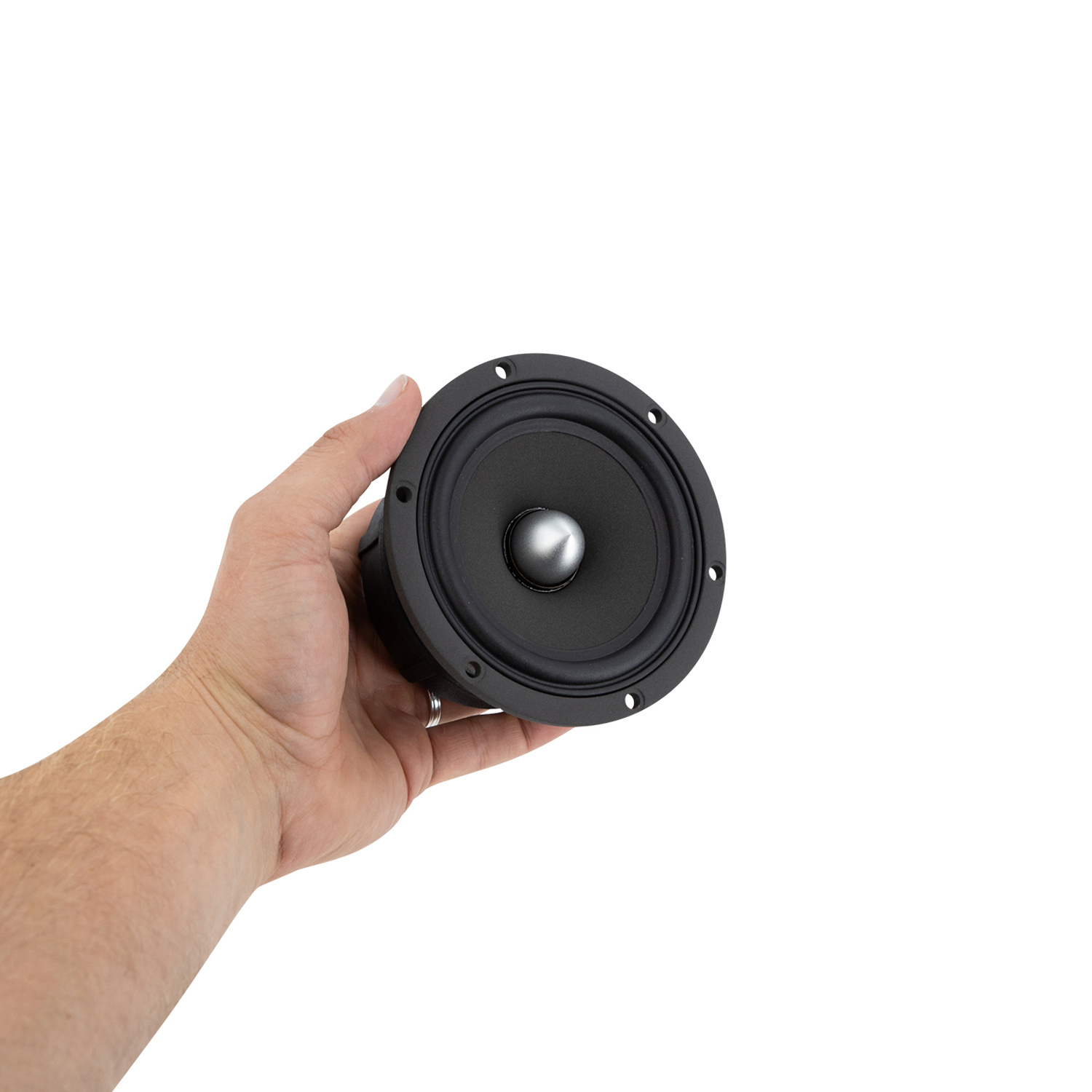

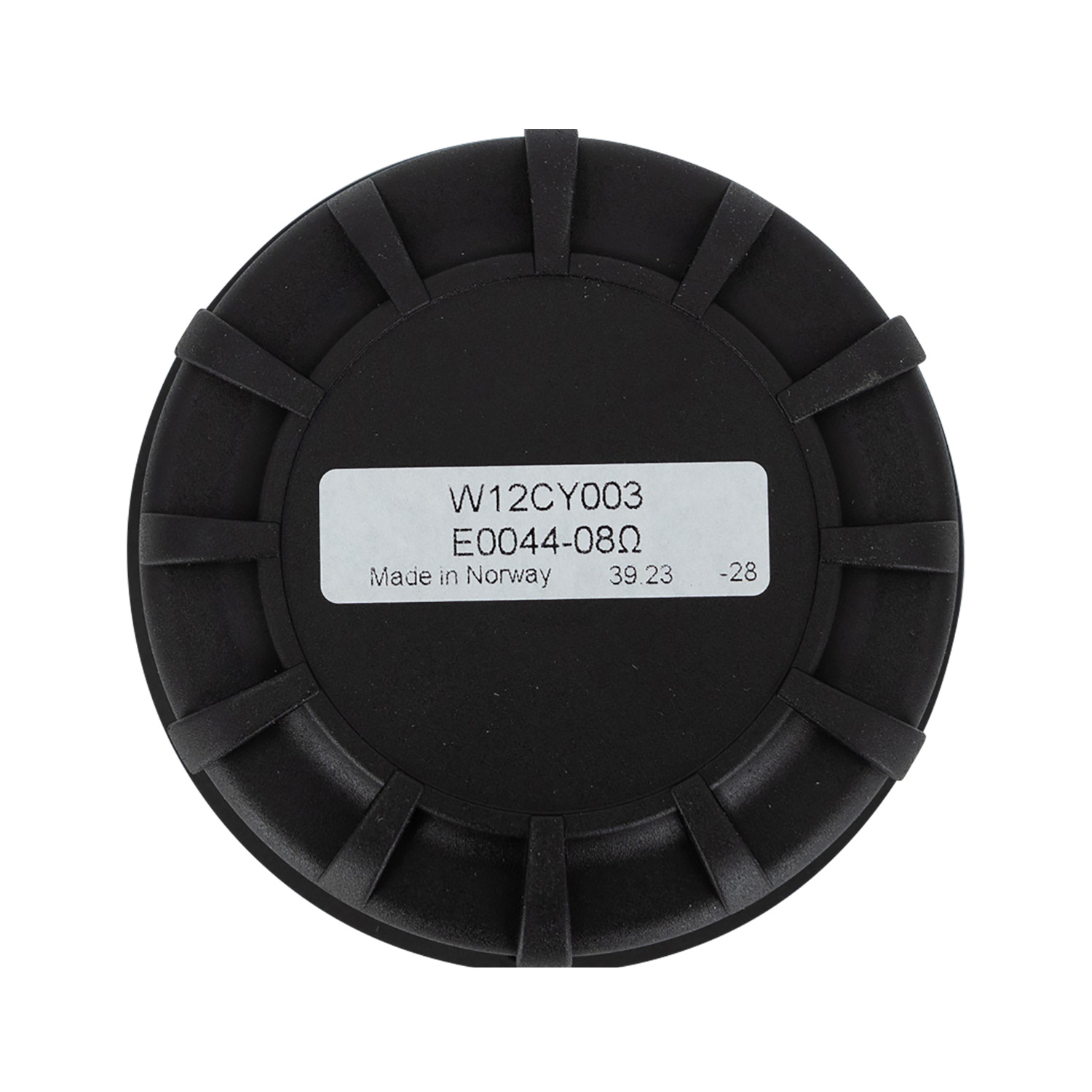

SEAS Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

€ 159,95 4 Auf Lager: Lieferzeit 1-3 Werktage
A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €151,95 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 70 Watts
  • Unique Nextel coating ensures smooth frequency response and low distortion
  • Increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



Product details

Seas Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

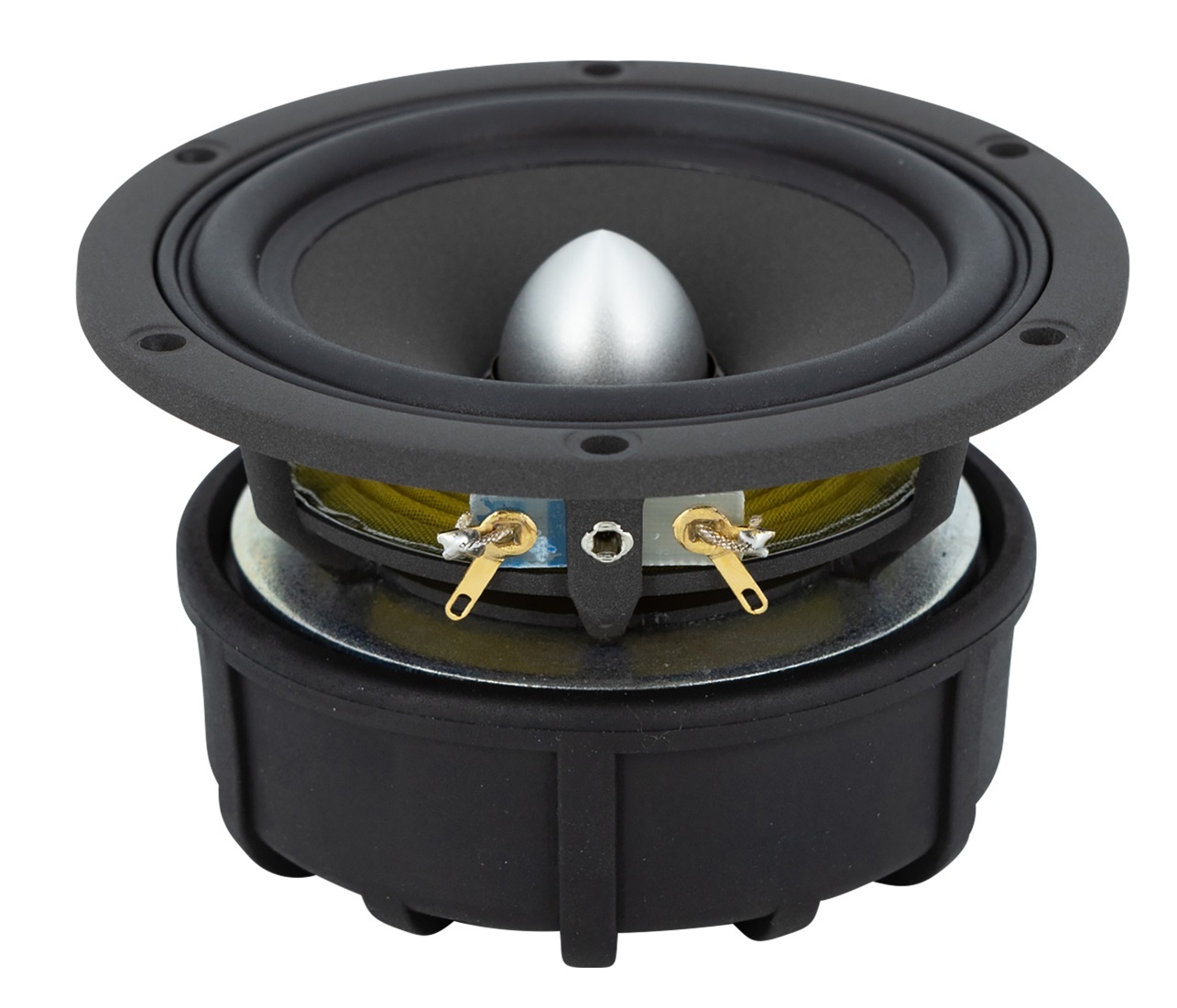

A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

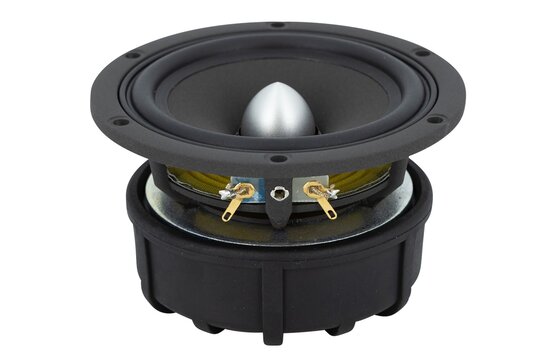

A large magnet system provides good sensitivity and transient response. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

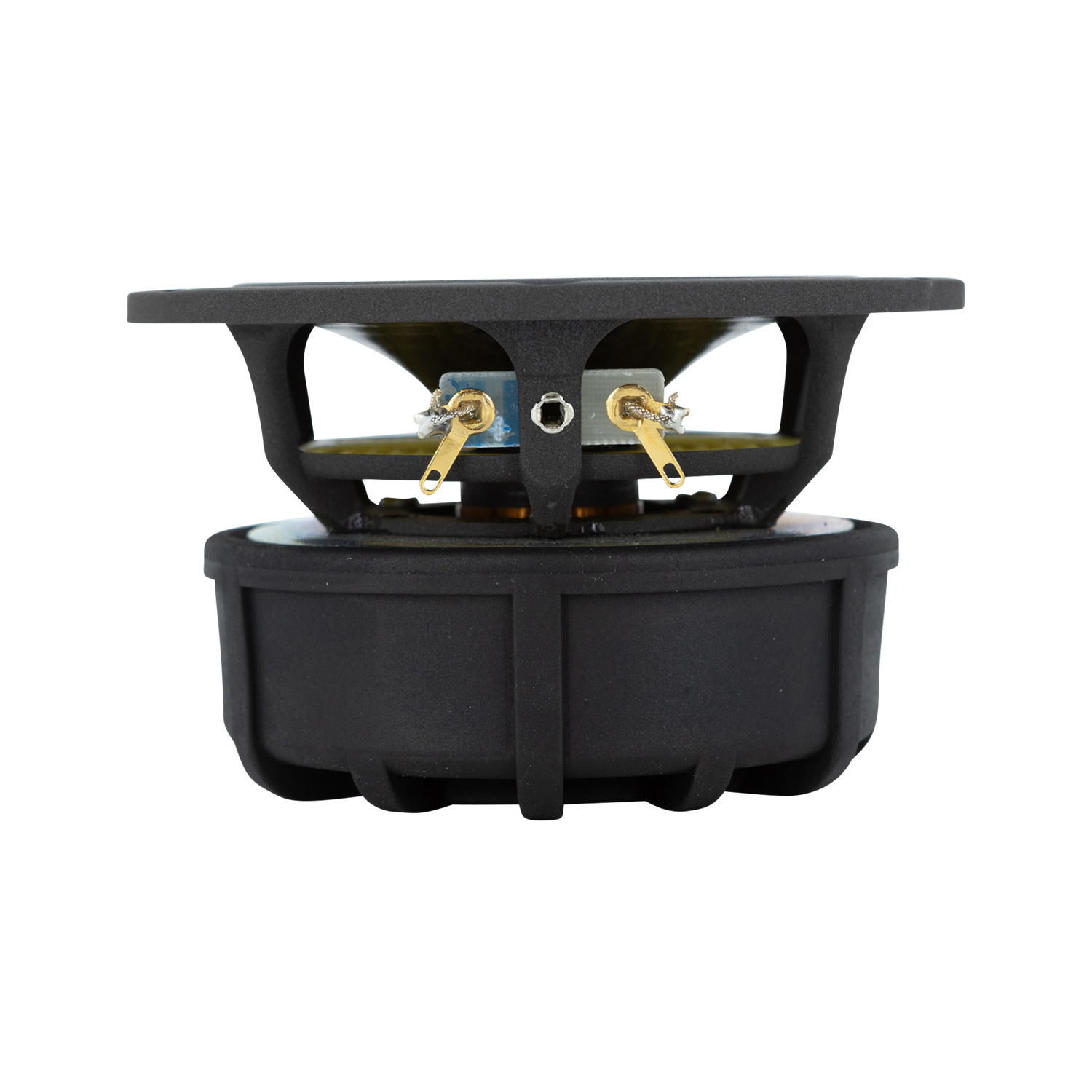

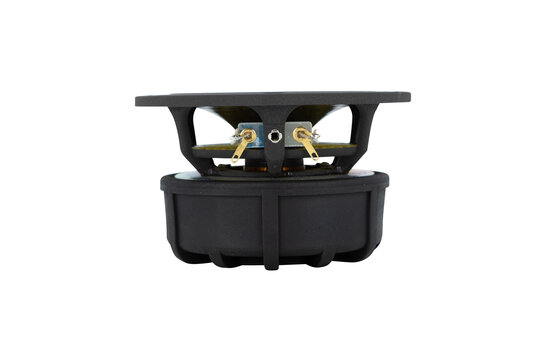

An extremely stiff and stable injection molded Nextel coated metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
W12CY003
Woofer Series
Excel Series
Woofer Type
Midwoofer
Nominal Diameter
4,5"
Power Handling (RMS)
70 Watts
Power Handling (max)
200 Watts
Impedance
8 ohms
Sensitivity
85.5 dB 2.83V/1m
Frequency Response
60 to 3,500 Hz
Voice Coil Diameter
1.02"
Magnet Weight
14.8 oz.
DC Resistance (Re)
5.5 ohms
Voice Coil Inductance (Le)
0.41 mH
Resonant Frequency (Fs)
60 Hz
Mechanical Q (Qms)
2.30
Electromagnetic Q (Qes)
0.44
Total Q (Qts)
0.36
Diaphragm Mass Inc. Airload (Mms)
6.1g
Mechanical Compliance of Suspension (Cms)
1.2 mm/N
Compliance Equivalent Volume (Vas)
0.14 ft.³
Maximum Linear Excursion (Xmax)
3 mm
Overall Outside Diameter
4.74"
Overall Depth
2.81"
Baffle Cutout Diameter
3.9"
Bolt Circle Diameter
4.36"
# Mounting Holes
6
