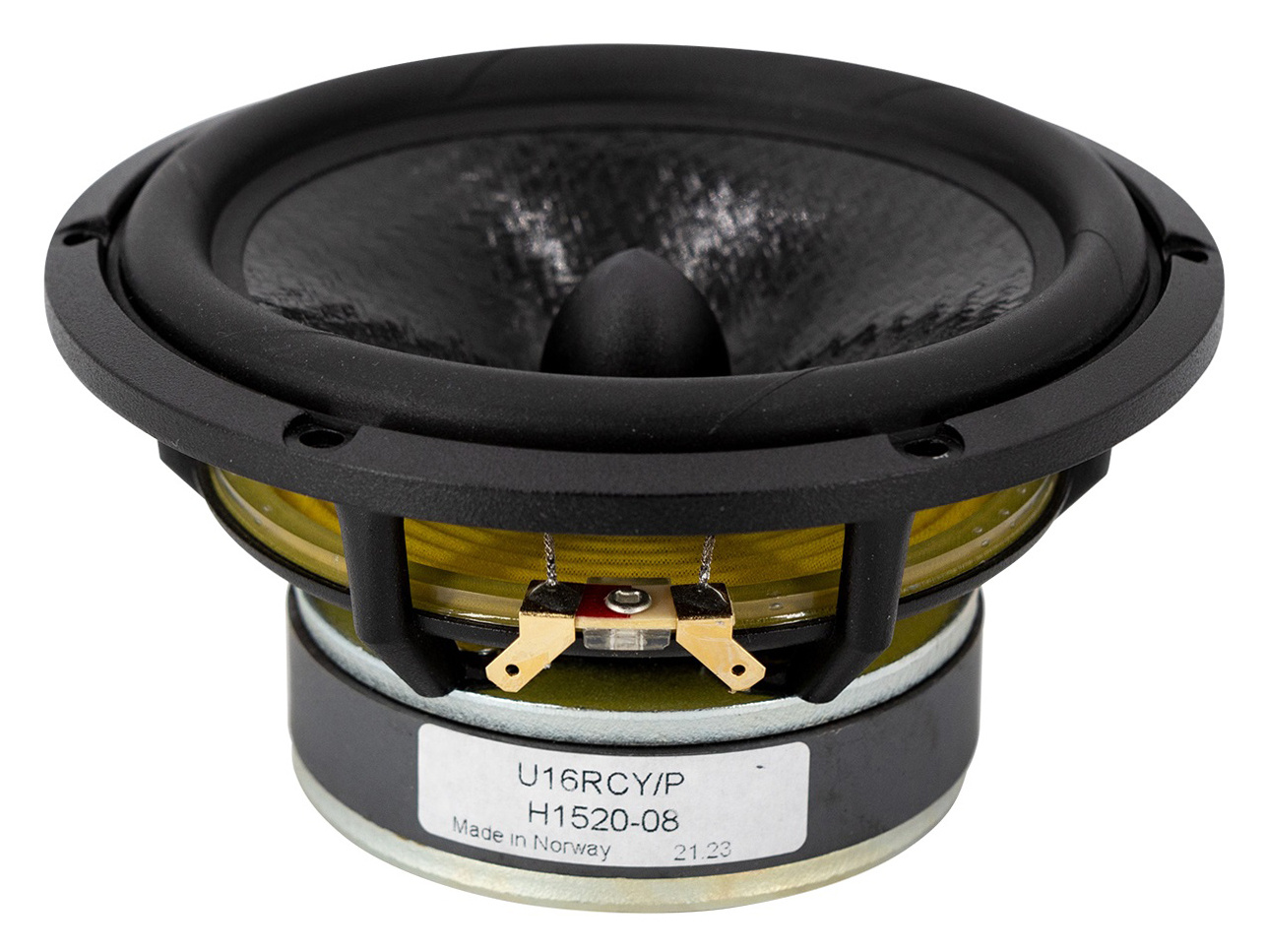

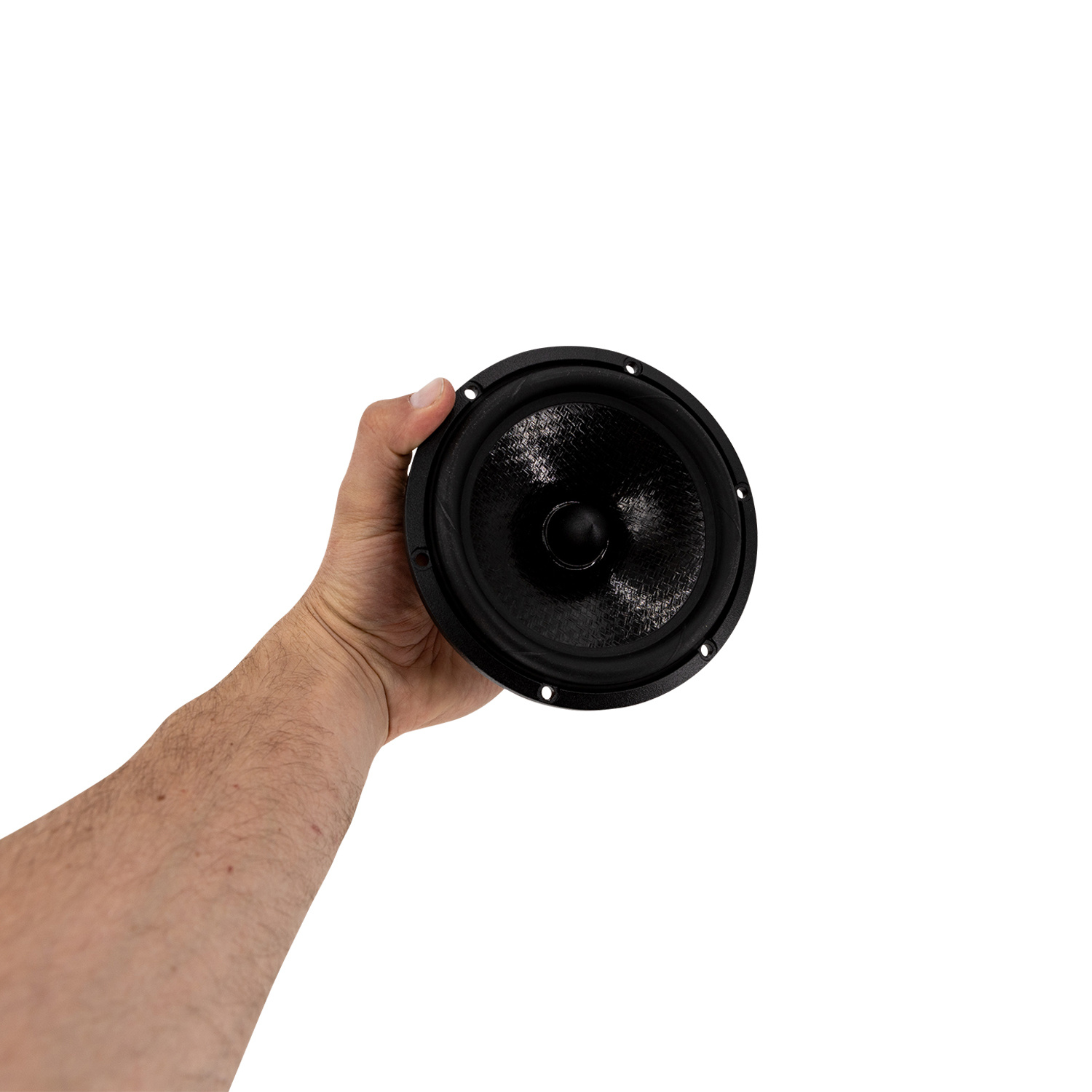

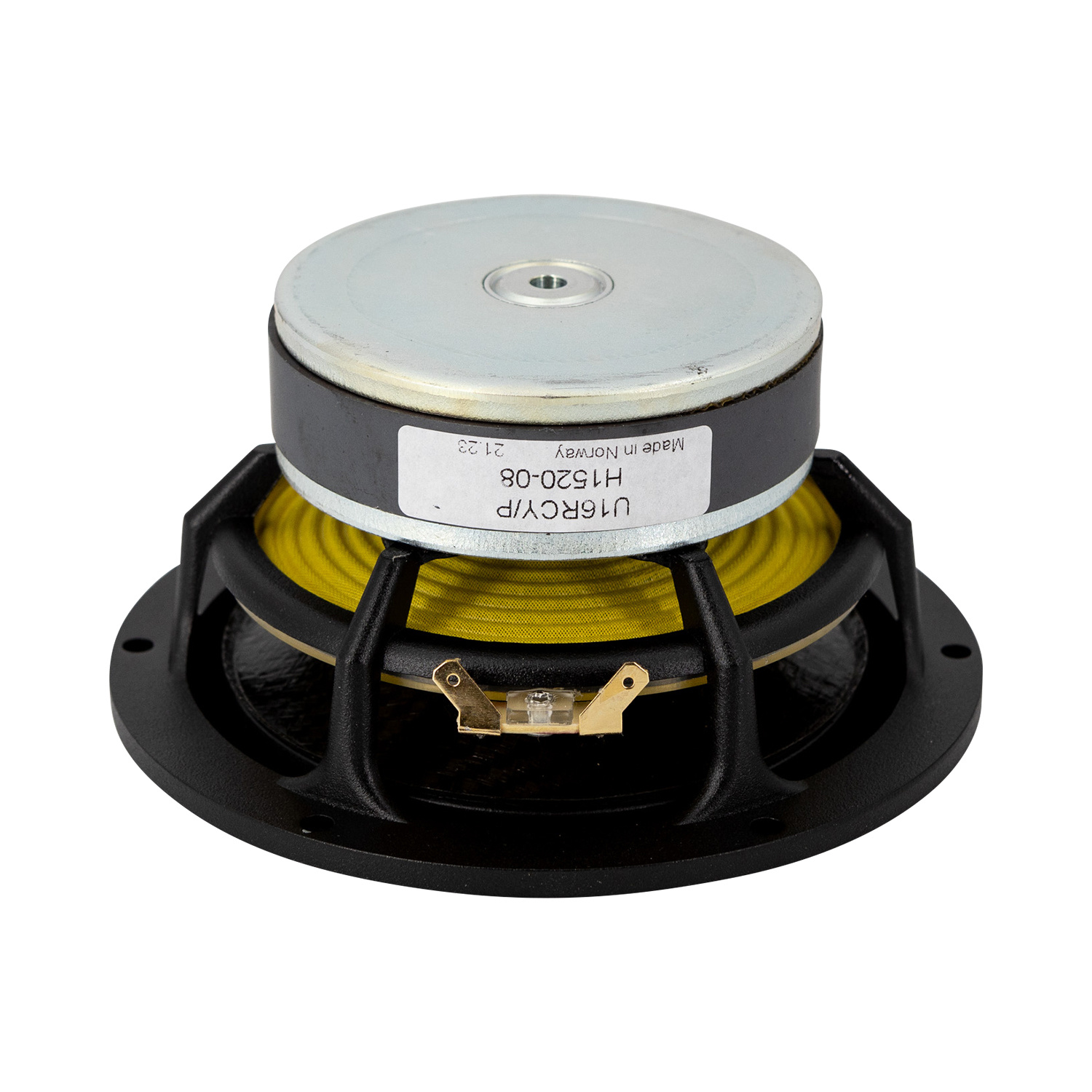

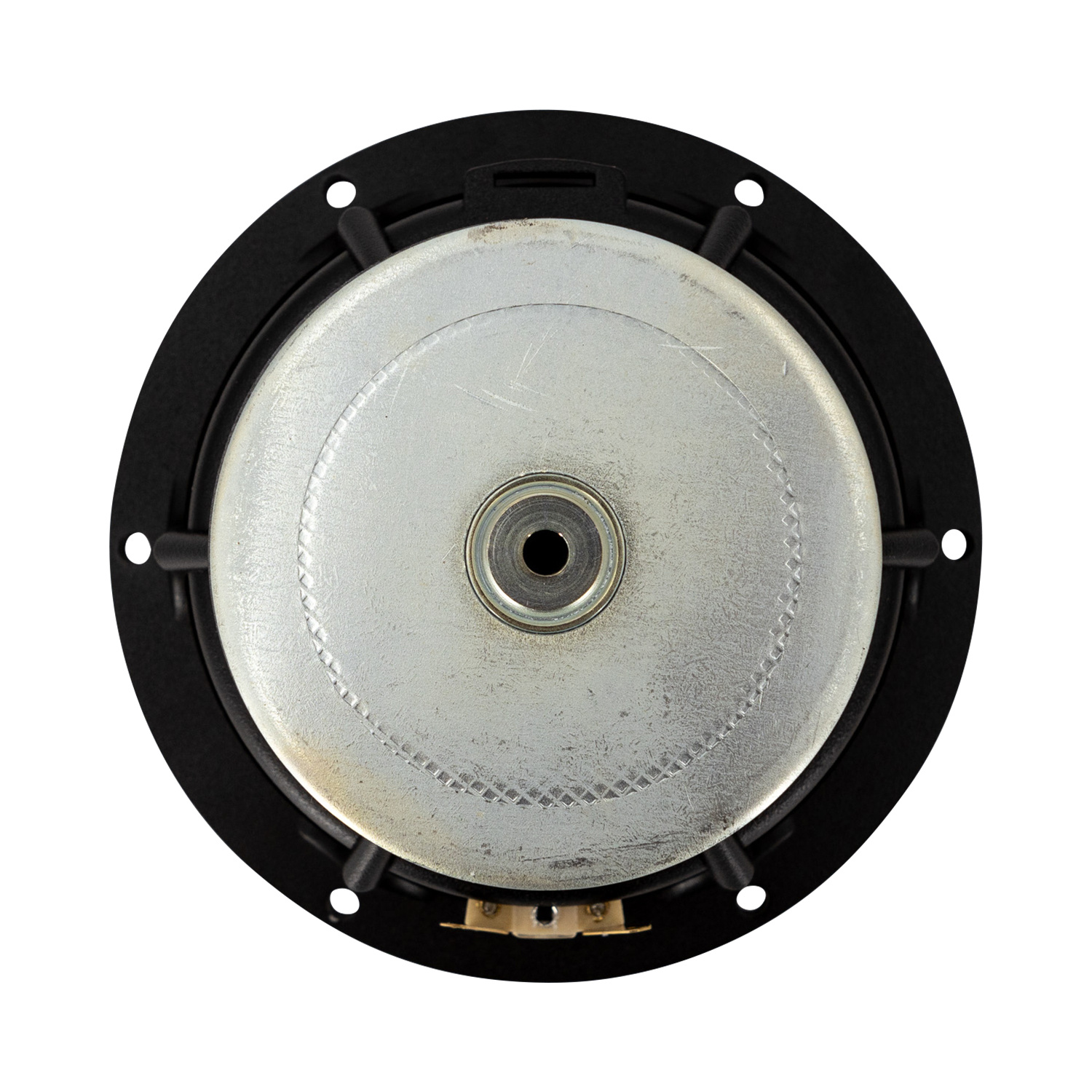

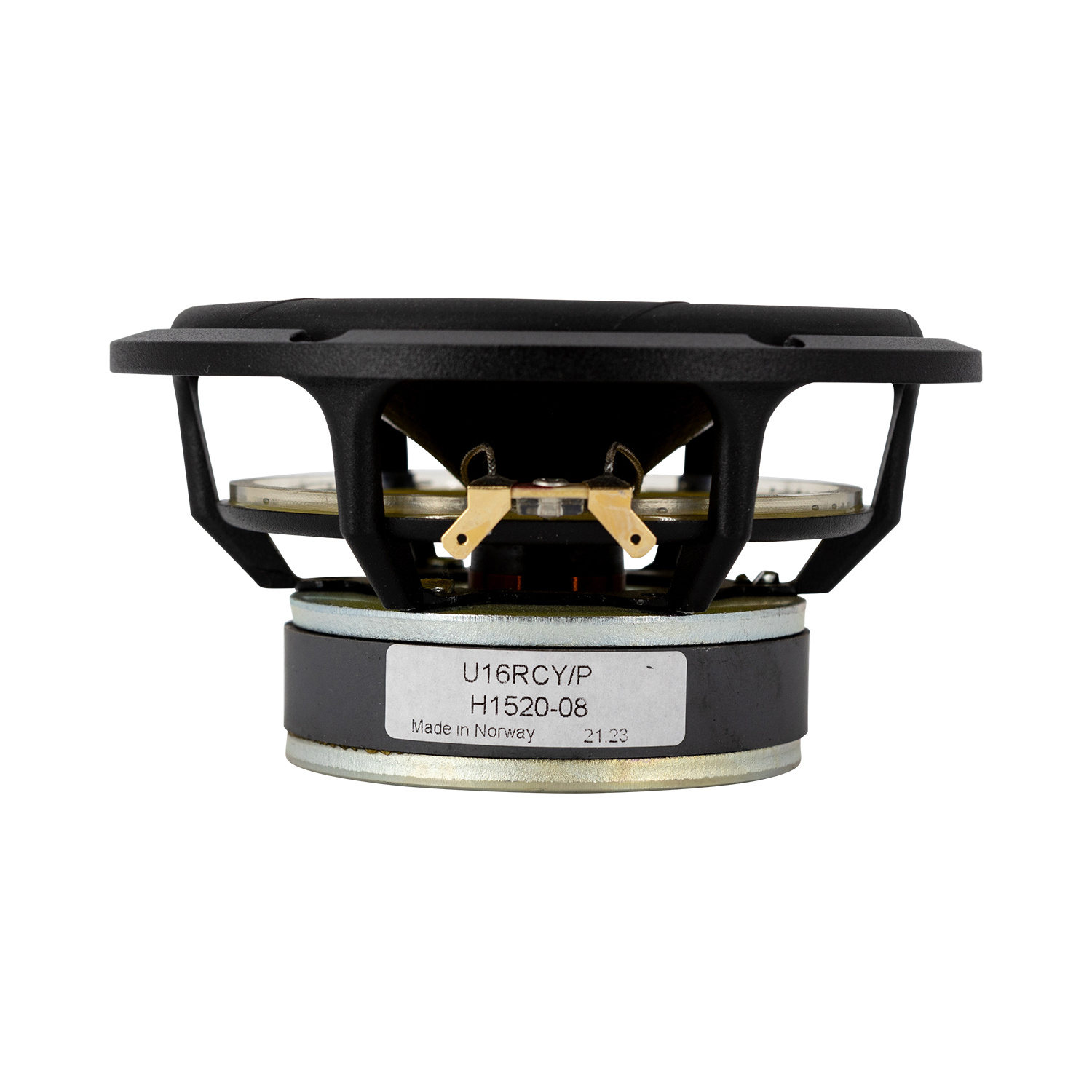

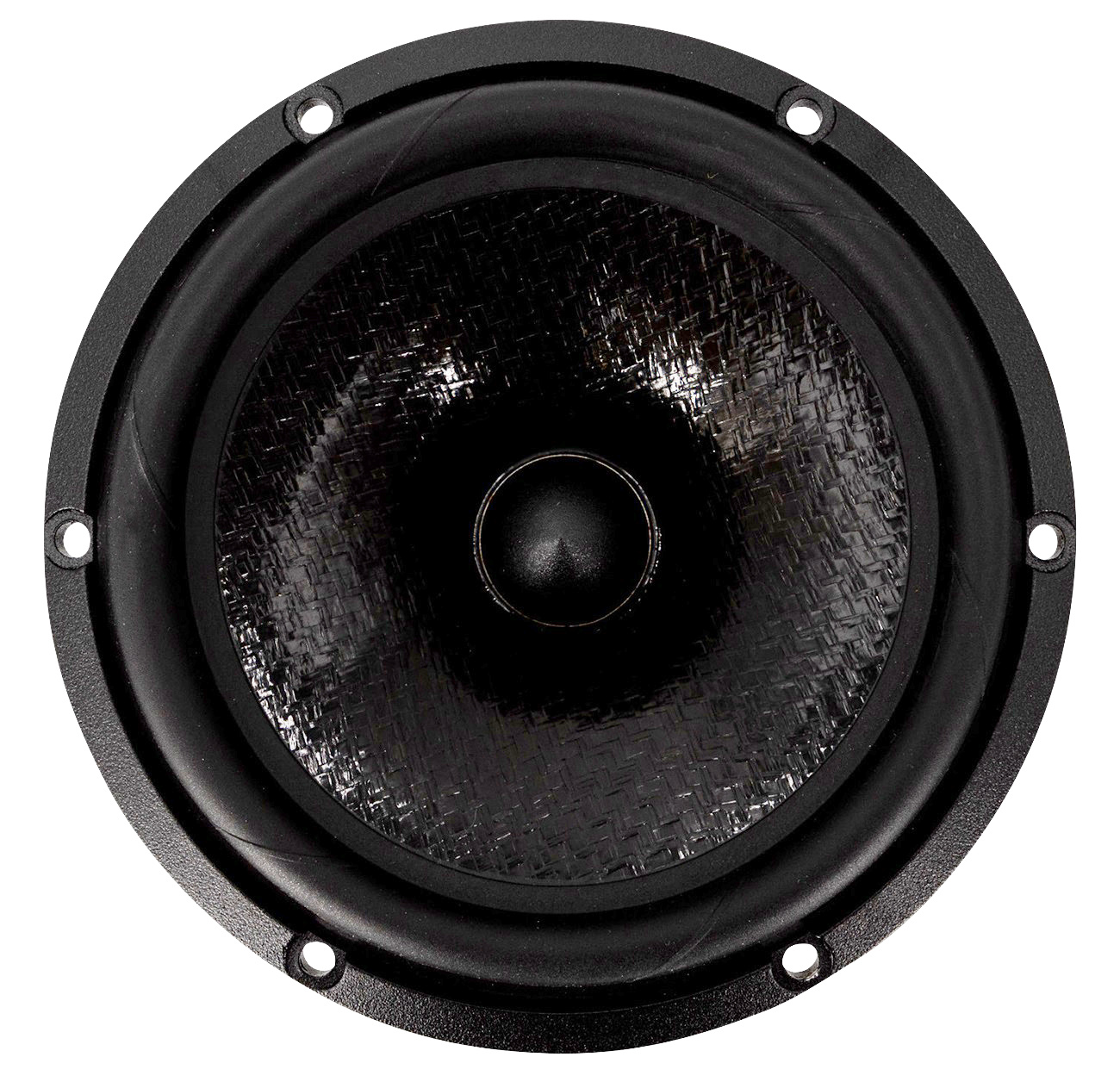

SEAS Prestige U16RCY/P - H1520 6" Curv Cone Woofer

€ 92,45 Nicht auf Lager: Lieferzeit beträgt 1 Woche
U16RCY/P is a 5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €87,83 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 60 Watts
  • Injection moulded metal chassis, intended for bass reflex and transmission line designs
  • Seas SpiderRing® technology



Product details

Seas Prestige U16RCY/P - H1520 6" Curv Cone Woofer



U16RCY/P is a 5” High Fidelity woofer with an injection moulded metal chassis, intended for bass reflex and transmission line designs. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. A unique radial reinforced low loss rubber surround reduces radial resonances and prevents surround break up at large excursions.



Bullet shaped phase plug reduces compression due to temperature variations in the voice coil, avoids resonance problems which would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.



Extremely stiff and stable injection moulded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum. This driver uses Seas SpiderRing® technology.

Eigenschaften

Artikelnummer:
U16RCY/P
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
6"
Power Handling (RMS)
60 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
87 dB 2.83V/1m
Frequency Response
45 to 3,000 Hz
Voice Coil Diameter
0.87"
Magnet Weight
14.8 oz.
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.81 mH
Resonant Frequency (Fs)
36 Hz
Mechanical Q (Qms)
2.19
Electromagnetic Q (Qes)
0.38
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
10.26g
Mechanical Compliance of Suspension (Cms)
1.9 mm/N
Compliance Equivalent Volume (Vas)
0.88 ft.³
Maximum Linear Excursion (Xmax)
4 mm
Overall Outside Diameter
5.75"
Overall Depth
2.78"
Baffle Cutout Diameter
4.96"
Bolt Circle Diameter
5.39"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
