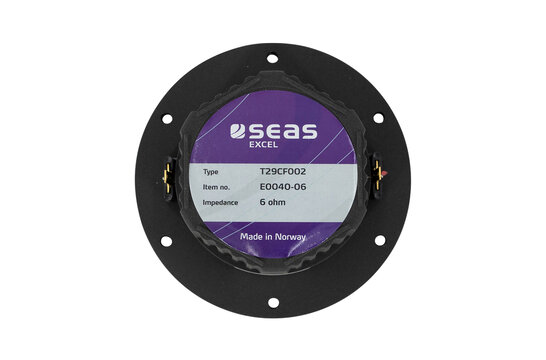

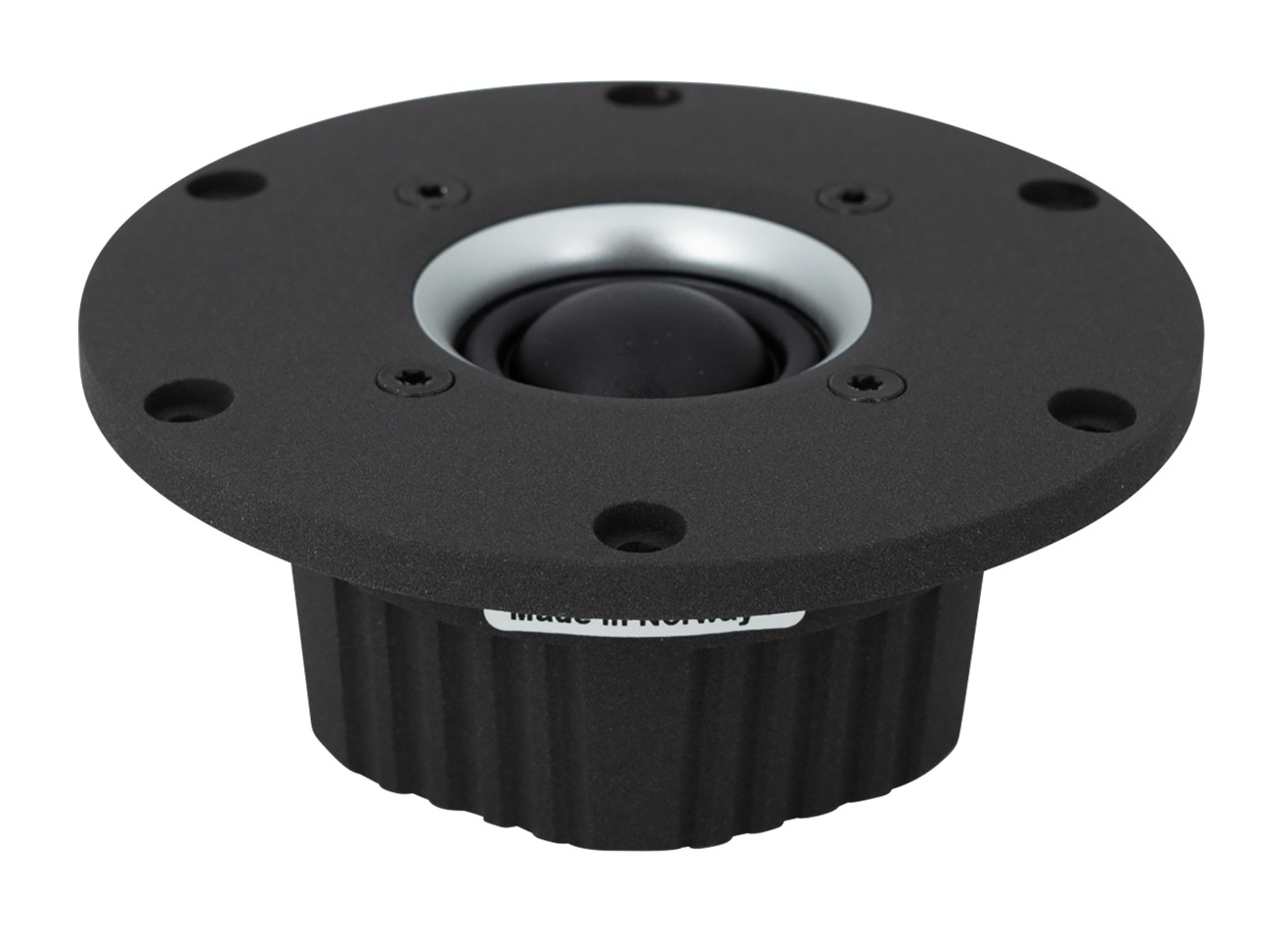

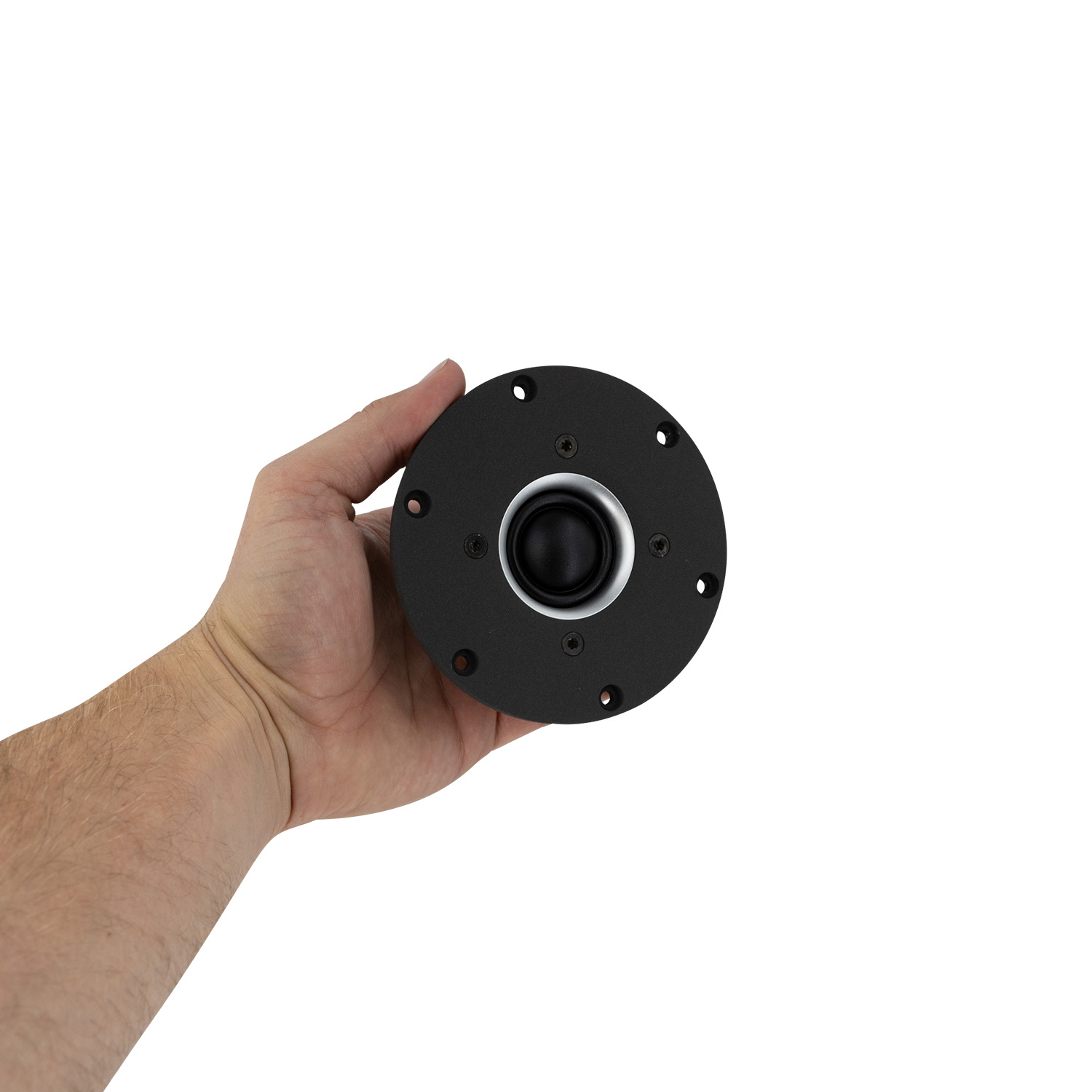

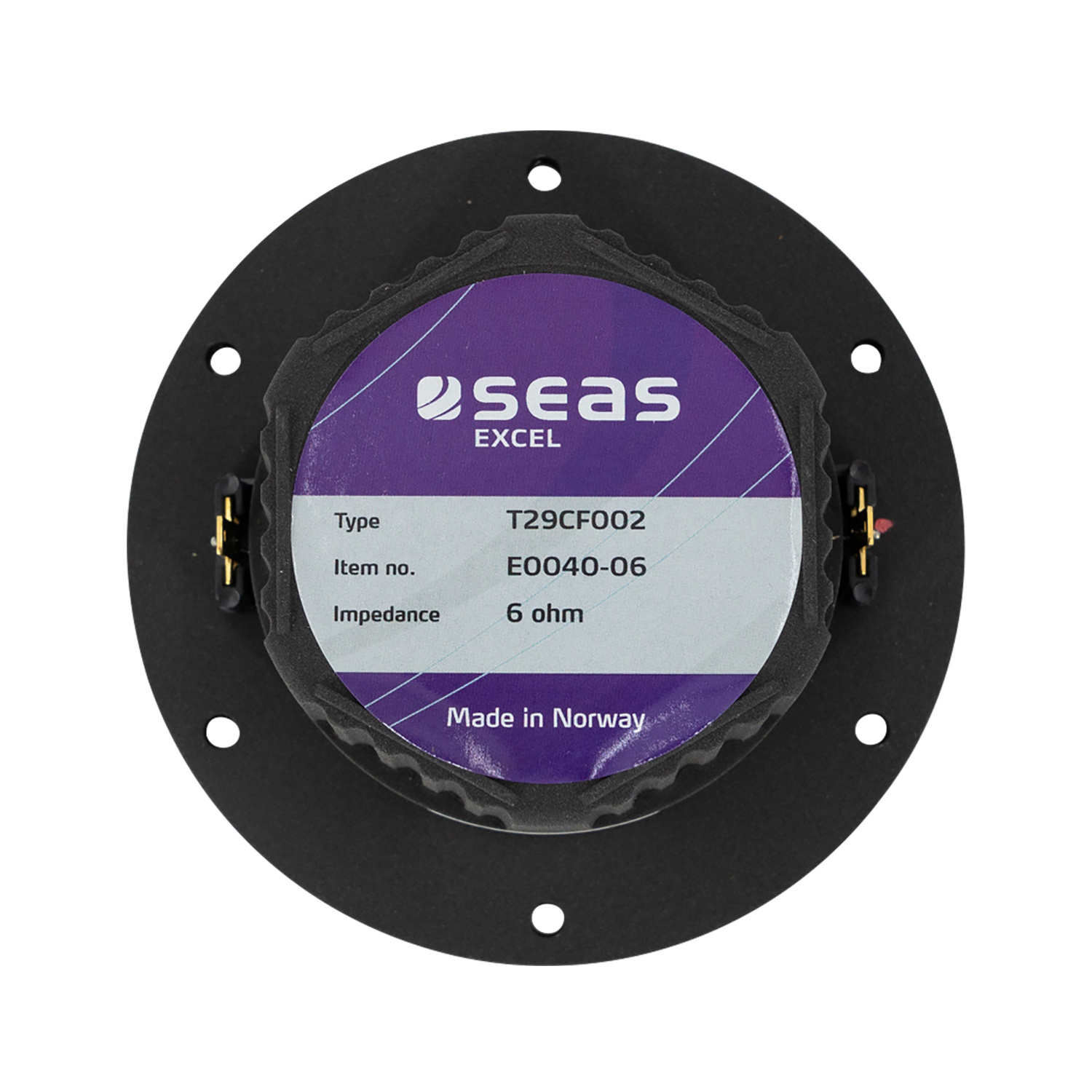

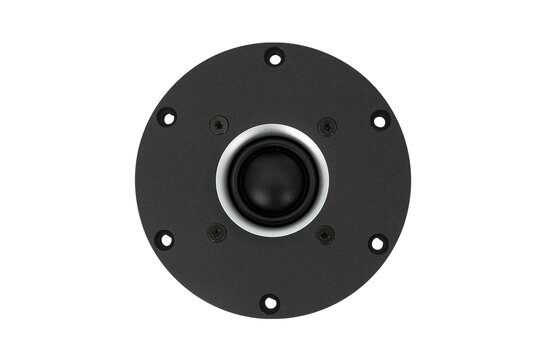

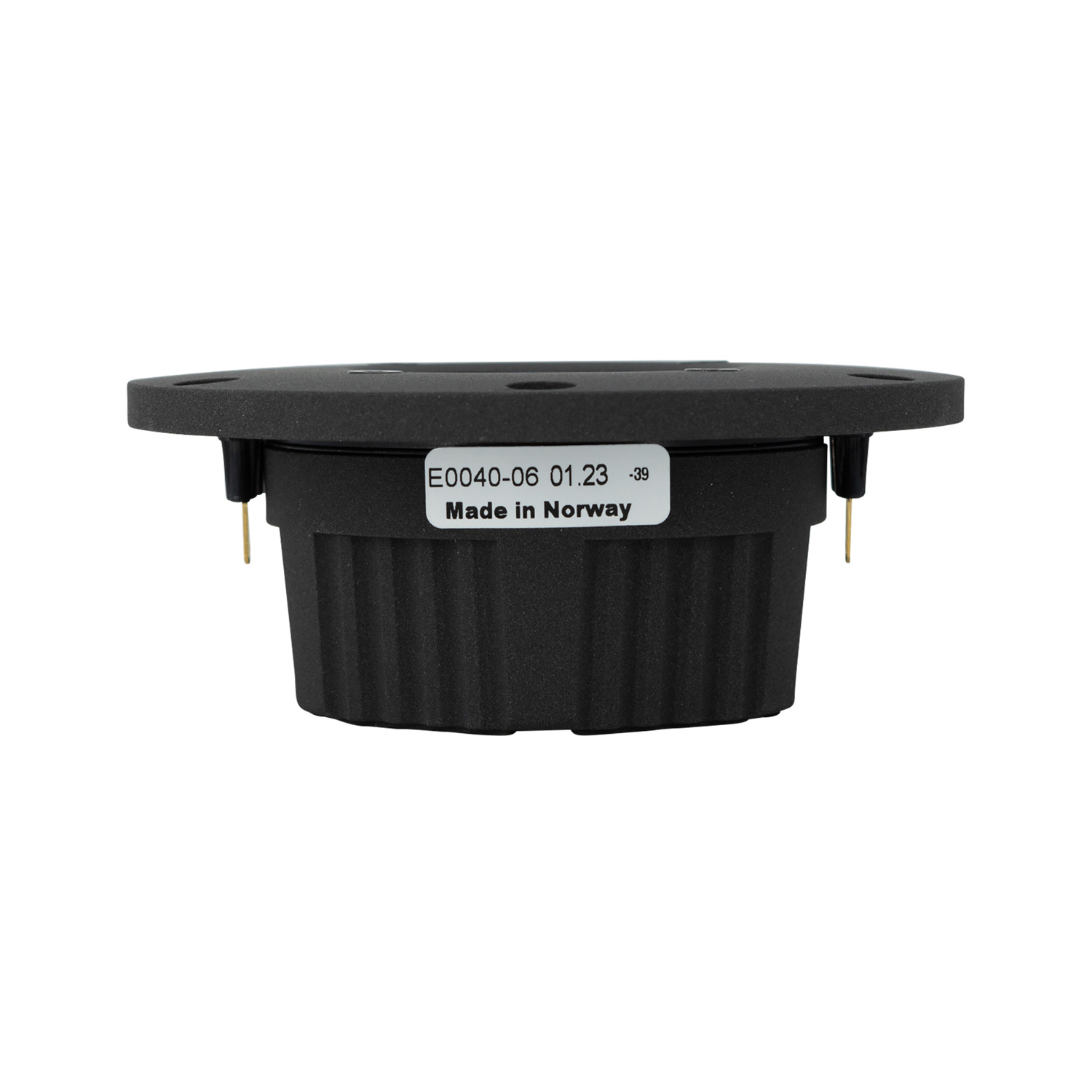

SEAS Excel T29CF002 - E0040-06S 1-1/8" Soft Dome Tweeter

€ 299,95 1 Auf Lager: Lieferzeit 1-3 Werktage
The T29CF002 ”CRESCENDO” is an Ultra High End 29mm soft dome tweeter with a HEXADYM magnet system. An optimally shaped dome and integrated wide surround manufactured by SEAS from SONOMEX ensure excellent performance and consistency.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €284,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Underhung voice coil with flexible lead-out wires, ensures low distortion even with low crossover frequencies
  • 90 Watts RMS Power Handling
  • 92.5 dB 2.83V/1m Sensitivity



Product details

Seas Excel T29CF002  - E0040-06S 1-1/8" Soft Dome Tweeter



The T29CF002 ”CRESCENDO” is an Ultra High End 29mm soft dome tweeter with a HEXADYM magnet system. An optimally shaped dome and integrated wide surround manufactured by SEAS from SONOMEX ensure excellent performance and consistency.



A high efficiency HEXADYM magnet system (US Patent 6020805) based on 6 radially magnetized NdFeB magnet blocks provide efficient ventilation and damping of cavities behind the dome, surround and voice coil. Moderate magnetic stray fields represent no problems in AV installations. A generously underhung voice coil with flexible lead-out wires, ensures low distortion even with low crossover frequencies.

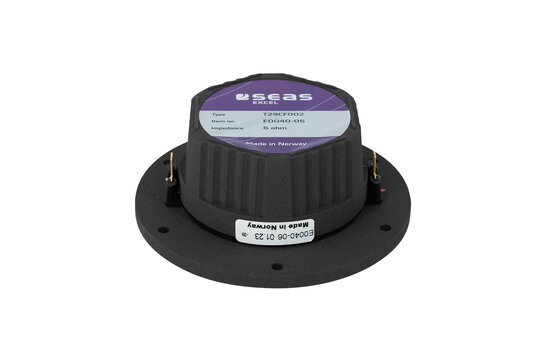

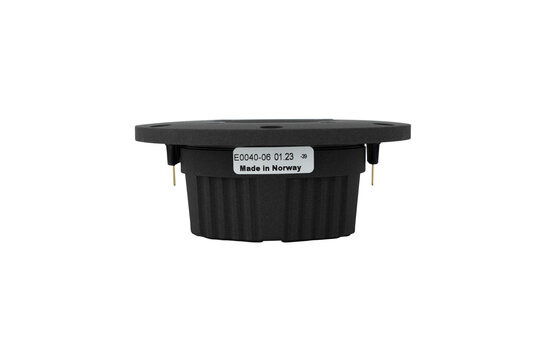

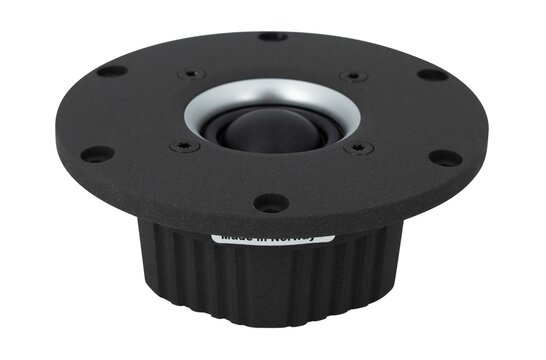

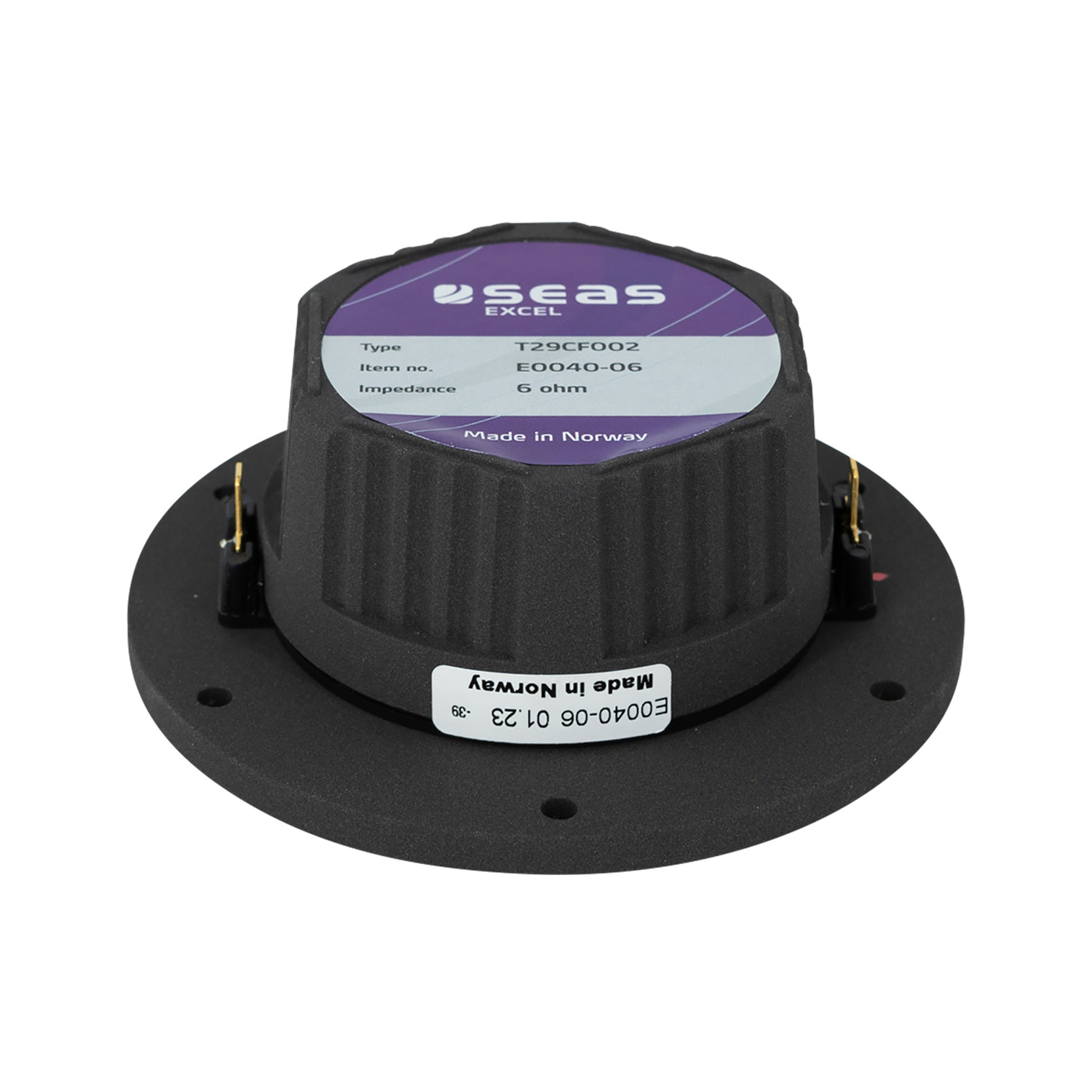

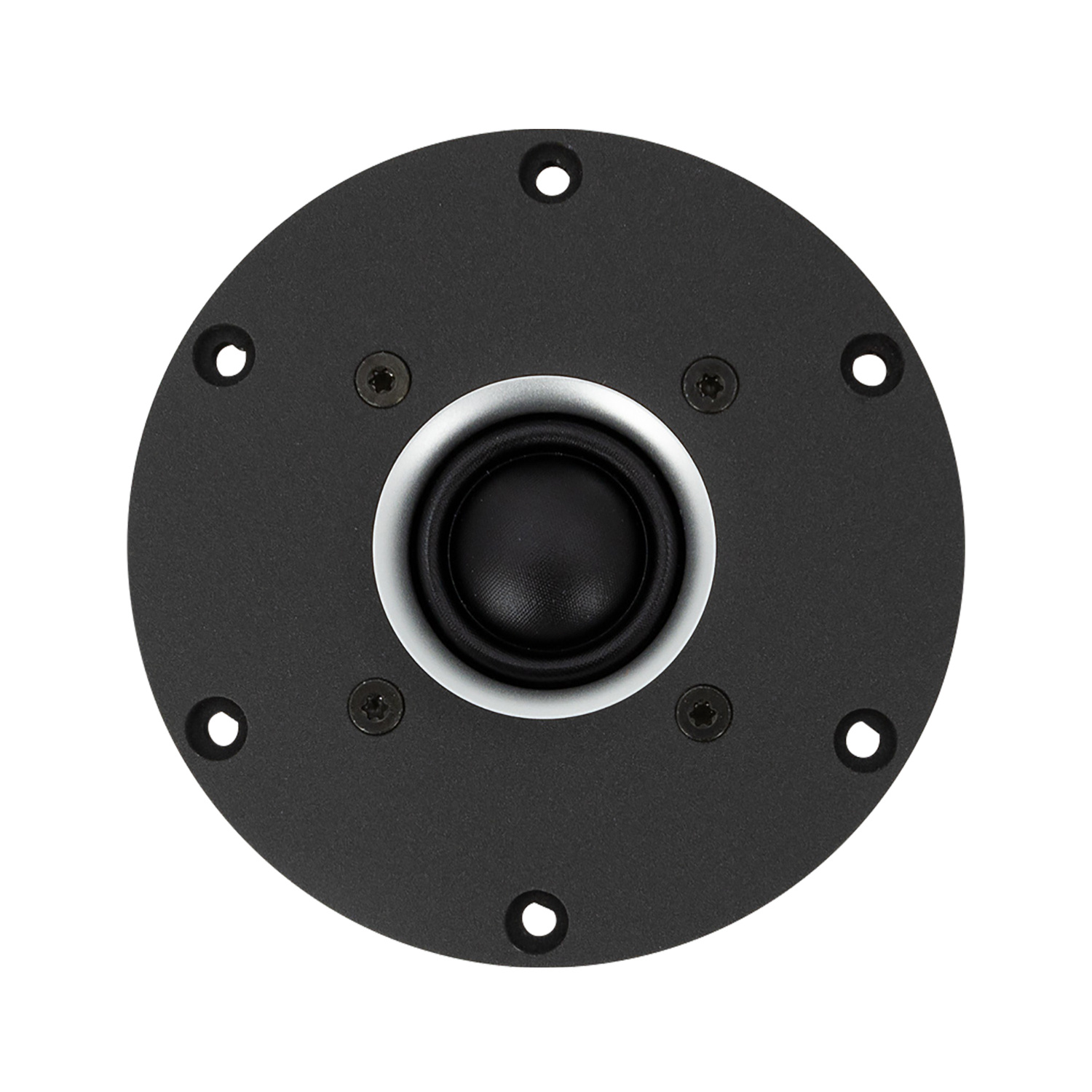

A 6mm precision machined aluminum front plate with moderate horn loading ensures linear frequency response and reasonable efficiency. The central part of the horn is made from chrome plated precision machined brass. A substantial injection molded rear chamber made from zinc eliminates unwanted chamber wall resonances and conducts heat away from the magnet system. The rear chamber and the front plate are Nextel painted to obtain a durable and attractive finish.

Eigenschaften

Artikelnummer:
T29CF002
Tweeter Type
Dome
Tweeter Series
Excel Series
Cone / Dome Diameter
1-1/8"
Power Handling (RMS)
90 Watts
Impedance
6 ohms
Sensitivity
92.5 dB 2.83V/1m
Frequency Response
2,000 to 25,000 Hz
Resonant Frequency (Fs)
500 Hz
DC Resistance (Re)
4.7 ohms
Voice Coil Inductance (Le)
0.05 mH
Overall Outside Diameter
4.33"
Cutout Diameter
2.93"
Depth
1.69"
