SEAS Excel T25CF001 - E0006-06 1" Fabric Dome Tweeter

€ 95,-€ 114,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
The T25CF001 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. Low viscosity magnetic fluid which provides excellent coolin... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €109,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Double magnet system increases sensitivity and provides better control of the voice coil
  • 90 Watts RMS Power Handling
  • 91 dB 2.83V/1m Sensitivity



Product details

Seas Excel T25CF001 - E0006-06 1" Fabric Dome Tweeter



The T25CF001 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. Low viscosity magnetic fluid which provides excellent cooling while maintaining a low resonance frequency.

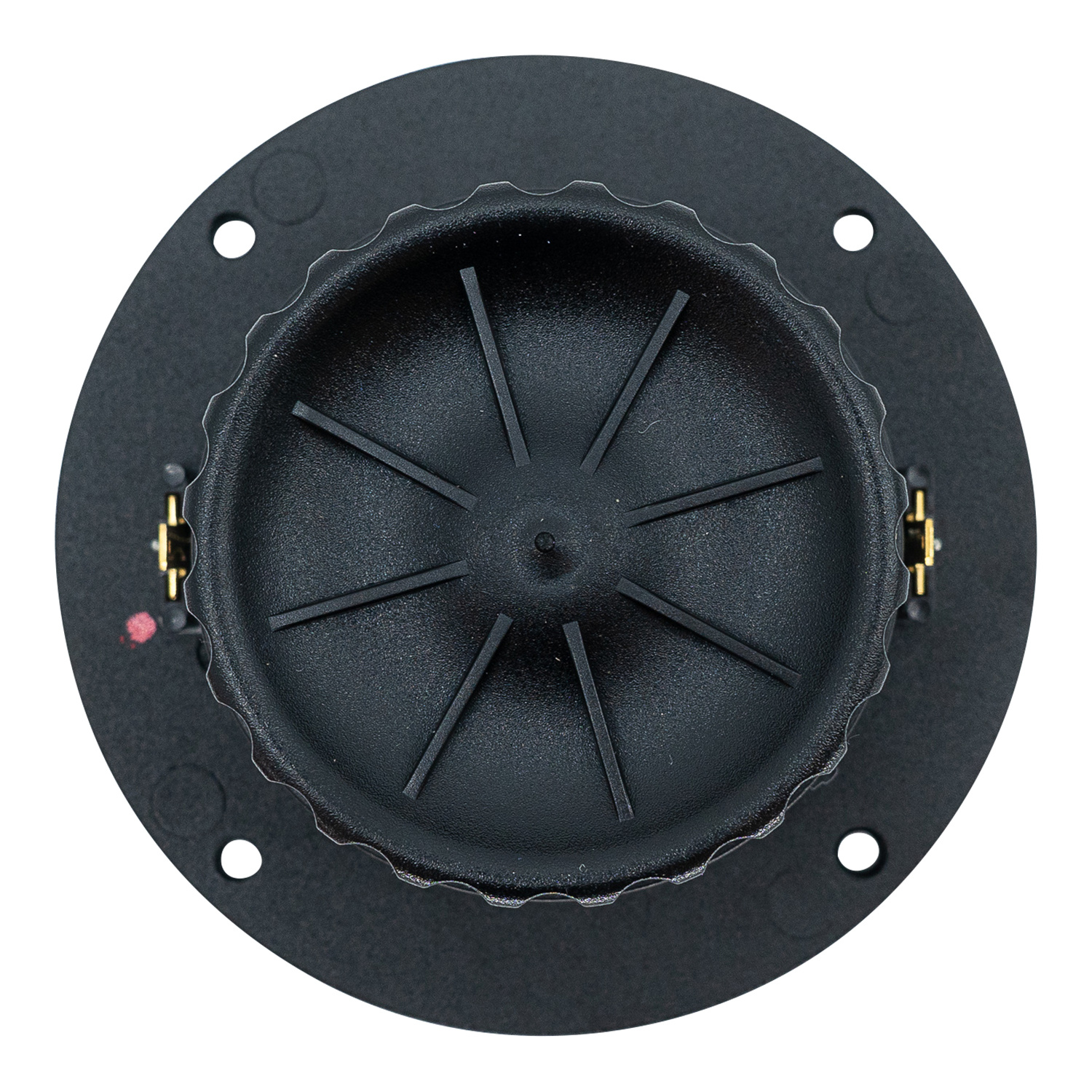

6 mm solid metal front plate with a slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet. A substantial injection-molded rear chamber, with complex internal shape and reinforcing ribs, which eliminate unwanted chamber resonances and reflections.



A double magnet system which increases sensitivity and provides better control of the voice coil. This system also reduces the magnetic stray fields, making the T25CF001 an ideal choice in high end A/V applications.

Eigenschaften

Artikelnummer:
T25CF001
Tweeter Type
Fabric Dome
Tweeter Series
Excel Series
Cone / Dome Diameter
1"
Power Handling (RMS)
90 Watts
Impedance
6 ohms
Sensitivity
91 dB 2.83V/1m
Frequency Response
2,000 to 25,000 Hz
Resonant Frequency (Fs)
700 Hz
DC Resistance (Re)
4.6 ohms
Voice Coil Inductance (Le)
0.05 mH
Overall Outside Diameter
4.34"
Cutout Diameter
3.35"
Depth
2.33"
