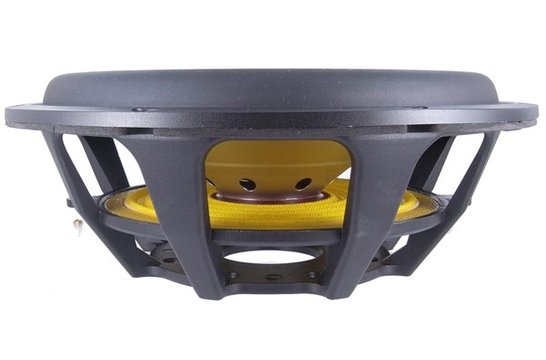

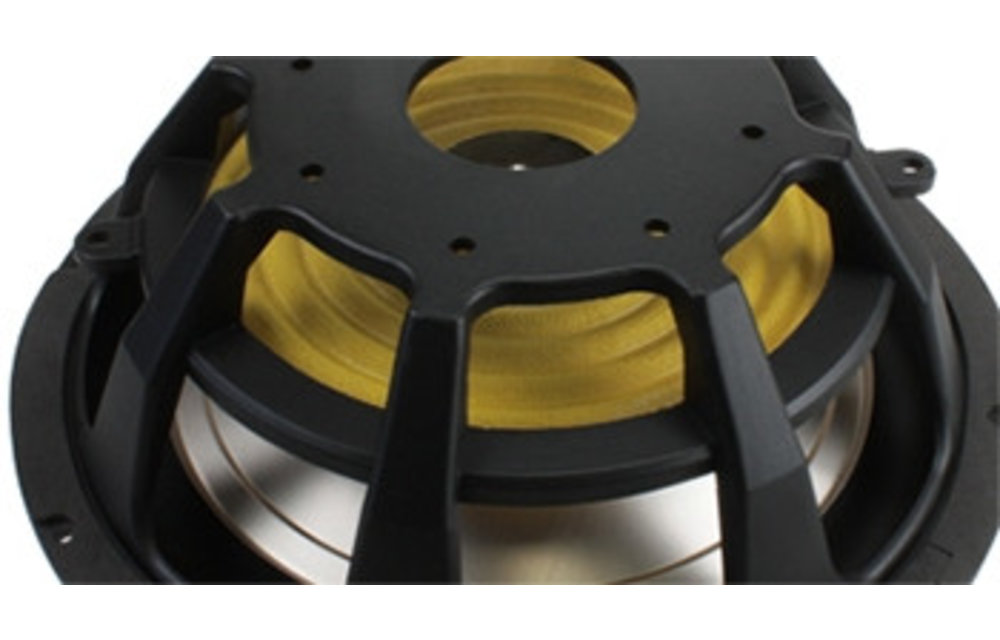

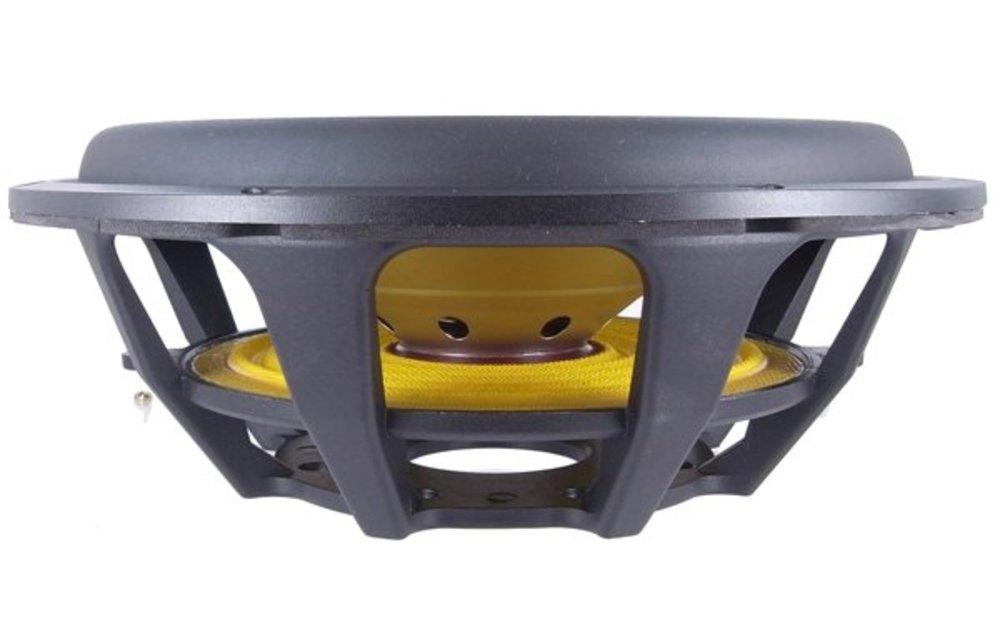

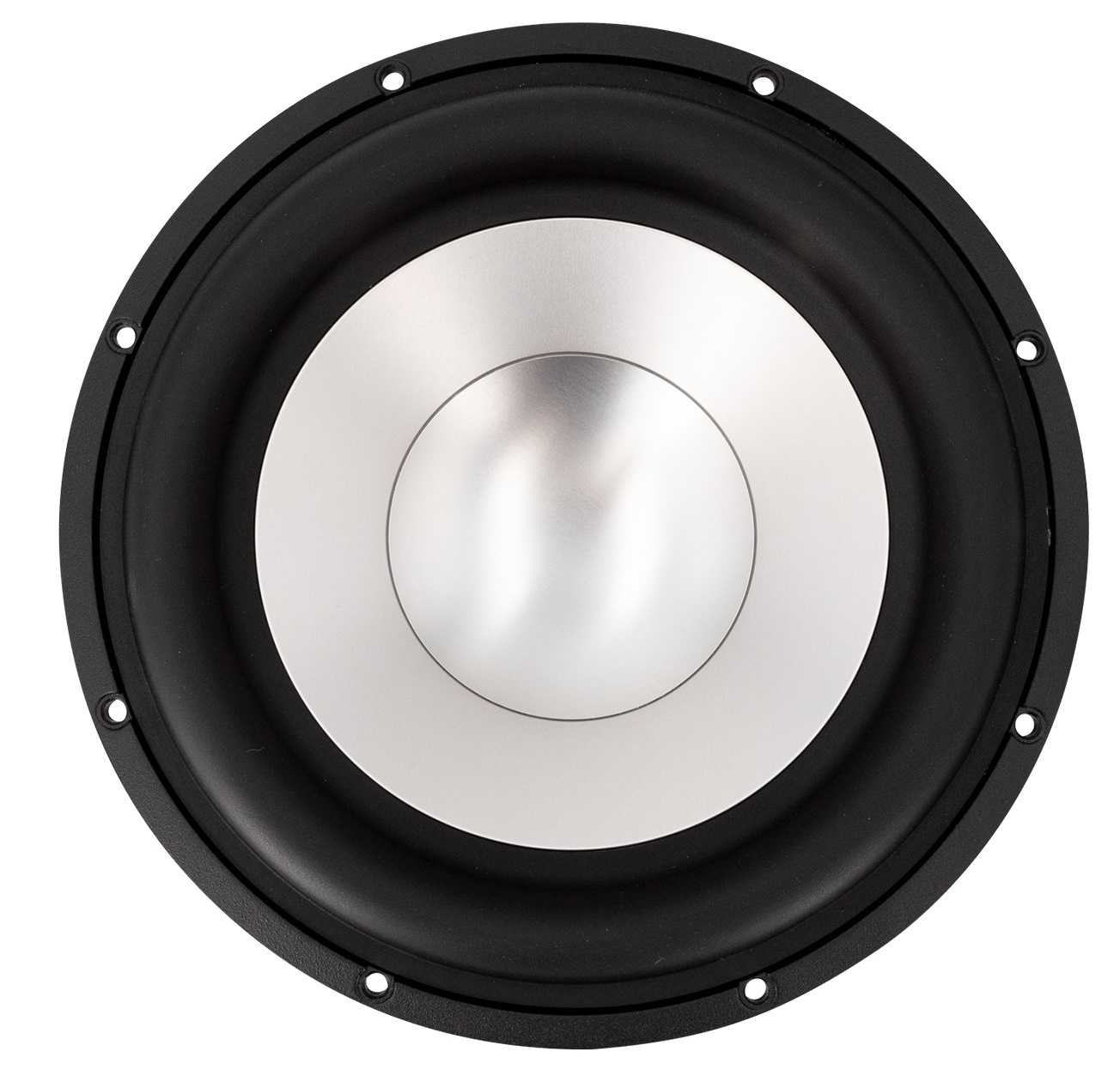

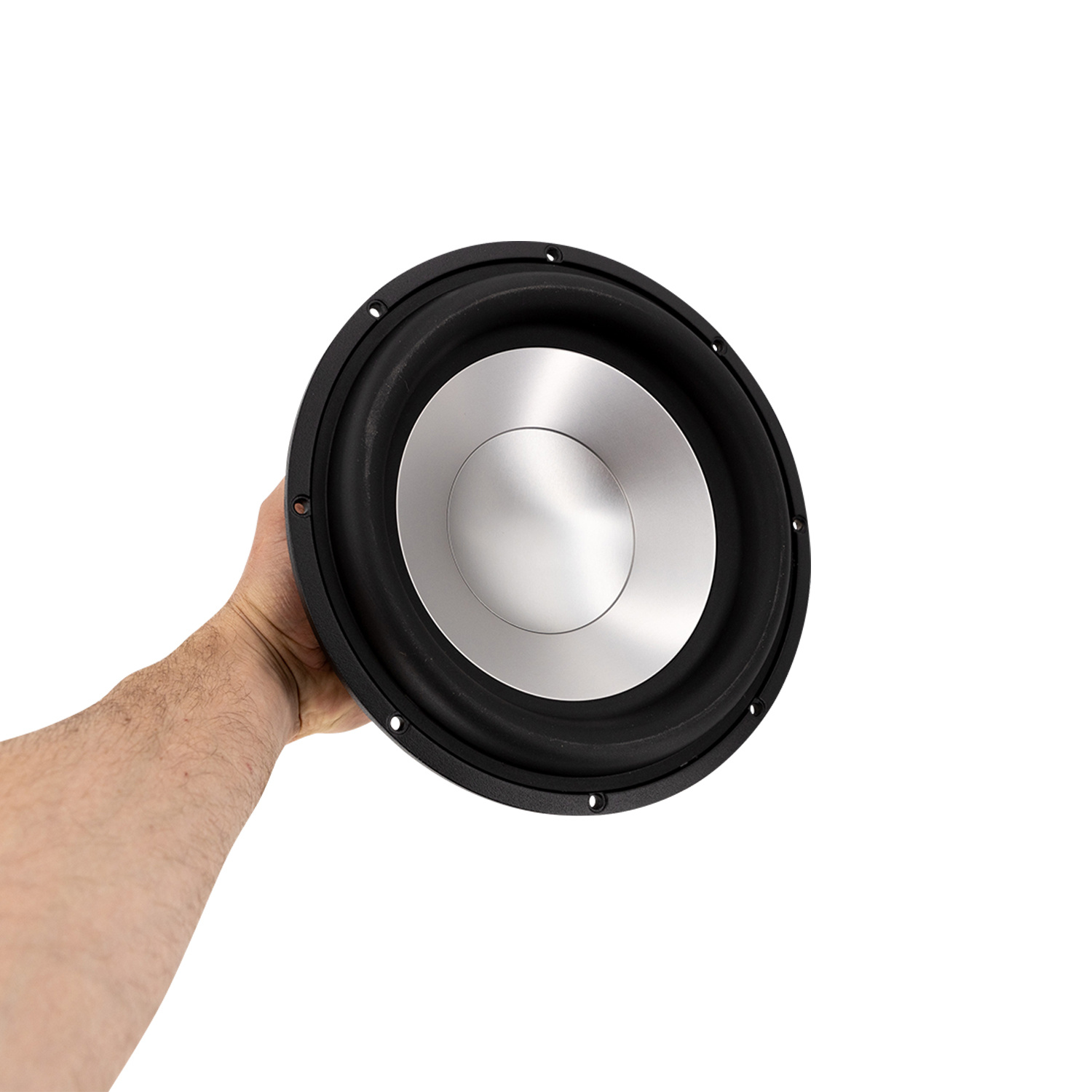

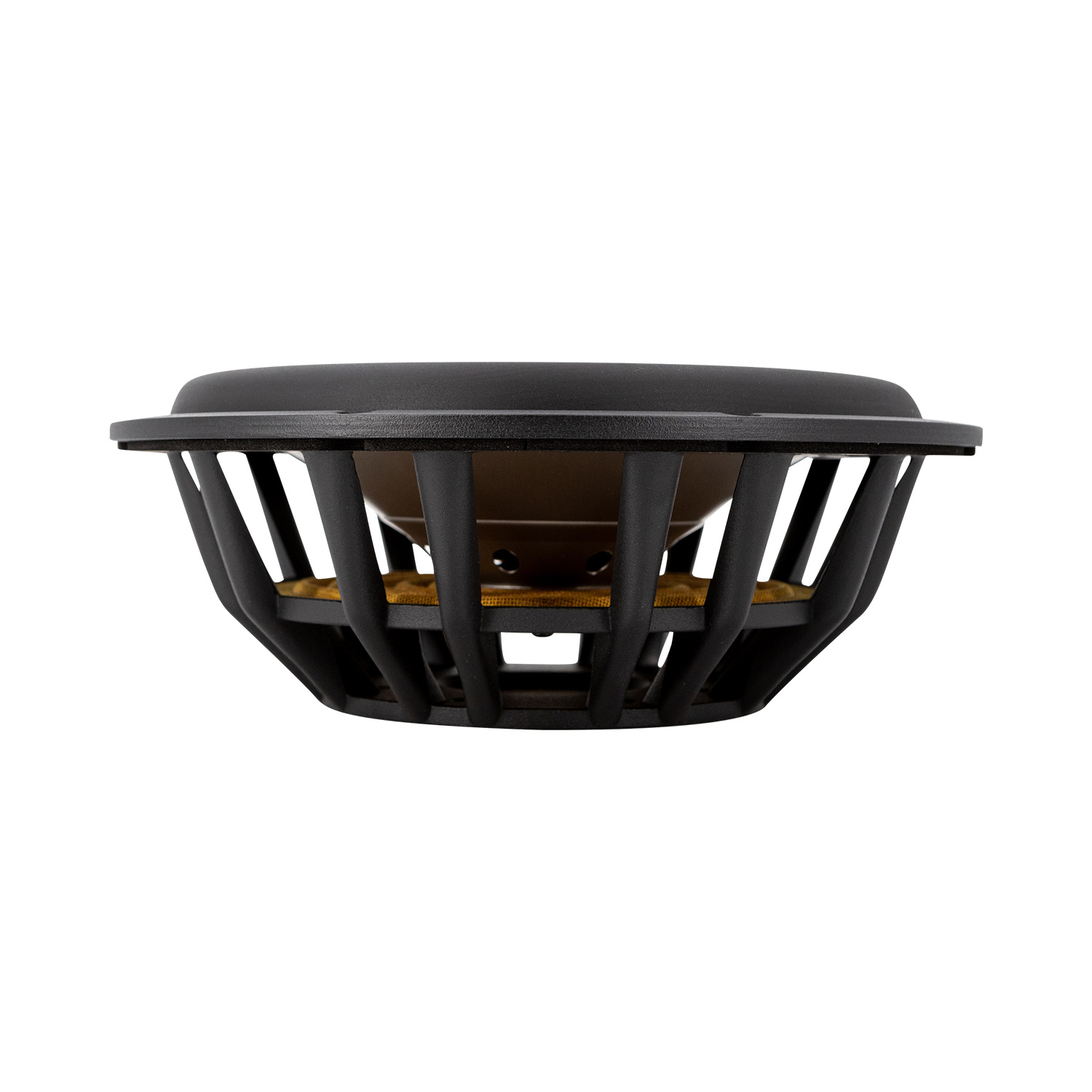

SEAS Design SL26R – D1003 10" Passive Radiator

€ 119,95 Nicht auf Lager: Lieferzeit beträgt 1 Woche
The SL26R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or e... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €113,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller
  • Brings improvement to the traditional bass reflex port



Product details

Seas Design SL26R – D1003 Passive Radiator



The SL26R is a passive radiator intended for use as an alternative to the port in a bass reflex cabinet, together with an active woofer of similar size or smaller. In many applications the traditional bass reflex port may produce high speed air noise or even have poor effect due to a small port area or a large port length. In such cases, a passive radiator may bring about an improvement.



The chart below will show you the mass which has to be added to the cone of the passive radiator in order to obtain the desired Helmholtz resonance frequency in a given cabinet volume. The SL26R is already matched to our D1001 L26ROY and a 40 liter cabinet but it’s also equipped with an M4 screw to which you can easily attach more added mass for other applications.



For optimum performance, the passive radiator should be mounted vertically (with horizontal cone axis) This is especially important when a significant additional mass is used.

Eigenschaften

Artikelnummer:
SL26R
Woofer Series
Design by Seas Series
Woofer Type
Passive radiator
Resonant Frequency (Fs)
16 Hz
Diaphragm Mass Inc. Airload (Mms)
260g
Mechanical Compliance of Suspension (Cms)
0.5 mm/N
Compliance Equivalent Volume (Vas)
3.28 ft.³
Maximum Linear Excursion (Xmax)
28 mm

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
Beautiful, compared to my L26ROY now mounted in a closed box, all that is missing is the magnet ... very curious about how it will sound in the new case as passive based on the project on the Seas website
Durch NICOLA P. on 18 Juni 2019
