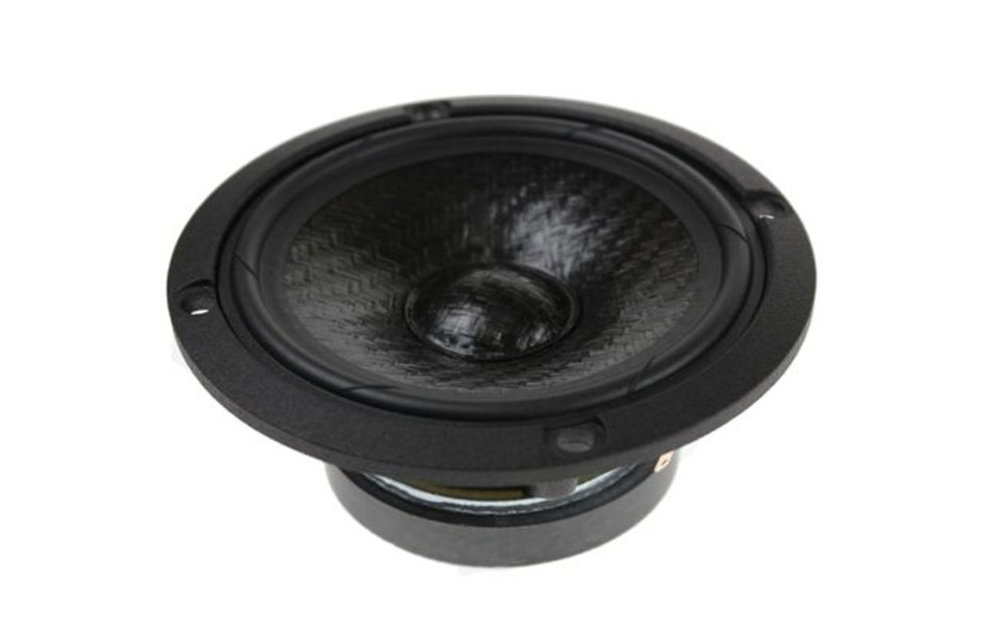

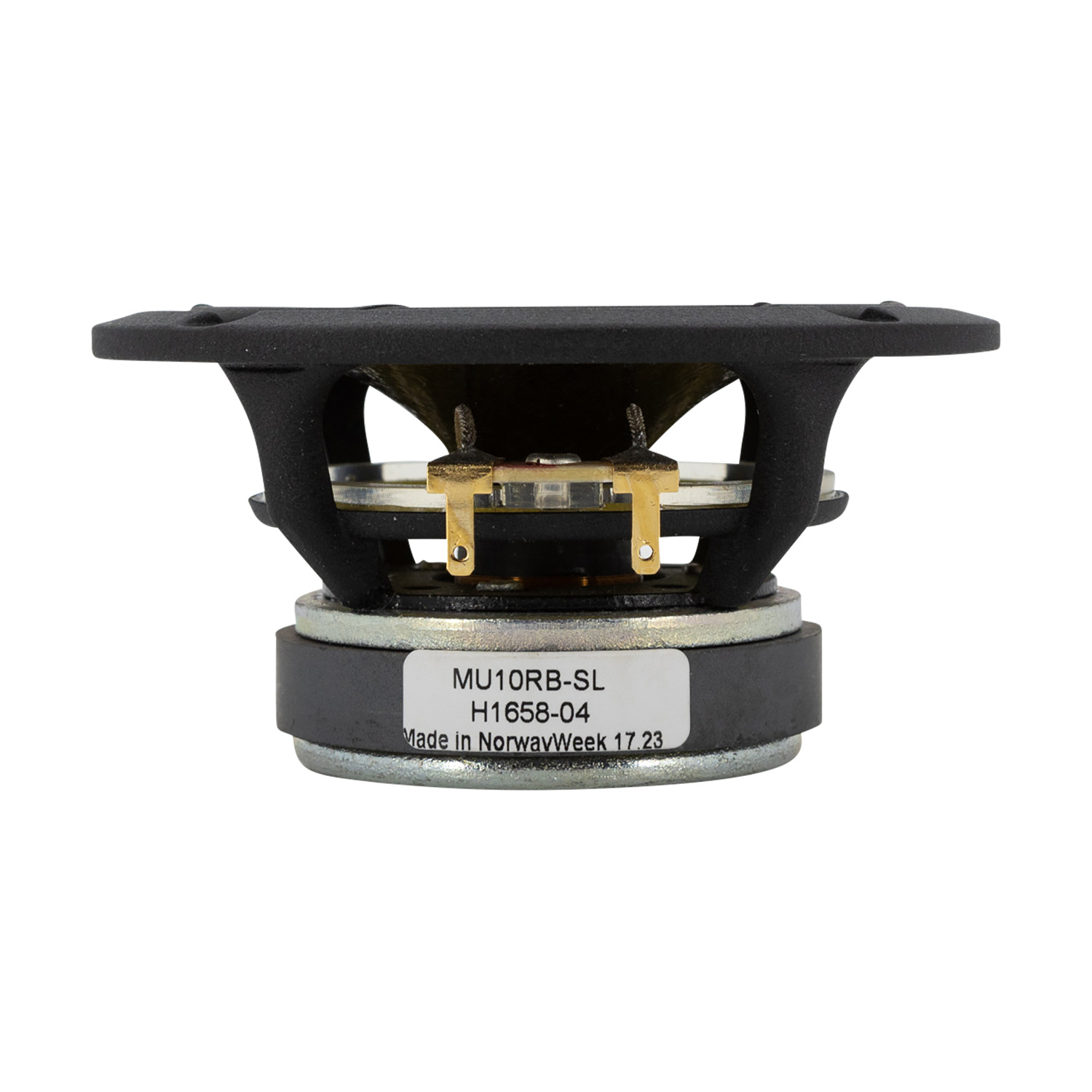

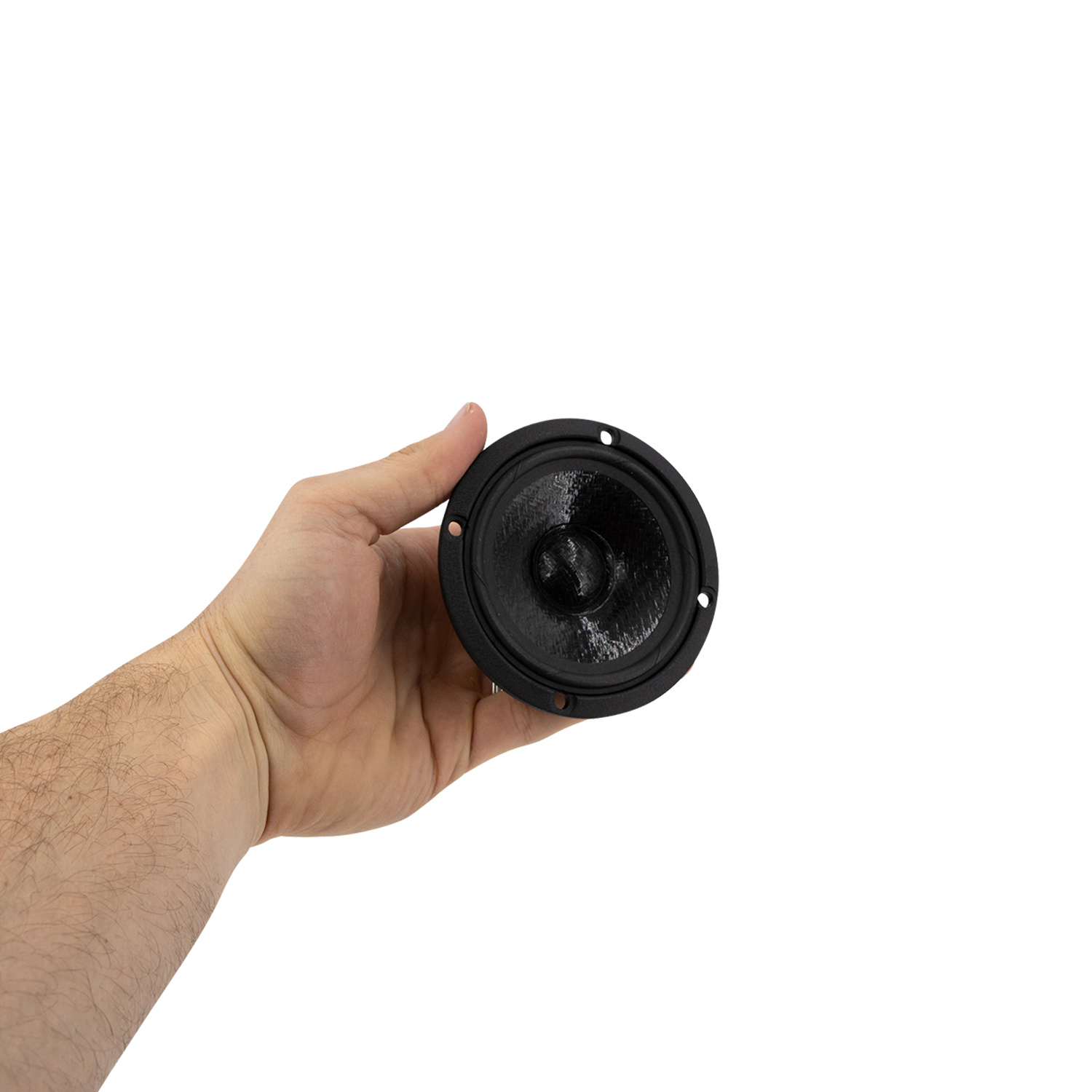

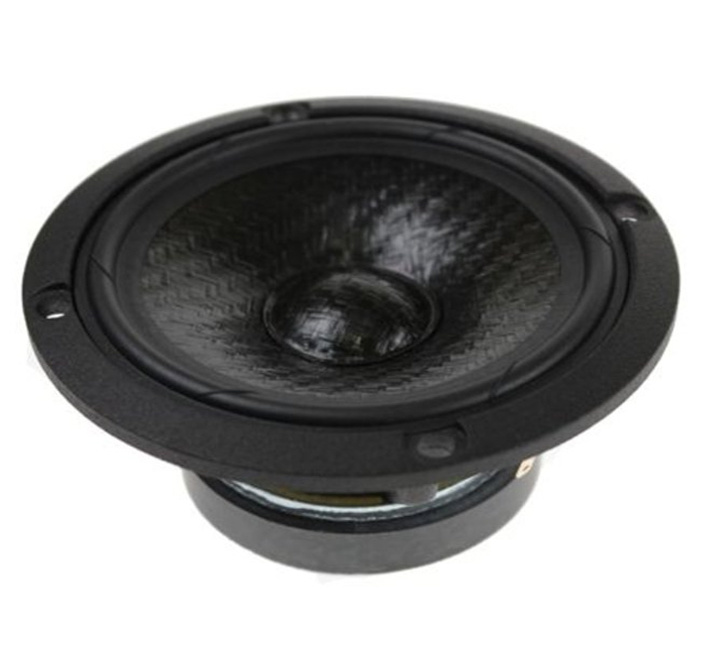

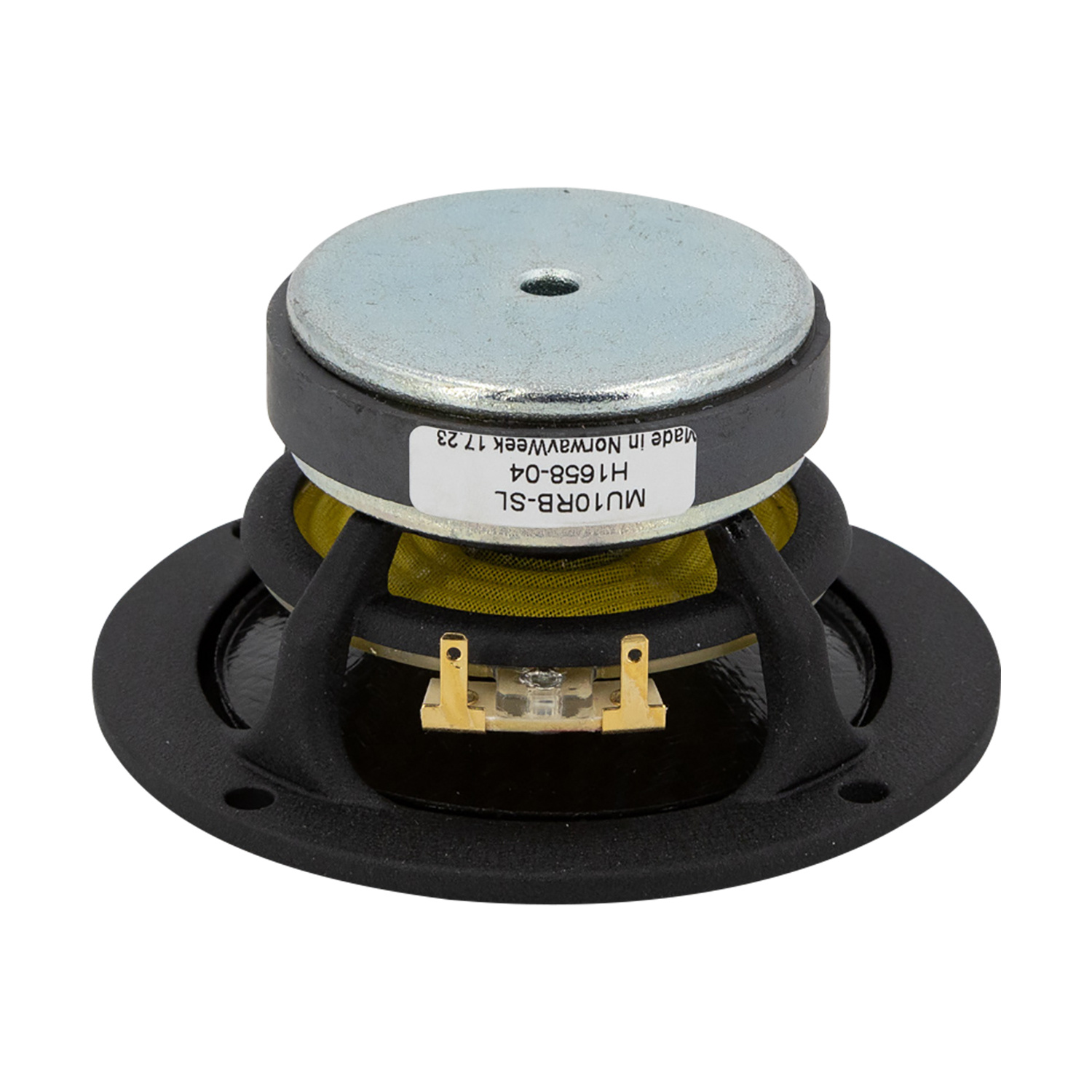

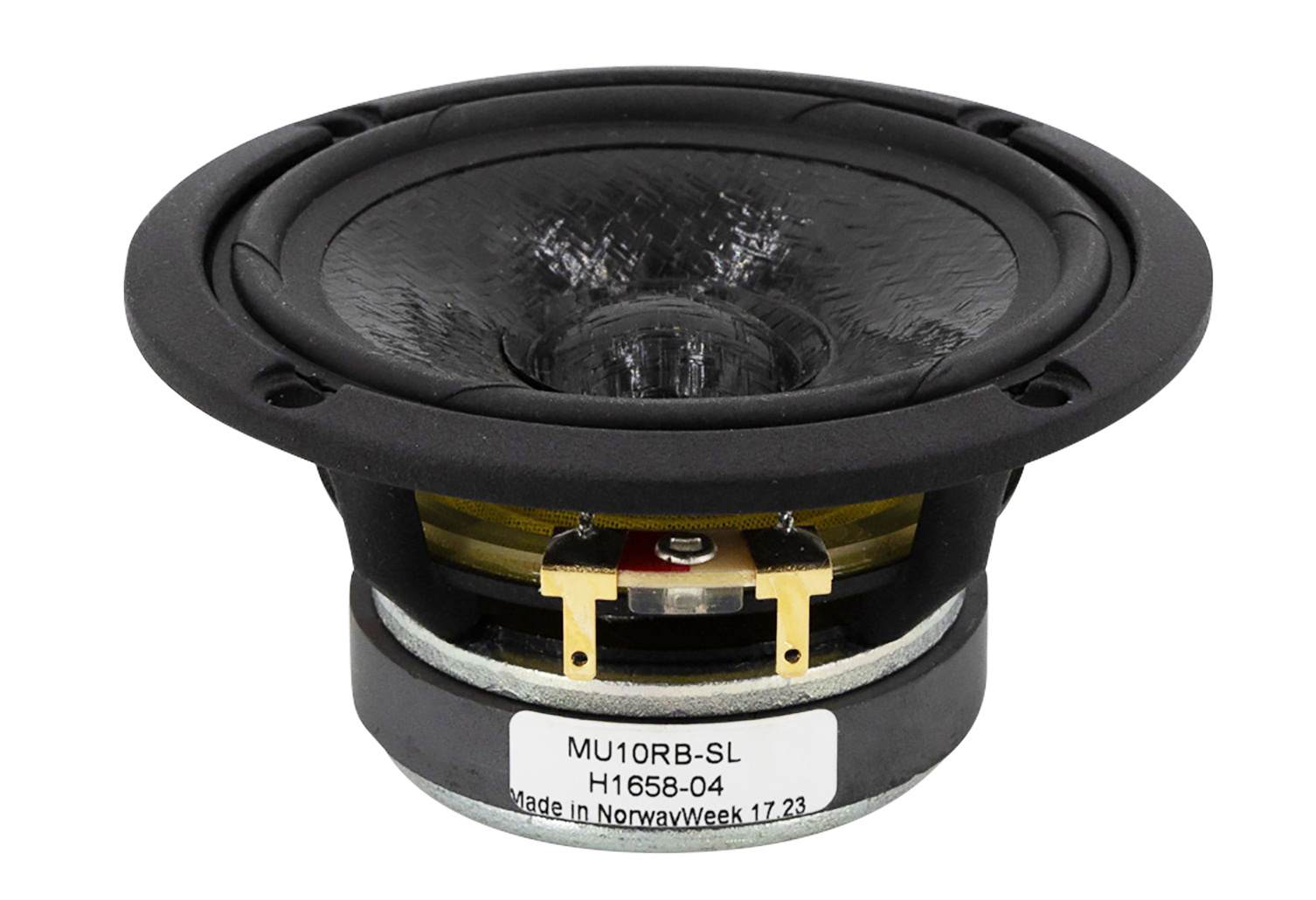

SEAS Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange

€ 56,45 2 Auf Lager: Lieferzeit 1-3 Werktage
The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €53,63 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 40 Watts

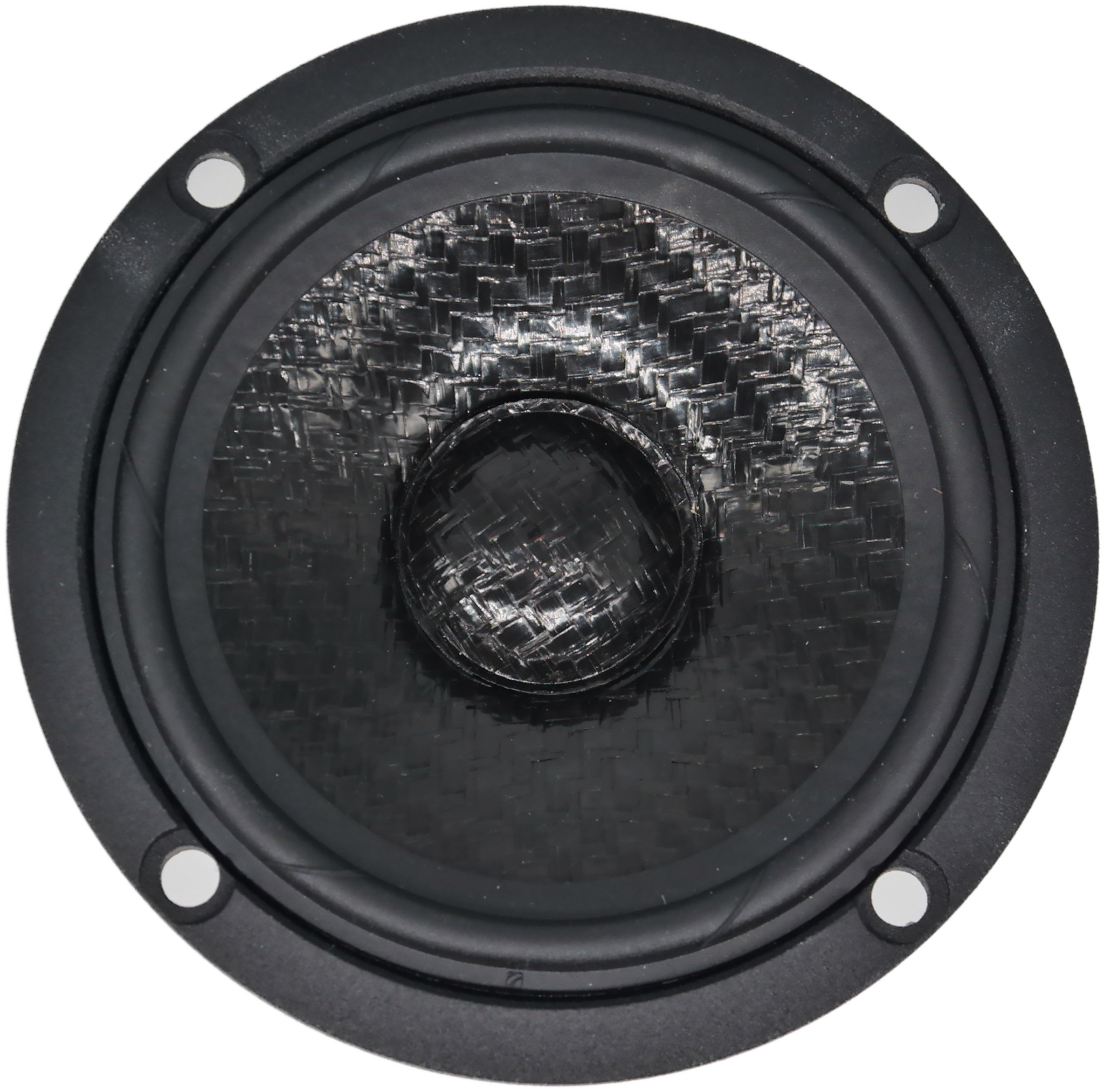

  • New Curv cone, a woven polypropylene with excellent internal damping
  • The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance



Product details

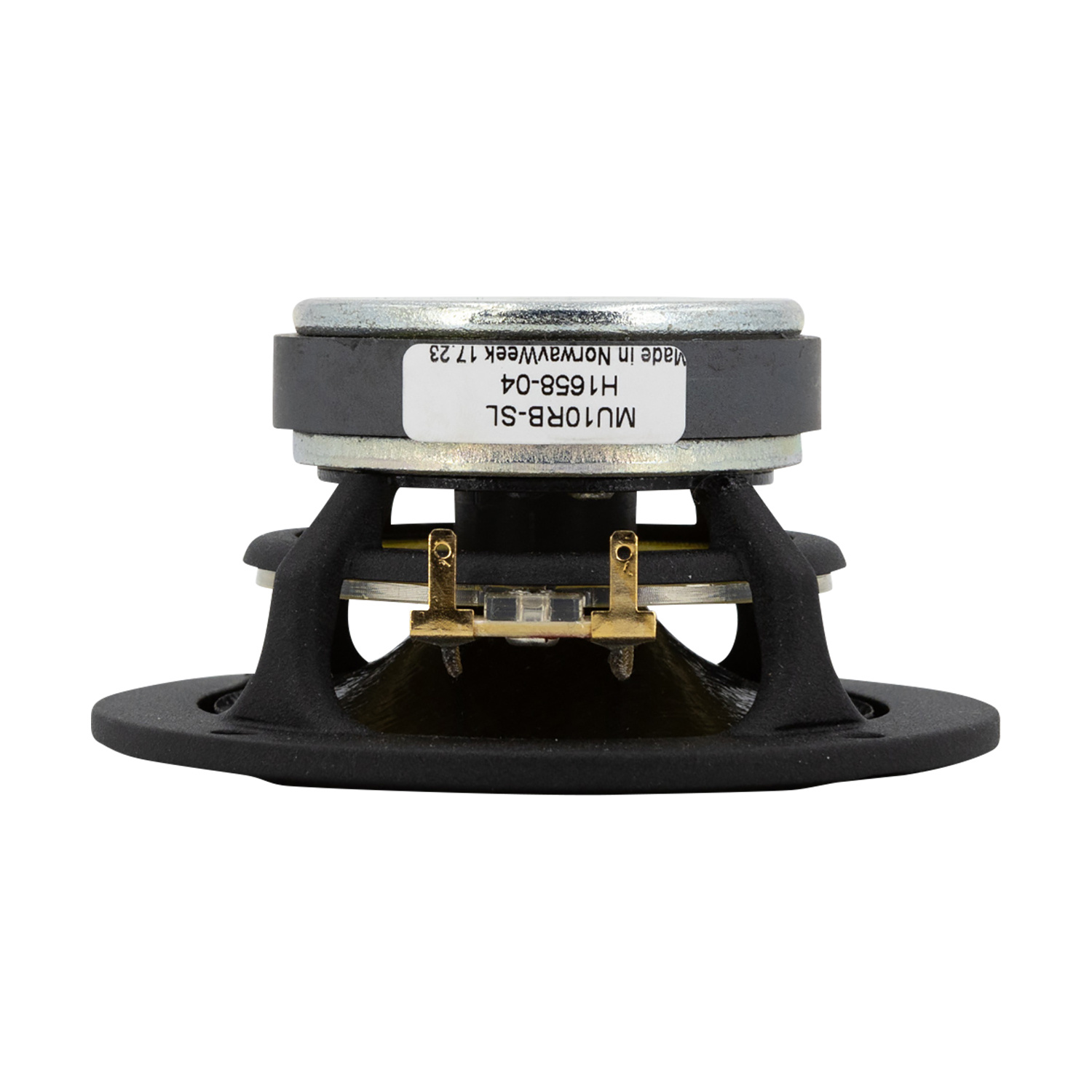

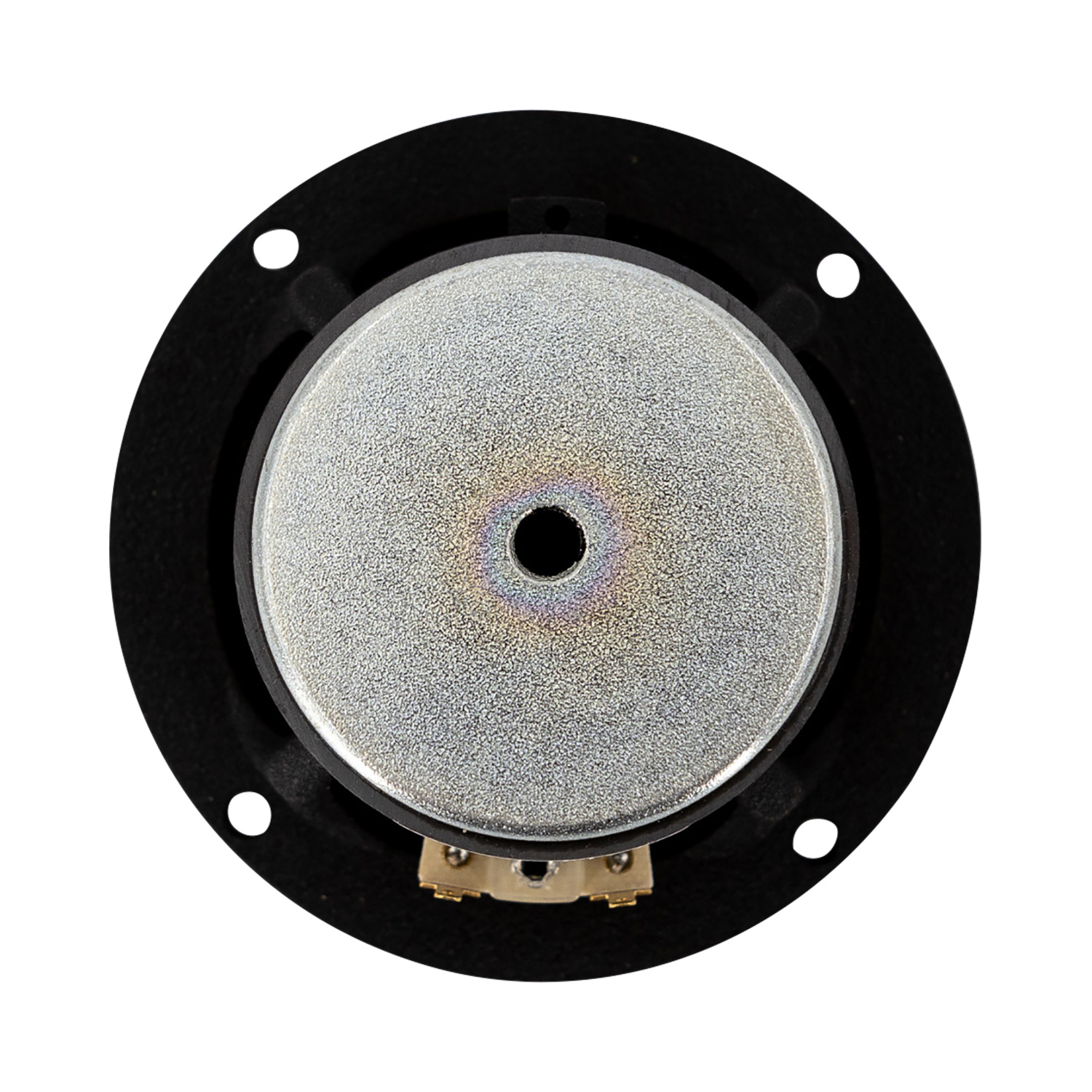

Seas Prestige MU10RB-SL - H1658-04 4" Woven Poly Cone Midrange



The MU10RB is a 4” midrange driver offering an extraordinary performance and sound clarity. New Curv cone, a woven polypropylene with excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response.



A high loss natural rubber surround makes this driver perform its best as a midrange. The large, open weave fabric spider reflects very little acoustic energy to the cone and offers excellent stiffness linearity. A stiff and stable injection molded aluminum chassis keeps the critical components in perfect alignment.



The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.

Eigenschaften

Artikelnummer:
MU10RB-SL
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
4"
Power Handling (RMS)
40 Watts
Power Handling (max)
100 Watts
Impedance
4 ohms
Sensitivity
84.7 dB 2.83V/1m
Frequency Response
100 to 20,000 Hz
Voice Coil Diameter
0.31"
Magnet Weight
3.17 oz.
DC Resistance (Re)
3.3 ohms
Voice Coil Inductance (Le)
0.14 mH
Resonant Frequency (Fs)
100 Hz
Mechanical Q (Qms)
1.63
Electromagnetic Q (Qes)
1.15
Total Q (Qts)
0.67
Diaphragm Mass Inc. Airload (Mms)
4.51g
Mechanical Compliance of Suspension (Cms)
0.6 mm/N
Compliance Equivalent Volume (Vas)
0.03 ft.³
Maximum Linear Excursion (Xmax)
2 mm
Overall Outside Diameter
3.86"
Overall Depth
1.93"
Baffle Cutout Diameter
3.15"
Bolt Circle Diameter
3.5"
# Mounting Holes
4
Mounting Hole Diameter
0.2"
