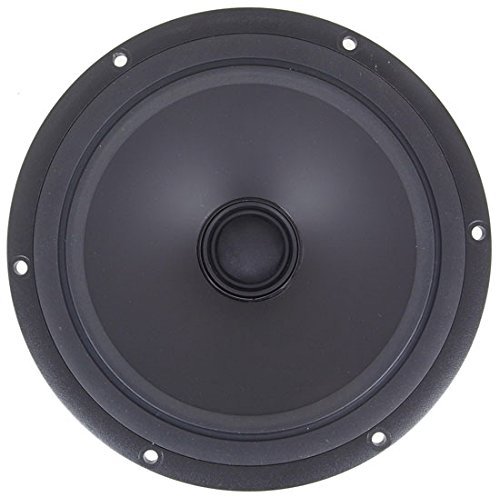

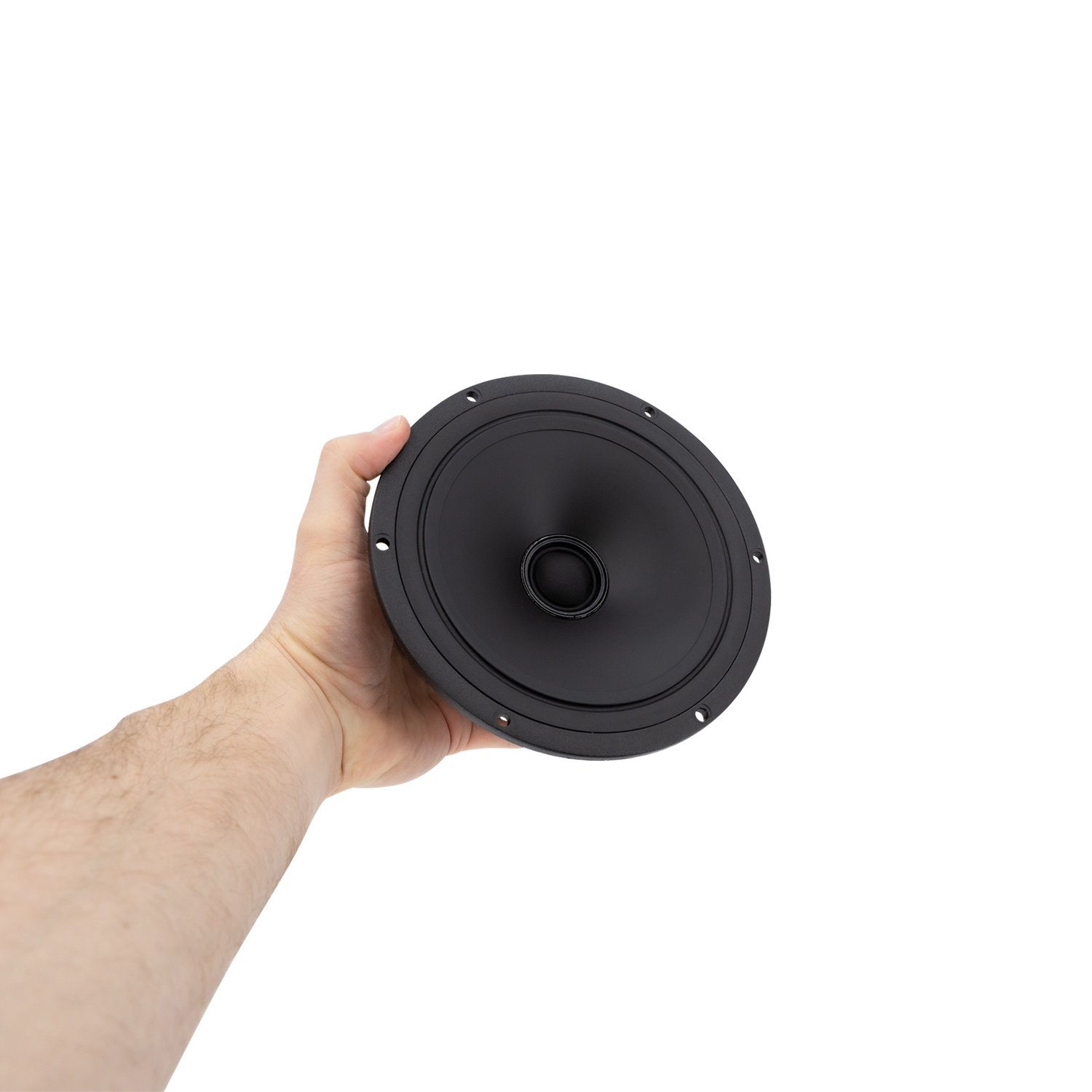

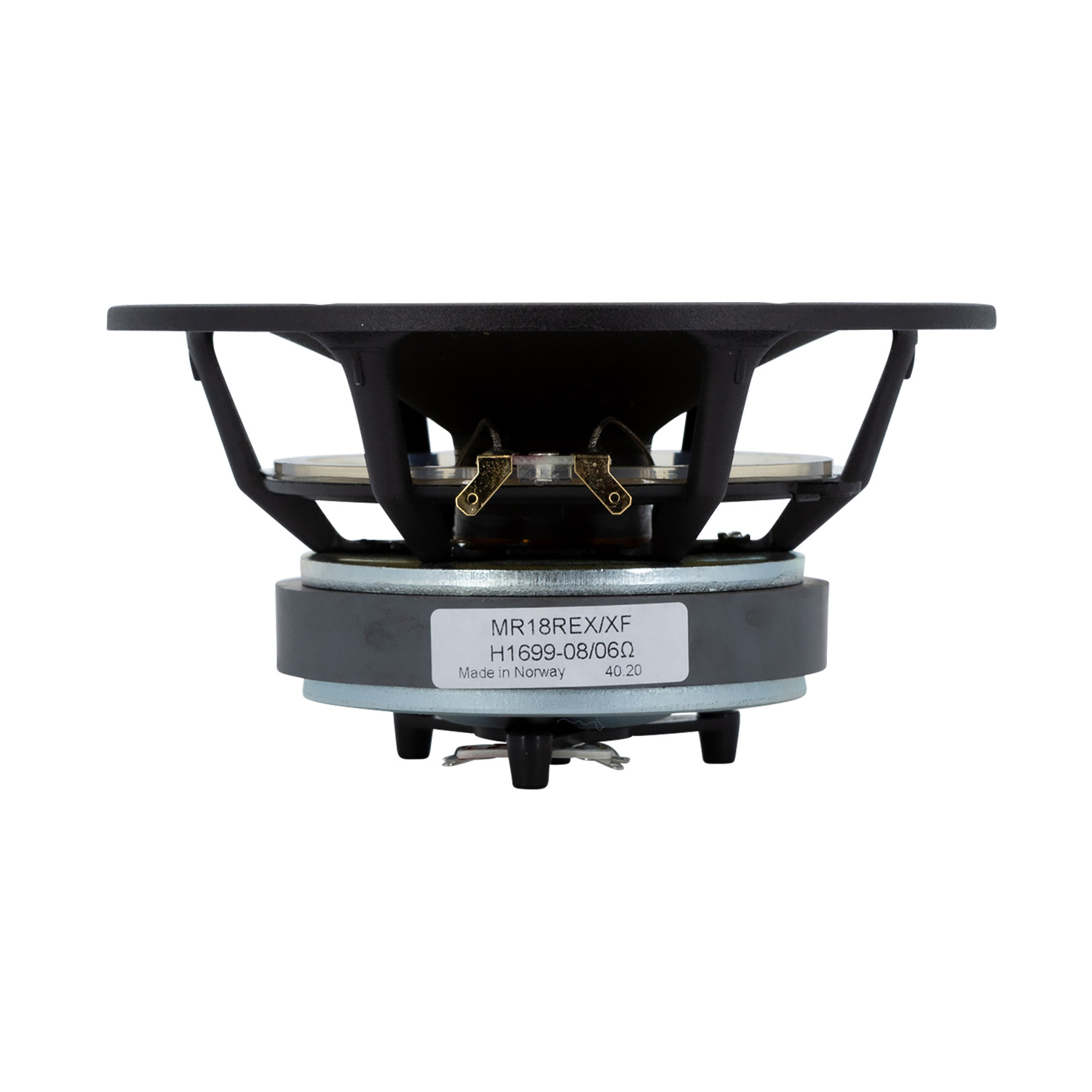

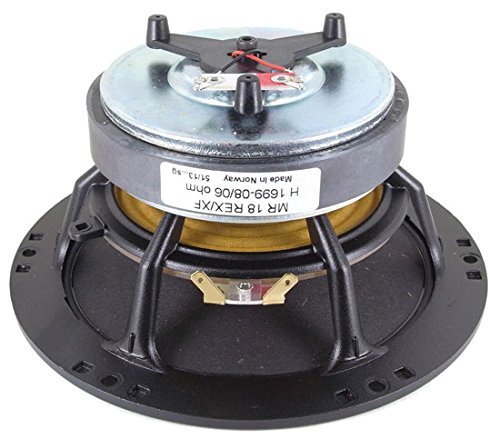

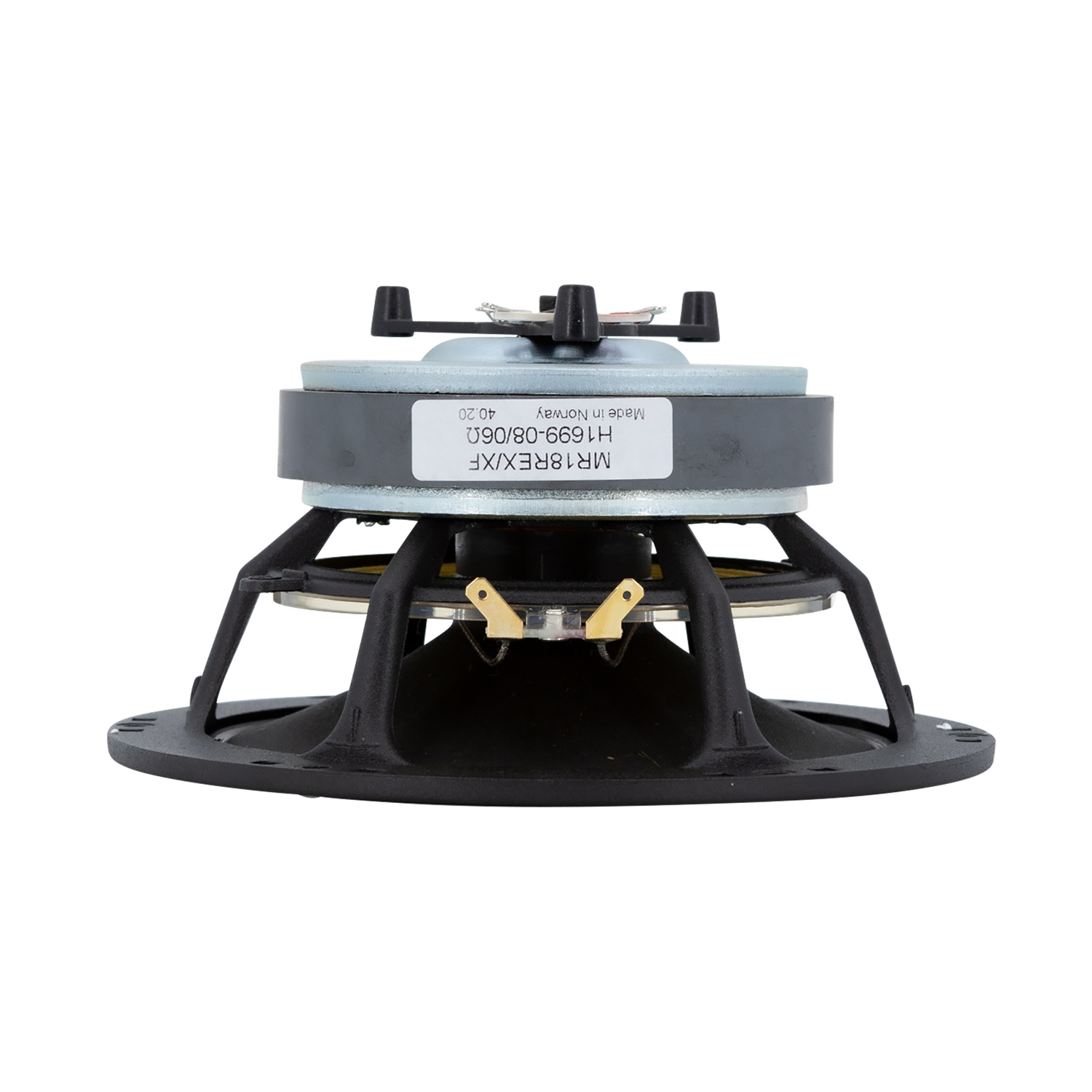

SEAS Prestige MR18REX/XF - H1699-08/06 7" Coaxial Woofer

€ 144,59€ 174,95 8 Auf Lager: Lieferzeit 1-3 Werktage
The MR18REX/XF is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €166,20 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 80 Watts (Woofer) and 90 Watts (Tweeter)
  • The coaxially arranged precoated fabric dome high frequency unit has a low resonance frequency and integrates with the cone driver to a point source
  • The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range



Product details

Seas Prestige MR18REX/XF - H1699-08/06 7" Coaxial Woofer



The MR18REX/XF is a midrange coaxial loudspeaker providing high quality sound in a very compact format. The cone of the midrange acts as a horn loading for the tweeter, and the chassis of the dome unit represents the throat of this horn.



The coaxially arranged precoated fabric dome high frequency unit has a smooth frequency response and integrates with the cone driver to a point source. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The pre-coated reed-paper cone acts as a piston throughout the recommended frequency range. The completely new rubber surround reduces resonances and prevents surround break up in the midrange band.



The surround’s small inverted roll, combined with a profile that follows the shape of the cone, results in almost total elimination of diffraction effects on the tweeter’s output.

Eigenschaften

Artikelnummer:
MR18REX/XF
Woofer Series
Prestige Series
Woofer Type
Coaxial
Nominal Diameter
7"
Power Handling (RMS)
80 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
89 dB 2.83V/1m
Frequency Response
220 - 25,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
22.5 oz.
DC Resistance (Re)
6.2 ohms
Voice Coil Inductance (Le)
0.43 mH
Resonant Frequency (Fs)
126 Hz
Mechanical Q (Qms)
2.49
Electromagnetic Q (Qes)
0.96
Total Q (Qts)
0.69
Diaphragm Mass Inc. Airload (Mms)
0.16g
Mechanical Compliance of Suspension (Cms)
0.1 mm/N
Compliance Equivalent Volume (Vas)
0.10 ft.³
Maximum Linear Excursion (Xmax)
3 mm
Overall Outside Diameter
6.93"
Overall Depth
3.69"
Baffle Cutout Diameter
5.72"
Bolt Circle Diameter
6.54"
# Mounting Holes
6
