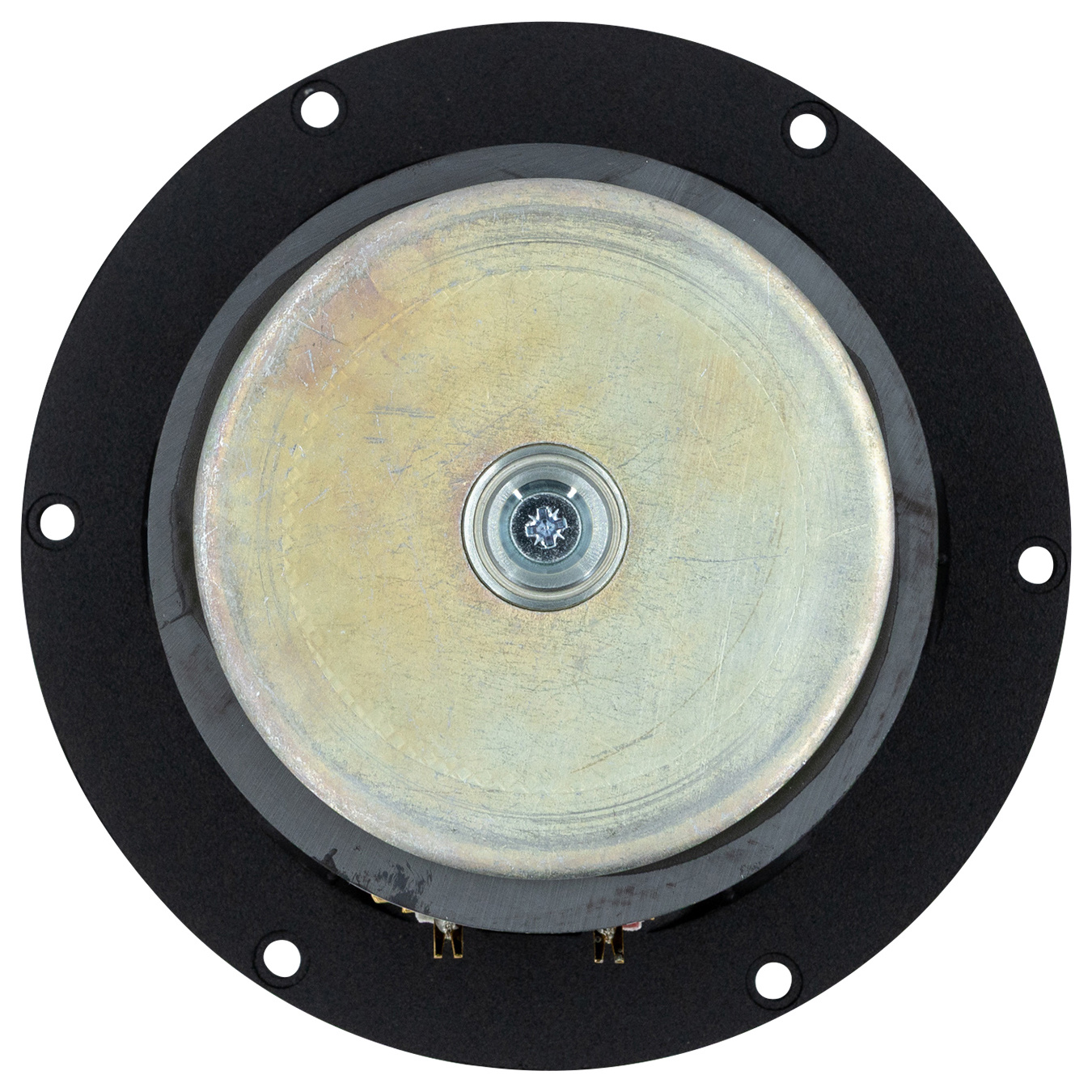

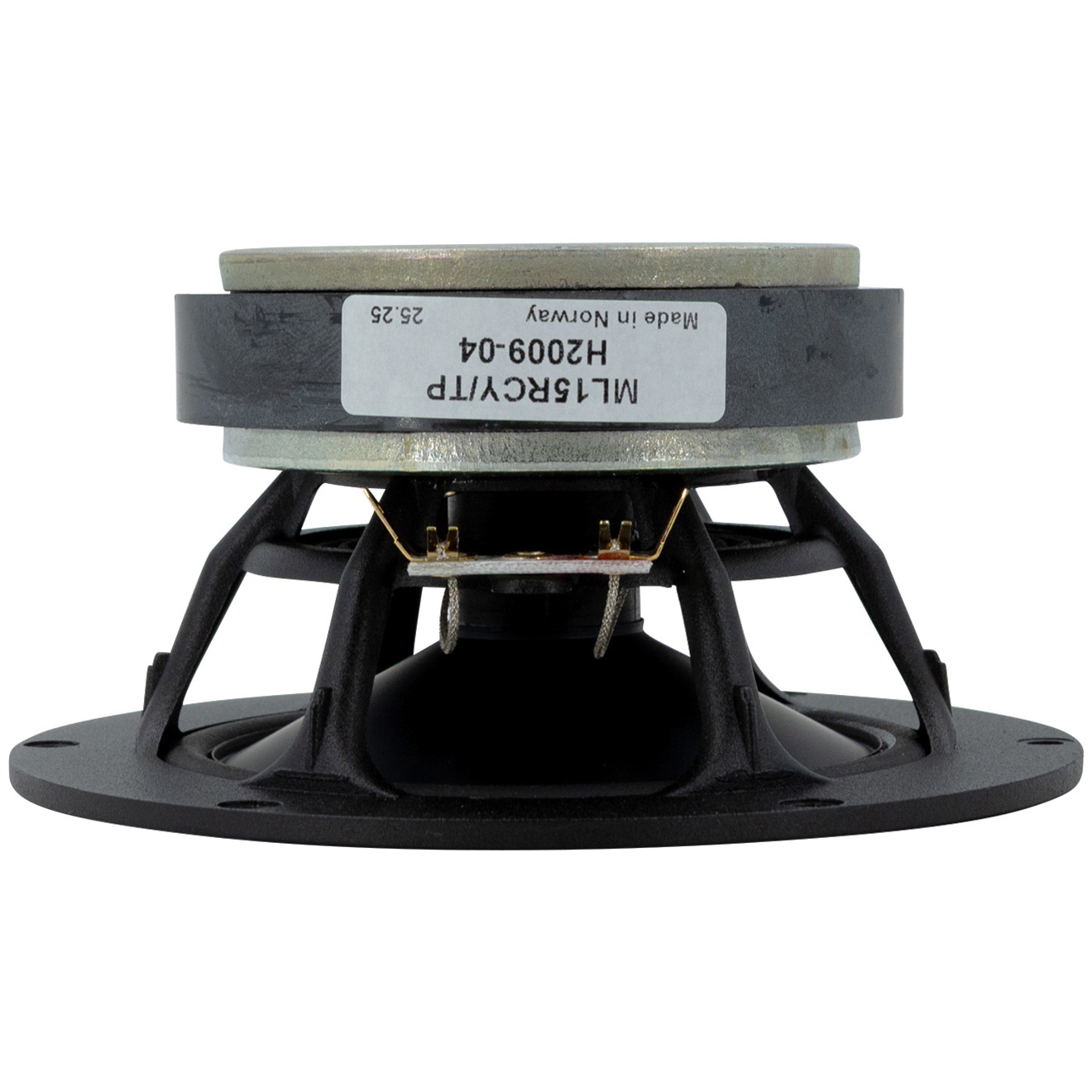

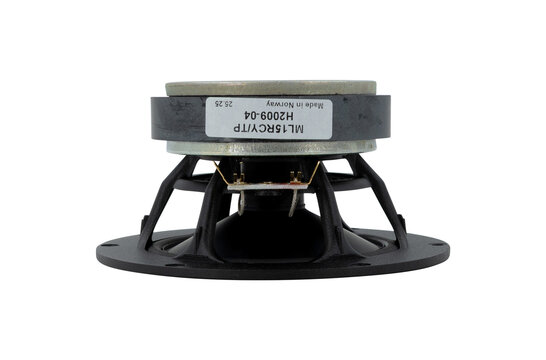

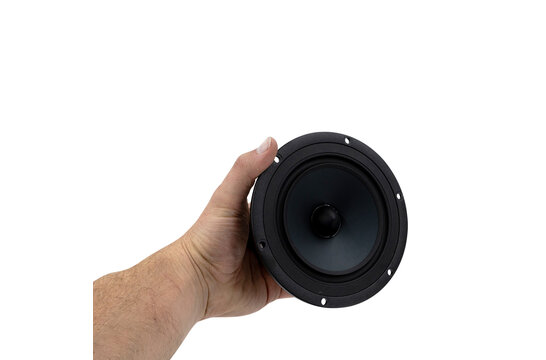

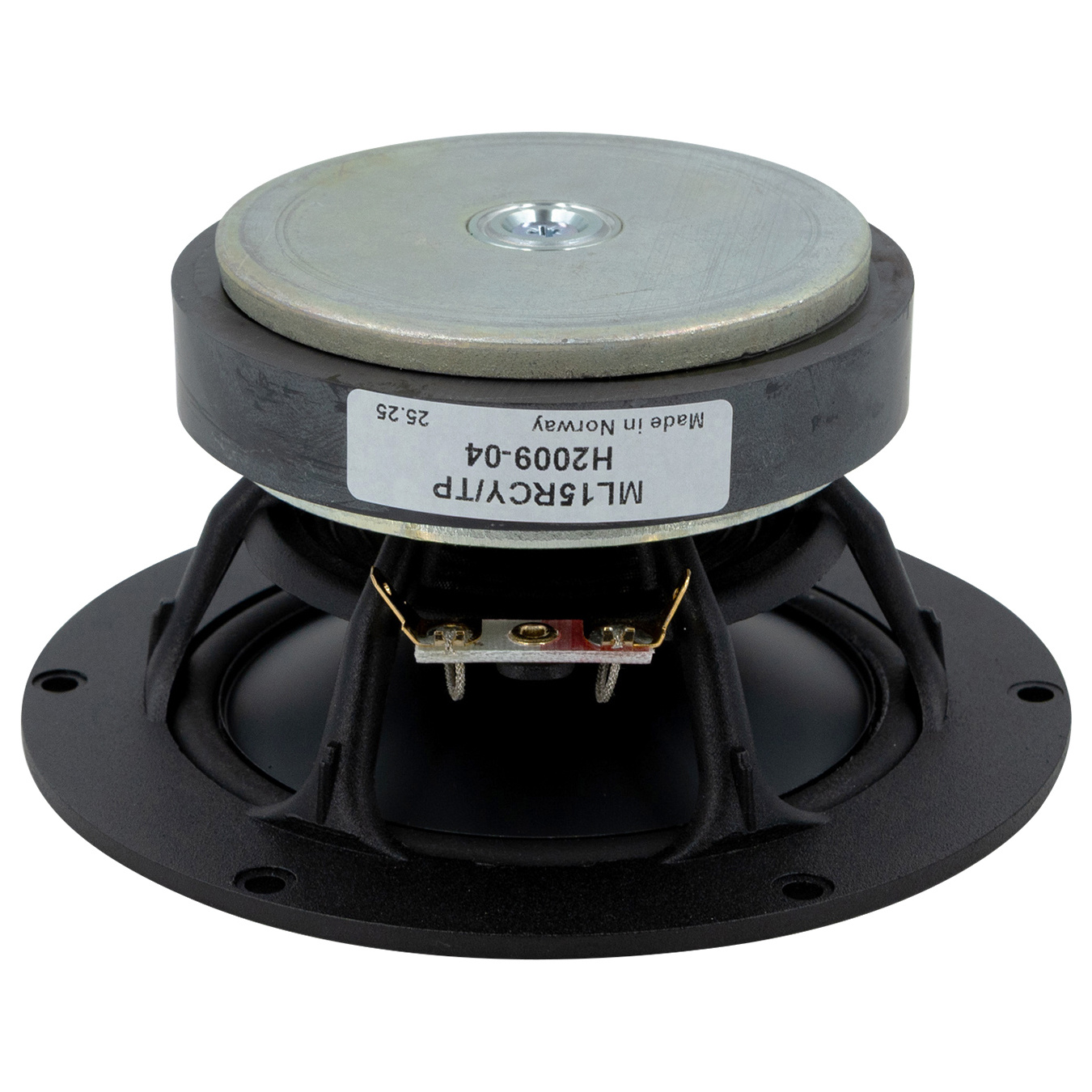

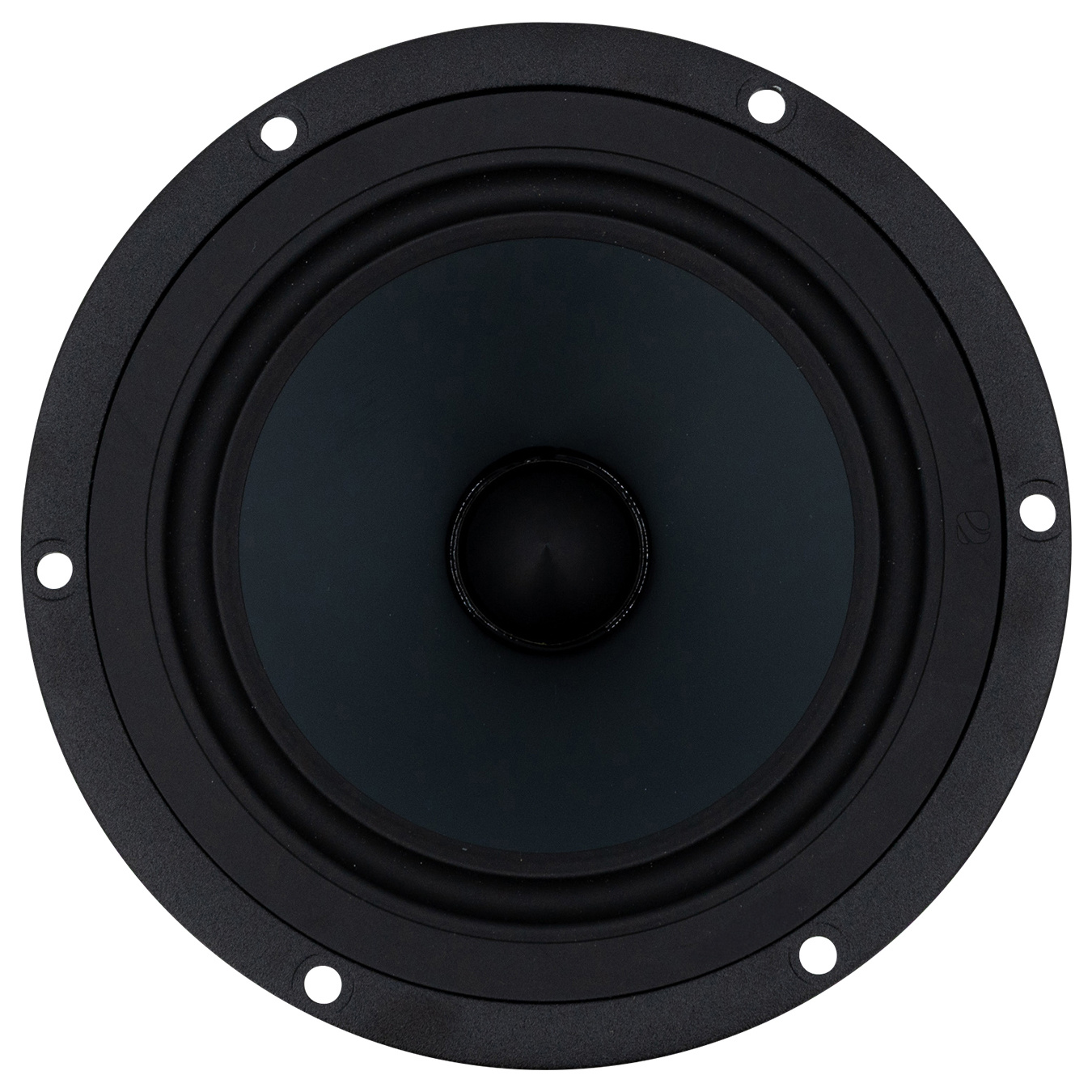

      ML15RCY/TP - H2009-04 Mid-range woofer

      SEAS ML15RCY/TP - H2009-04 Mid-range woofer

      €179,95

      4 Auf Lager

      Zum Warenkorb hinzufügen

      SEAS ML15RCY/TP - H2009-04 Mid-range woofer

      0 reviews
      0 von 5
      0 reviews
      5 Sterne
      0%
      4 Sterne
      0%
      3 Sterne
      0%
      2 Sterne
      0%
      1 Stern
      0%
      Alle Bewertungen anzeigen
      Marke: SEAS
      Zeige alle Mitteltöner
      8" | 4 Ω
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      148,72 €179,95 € 4 Auf Lager
      • -5% Bestelle 4 für nur 170,95 € je Stück
      +-
      Zum Warenkorb hinzufügen

      Buy now, pay later

      • Kostenloser Versand (DE & A)
      • Jetzt bestellt, heute versendet
      • Mindestens zwei Jahre Garantie
      • 45 Tage Widerrufsrecht
      • Kundenbewertung:
      Angebot anfordern
      Haben Sie eine Frage zu diesem Produkt?

      Haben Sie eine Frage zu diesem Produkt?

      Unser Mitarbeiter hilft Ihnen gerne, das richtige Produkt zu finden

      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer
      ML15RCY/TP - H2009-04 Mid-range woofer

      Produktbeschreibung SEAS ML15RCY/TP - H2009-04 Mid-range woofer

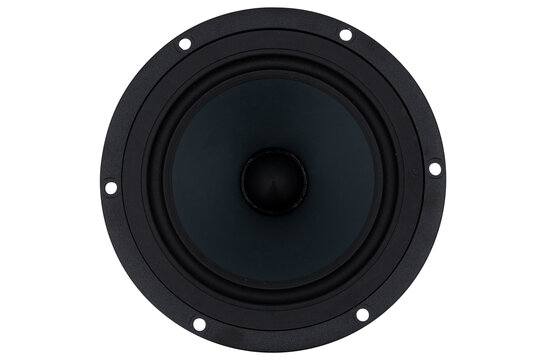

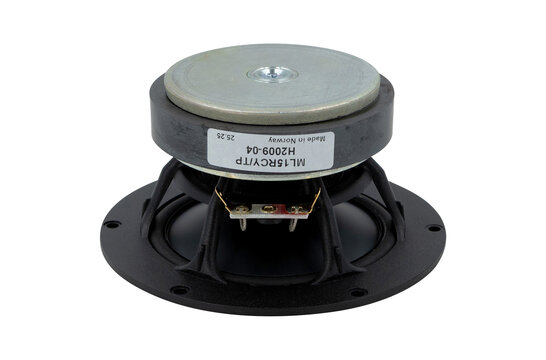

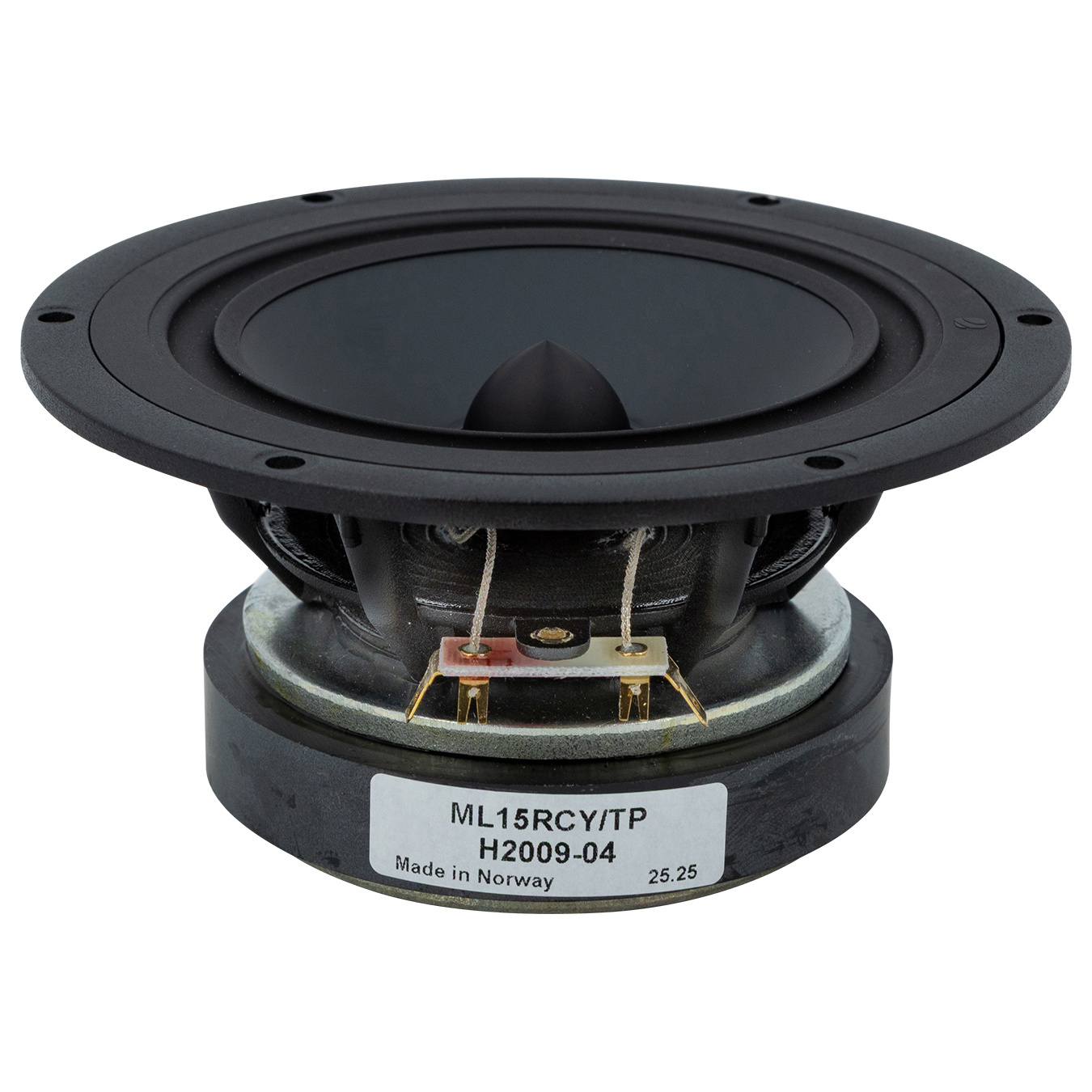

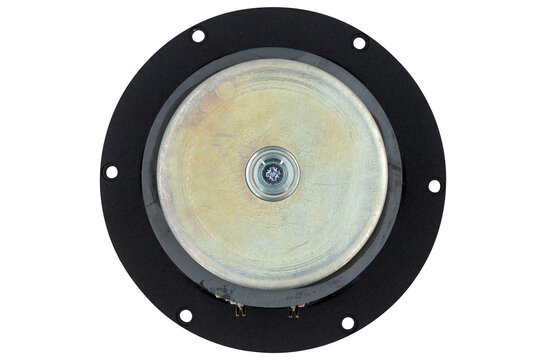

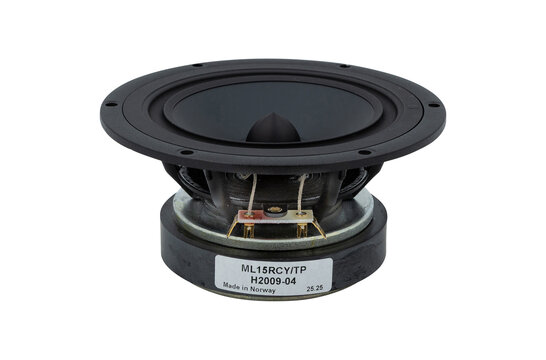

      The SEAS ML15RCY/TP is a 15 cm (5.5") precision-engineered pure midrange driver featuring a rigid anodized aluminium cone and a low-resonance motor structure. Designed for closed box implementation in multi-way high-performance loudspeakers, this driver delivers exceptional clarity, transient accuracy, and tonal neutrality across the midrange band.



      Highlights of the SEAS ML15RCY/TP

      • Anodized aluminium cone ensures high breakup frequency and clean pistonic operation
      • FEA-optimized magnet system with copper sleeve for low distortion and linear response
      • Titanium voice coil former and short copper winding for fast transients and low damping
      • Inverted rubber surround and open-frame basket for reduced diffraction and optimized airflow



      Product details SEAS ML15RCY/TP

      SEAS ML15RCY/TP Midrange Driver



      The SEAS ML15RCY/TP is a high-fidelity pure midrange driver optimized for sealed enclosure use in advanced multi-way speaker systems. Its anodized aluminium cone is engineered to extend the break-up frequency well beyond the usable range, allowing the cone to remain in pistonic motion across its passband. This design minimizes coloration and ensures clean, natural reproduction of vocals and instruments.



      The FEA-optimized magnet system incorporates a precisely machined copper sleeve that enhances linearity and reduces distortion, even under high dynamic loads. The titanium voice coil former paired with a short copper winding increases force transfer efficiency and keeps mechanical damping low, enabling the driver to reproduce transient details with precision and finesse.



      Additional design refinements include an inverted rubber surround that mitigates edge diffraction and a rigid, open-frame die-cast basket that maintains structural alignment while promoting optimal airflow. These elements work together to support a flat, uncoloured frequency response and accurate imaging, making the ML15RCY/TP an ideal choice for audiophile-grade loudspeaker builds.

      Mehr anzeigen

      Eigenschaften

      Artikelnummer:
      ML15RCY/TP
      EAN
      9506657265393
      Tieftöner-Serie
      SEAS Prestige series
      Tieftönertyp
      Mid-range woofer
      Nenndurchmesser
      5.5"
      Belastbarkeit (QMW)
      100 Watts
      Belastbarkeit (max)
      200 Watts
      Impedanz (Z)
      4 Ω
      Empfindlichkeit (SPL bei 1m / 2,83V)
      90 dB
      Frequenzgang
      100 - 5.000 Hz
      Schwingspulendurchmesser
      25 mm
      Gleichstromwiderstand (Re)
      3 Ω
      Schwingspuleninduktion (Le)
      0.24 mH
      Resonanzfrequenz (Fs)
      48 Hz
      Mechanische Güte (Qms)
      3.53
      Elektrische Güte (Qes)
      0.35
      Gesamtgüte (Qts)
      0.32
      Bewegliche Masse (Mms)
      8.6 g
      Membranfläche (Sd)
      75 cm²
      Kraftfaktor (BL)
      4.8 N/A
      Äquivalentvolumen (Vas)
      10 Liters
      Maximale Auslenkung (Xmax)
      6.8 mm
      Sicke-Material
      Rubber
      Schwingspulendrahtmaterial
      Copper
      Schwingspulenformmaterial
      Titanium
      Korb- / Rahmenmaterial
      Aluminium
      Außendurchmesser
      146 mm
      Gesamttiefe
      71.7 mm
      Ausschnittdurchmesser
      105 mm
      Bolt Circle Diameter
      136.5 mm
      # Befestigungsbohrungen
      6
      Durchmesser Befestigungslochs
      5 mm
