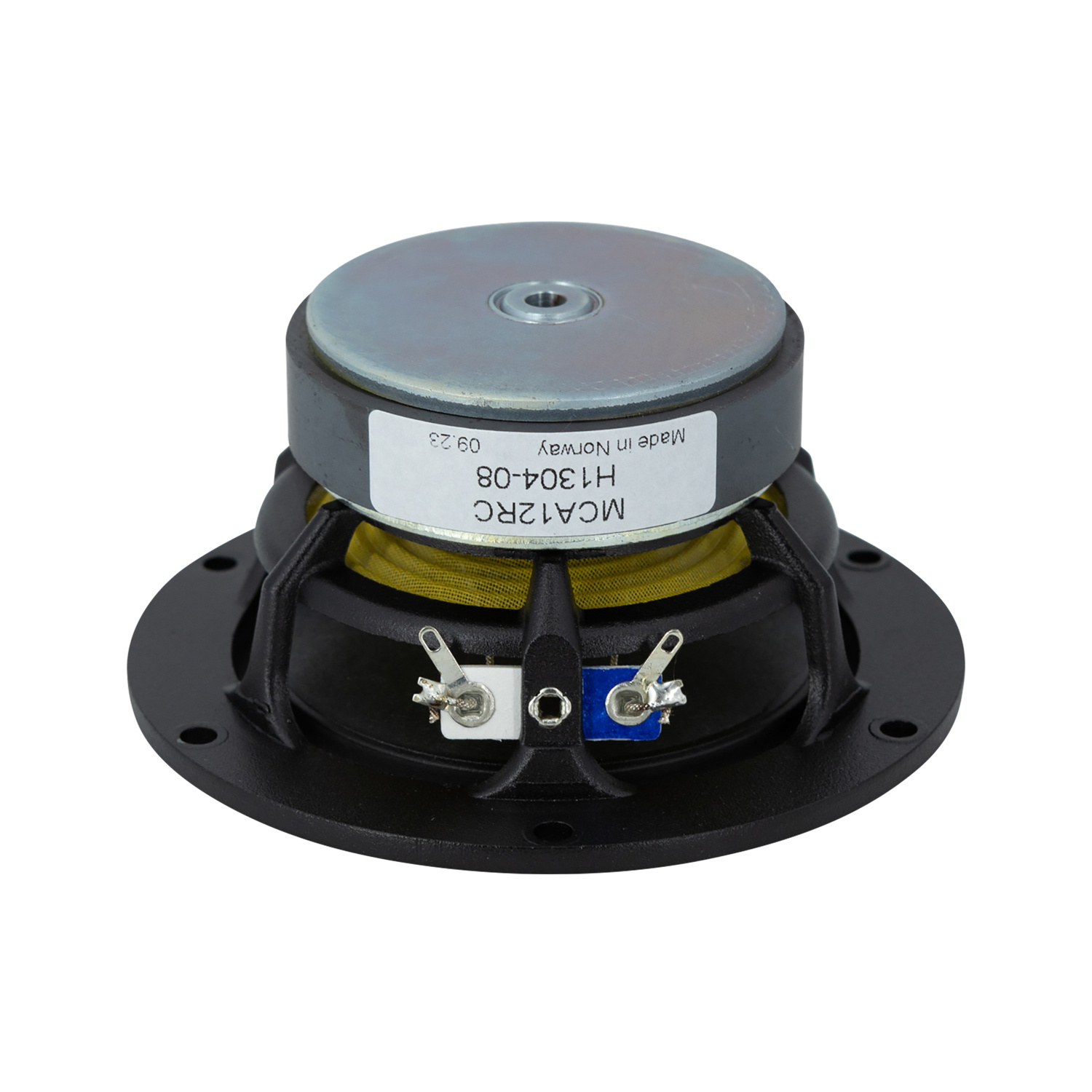

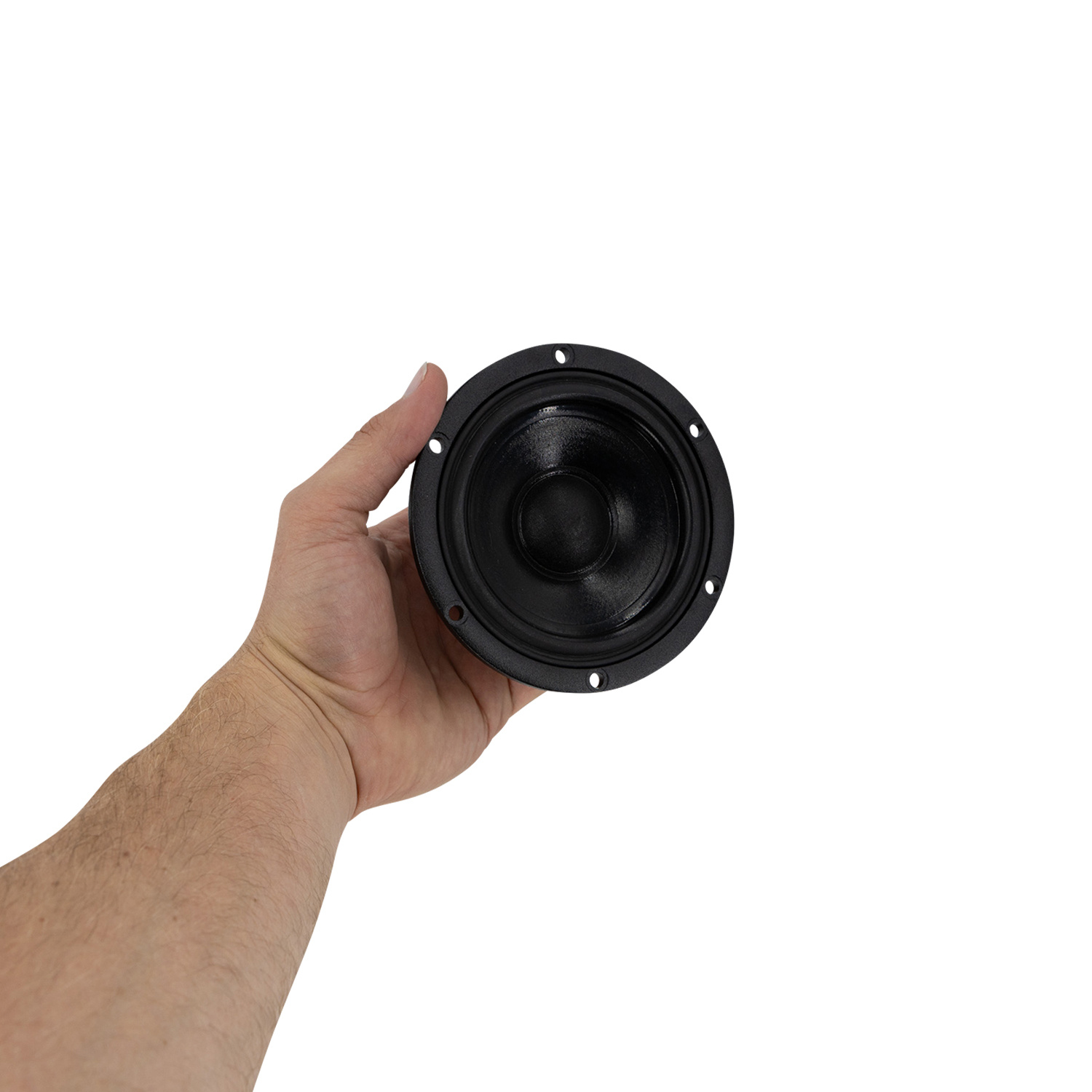

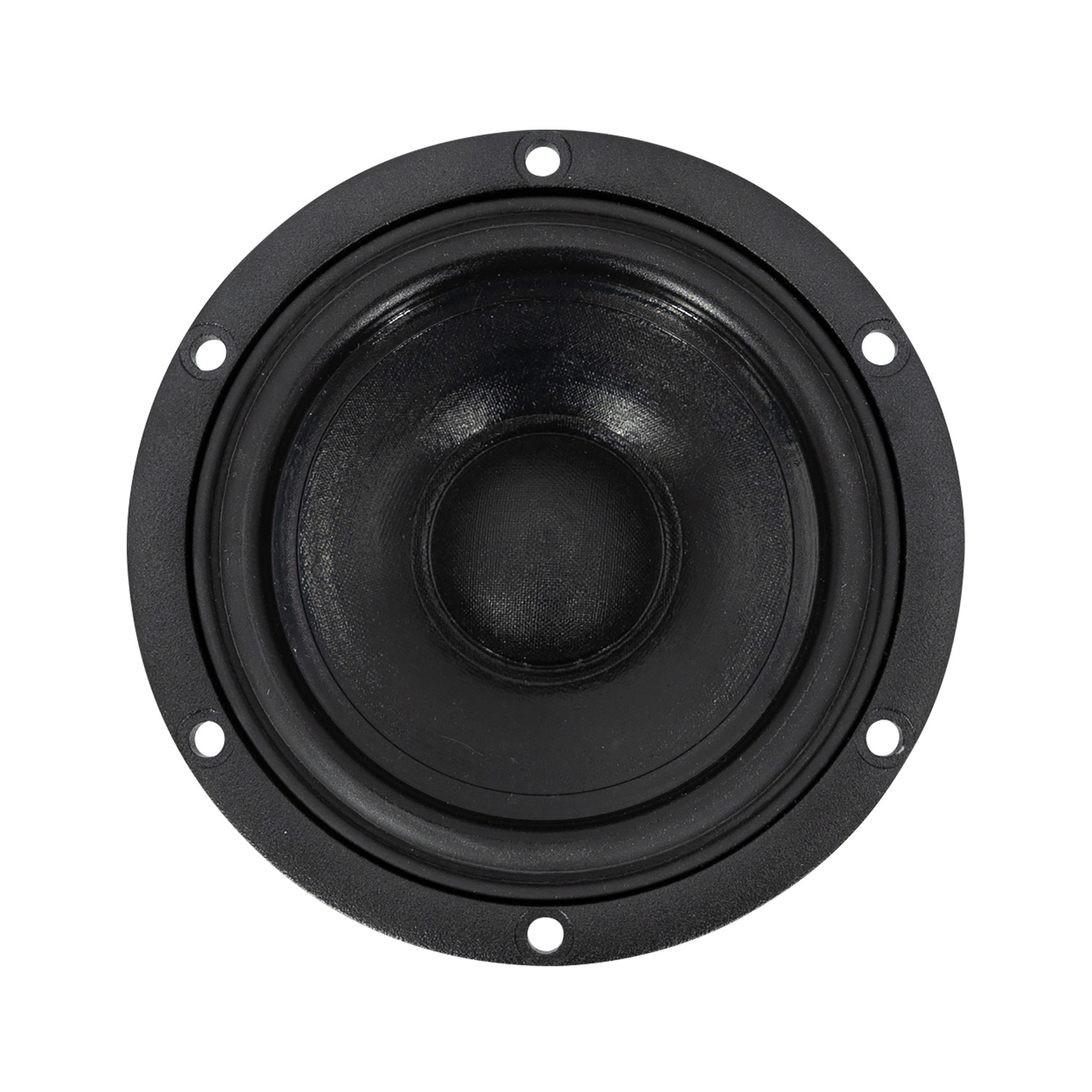

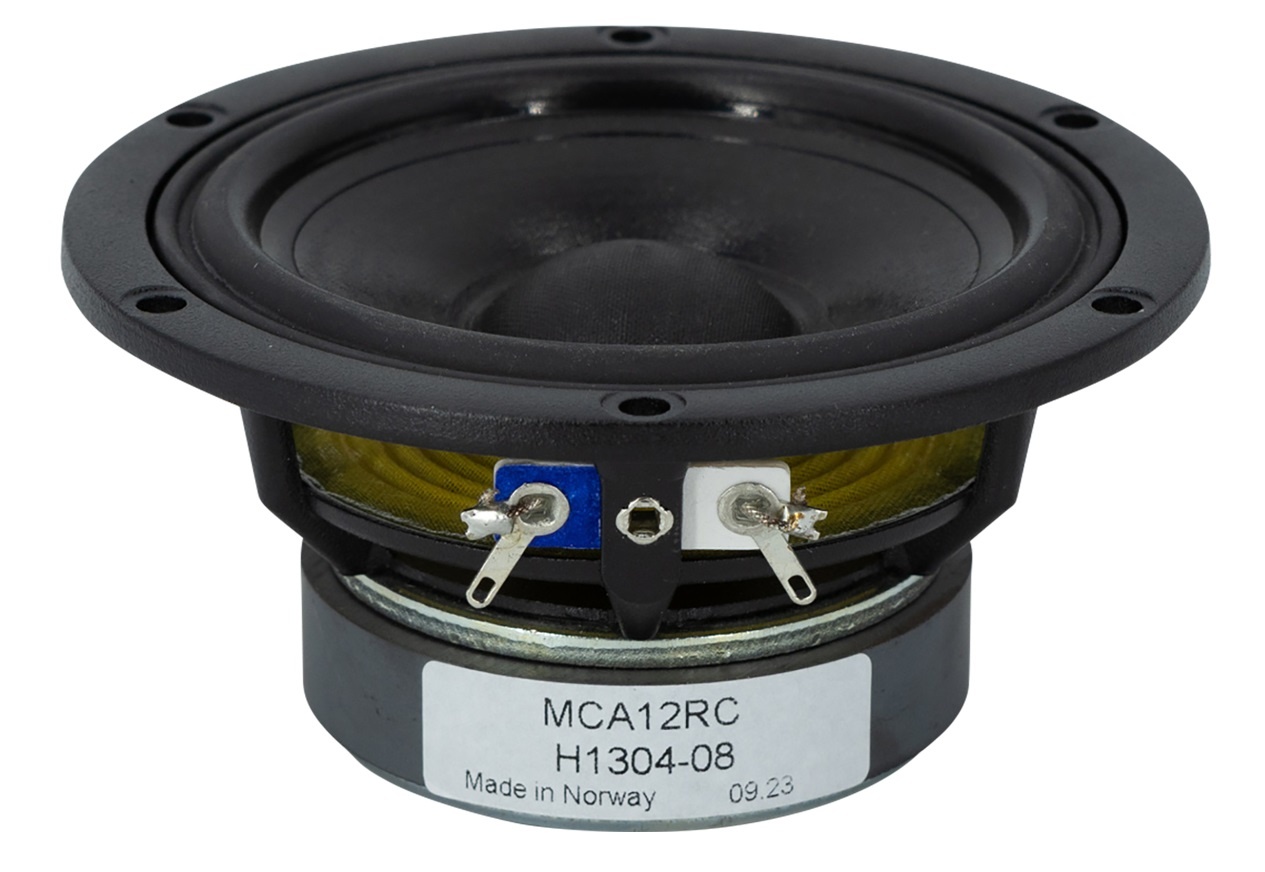

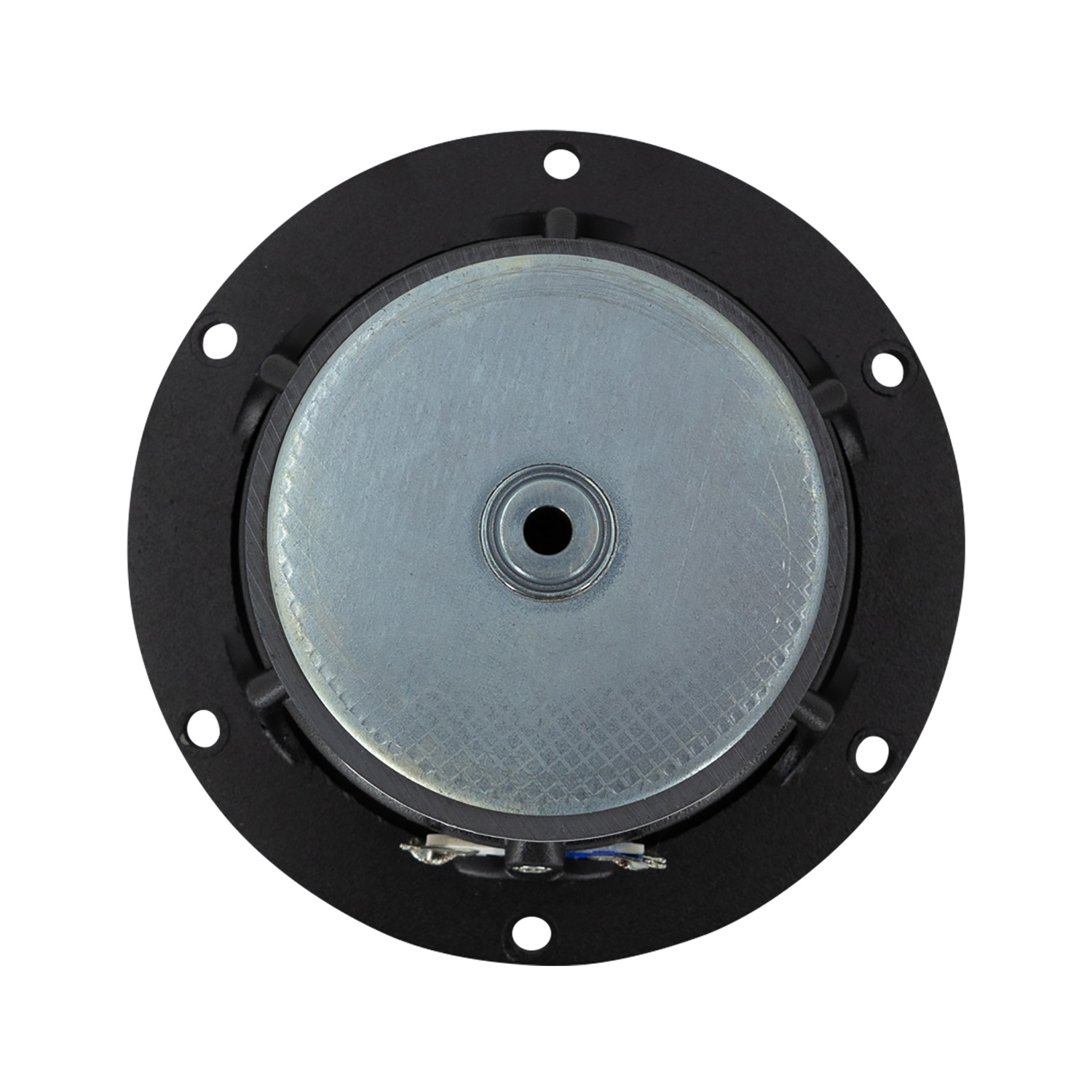

    SEAS Prestige MCA12RC - H1304 4.5" Coated Paper Midrange

    Marke: SEAS
    Alle anzeigen Audio-Komponenten
    4.5" | 8 Ω
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    € 72,45 3 Auf Lager: Lieferzeit 1-3 Werktage
    Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response. 1” high temperature voice coil is wound on an aluminum voice coil former to ensure a very high power handling capacity.... Mehr anzeigen
    Bulk discount Genießen Sie diese tollen Rabattangebote
    • -5% Kauf 4 für nur €68,83 pro stück
    +-
    In den Warenkorb legen
    • Kostenloser Versand ab 149€ (DE, A)
    • Versand am selben Tag*
    • Bezahlung mit PayPal, Kreditkarte und mehr
    • Hausinterner technischer Support
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
    Prestige MCA12RC - H1304 4.5" Coated Paper Midrange

    Produktbeschreibung

    Highlights

    • Long term power handling (RMS) is 110 Watts
    • Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response
    • Reduced sound reflexion, air flow noise and cavity resonance



    Product details

    Seas Prestige MCA12RC - H1304 4.5" Coated Paper Midrange



    Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response. 1” high temperature voice coil is wound on an aluminum voice coil former to ensure a very high power handling capacity.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

    Eigenschaften

    Artikelnummer:
    MCA12RC
    Woofer Series
    Prestige Series
    Nominal Diameter
    4.5"
    Power Handling (RMS)
    110 Watts
    Power Handling (max)
    400 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    400 to 5,000 Hz
    Voice Coil Diameter
    1.02"
    Magnet Weight
    8.81 oz.
    DC Resistance (Re)
    6.3 ohms
    Voice Coil Inductance (Le)
    0.31 mH
    Resonant Frequency (Fs)
    68 Hz
    Mechanical Q (Qms)
    2.42
    Electromagnetic Q (Qes)
    0.74
    Total Q (Qts)
    0.56
    Diaphragm Mass Inc. Airload (Mms)
    4.58g
    Mechanical Compliance of Suspension (Cms)
    1.2 mm/N
    Compliance Equivalent Volume (Vas)
    0.17 ft.³
    Maximum Linear Excursion (Xmax)
    0.9 mm
    Overall Outside Diameter
    4.74"
    Overall Depth
    2.38"
    Baffle Cutout Diameter
    3.77"
    Bolt Circle Diameter
    4.36"
    # Mounting Holes
    6
    Mounting Hole Diameter
    0.2"
