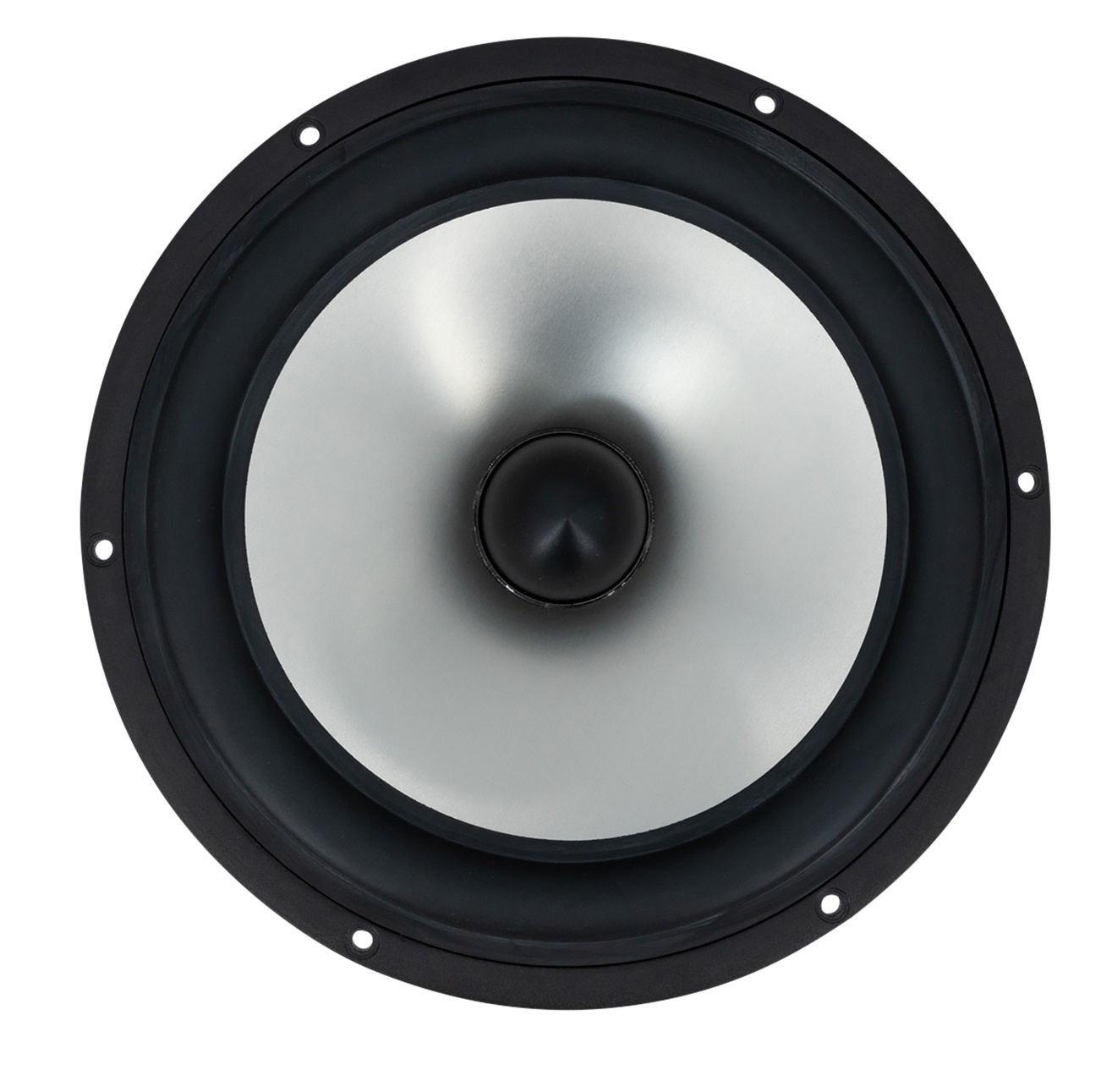

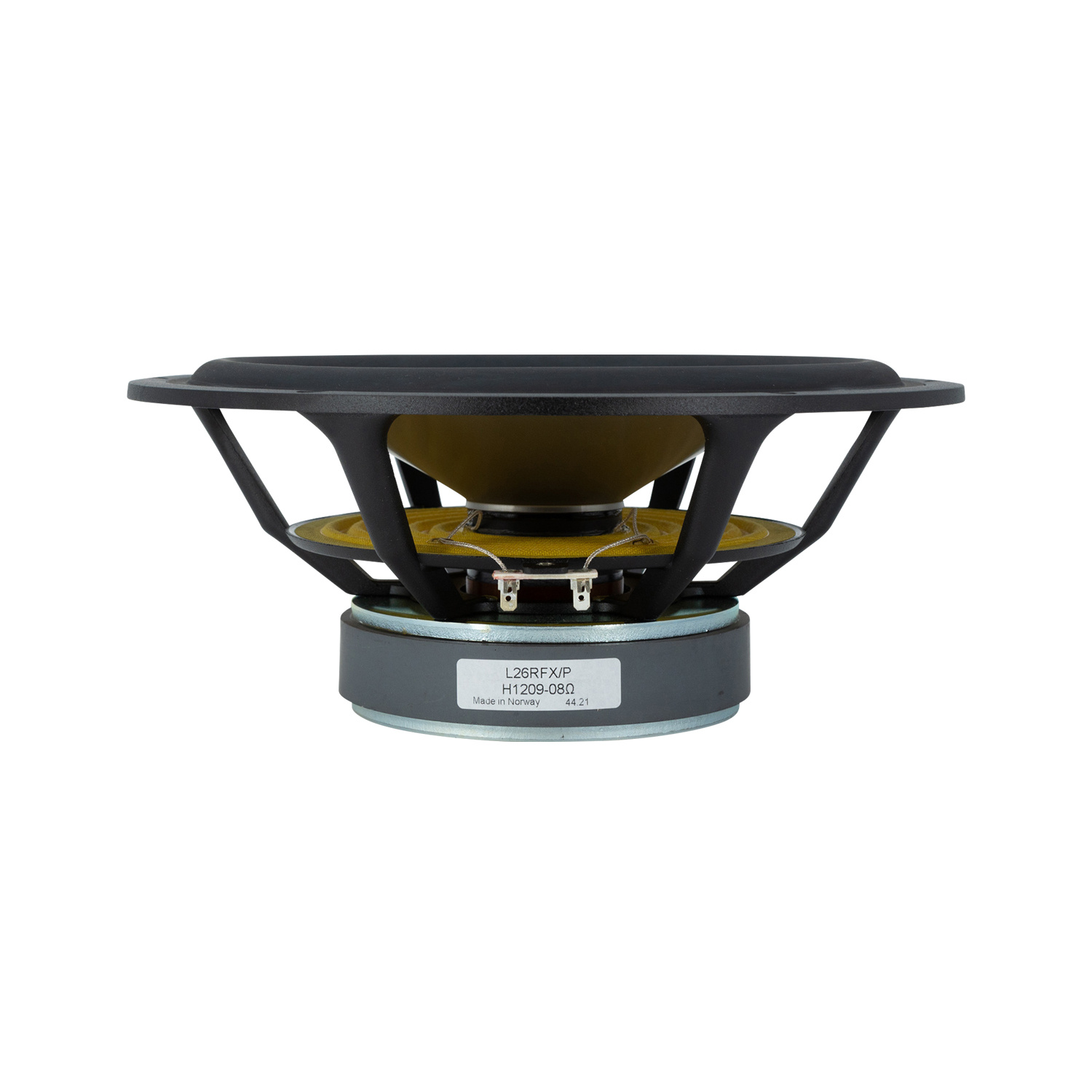

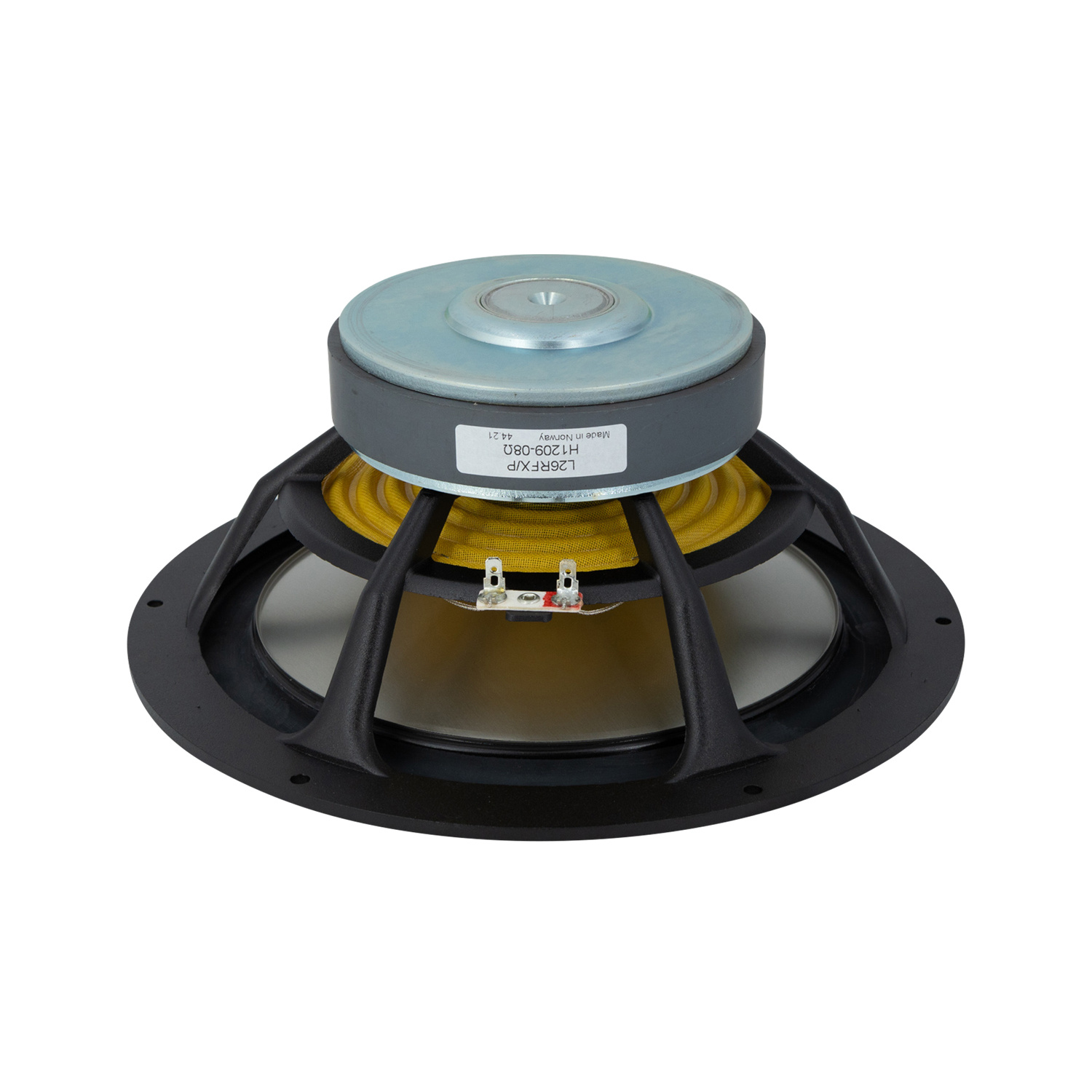

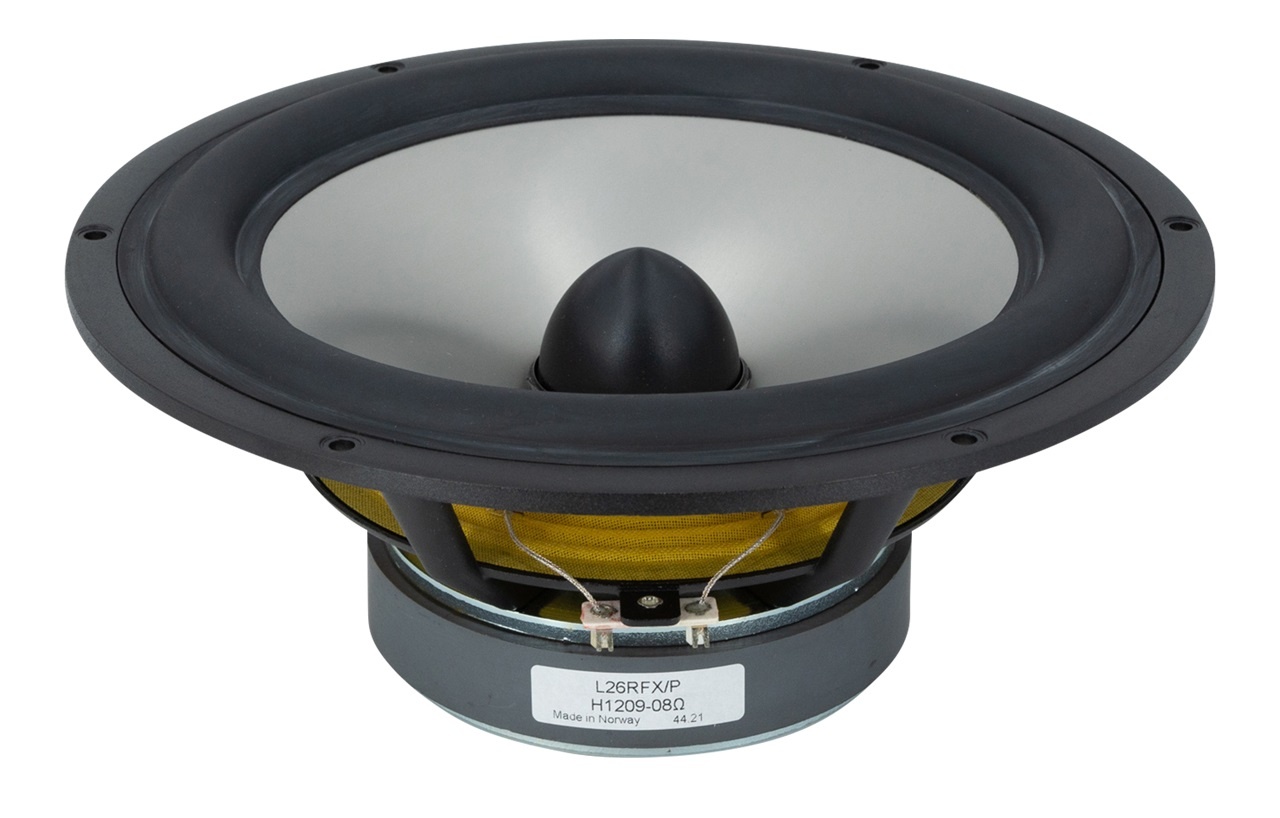

SEAS Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer

€ 140,45€ 169,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €161,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 125 Watts
  • 2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

Seas Prestige L26RFX/P - H1209 10" Aluminum Cone Woofer



Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones.



2” diameter high temperature voice coil with black anodized aluminum coil former gives high power handling and reduced power compression. Large magnet system gives good sensitivity and transient response. Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
L26RFX/P
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
10"
Power Handling (RMS)
125 Watts
Power Handling (max)
300 Watts
Impedance
8 ohms
Sensitivity
88 dB 2.83V/1m
Frequency Response
20 to 1,000 Hz
Voice Coil Diameter
2"
Magnet Weight
45.8 oz.
DC Resistance (Re)
6.3 ohms
Voice Coil Inductance (Le)
1.83 mH
Resonant Frequency (Fs)
20 Hz
Mechanical Q (Qms)
2.15
Electromagnetic Q (Qes)
0.39
Total Q (Qts)
0.33
Diaphragm Mass Inc. Airload (Mms)
53g
Mechanical Compliance of Suspension (Cms)
1.2 mm/N
Compliance Equivalent Volume (Vas)
6.03 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
10.59"
Overall Depth
4.46"
Baffle Cutout Diameter
9.14"
Bolt Circle Diameter
10.08"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
