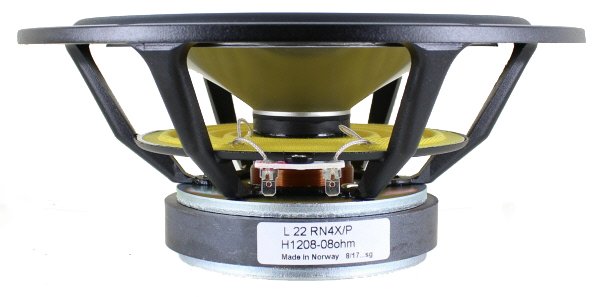

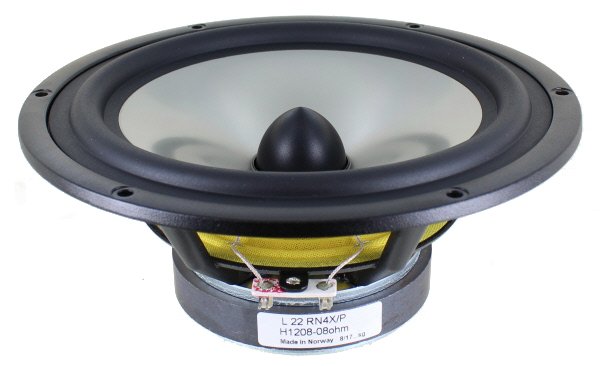

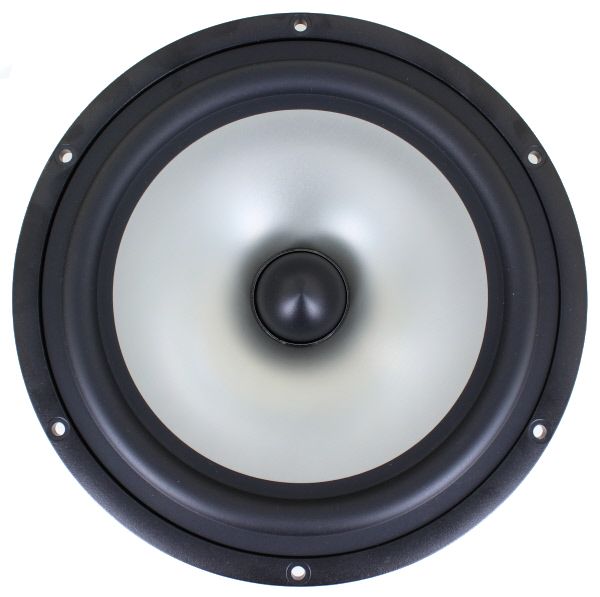

SEAS Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer

€ 82,60€ 99,95 >10 Auf Lager: Lieferzeit 1-3 Werktage
Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. 4-layer, extremely long, high temperature voice coil wound... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €94,95 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 110 Watts
  • Extremely stiff aluminum cone provides tremendous bass precision
  • Large magnet system provides reasonably high efficiency and low Q



Product details

Seas Prestige L22RN4X/P - H1208 8" Aluminum Cone Woofer



Extremely stiff aluminum cone gives tremendous bass precision. The cone and the low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones. 4-layer, extremely long, high temperature voice coil wound on an aluminum voice coil former gives a high power handling capacity.



Phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the power handling capacity. Large magnet system provides reasonably high efficiency and low Q.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
L22RN4X/P
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
8"
Power Handling (RMS)
125 Watts
Power Handling (max)
300 Watts
Impedance
8 ohms
Sensitivity
86.5 dB 2.83V/1m
Frequency Response
20 to 1,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
22.5 oz.
DC Resistance (Re)
6.1 ohms
Voice Coil Inductance (Le)
3.76 mH
Resonant Frequency (Fs)
21 Hz
Mechanical Q (Qms)
3.13
Electromagnetic Q (Qes)
0.29
Total Q (Qts)
0.27
Diaphragm Mass Inc. Airload (Mms)
40g
Mechanical Compliance of Suspension (Cms)
1.4 mm/N
Compliance Equivalent Volume (Vas)
3.28 ft.³
Maximum Linear Excursion (Xmax)
7 mm
Overall Outside Diameter
8.69"
Overall Depth
3.76"
Baffle Cutout Diameter
7.34"
Bolt Circle Diameter
8.25"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
