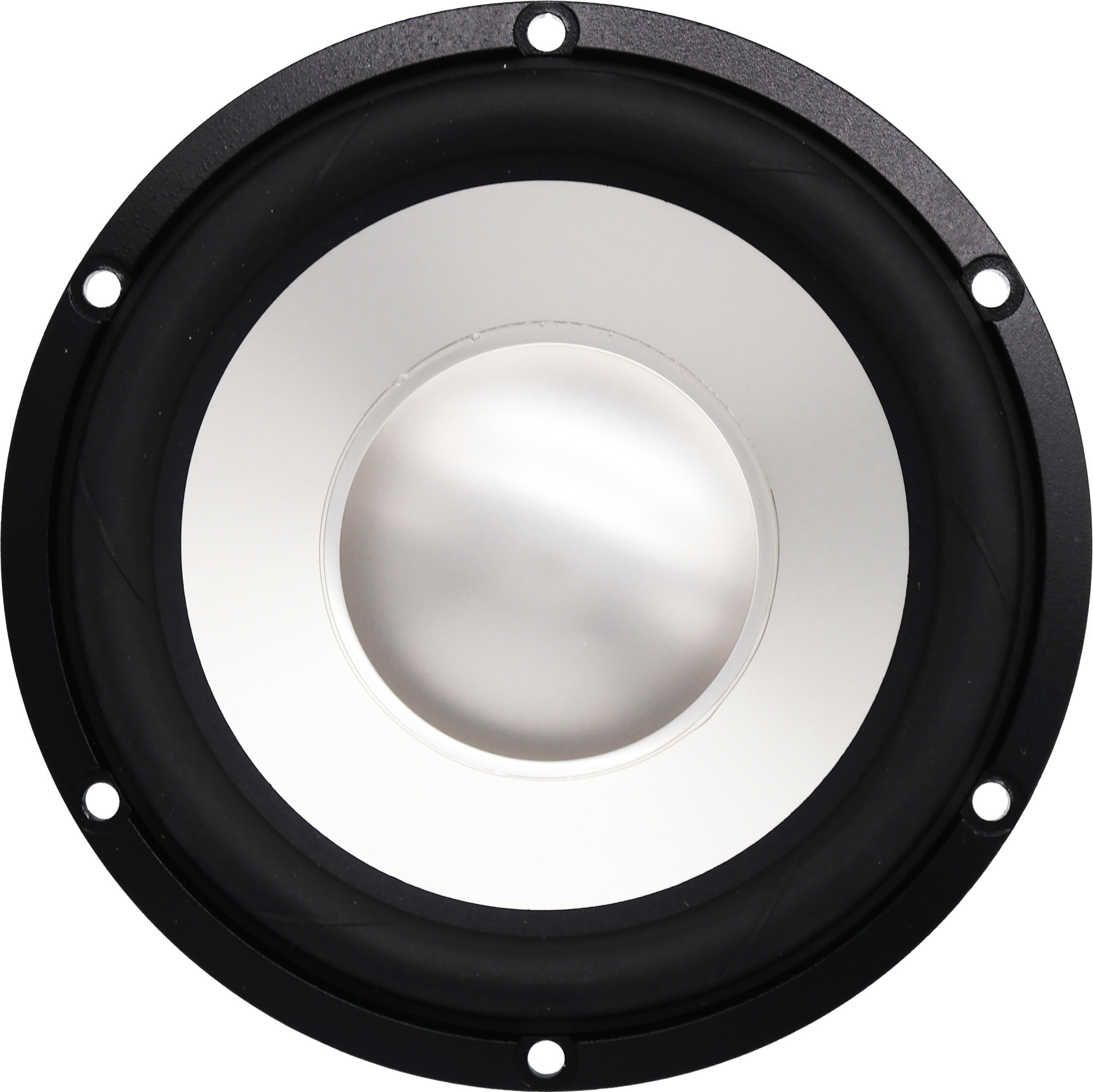

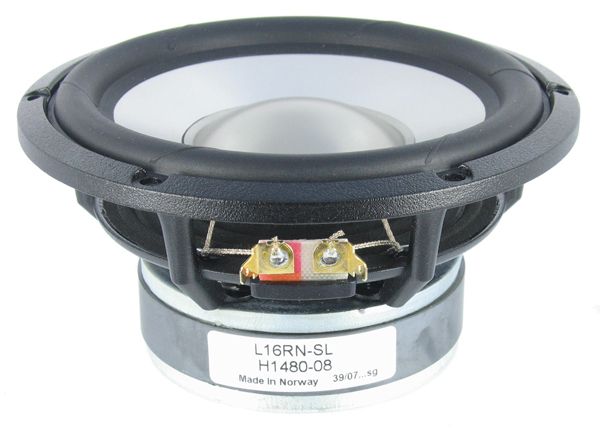

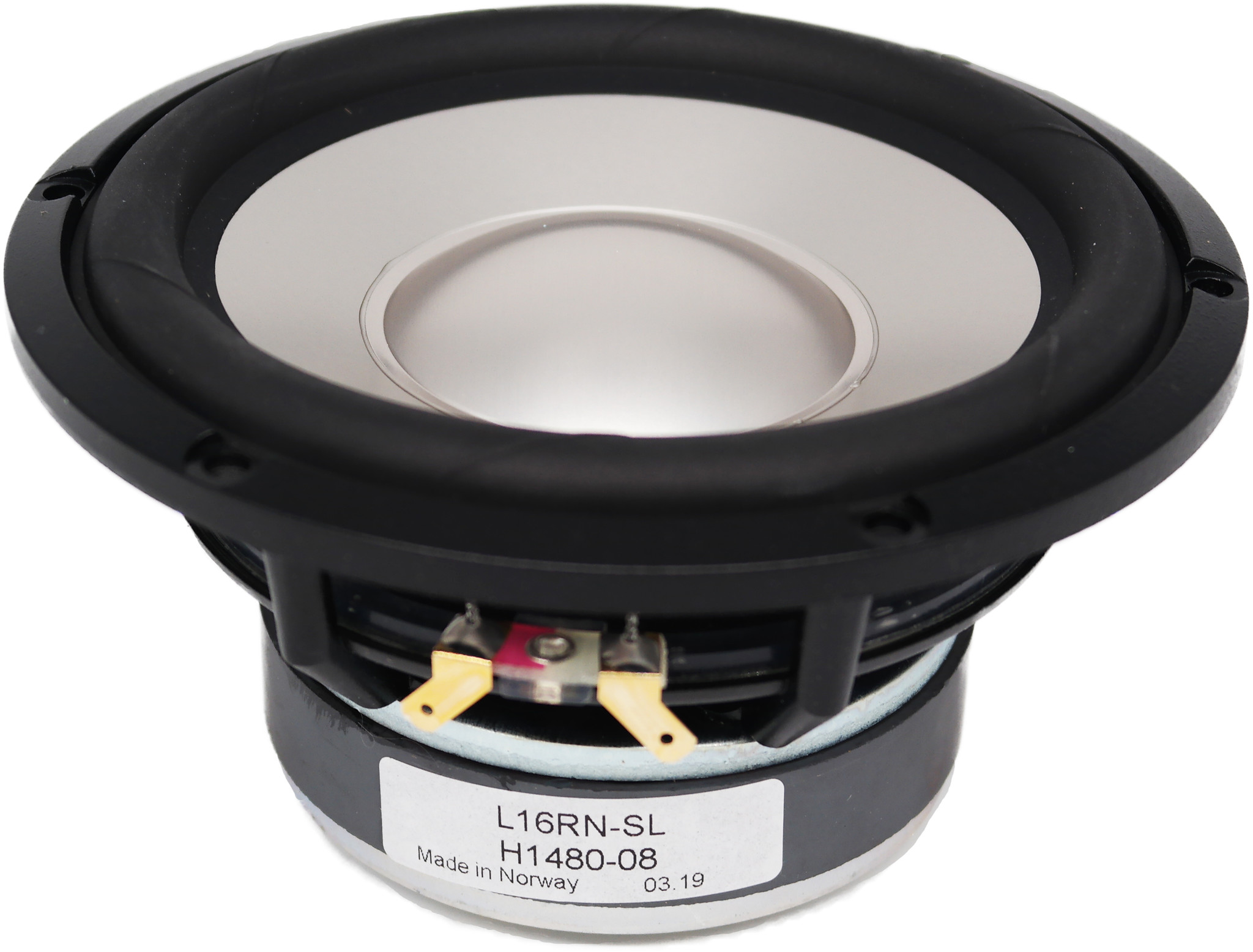

SEAS Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer 8 Ohm

€ 89,95 2 Auf Lager: Lieferzeit 1-3 Werktage
The L16RN-SL is a 5" High Fidelity woofer with an injection molded metal chassis, specially designed in cooperation with Linkwitz Labs in Corte Medera, California. It is specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €85,45 pro stück
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Bezahlung mit PayPal, Kreditkarte und mehr
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but also possible to use in standard bass reflex and transmission line designs
  • Extreme coil excursion with low distortion
  • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



Product details

Seas Prestige L16RN-SL - H1480 5" Aluminum Cone Woofer



The L16RN-SL is a 5" High Fidelity woofer with an injection molded metal chassis, specially designed in cooperation with Linkwitz Labs in Corte Medera, California. It is specified for use in the Linkwitz Pluto and LXmini omni-directional loudspeakers but can also be used in standard bass reflex and transmission line designs.



Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones. A bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. A heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion. Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
L16RN-SL
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
5"
Power Handling (RMS)
80 Watts
Power Handling (max)
250 Watts
Continuous Program Power
-
Impedance
8 ohms
Sensitivity
84 dB 2.83V/1m
Frequency Response
45 to 2,000 Hz
Voice Coil Diameter
39 mm
Magnet Weight
0.42 kg
DC Resistance (Re)
6 ohms
Voice Coil Inductance (Le)
0.64 mH
Resonant Frequency (Fs)
37 Hz
Mechanical Q (Qms)
2.48
Electromagnetic Q (Qes)
0.55
Total Q (Qts)
0.45
Diaphragm Mass Inc. Airload (Mms)
14.7 g
Mechanical Compliance of Suspension (Cms)
1.3 mm/N
Surface Area of Cone (Sd)
104 cm²
Volume of Displacement (Vd)
62.4 cm³
BL Product (BL)
6.1 N/A
Compliance Equivalent Volume (Vas)
19 liters
Maximum Linear Excursion (Xmax)
6 mm
Driver's Mechanical Losses (Rms)
-
Cone / Diaphragm Material
Aluminum
Surround Material
Rubber
Voice Coil Wire Material
Copper-clad aluminum
Voice Coil Former
-
Dual Voice Coil
-
Basket / Frame Material
Injection molded metal
Magnet Material
-
Shielded
-
Overall Outside Diameter
146 mm
Overall Depth
76 mm
Baffle Cutout Diameter
127 mm
Bolt Circle Diameter
137 mm
# Mounting Holes
6
Mounting Hole Diameter
5 mm
Sealed Volume
-
Sealed F3
-
Vented Volume
-
Vented F3
-

Bewertungen

5 from 5Based on 2 reviews
Produkt bewerten
5 van 5
No description was given
Durch Andrew C. on 16 Dezember 2020
5 van 5
Ich nutze den Tieftöner in den LX Minis, die ich gerade fertig gebaut habe. Sie klingen richtig gut und kommen mit Linkwitz Transformation runter auf 50 Hz bei -3 dB in einer geschlossenen Box.
Die Lieferung war wieder extrem schnell, trotz Corona. Danke dafür!
Durch Vinzenz H. on 25 Juni 2020
