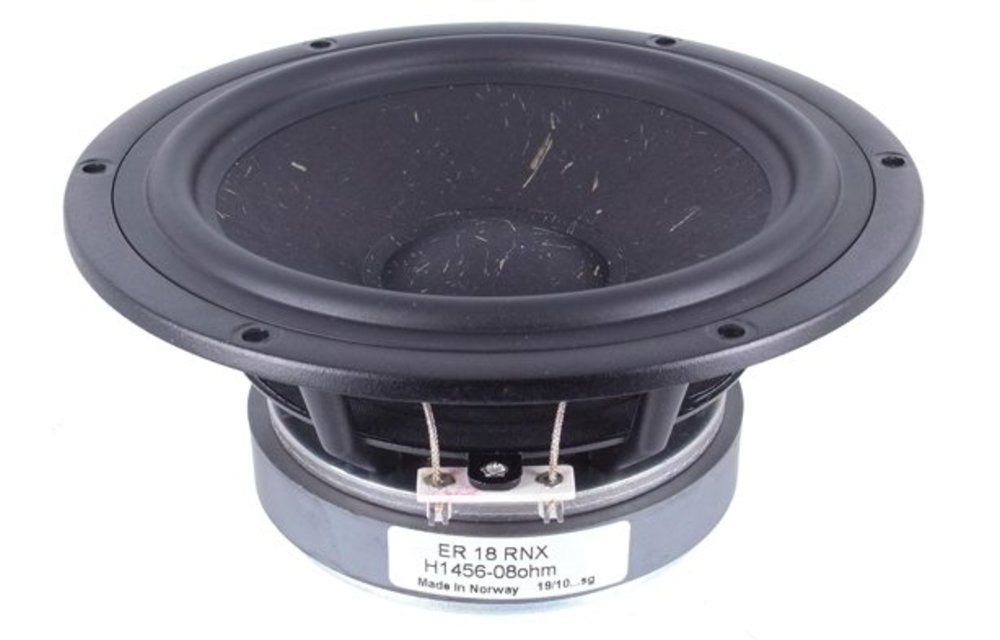

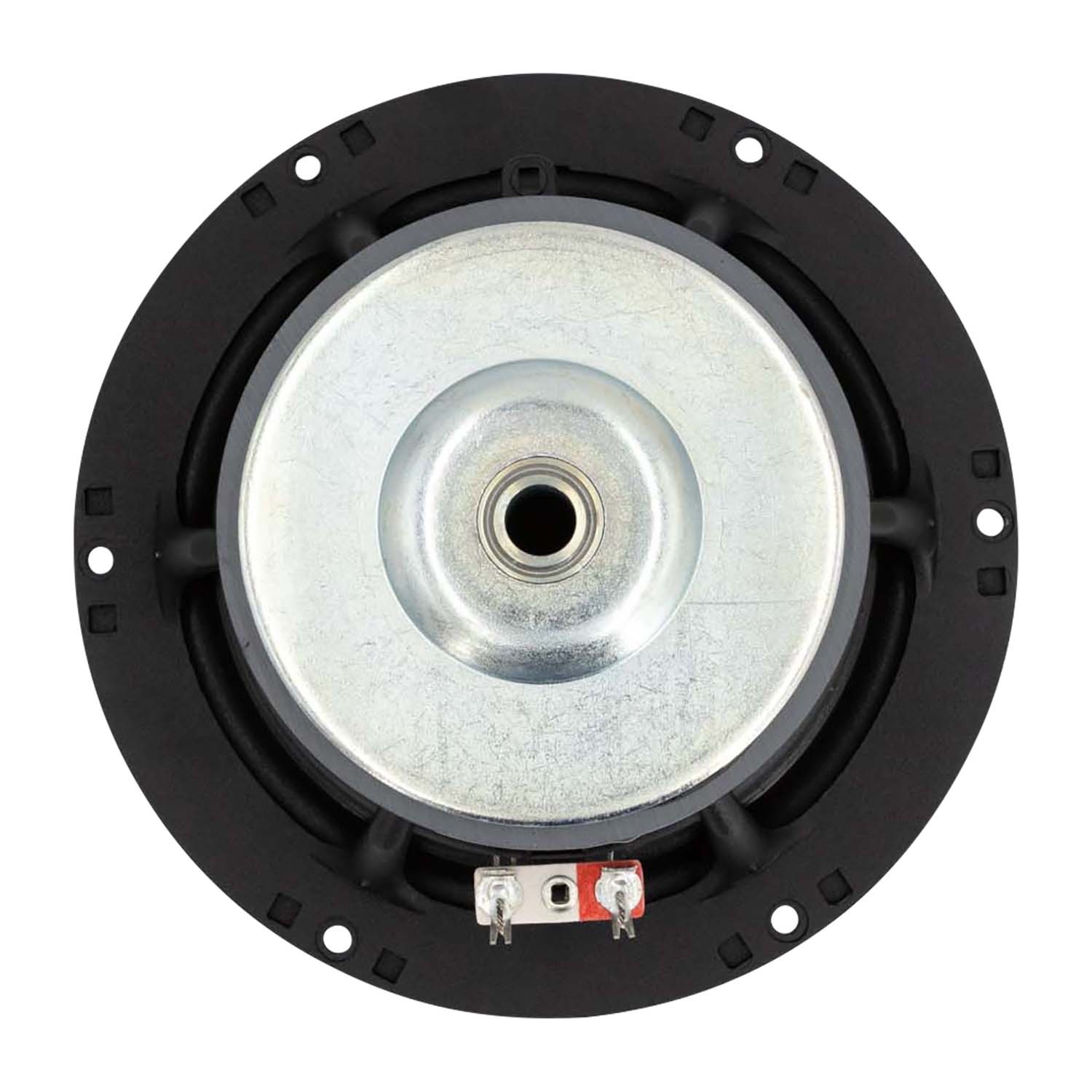

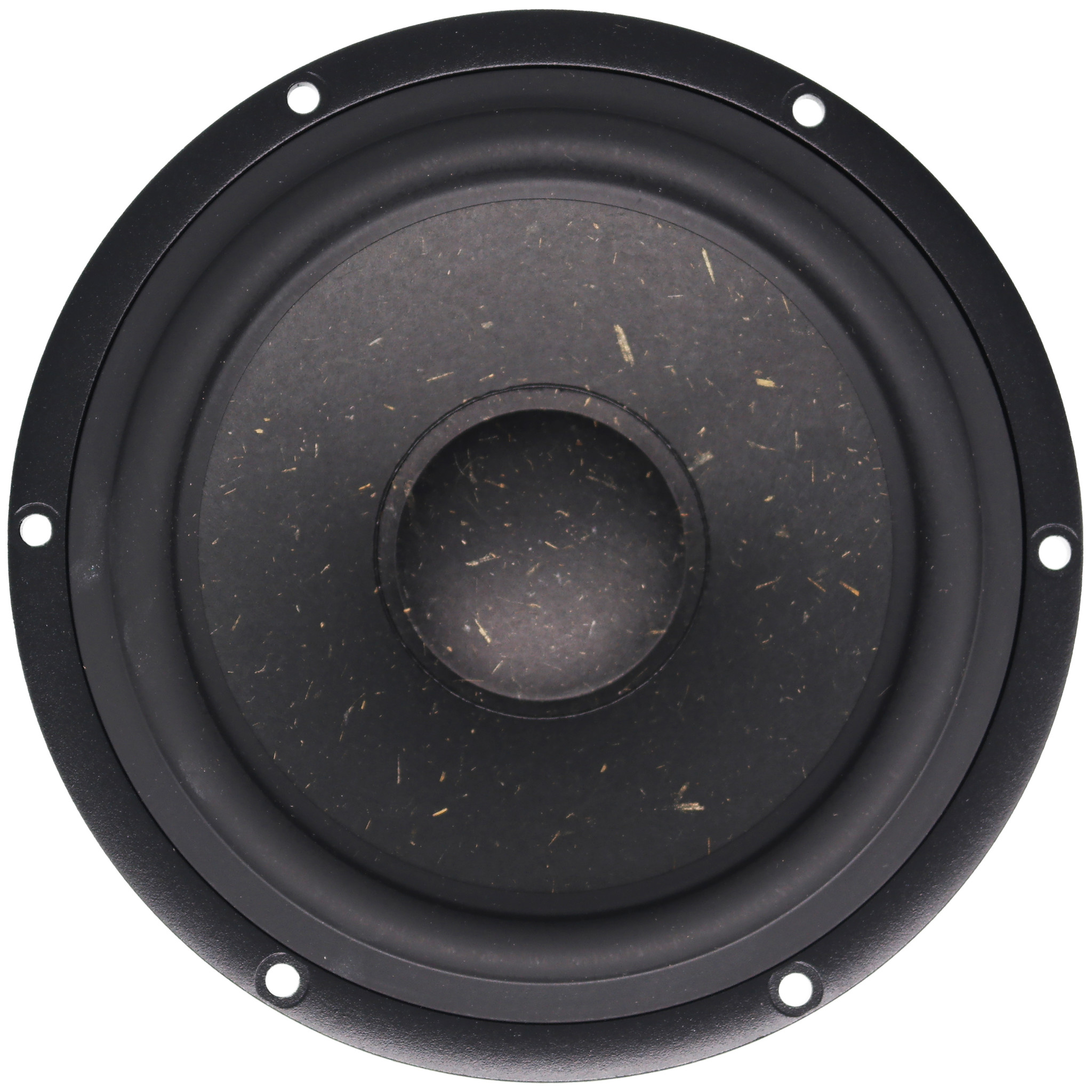

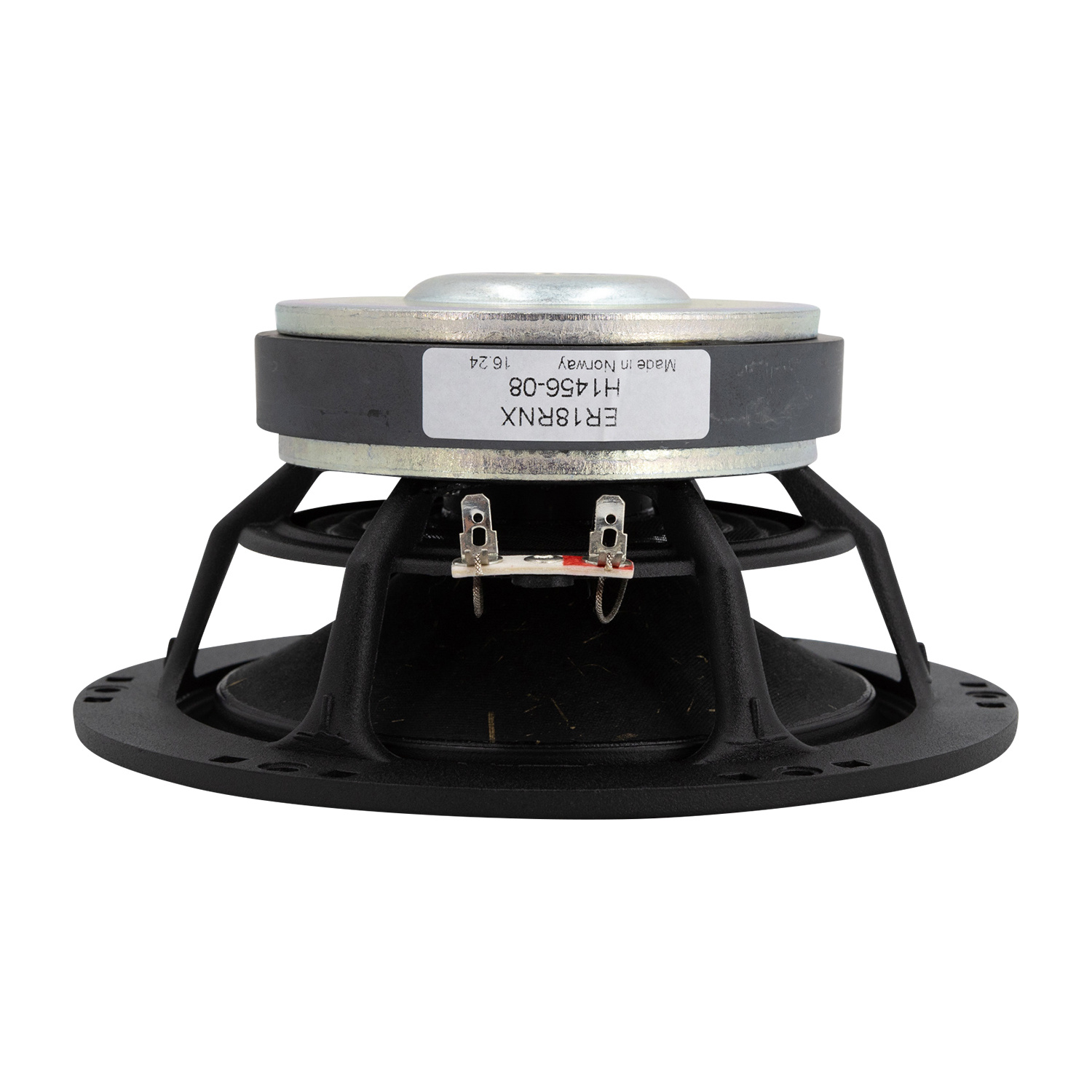

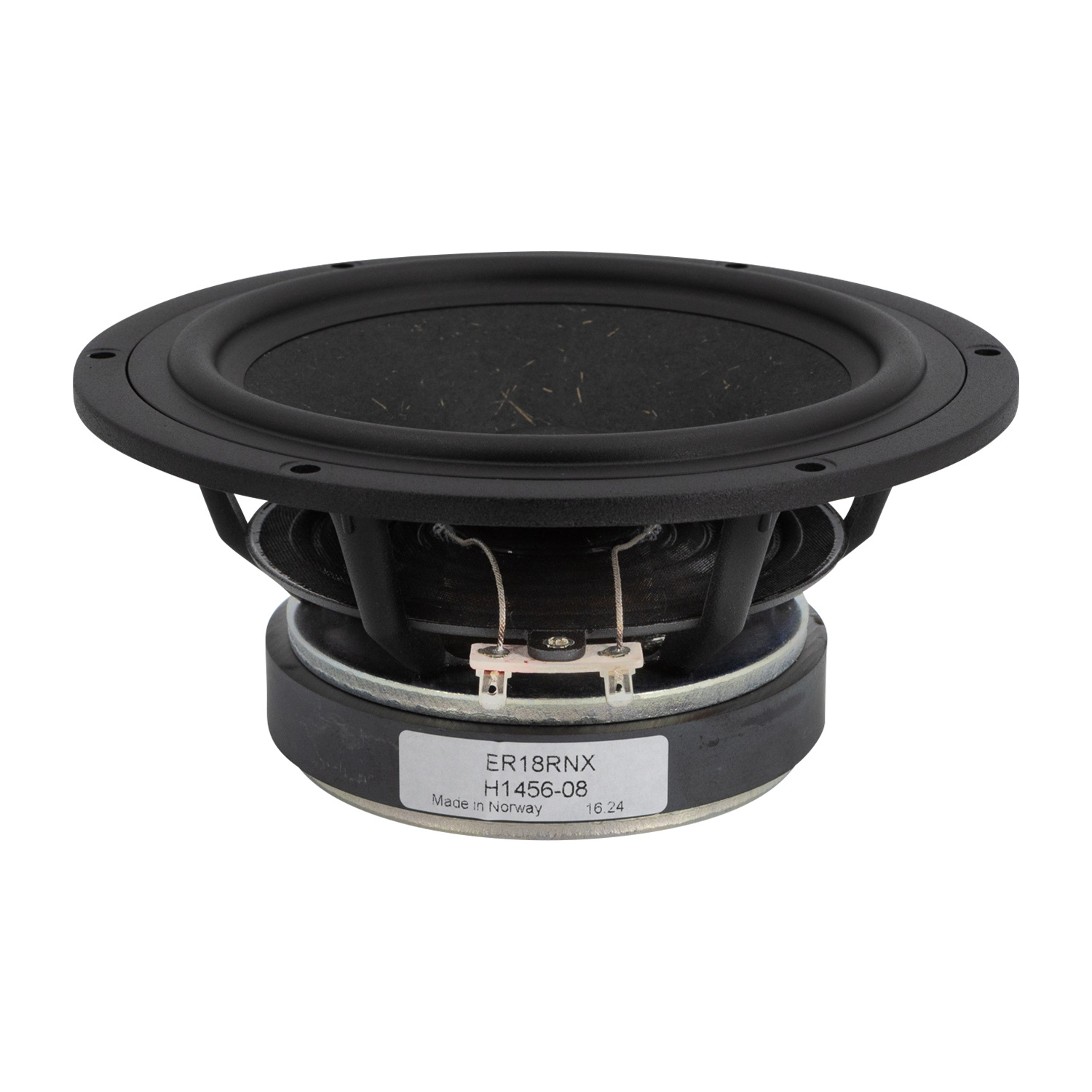

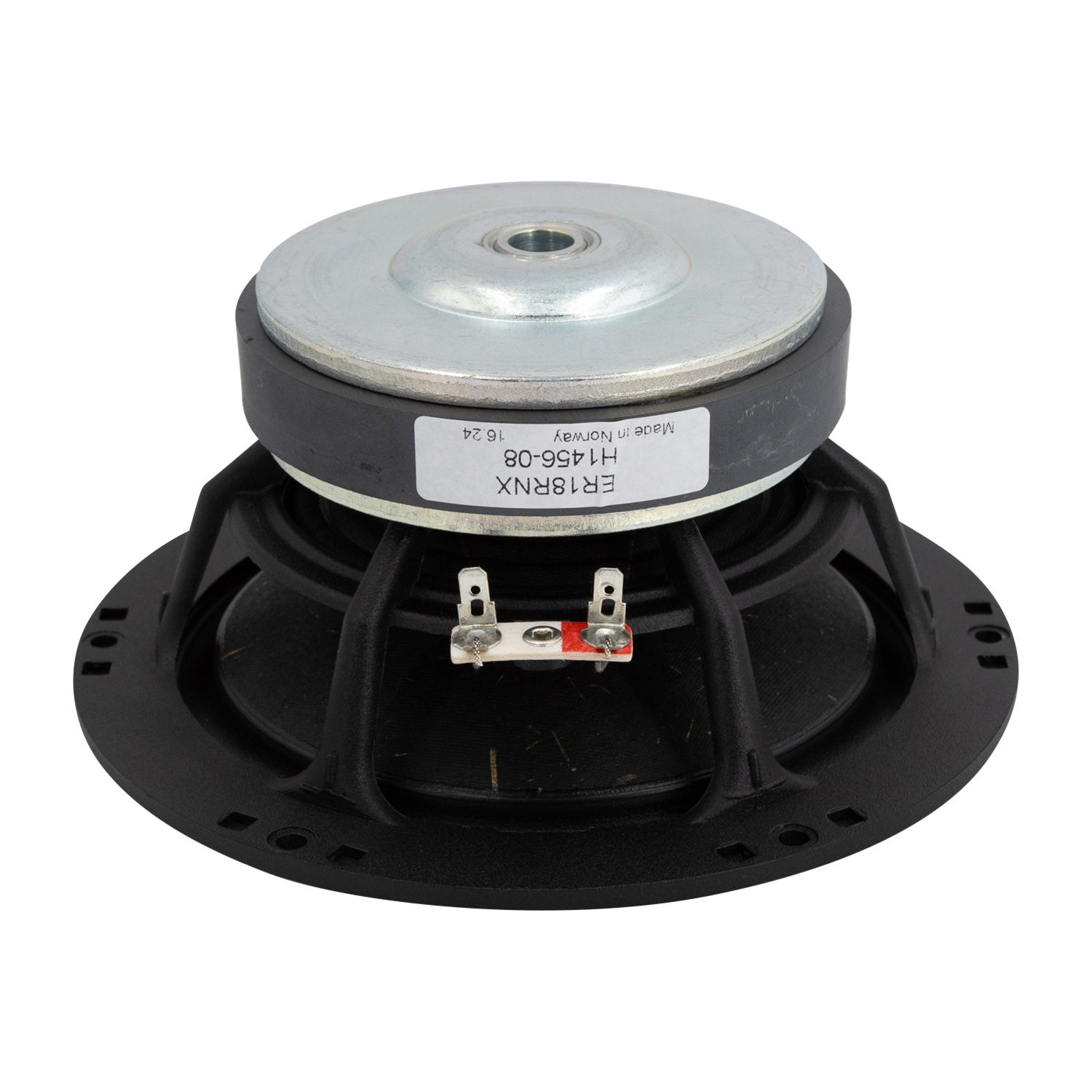

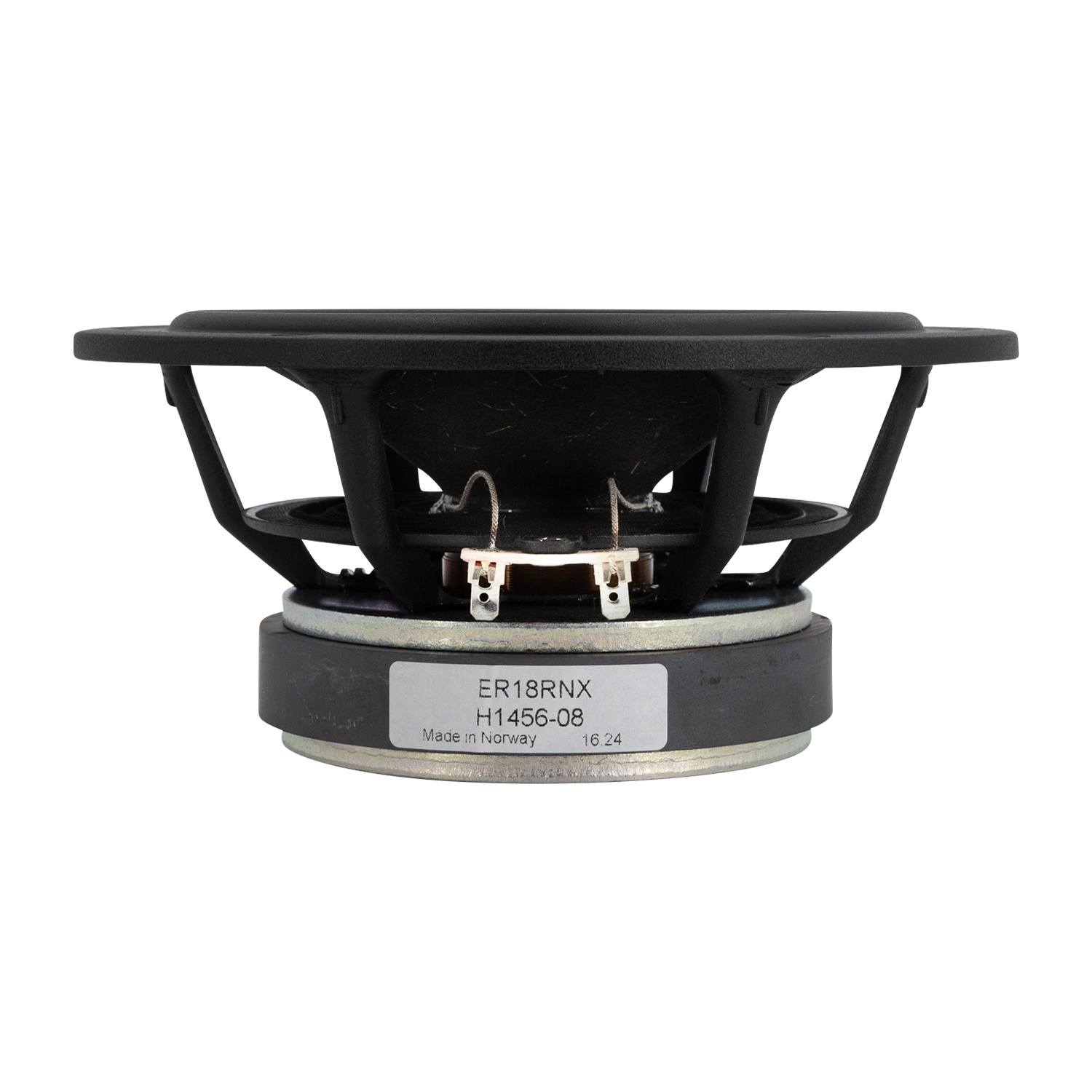

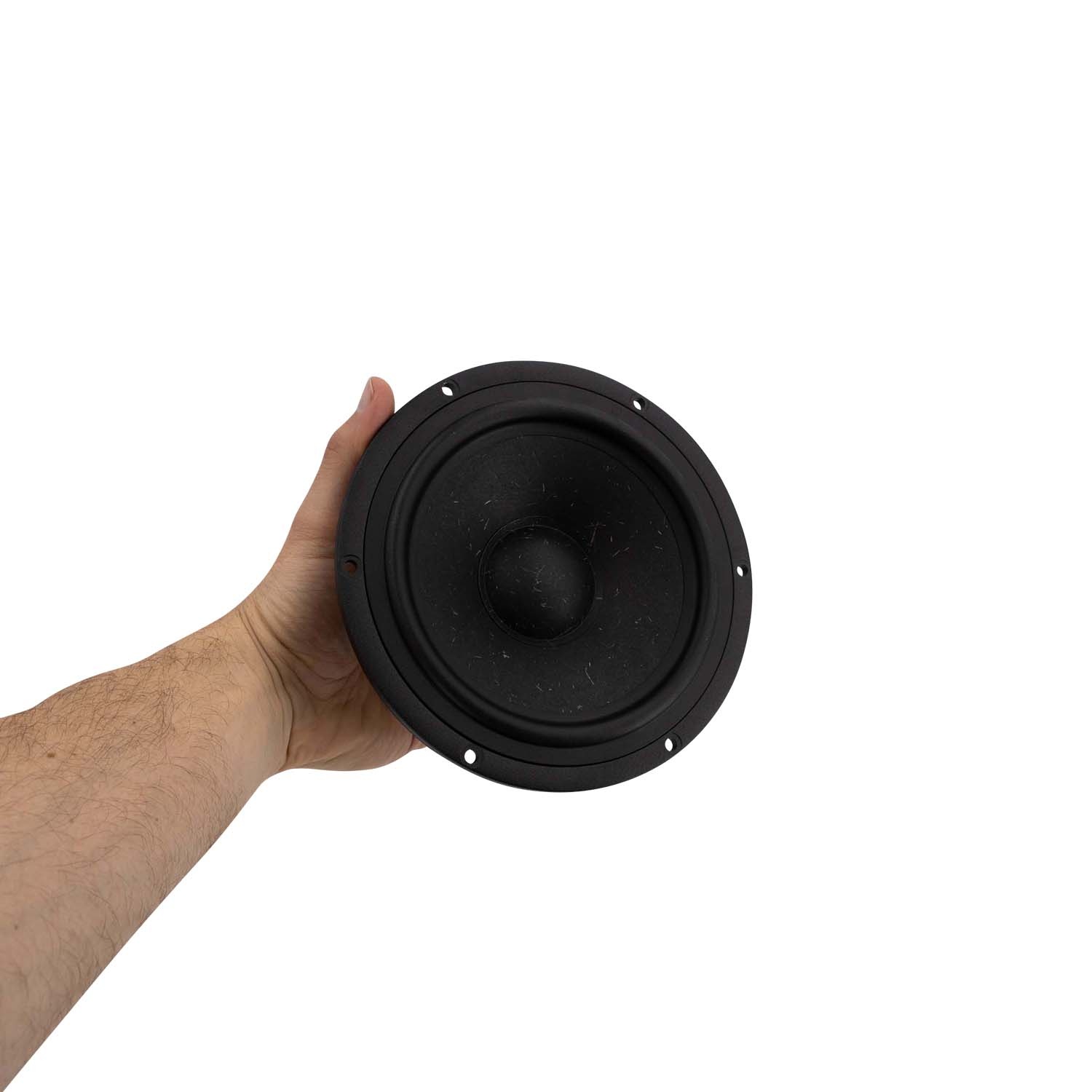

SEAS Prestige ER18RNX-8 - H1456-08 7" Reed Paper Cone Woofer

€ 74,34€ 89,95 8 Auf Lager: Lieferzeit 1-3 Werktage
The ER18RNX is a 6,5’’ cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone together with perfectly matched moving parts gives a smooth, extended frequency response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €85,45 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Long term power handling (RMS) is 80 Watts
  • Smooth, extended frequency response
  • Heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion



Product details

Seas Prestige ER18RNX-8 - H1456-08 7" Reed Paper Cone Woofer



The ER18RNX is a 6,5’’ cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone together with perfectly matched moving parts gives a smooth, extended frequency response.



Bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. Heavy copper ring below the T-shaped pole piece will reduce nonlinear and modulation distortion.



Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
ER18RNX-8
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
7"
Power Handling (RMS)
80 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
88.5 dB 2.83V/1m
Frequency Response
45 to 3,000 Hz
Voice Coil Diameter
1.53"
Magnet Weight
22.5 oz.
DC Resistance (Re)
5.9 ohms
Voice Coil Inductance (Le)
0.67 mH
Resonant Frequency (Fs)
37 Hz
Mechanical Q (Qms)
1.58
Electromagnetic Q (Qes)
0.39
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
14g
Mechanical Compliance of Suspension (Cms)
1.3 mm/N
Compliance Equivalent Volume (Vas)
1.13 ft.³
Maximum Linear Excursion (Xmax)
6 mm
Overall Outside Diameter
6.93"
Overall Depth
3.28"
Baffle Cutout Diameter
5.72"
Bolt Circle Diameter
6.54"
# Mounting Holes
6
Mounting Hole Diameter
0.2"
