SEAS Prestige ER15RLY - H1455 5.5" Reed Paper Cone Woofer

€ 56,57€ 68,45 >10 Auf Lager: Lieferzeit 1-3 Werktage
The ER15RLY is a 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone, together with perfectly matched moving parts gives a smooth, extended frequency response.... Mehr anzeigen
Bulk discount Genießen Sie diese tollen Rabattangebote
  • -5% Kauf 4 für nur €65,03 pro stück
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag*
  • Hausinterner technischer Support

Produktbeschreibung

Highlights

  • Developed for use as a long throw high fidelity woofer or woofer/midrange unit
  • Smooth, extended frequency response
  • Good coil excursion with low distortion and good transient response



Product details

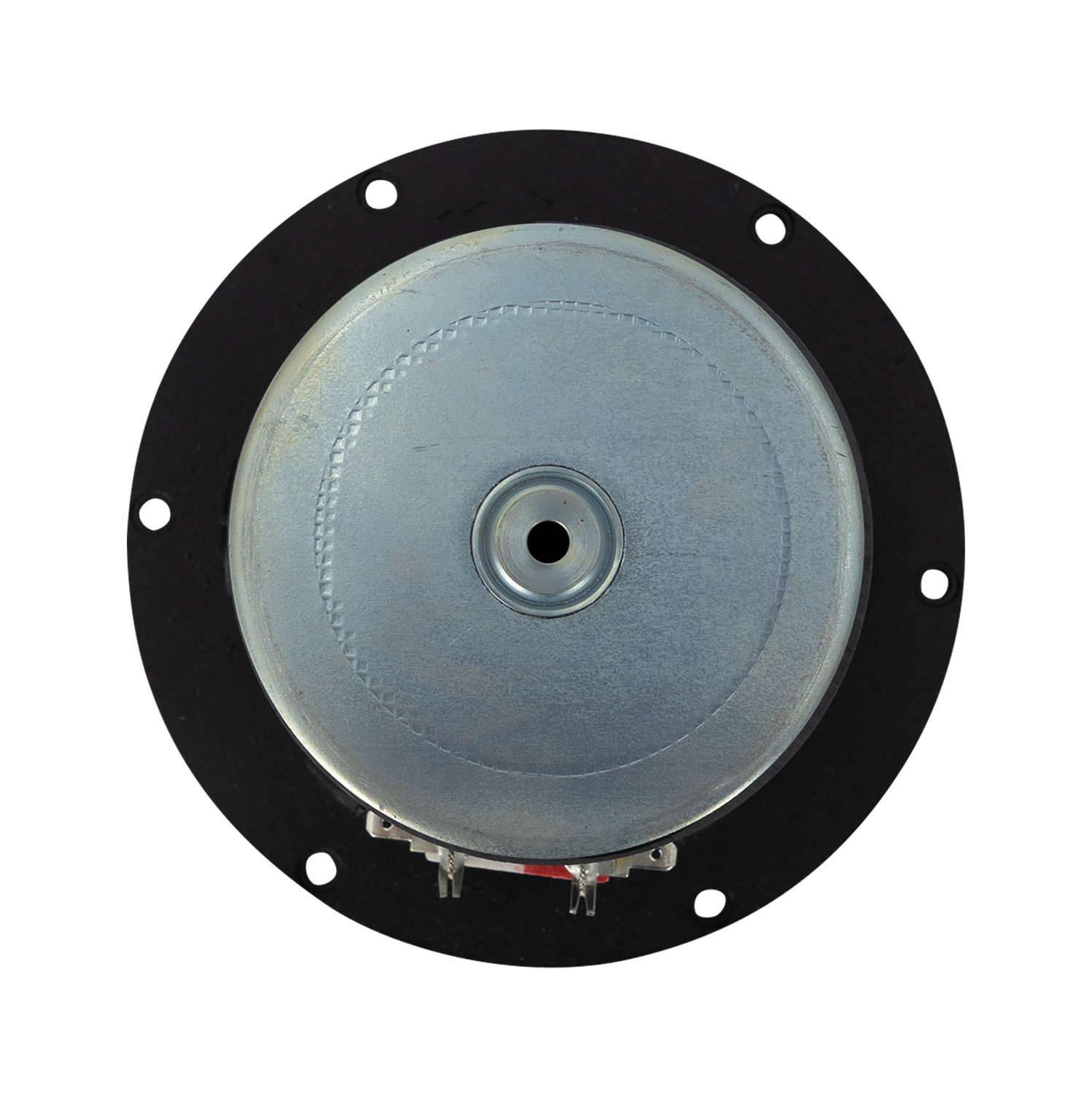

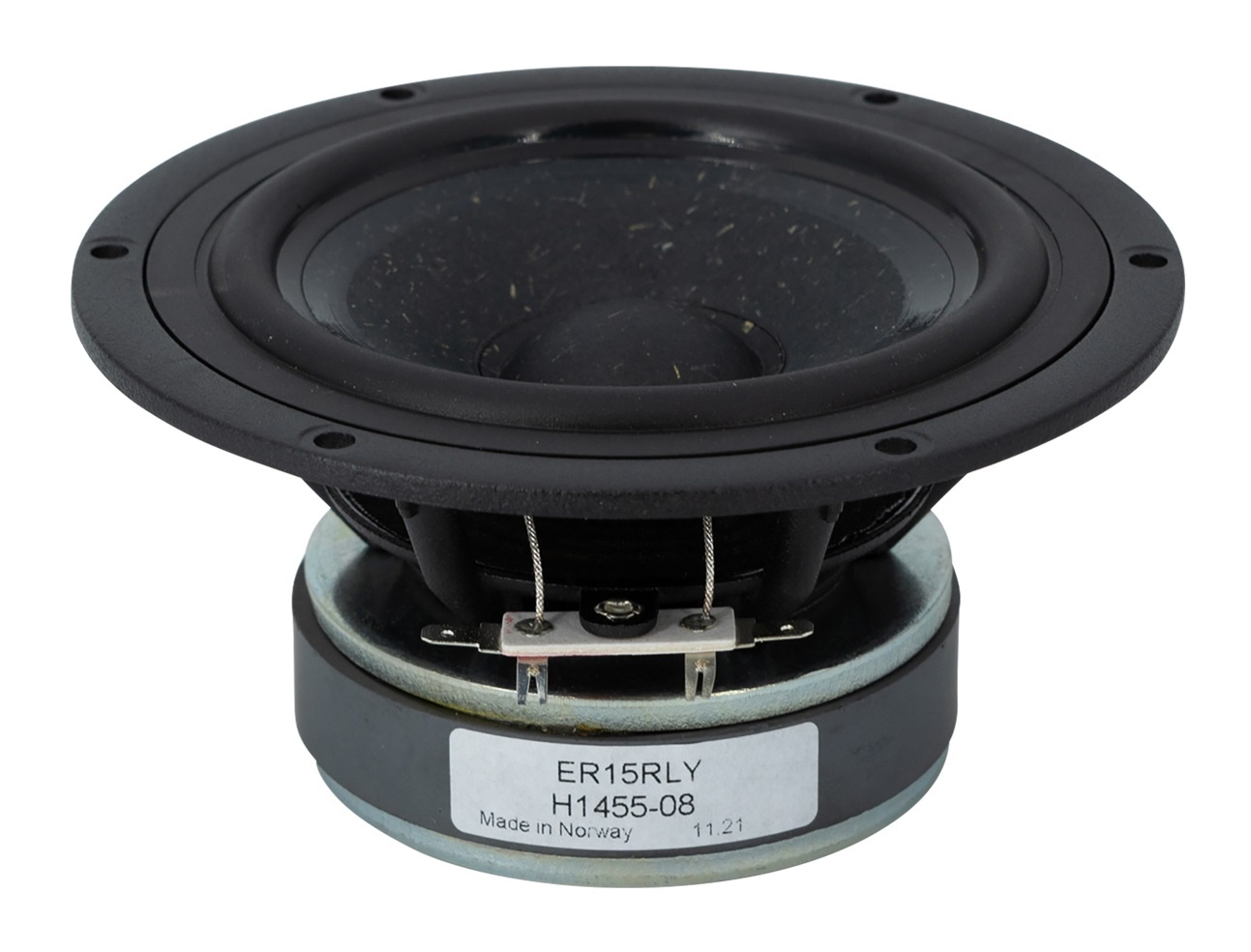

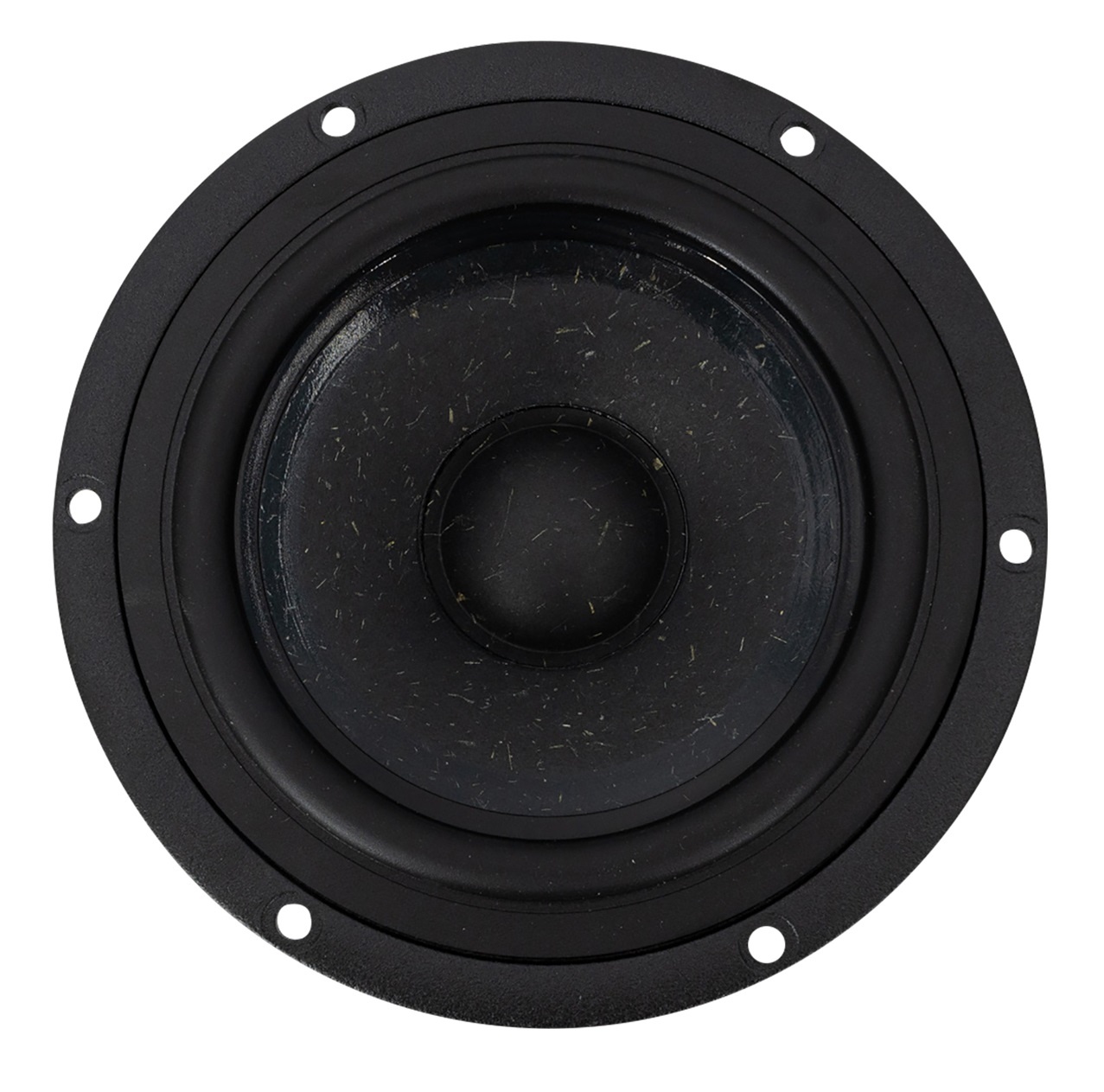

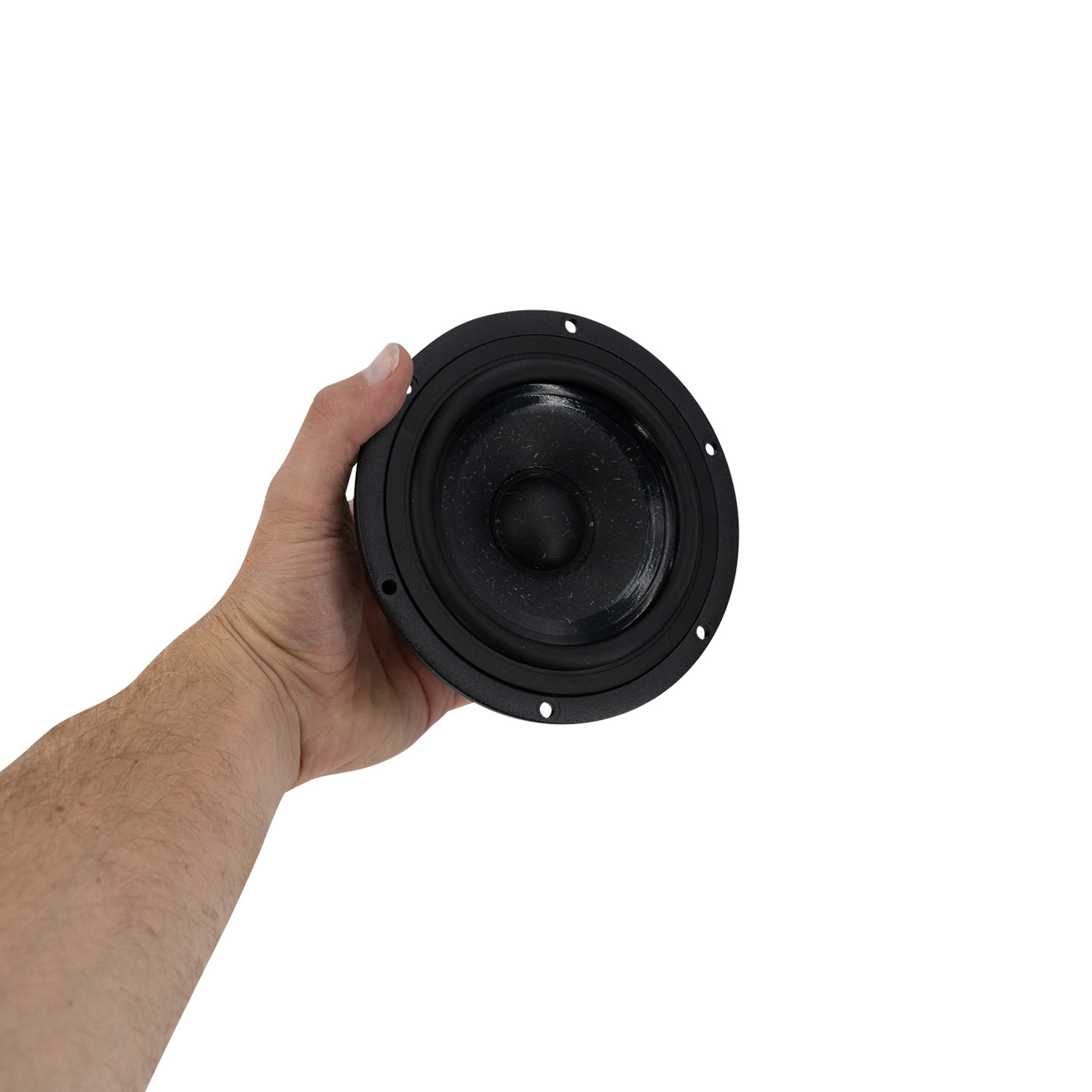

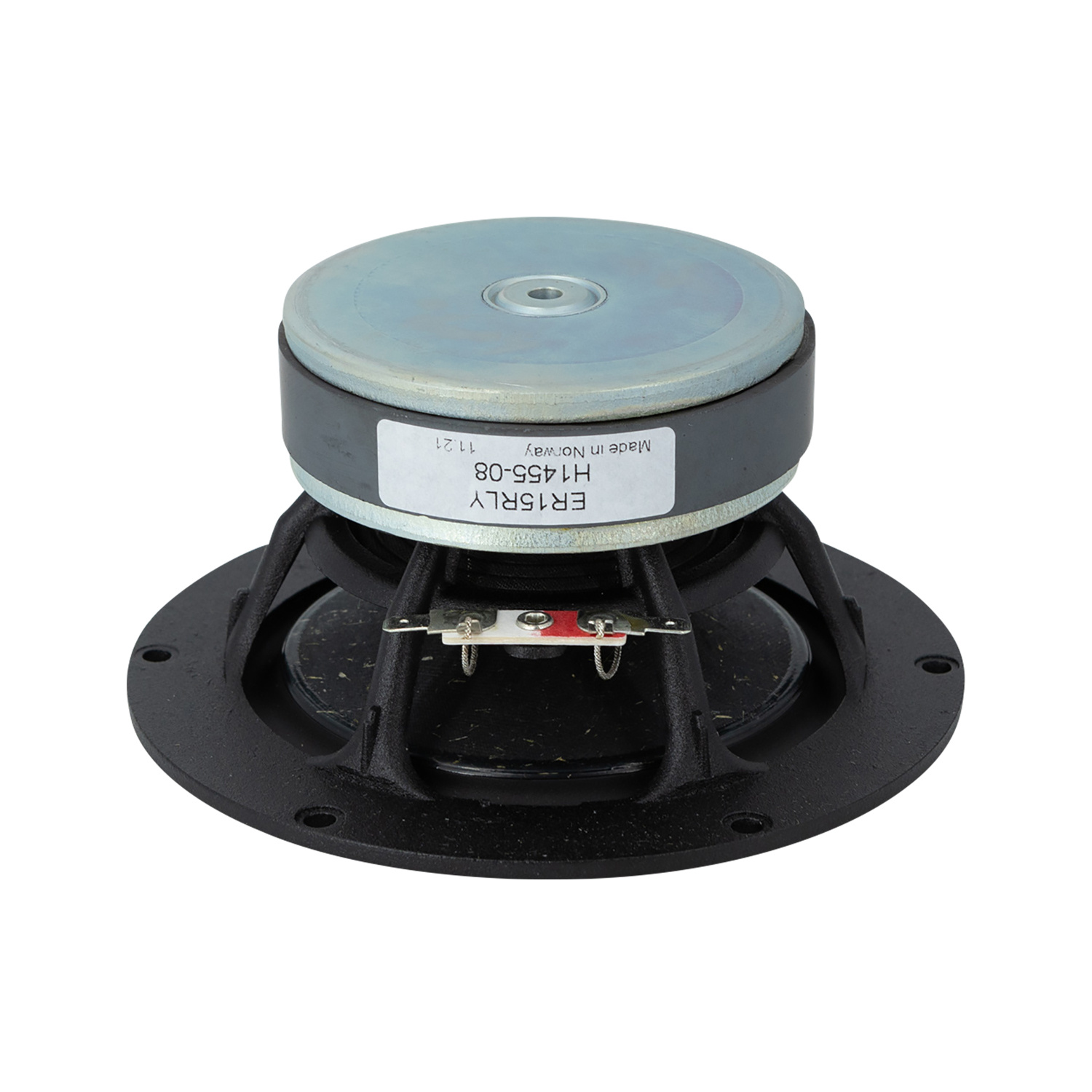

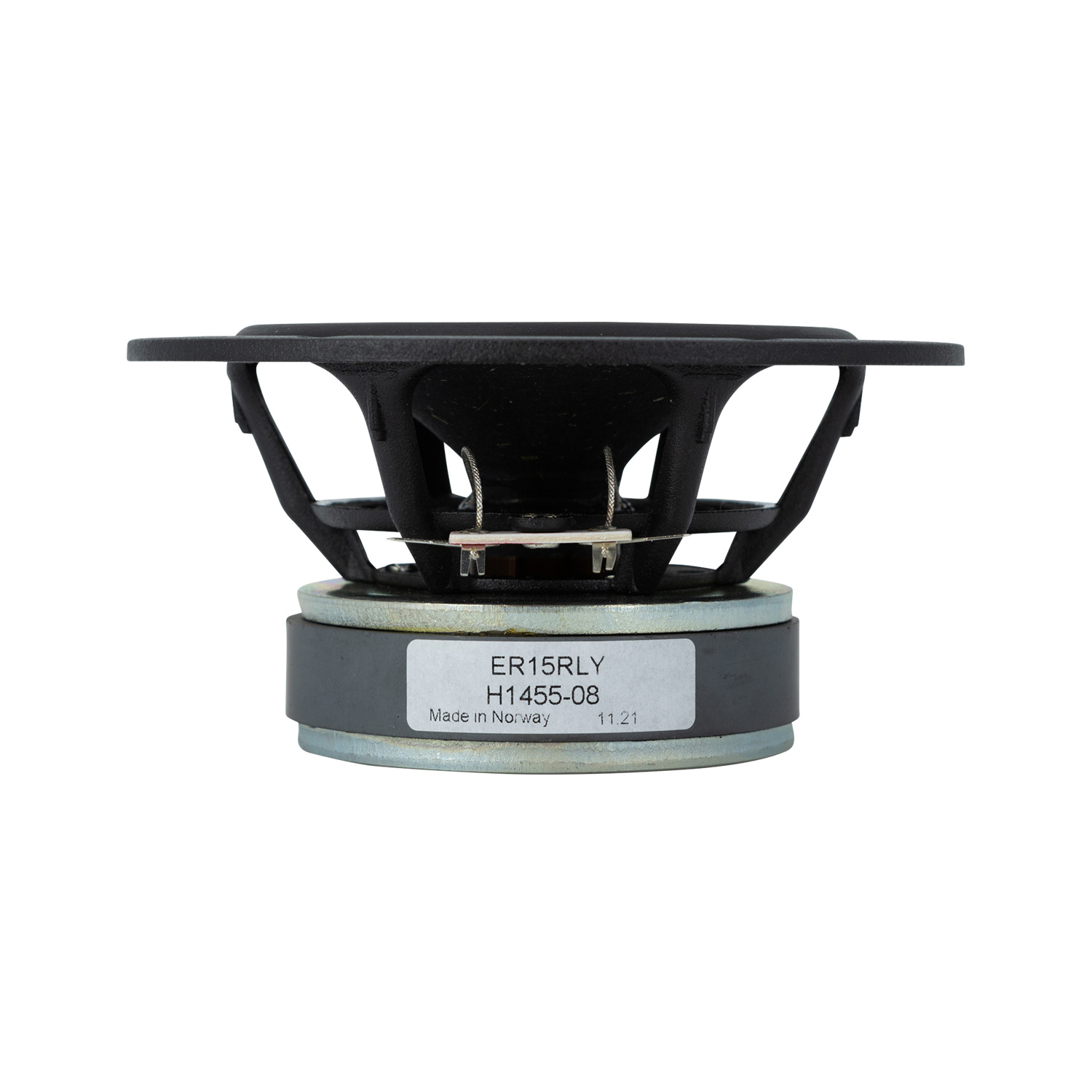

Seas Prestige ER15RLY - H1455 5.5" Reed Paper Cone Woofer



The ER15RLY is a 5" cone driver, developed for use as a long throw high fidelity woofer or woofer/midrange unit. Edge coated reed/paper pulp cone, together with perfectly matched moving parts gives a smooth, extended frequency response.



Large magnet system, together with a very long and light weight copper clad aluminum voice coil allow good coil excursion with low distortion and good transient response. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

Eigenschaften

Artikelnummer:
ER15RLY
Woofer Series
Prestige Series
Woofer Type
Midwoofer
Nominal Diameter
5.5"
Power Handling (RMS)
60 Watts
Power Handling (max)
250 Watts
Impedance
8 ohms
Sensitivity
87.5 dB 2.83V/1m
Frequency Response
50 to 4,000 Hz
Voice Coil Diameter
1"
Magnet Weight
14 oz.
DC Resistance (Re)
5.6 ohms
Voice Coil Inductance (Le)
0.73 mH
Resonant Frequency (Fs)
44 Hz
Mechanical Q (Qms)
1.55
Electromagnetic Q (Qes)
0.41
Total Q (Qts)
0.32
Diaphragm Mass Inc. Airload (Mms)
7.6g
Mechanical Compliance of Suspension (Cms)
1.7 mm/N
Compliance Equivalent Volume (Vas)
0.52 ft.³
Maximum Linear Excursion (Xmax)
5 mm
Overall Outside Diameter
5.75"
Overall Depth
2.82"
Baffle Cutout Diameter
4.41"
Bolt Circle Diameter
5.37"
# Mounting Holes
6
Mounting Hole Diameter
0.2"

Bewertungen

5 from 5Based on 1 reviews
Produkt bewerten
5 van 5
This is not a speaker It's a miracle.<br />
It sounds amazing as full range, ok it has not enough high frequencies, but everything comes out from this speaker is wonderfull.<br />
I bought this speaker by mistake, but now I know I'm a lucky guy.<br />
I'm going to build a great bookshelf in union with the Audio Note silver tweeter.<br />
As always Seas proves his value. 10+++++
Durch Bruno P. on 16 Juni 2020
